Model No: HOUKEM-5088-A/BRGB

square or round dots 8x8 rgb led dot matrix module with 7.62mm pitch

led dot matrix display houkem is dot matrix led display professional manufacturer
minimum order :
1 piece
Country of Origin :
Shenzhen/guangzhou
Quantity :
$1.94 - $1.96 / piece
add to cart
Contact Now
  • Application:RGB led screen, advertising,game player
  • Color:RGB
  • Panel Size:60.2*60.2mm
  • Pixel Pitch:7.62
  • Place of Origin:Guangdong, China
  • Model Number:KEM-5088-A/BRGB
  • Brand Name:KEM
  • Screen Dimension:60.2x60.2mm
  • Tube Chip Color:FULL COLOR
  • Light Source:Epistar
  • Dot Diameter:5 mm
  • Emitting Color:RGB
  • Warranty:2 years
  • Brightness:300-500mcd
  • Certificate:ROHS
  • Dot shape:square or round
Product Description

Specifications for 8x8 rgb led dot matrix with 7.62mm pitch

Part No.KEM-5088-ARGB
Array8*8
Diameter5mm or 6mm
Display size60.2*60.2mm
Emitting colorfull color
Wavelength625nm/515nm/460nm
Luminous intensity300-500mcd
Surface colorblack
Expory colorMilk diffusion
Pitch size5.0 or 6.0

Advantage/Feature of 8x8 rgb led dot matrix with 7.62mm pitch

1. High luminous intesity output

2. Low voltage and current operation

3. Ultra-low power consumption

4. Solid-state LED chip based

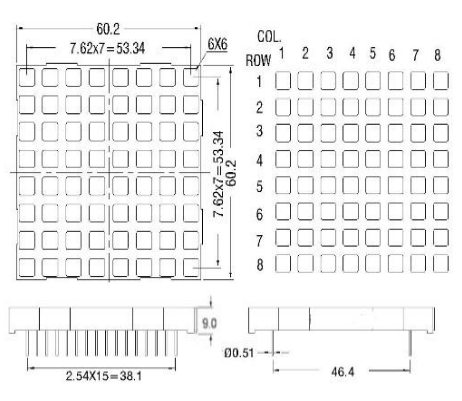

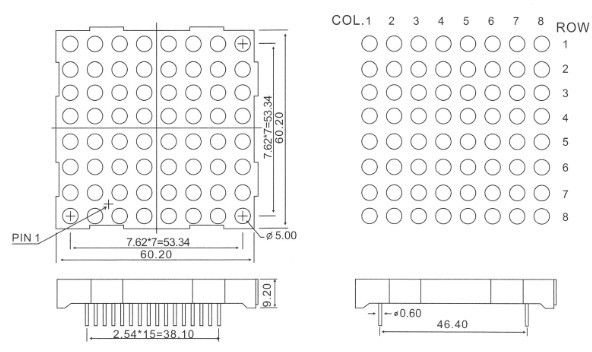

Package dimension of 8x8 rgb led dot matrix with 7.62mm pitch :

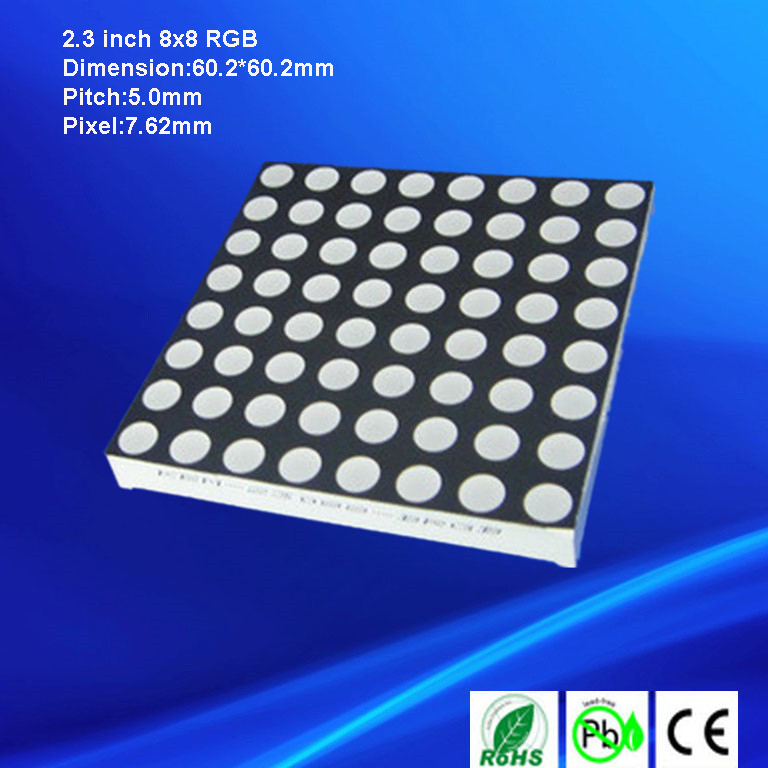

Option 1:Round dots

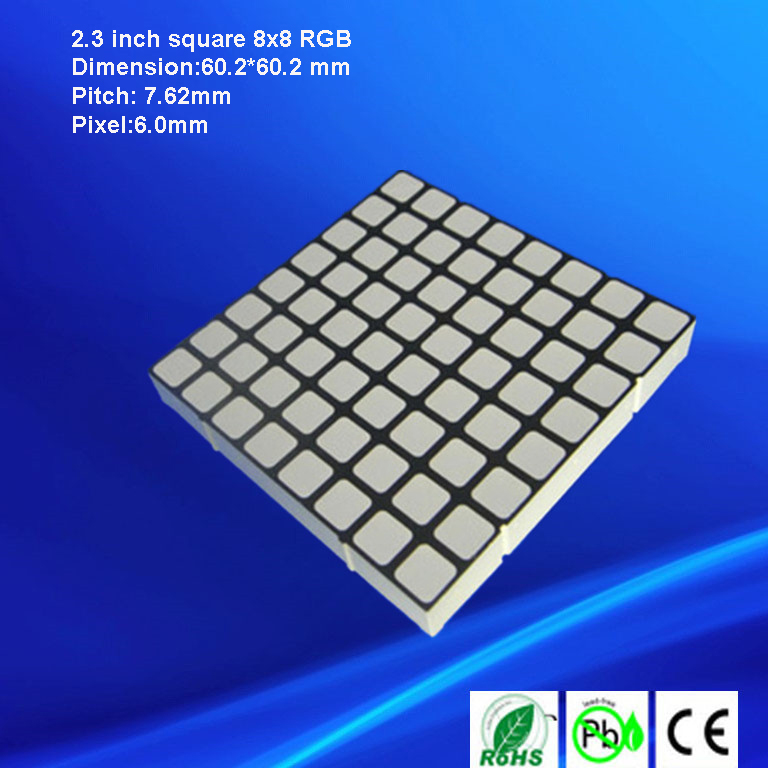

Option 2: Suqare dots

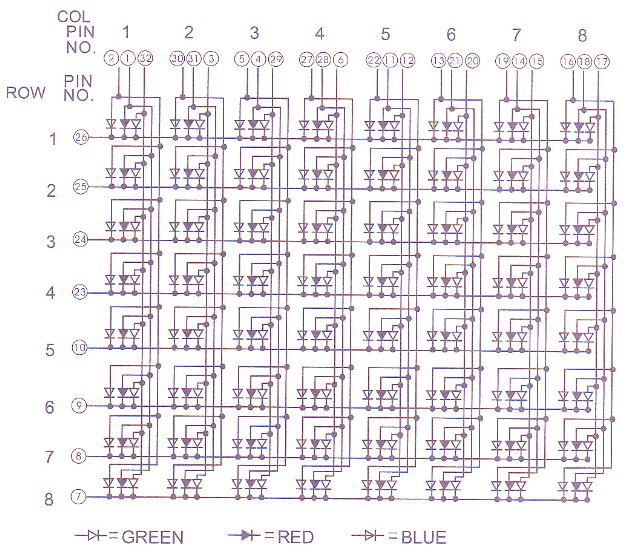

Circuit diagram of 8x8 rgb led dot matrix with 7.62mm pitch

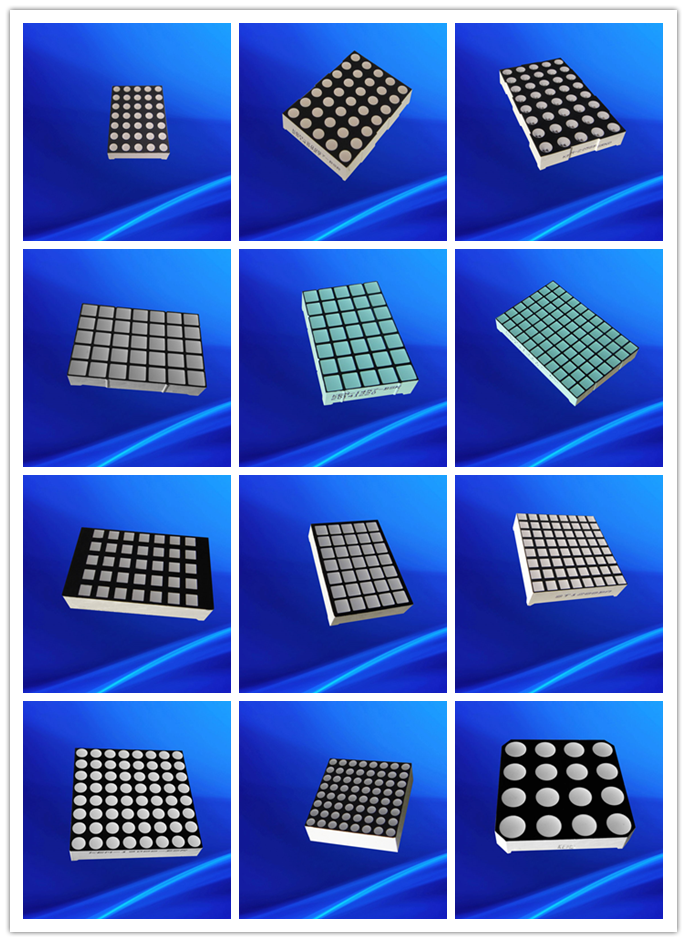

Pictures in detail of 8x8 rgb led dot matrix with 7.62mm pitch :

1, 8x8 rgb led dot matrix series--Water clear epoxy, all color are available

2,8x8 rgb led dot matrix series ---White diffusion epoxy, all color are available

Related Products
You can click below photos to view more details:

Are you looking for more?

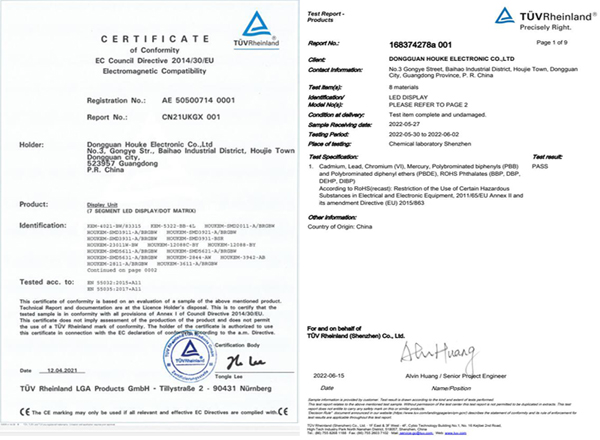

Certifications

Warranty

We promise:2 years of warranty,any quality problems caused by us,we can return or

replace the goods.

All of our products

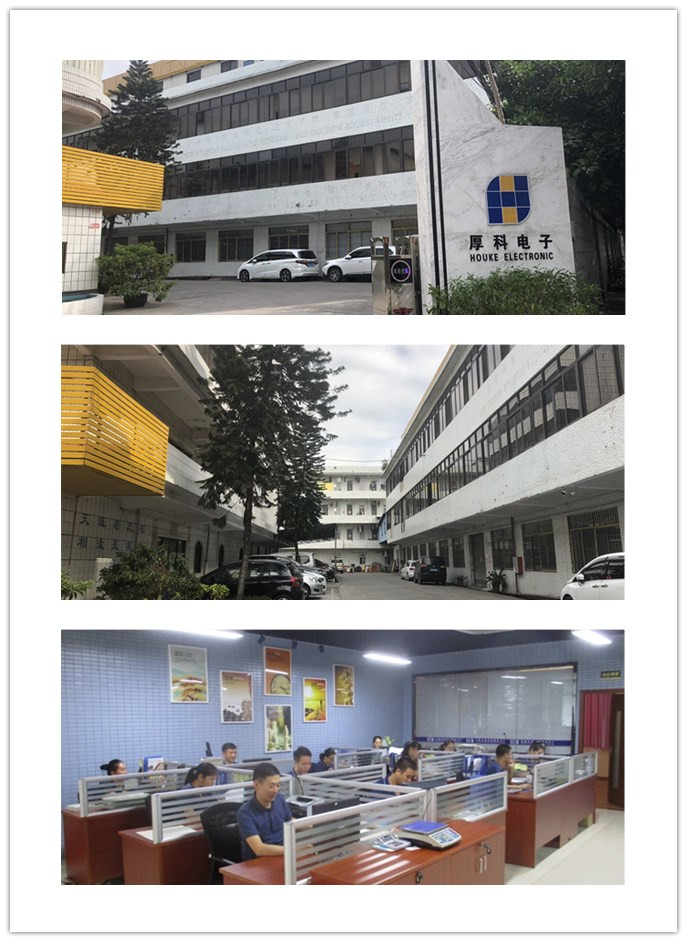

Company Information
