RGB led matrix 8x8 full color 5mm led dot matrix display cathode 60.2x60.2mm HOUKEM-23088-ARGB
- Application:Indoor, elevator, game machine, running machine, Indoor
- Color:RGB
- Panel Size:60.2*60.2MM
- Pixel Pitch:2.54
- Supplier Type:Original manufacturer, ODM, OEM
- Media Available:datasheet, Photo
- Place of Origin:Guangdong, China
- Model Number:HOUKEM-23088-ARGB
- Brand Name:HOUKEM
- use:advertising publish, shopping mall, exhibition hall, subway, elevator, Restaurant & Hotel Supplies
- Pixels:2.54
- Specification:--
- Screen Dimension:60.2*60.2*9.2mm
- Product name:8*8 led matrix display
- Warranty:2Years
- Forward Voltage:R:1.8-2V G/ B: 2.8-3V
- PCB Polarity:common cathode
- operating temperature:-35 ~ +50 ℃
- OEM:YES
- Custom made:YES

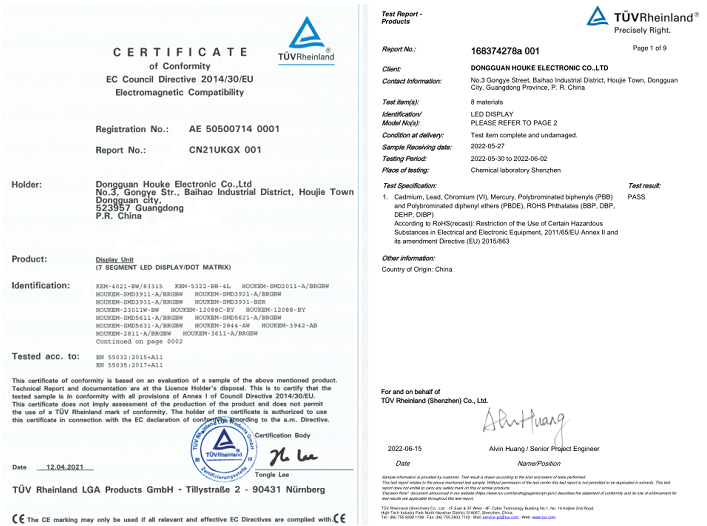

- Certificate:CE ROHS ISO9001 Reach

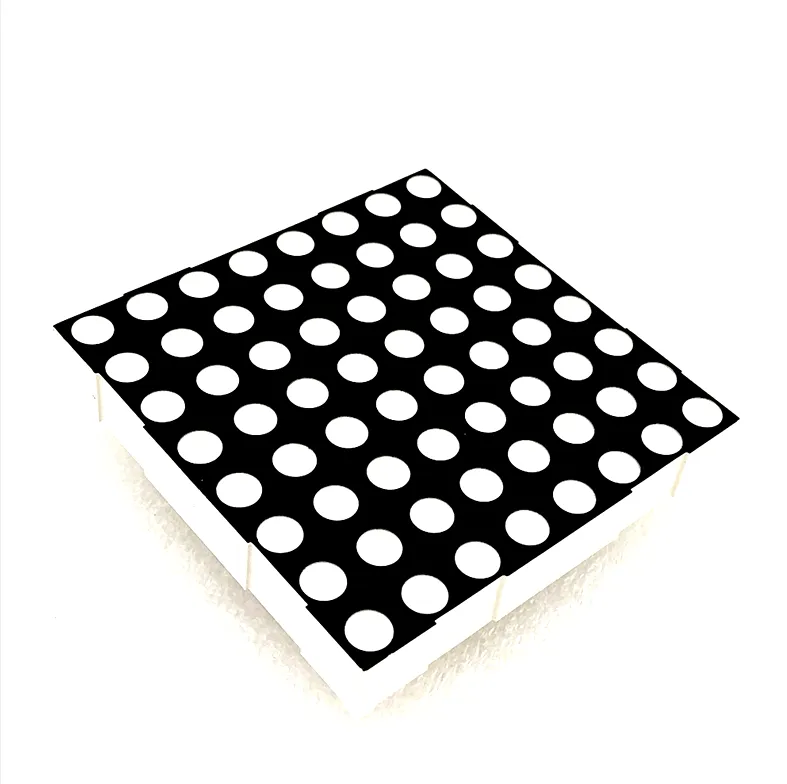

5 mm dot led matrix display 60.2*60.2*9.2mm rgb led matrix
Product details:
HOUKEM-23088-ARGB-----common cathode CC
HOUKEM-23088-BRGB-----common cathode CA
| Item No. | HOUKEM-23088-ARGB |
| Dimension | 60.2*60.2*9.2mm |
| dot | 5mm |
| Surface color | Black / Grey |
| Segment color | White /Clear |
| Emitting color | RGB(300mcd) |
Features:
1, Low power consumption
2, High brightness
3,High intensity and reliability
4,Easy assembly

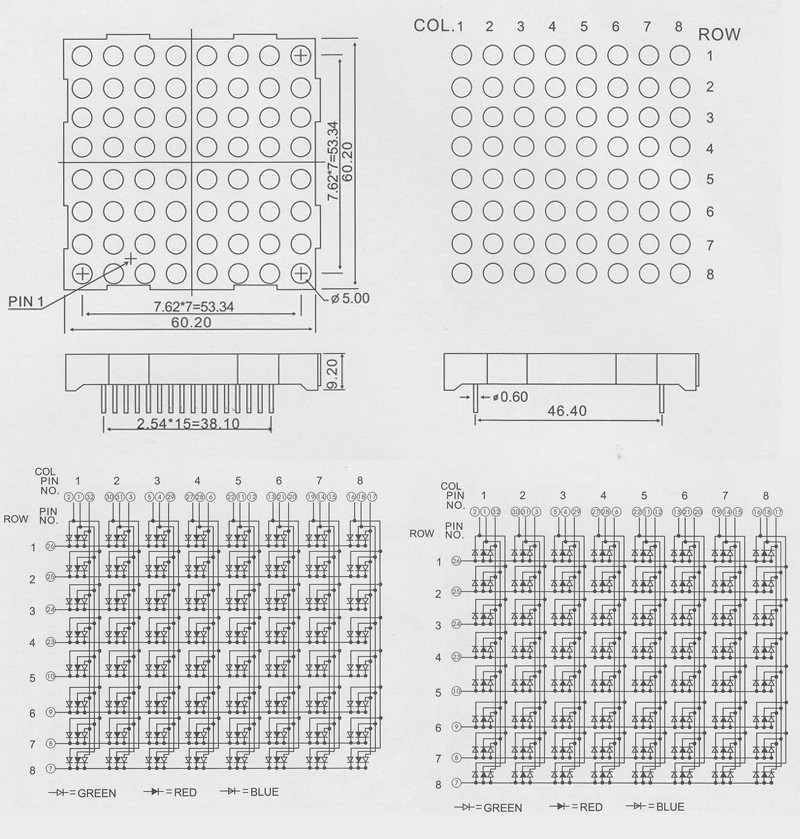

Package dimension & Internal circuit diagram
Features:
1, Low power consumption
2, High brightness
3,High intensity and reliability
4,Easy assembly
Color Code & Chip characteristic PER CHIP: (Test Condition: IF=15Ma)
Emitting Color | Test Condition | Wavelength(nm) | Forward Voltage(V) | Luminous Intensity (mcd) | |||
(λp) | λ | Typ | Max | Typ | Max | ||
Amber | IF=15mA | 600-605 | 30 | 1.9 | 2.0 | 90 | 100 |
Super green | IF=15mA | 565-575 | 30 | 1.9 | 2.0 | 48 | 55 |
Super red | IF=15mA | 620-625 | 20 | 1.8 | 2.0 | 110 | 130 |
Ultra red | IF=15mA | 620-625 | 20 | 2 | 2.1 | 300 | 350 |
High red | IF=15mA | 638-660 | 20 | 1.8 | 1.9 | 15 | 20 |
Yellow green | IF=15mA | 570-580 | 30 | 1.9 | 2.0 | 43 | 50 |
Yellow | IF=15mA | 580-600 | 35 | 1.9 | 2.0 | 70 | 80 |
Blue | IF=15mA | 465-475 | 40 | 2.95 | 3.0 | 150 | 200 |
ultra blue | IF=15mA | 467-469 | 40 | 2.9 | 3.0 | 360 | 385 |
Pure green | IF=15mA | 515-525 | 40 | 2.95 | 3.0 | 600 | 640 |
White | IF=15mA | - | - | 2.8 | 3.0 | 180 | 200 |

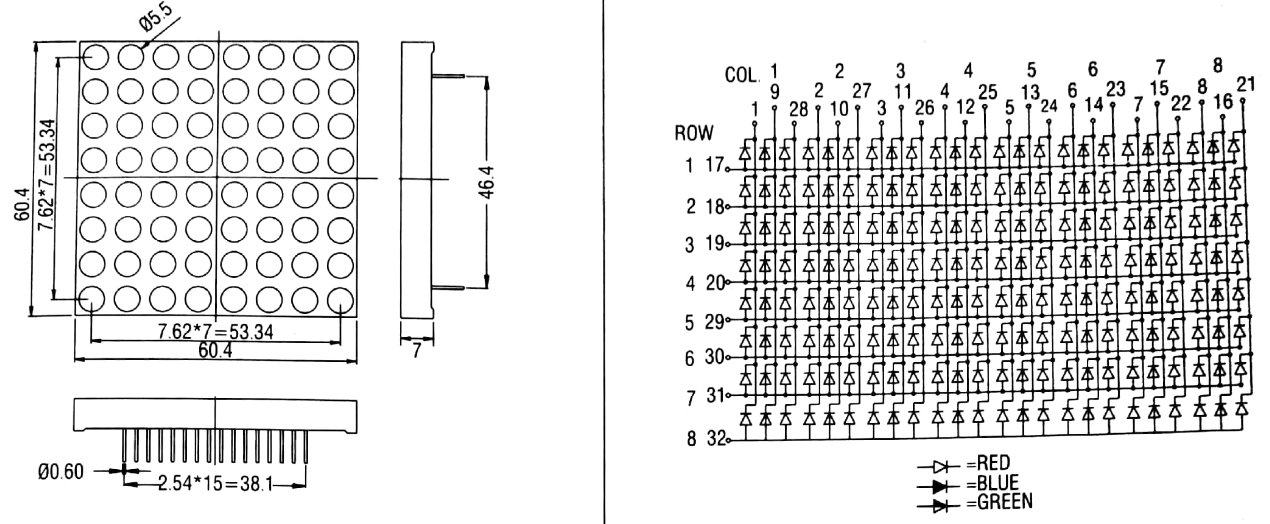

other type(60.4*60.4*7mm)
