Model No: HOUKEM-51616-BRGB
16x16 LED matrix display 49*49mm 16*16 rgb dot matrix
led dot matrix display houkem is led dot matrix display professional manufacturer
Delivery :
FOB
minimum order :
100
Quantity :
USD12.30 - USD13.00
- Place of Origin:CN;GUA
- Usage:Indoor
- Tube Chip Color:FULL COLOR
- Display Function:Graphics
- Pixels:25mm
- Brand Name:KEM
- Model Number:HOUKEM-51616-BRGB
- Screen Dimension:49*49mm
Product Describtion

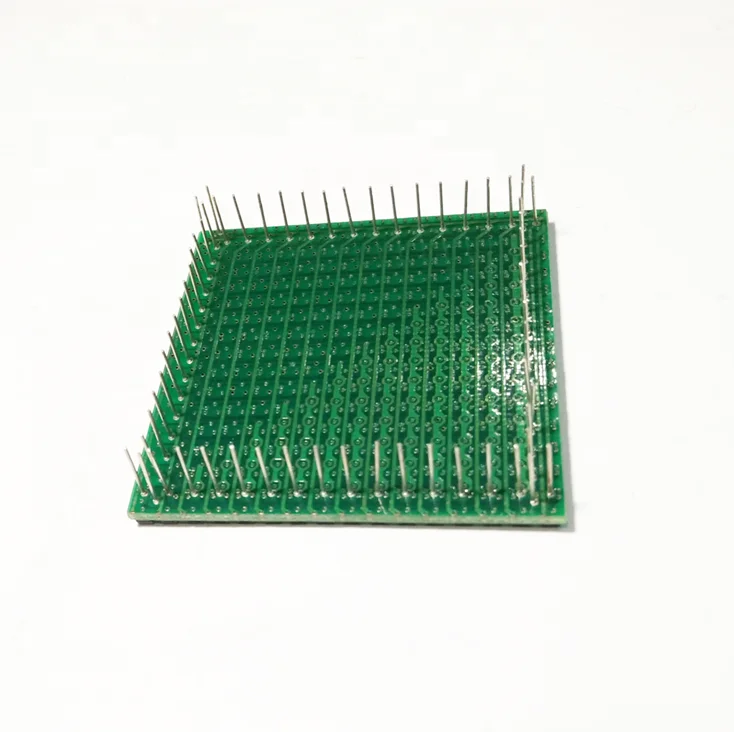

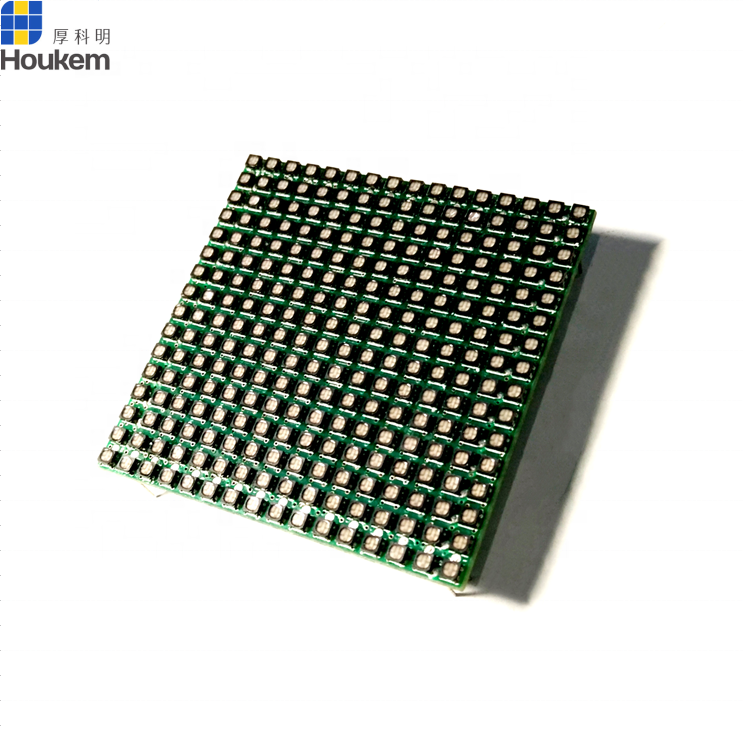

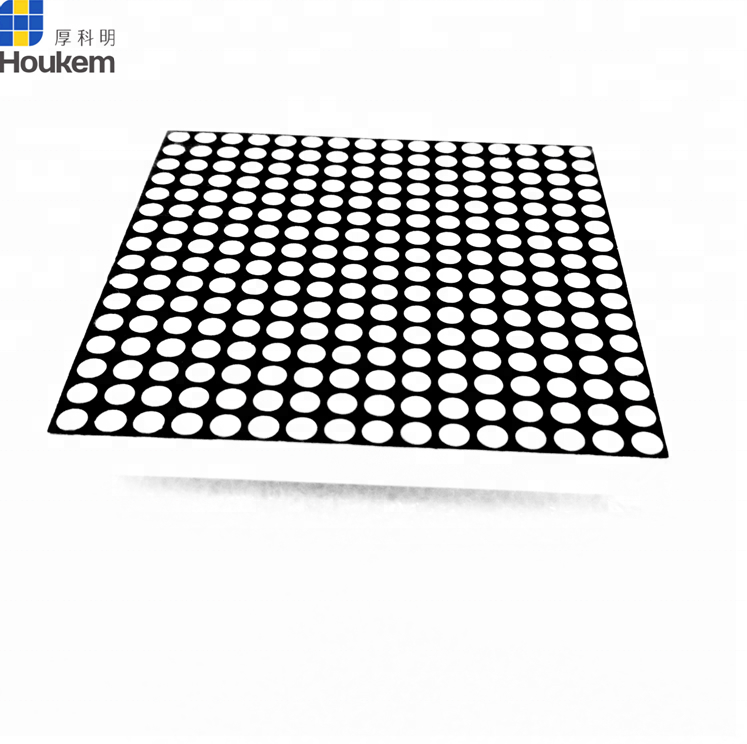

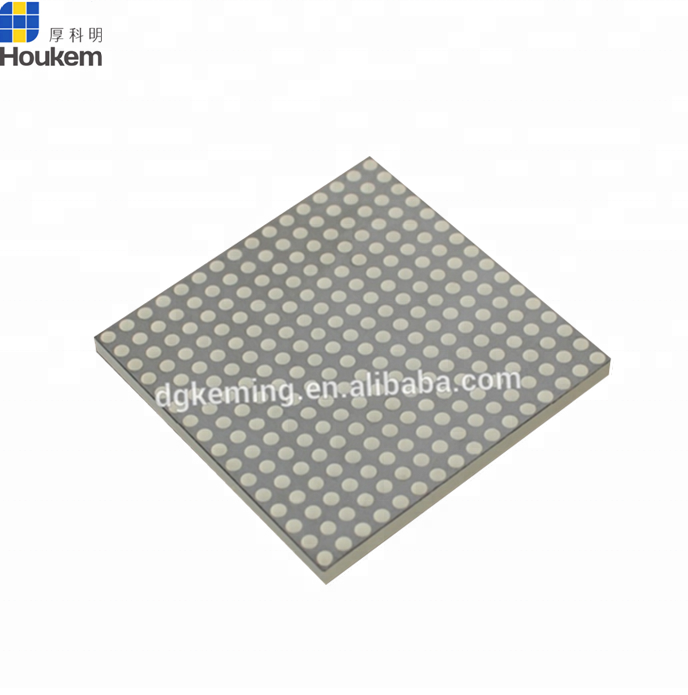

16x16LED matrix display 49*49mm 16*16 rgb dot matrix
1, Low consumption
2, High brightness
Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)
Emitting Color | Test Condition | Wavelength(nm) | Forward Voltage(V) | Luminous Intensity (mcd) | |||
(λp) | λ | Typ | Max | Typ | Max | ||
Amber | IF=18mA | 600-605 | 30 | 1.9 | 2.0 | 90 | 100 |
Super green | IF=18mA | 565-575 | 30 | 1.9 | 2.0 | 48 | 55 |
Super red | IF=18mA | 620-625 | 20 | 1.8 | 2.0 | 110 | 130 |
Ultra red | IF=18mA | 620-625 | 20 | 2 | 2.1 | 300 | 350 |
High red | IF=18mA | 638-660 | 20 | 1.8 | 1.9 | 15 | 20 |
Yellow green | IF=18mA | 570-580 | 30 | 1.9 | 2.0 | 43 | 50 |
Yellow | IF=18mA | 580-600 | 35 | 1.9 | 2.0 | 70 | 80 |
Blue | IF=20mA | 465-475 | 40 | 2.8 | 3.0 | 150 | 200 |
Pure green | IF=20mA | 515-525 | 40 | 2.8 | 3.0 | 180 | 250 |
White | IF=20mA | - | - | 2.8 | 3.0 | 180 | 200 |
Product details:
| Item No. | HOUKEM-51616-BRGB |
| Dimension | 49*49mm |
| dot | 2mm |
| Surface color | Black / Grey |
| Segment color | White /Clear |
| Emitting color | RGB |
Two years quality warranty
Packaging & Shipping
Related Products

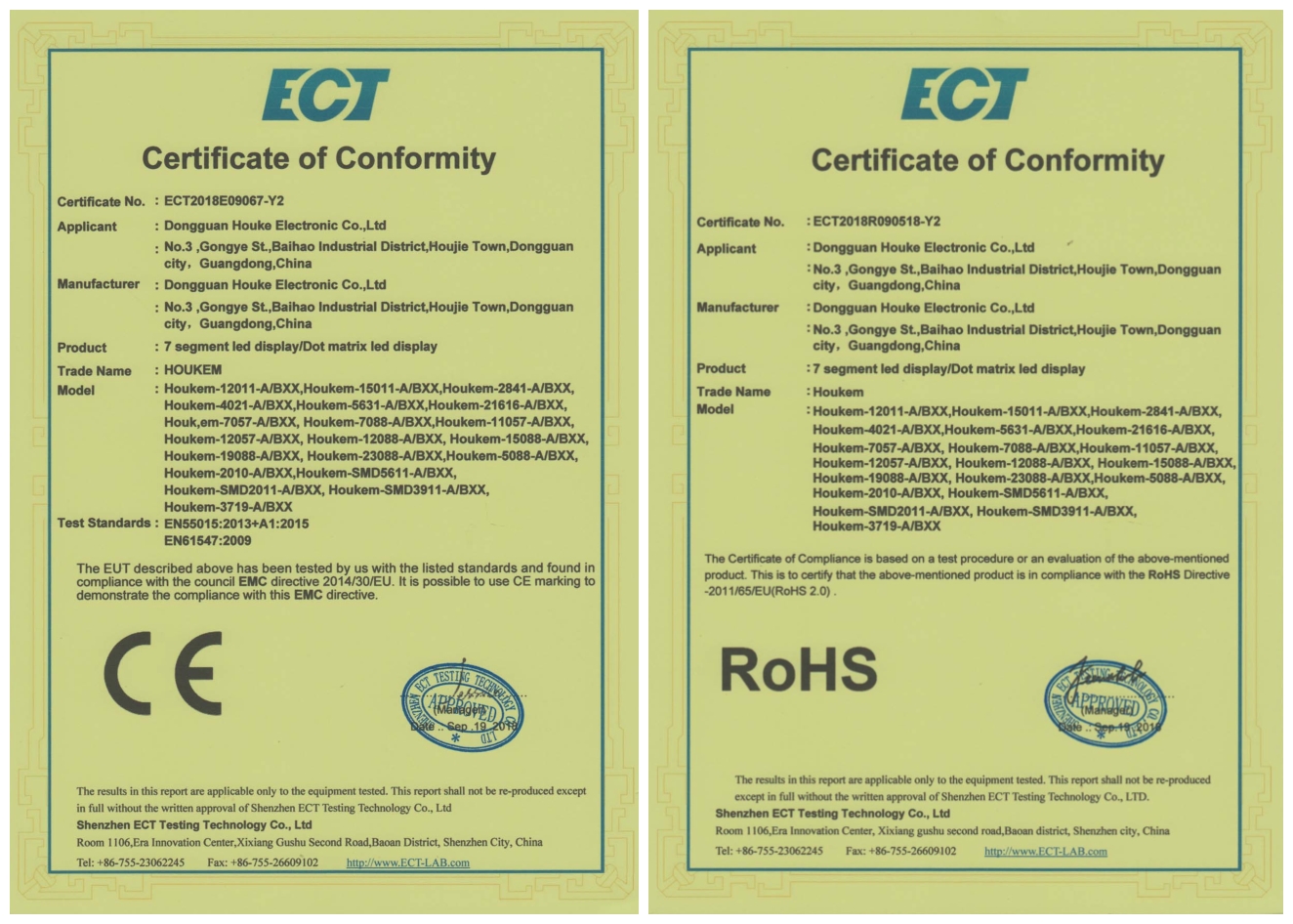

Certifications

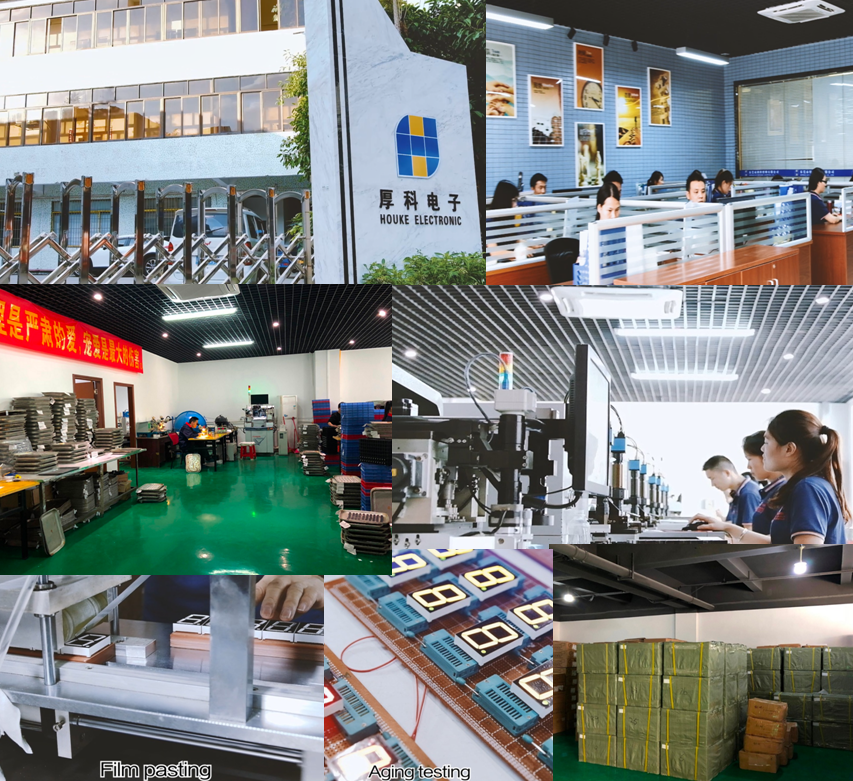

Factory pictures
