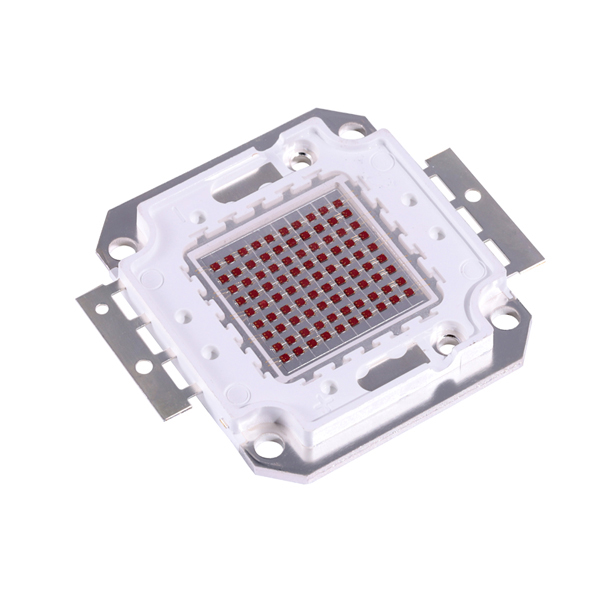

High Power 760nm Infrared LED Chip
High Power 760nm LED Infrared Chip for Medical & Night Vision Systems
The760nm LED from HOUKEM is a high-power infrared light source designed for medical therapy devices, night vision systems, and industrial optical applications. Operating in the 760–765nm near-infrared wavelength range, this LED chip provides stable infrared emission with high penetration capability, making it suitable for both biomedical and imaging systems.
With high power design and Epileds chip technology, this infrared LED ensures reliable performance, long lifetime, and consistent optical output for OEM and industrial manufacturers.
Key Features of 760nm LED
- Near-infrared wavelength: 760–765nm IR LED
- High power design up to 100W output
- Wide140° viewing angle
- Stable infrared emission for continuous operation
- Long lifespan up to 50,000 hours
- Epileds chip technology for high reliability
- CE & RoHS certified production
- OEM/ODM customization available
- Suitable for medical and industrial systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | High Power Infrared LED |
| Wavelength | 760–765nm |
| Power | 50W / 100W |
| Input Voltage | DC 19–22V |
| Forward Voltage | 34–36V |
| Forward Current | 1500–1750mA |

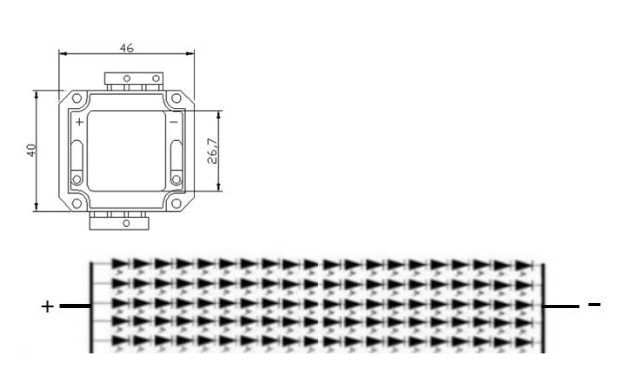

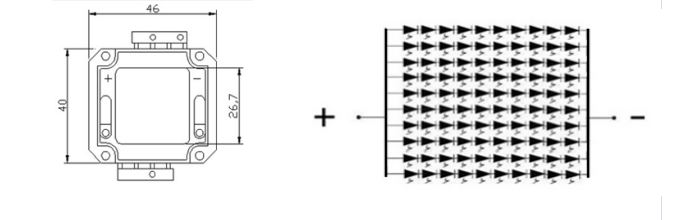

| Chip Quantity | 100 pcs |
| Beam Angle | 140° |
| Luminous Intensity | 10000mW |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 80°C |
| Lifetime | 50,000 hours |
| Warranty | 2 Years |
| Origin | Guangdong, China |
Applications of 760nm LED
The760nm LED infrared chip is widely used in multiple industries requiring near-infrared illumination and detection support.

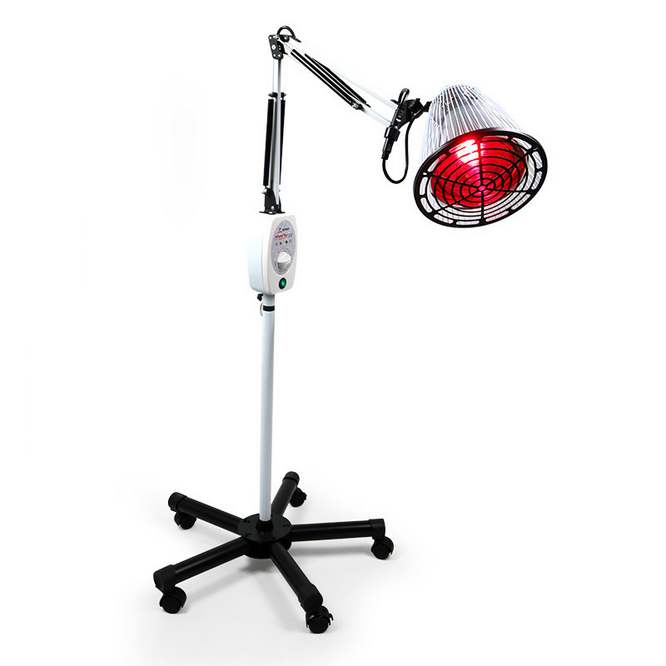

Medical Therapy Equipment
One of the most important application areas:
- Infrared physiotherapy devices
- Blood circulation enhancement systems
- Pain relief therapy equipment
- Rehabilitation medical devices

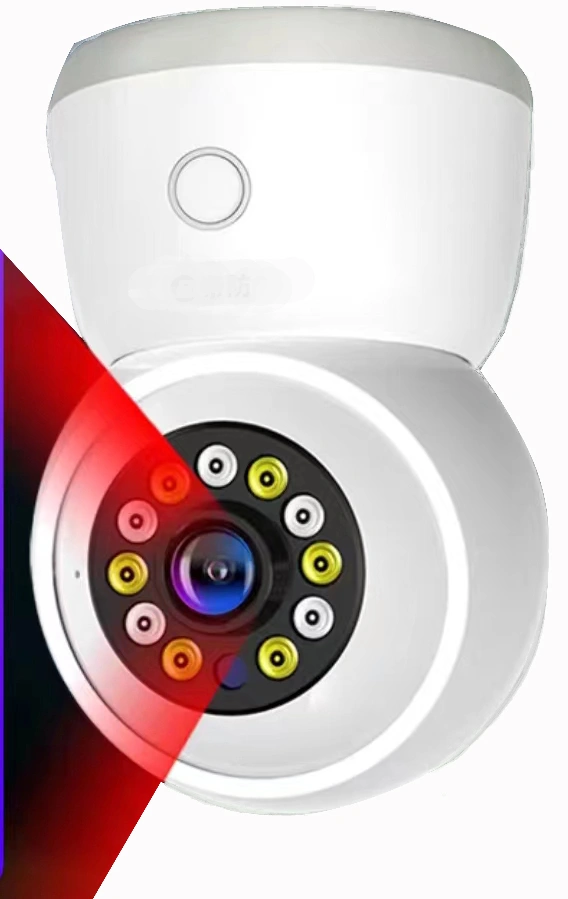

Night Vision & Surveillance Systems
Widely used in optical security systems:
- CCTV infrared illumination
- Night vision camera lighting
- Low-light environment monitoring
- Security surveillance systems
Industrial Optical Sensing
Suitable for machine vision and detection systems:
- Optical sensor illumination
- Material inspection systems
- Automation detection equipment
- Industrial imaging systems
Scientific & Research Use
Also used in advanced research fields:
- Photobiology experiments
- Infrared optical studies
- Laboratory testing systems
Why Choose HOUKEM 760nm LED?
HOUKEM is a professional manufacturer specializing in UV LED and IR LED high-power solutions with over 16 years of industry experience.
We provide not only LED chips but complete industrial lighting solutions:
- Factory-direct pricing for B2B buyers
- Stable mass production capability
- Custom wavelength and power options
- Driver and heat dissipation solution support
- Strict quality inspection before shipment
- Global OEM supply capability
Each760nm LED chip is engineered to deliver stable infrared output, ensuring reliable performance in medical and industrial environments.
FAQ
What is a 760nm LED used for?
It is mainly used in medical infrared therapy devices, night vision systems, and industrial optical sensing applications.
What is the difference between 760nm and 850nm IR LED?
760nm provides deeper tissue penetration for medical use, while 850nm is more commonly used in long-range night vision systems.
Can this 760nm LED be used for medical equipment?
Yes, it is widely used in infrared physiotherapy and rehabilitation devices.
Do you support OEM customization?
Yes, we support OEM/ODM services including power adjustment, packaging design, and wavelength customization.
What is the lifetime of this infrared LED?
The rated lifetime is up to 50,000 hours under proper thermal management conditions.
Contact HOUKEM for IR LED Solutions
Looking for a reliable 760nm LED manufacturer for your project?
HOUKEM provides factory-direct infrared LED solutions with stable performance, OEM customization, and global supply support.
👉Contact us today for datasheets, samples, or customized IR LED solutions.
