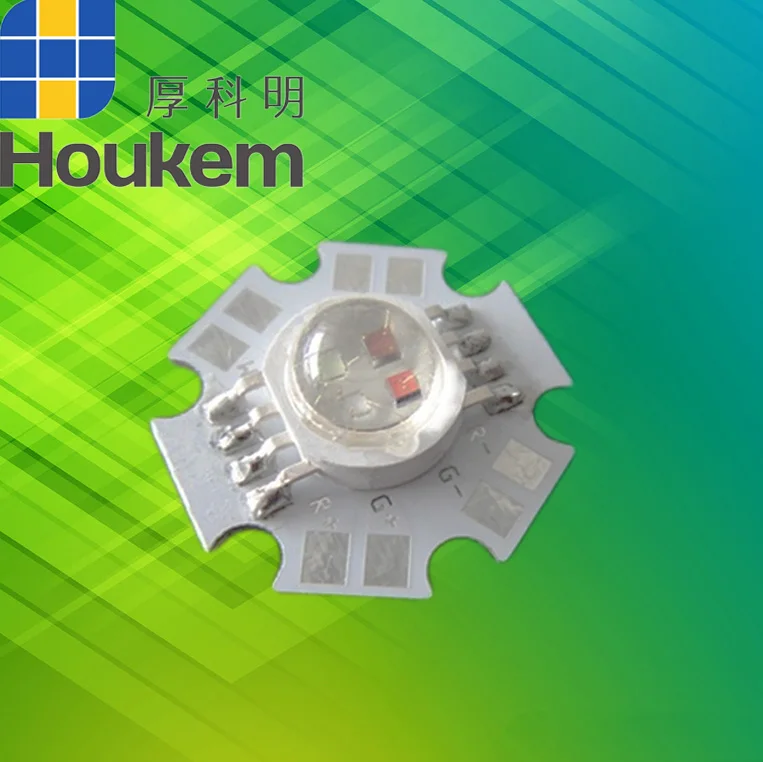

Epileds bridgelux chips high power led 12W RGBW led 8 legs
Epileds bridgelux chips high power led 12W RGBW led 8 legs
Epileds bridgelux chips high power led 12W RGBW led 8 legs
Epileds bridgelux chips high power led 12W RGBW led 8 legs
Epileds bridgelux chips high power led 12W RGBW led 8 legs
Epileds bridgelux chips high power led 12W RGBW led 8 legs
Epileds bridgelux chips high power led 12W RGBW led 8 legs
Epileds bridgelux chips high power led 12W RGBW led 8 legs
Epileds bridgelux chips high power led 12W RGBW led 8 legs
Epileds bridgelux chips high power led 12W RGBW led 8 legs
Epileds bridgelux chips high power led 12W RGBW led 8 legs
Epileds bridgelux chips high power led 12W RGBW led 8 legs
Epileds bridgelux chips high power led 12W RGBW led 8 legs

Epileds bridgelux chips high power led 12W RGBW led 8 legs

Price:
USD 8.08-12.00 / piece
Delivery:
FOB
Minimum order quantity:
1 piece
Supply Ability:
5000 piece / Day
Country of Origin:
Shenzhen
Quantity:
  • Type:High Power LED
  • Chip Material:AlGaInP
  • Emitting Color:Tri-Color(Red-Blue-Green)
  • Place of Origin:CN;GUA
  • Certification:CE
  • Certification:RoHS
  • Power:12w
  • Viewing Angle(°):140 Degree
  • Operating Temperature(℃):-20 - 60
  • Storage Temperature(℃):-20 - 80
  • Brand Name:KEM


Product Description

  Epileds bridgelux chips high power led 12W RGBW led 8 legs



 rgbw

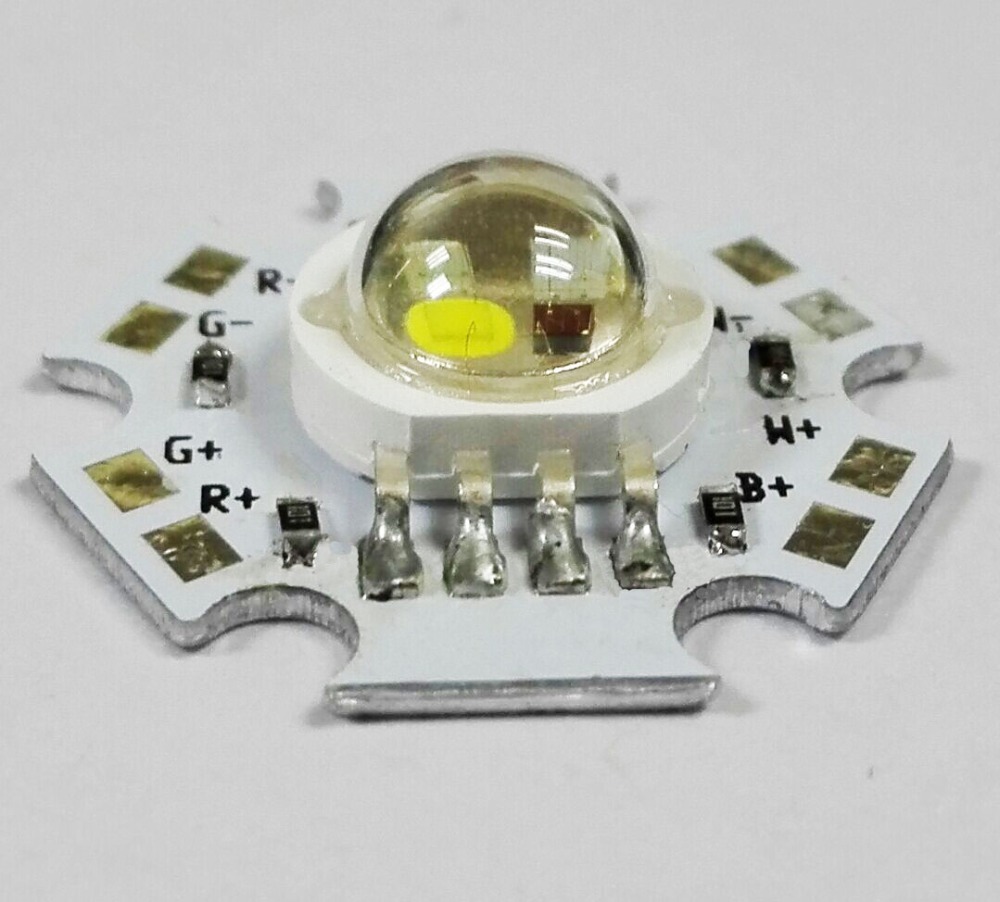

 RGBW

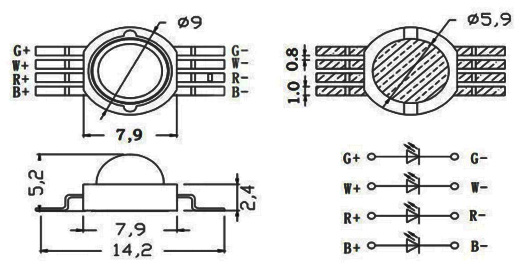

  Dimension and internet circuit








Absolute Maximum Ratings



Parameter

Symbol

Rating

Unit

uv



DC Forward Current(mA)

If

350

mA

Peak Pulse Current(mA)

If

350

mA

Reverse Voltage

VR

5

V

LED Junction Temperature

Tj

125

°C

Operation Temperature

Topr

-20--60

°C

Storage Temperature

Tstg

-20--80

°C

Soldening Temperature

Tsol

260

°C

ESD Sensitivity

Vb

4000

V











































Luminous Flux at 350mA,Ta=25°C



Part no: KEM-HP012-RGBW

Color

Wavelength



CRI

Flux

Min

Typ

Max

RED620-625nm

80

 40



 50

GREEN520-525nm

80

60



70

BLUE460-465nm8050 60
WHITE2800-15000K80110 130

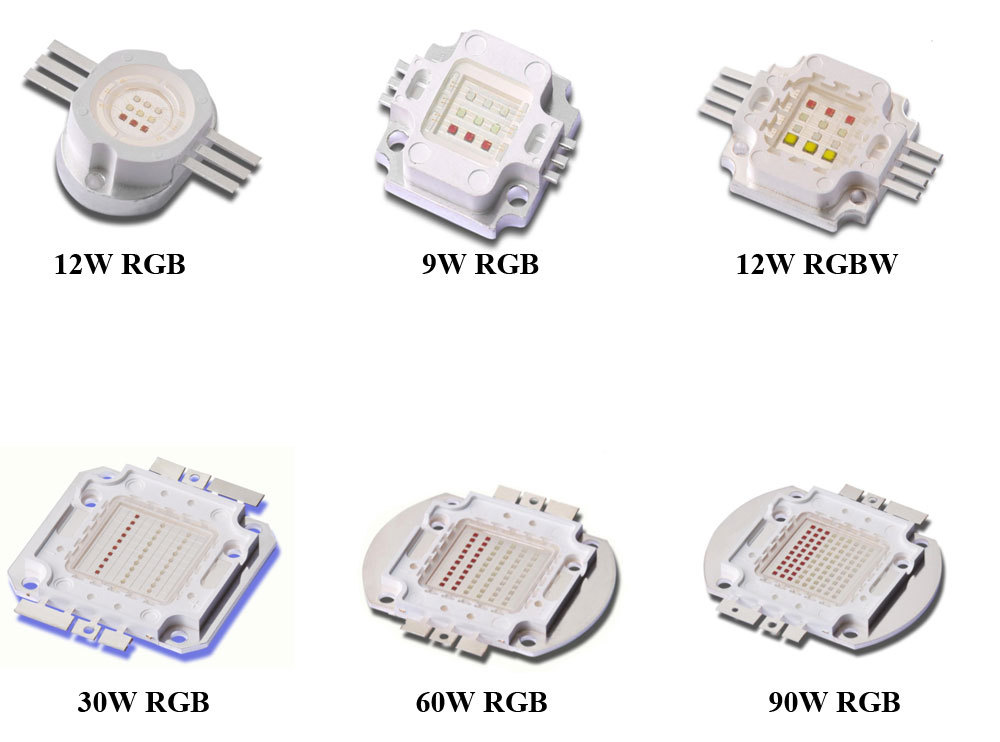

RGB-series







Advantages:

1, less power consumption: light effects to 75lm / w of the LED power consumption than equivalent incandescent brightness reduced by 80%



2, long life: product life of up to 50,000 hours



3, nanosecond response time, brightness and color make it easy to dynamically control: enables dynamic color changes and digital control



4, Individualized design: can be designed by your picturers or mind



5, environmental protection: no toxic metals mercury, no infrared and ultraviolet radiation



6, color: different wavelengths produce different colored light, can control red, green and blue primary colors to form a variety of colors

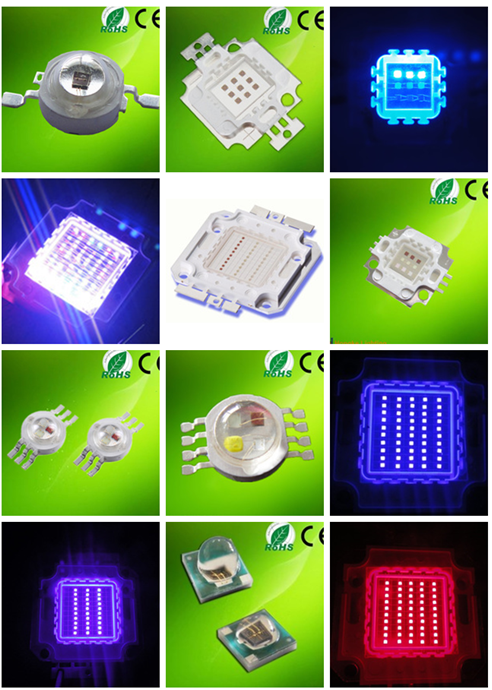

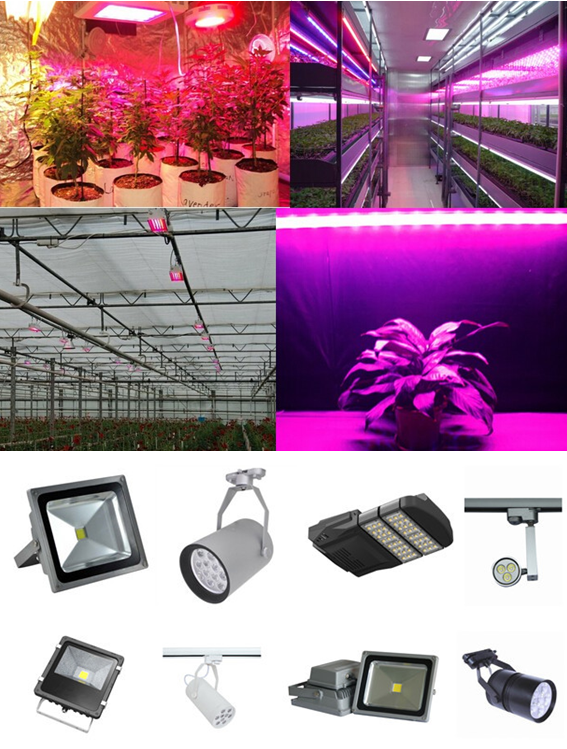

 Lighting and application pictures



  a





Packing

50pieces/tray,10 trays/box,4boxes/carton


2000pcs/carton


Tray size:20cm*15cm*1cm


Box size:25cm*20cm*10cm


Carton size:55cm*45cm*15cm


Or as per customer's request



Package







 packing



Certifications



Hongke-certificates

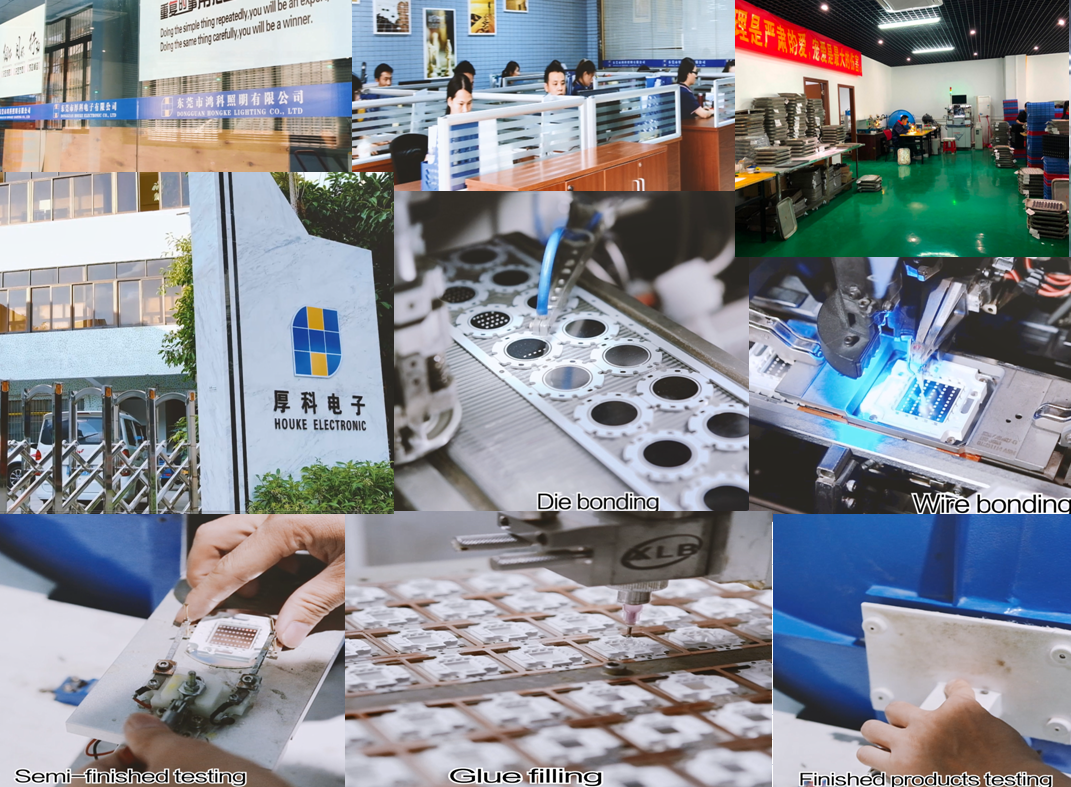

Factory pictures



 factory-LED



LED
