Model NO.
Houkem-3123
Price:
USD 2.00-10.00 / pieces
Delivery:
FOB
Minimum order quantity:
5000 pieces
Supply Ability:
100000 pieces / Month
Country of Origin:
SHENZHEN/GUANGZHOU
Quantity:
  • Place of Origin:CN;GUA
  • Usage:Indoor
  • Tube Chip Color:Green
  • Display Function:Graphics
  • Pixels:20mm
  • Brand Name:KEM
  • Model Number:Houkem-3123
  • Screen Dimension:31*23*8mm


Product Describtion


Dongguan factory supply customized 7 Segment Display, LED 7 Segment Display







Item No.Houkem-3123
Dimension31*23*8mm
Surface color  Black  /Grey
epoxy color white
Emitting color full color



Two years quality warranty



1,Low power consumption

2, High brightness

3, High intensity and reliability

4, Easy assembly







Our service:

 Please send  your drawing to us, we will design the products as you need.

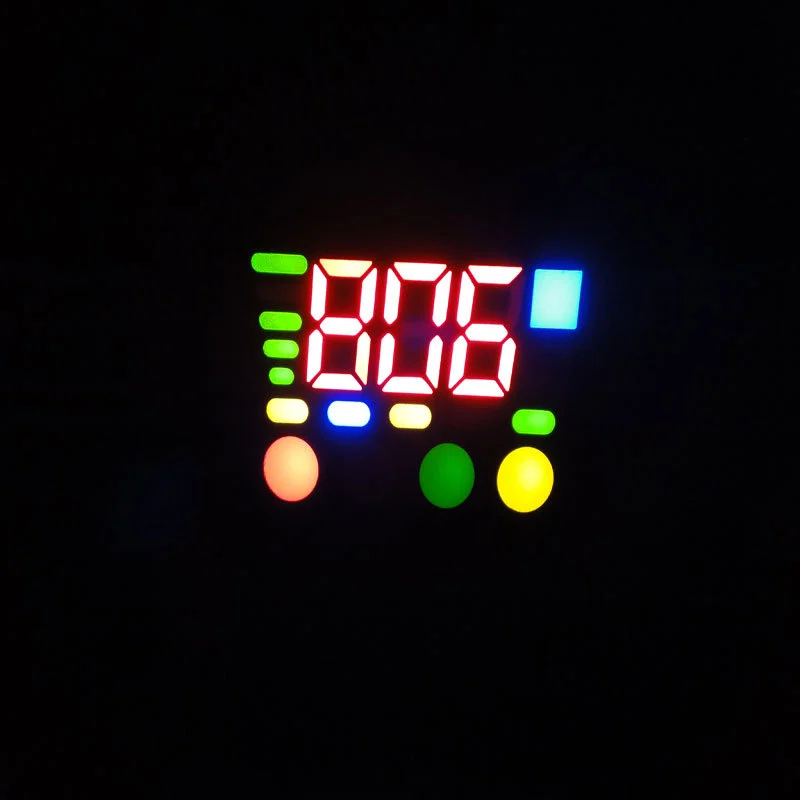

DSC01338

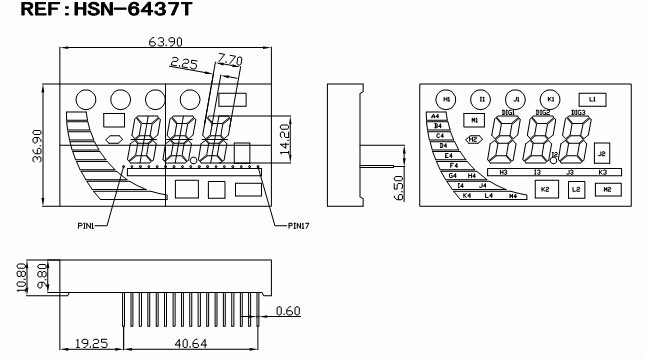

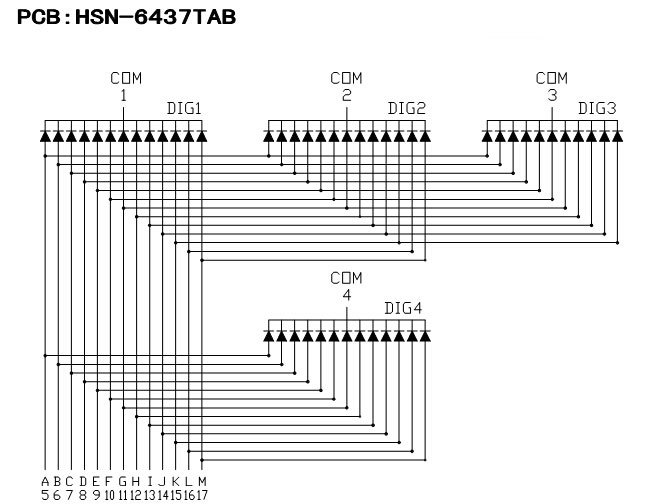

Package dimension & Internal circuit diagram

 6437

6437.2





Note: If this PCB layout don't meet your requirements, please contact me for other choices.










   2



 paste-pic-dp_uuid_yh8w3



Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)





Emitting Color



Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=18mA

600-605

30

1.9

2.0

90

100

Super green

IF=18mA

565-575

30

1.9

2.0

48

55

Super red

IF=18mA

620-625

20

1.8

2.0

110

130

Ultra red

IF=18mA

620-625

20

2

2.1

300

350

High red

IF=18mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=18mA

570-580

30

1.9

2.0

43

50

Yellow

IF=18mA

580-600

35

1.9

2.0

70

80

Blue

IF=20mA

465-475

40

2.8

3.0

150

200

Pure green

IF=20mA

515-525

40

2.8

3.0

180

250

White

IF=20mA

-

-

2.8

3.0

180

200





Our Services


Custom service:

1. We can supply you all kinds of 7 segment LED display

---Digit size: from 0.25"to 20"

---Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment and 14 segment both available

3. Various colors: super red, ultra red, high red, yellow green, pure green, super green,

pure green, blue, yellow, white, amber, Bi-color, RGB.



4. Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16



5. high power led:  white /red /blue/green/IR/UV led





Working Process

kem working process



Application



application-6311

Packaging & Shipping



packing & shipping

Contact us



 Lydia Su
Skype ID: wood3701
Phone: +86 13129213536
Wechat: 13129213536
QQ:1039243252



Established in 2003,our factory is specialized in LED products, including 7 segment

LED/SMD displays,Alphanumeric displays,SMD LEDs,dot-matrix Led displays,bar graph

arrays and LED directon indicator displays.etc.
