DIP type white led dot matrix 5x7 dot array 3mm
- Application:led screen
- Color:white
- Panel Size:22.75*31.8mm
- Pixel Pitch:4.57mm
- Place of Origin:Guangdong, China
- Model Number:KEM-11057-AW/BW
- Brand Name:KEM
- Screen Dimension:22.75*31.8mm
- Emitting color:white
- Face color:Black or Gray
- Working current:20mA
- Working voltage:3-3.3V
- Manufature:China factory
- Part number:KEM-11057AB
- polarity:Commond Anode/Cathode
- Dimension:22.75*31.8mm
- dot array:5x7
DIP type white led dot matrix 5x7 dot array 3mm

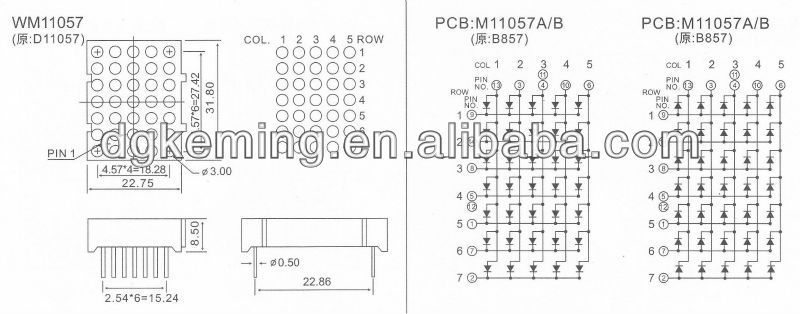

Dimension and Internal Curcuit :

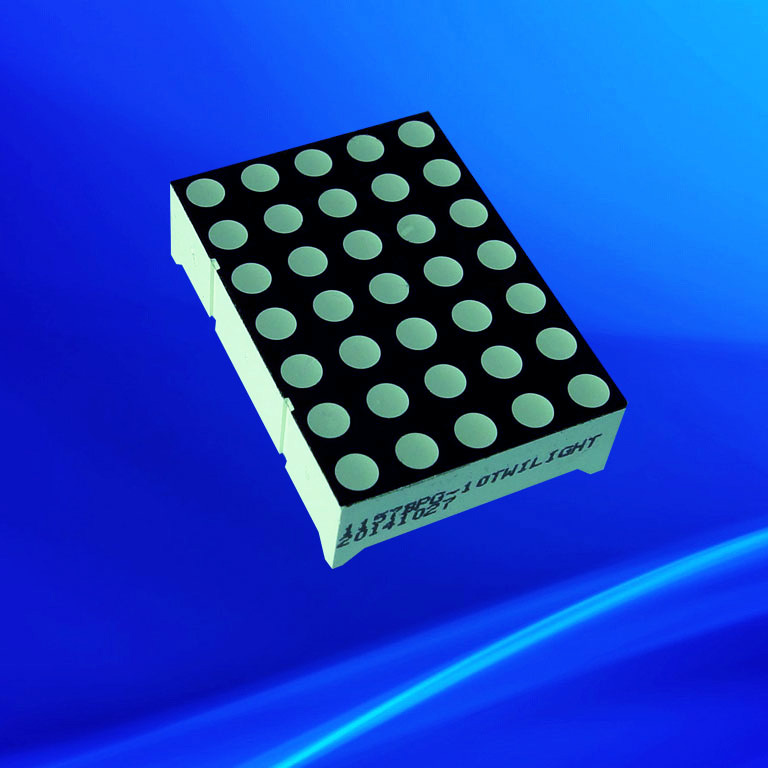

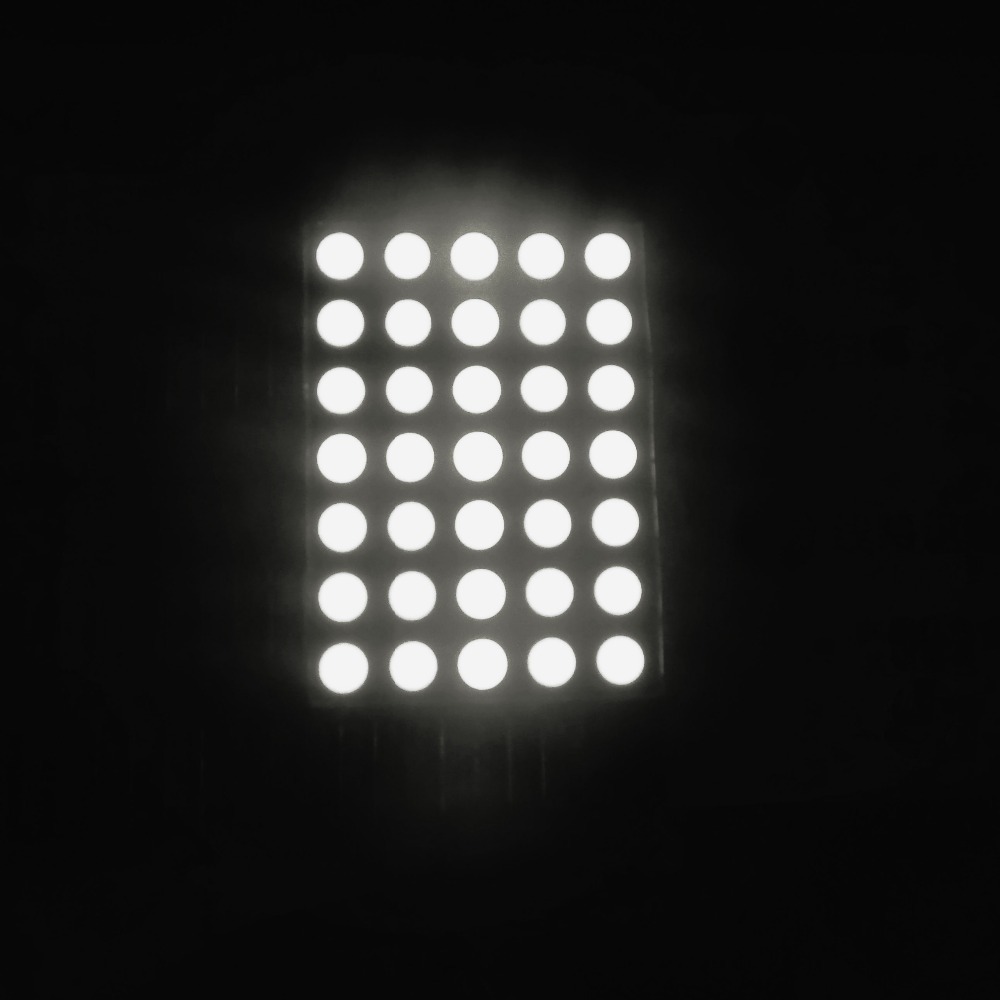

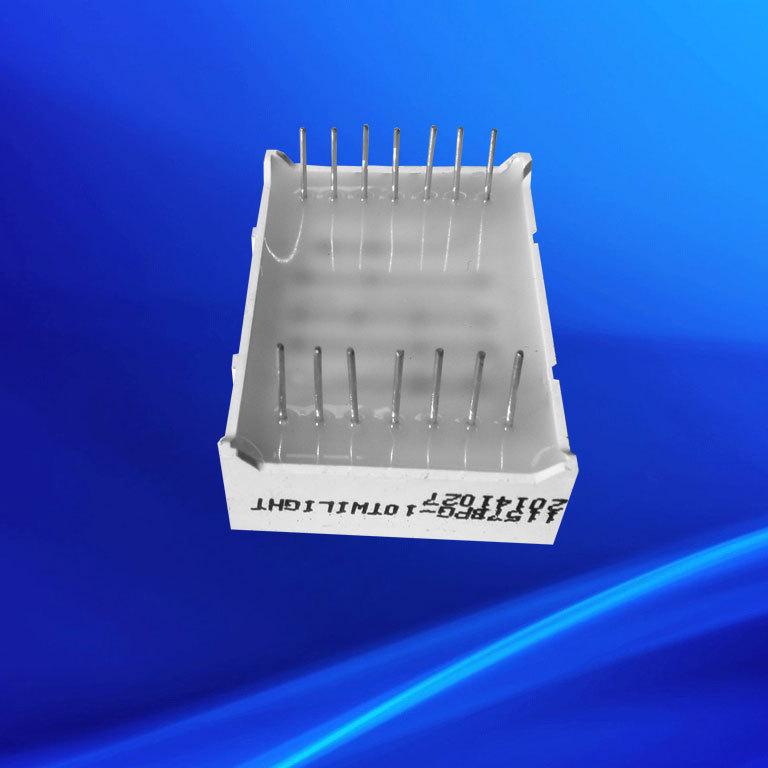

More Pictures for your easy ref
Features :
- Low current operation.
- Low power consumption.
- Full color.
- High brightness.
- Industrial standard size.
- Easy mounting on P.C. board or sockets.
- Emitting color : red / green/ yellow/ blue/ orange/ white/ bi-color/ RGB.
- Face color : black / gray.
- Surface dot type : epoxy diffusion / clear lens.
Part details :
Model. | : | KEM-11057A/B |
Description | : | 22.75*31.8mm |
Surface color | : | Black / gray/red |
Emitting color | : | red,blue,green,white,yellow,amber |
Luminous intensity | : | 200mcd |
Voltage/ Current | : | 3-3.3v / 20mA |
PCB Polarity | : | Common Cathode or Common Anode |
Various color available for amber 600nm dot matrix led display 4.5 mm :
Dominant Wavelength Luminous Intensity
Red: 620 - 630nm Red: 70-90 mcd (1.8-2.3v / 20mA)
High red: 635 - 640 nm High red: 50-70 mcd (1.8-2.3v / 20mA)
Green: 565 - 575 nm Green: 70-90 mcd (1.8-2.3v / 20mA)
Yellow: 585 - 595 nm Yellow: 40-50 mcd (1.8-2.3v / 20mA)
Amber: 600 - 605nm Amber: 30 mcd (1.8-2.3v / 20mA)
Blue: 460 - 475nm Blue: 40-50 mcd (3.0-3.3v / 20mA)
Pure green: 515 - 525nm Pure green: 180-250 mcd (3.0-3.3v / 20mA)
White : 450-460 nm White: 100-180 mcd (3.0-3.3v / 20mA
If the PCB curcuit can not meet your need, pls contact me for other choices.
