led matrix displays 8x8 dual color led round module 32*32mm
- Place of Origin:CN;GUA
- Application:Graphics
- Color:red+green
- Panel Size:32*32mm
- Pixel Pitch:3
- Model Number:HOUKEM-12088-ASRG
- Brand Name:HOUKEM
ca 3 mm rgb round module 8*8 led matrix display 32*32mm
Features:
1, Low power consumption
2, High brightness
3, High intensity and reliability
4, Easy assembly

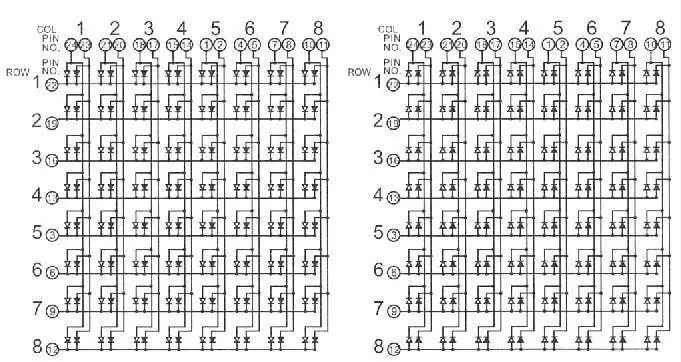

Package dimension & Internal circuit diagram
Product details:
| Item No. | HOUKEM-12088-ASRG |
| Dimension | 32*32*8mm |
| dot | 3mm |
| Surface color | Black / Grey |
| Segment color | White /Clear |
| Emitting color | super red& super green |
Color Code & Chip characteristic PER CHIP: (Test Condition: IF=10-15Ma)
Emitting Color | Test Condition | Wavelength(nm) | Forward Voltage(V) | Luminous Intensity (mcd) | |||
(λp) | λ | Typ | Max | Typ | Max | ||
Amber | IF=10-15mA | 600-605 | 30 | 1.9 | 2.0 | 90 | 100 |
Super green | IF=10-15mA | 565-575 | 30 | 1.9 | 2.0 | 48 | 55 |
Super red | IF=10-15mA | 620-625 | 20 | 1.8 | 2.0 | 110 | 130 |
Ultra red 1 | IF=10-15mA | 620-625 | 20 | 1.8 | 2.0 | 200 | 210 |
Ultra red 2 | IF=10-15mA | 620-625 | 20 | 1.8 | 2.0 | 300 | 350 |
High red | IF=10-15mA | 638-660 | 20 | 1.8 | 1.9 | 15 | 20 |
Yellow green | IF=10-15mA | 570-580 | 30 | 1.9 | 2.0 | 43 | 50 |
Yellow | IF=10-15mA | 580-600 | 35 | 1.9 | 2.0 | 70 | 80 |
Blue | IF=10-15mA | 465-475 | 40 | 2.7 | 2.9 | 150 | 200 |
Pure green | IF=10-15mA | 515-525 | 40 | 2.7 | 2.9 | 180 | 250 |
White | IF=10-15mA | - | - | 2.7 | 2.9 | 180 | 200 |
Two years quality warranty
Custom service:
1. We can supply you all kinds of 7 segment LED display
---Digit size: from 0.25"to 20"
---Digit Numer: 1, 2, 3, 4, 5 and 6 digits
2. Segment : 7 segment and 14 segment both available
3. Various colors: super red, ultra red, high red, yellow green, pure green, super green,
pure green, blue, yellow, white, amber, Bi-color, RGB.
4.Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16
Customized products are available
Working process
Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays, SMD LEDs,
dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power led, high power 255nm to 1050nm LED arrays,
COB LEDs, SMD LEDs, street light LED, LED optical lens, LED spot light, high bay light, street light,and all LED lighting application solution, etc.
