Diamond shaped 0.56" 4 digit 7 segment display 14pins common cathode 7 segment led display green colour

Model NO.
Houkem-5643-ASG
Price:
USD 0.35-0.45
Delivery:
FOB
Minimum order quantity:
1000
Quantity:
  • Place of Origin:CN;GUA
  • Usage:Indoor
  • Display Function:Graphics
  • Pixels:20mm
  • Tube Chip Color:green
  • Brand Name:KEM
  • Model Number:Houkem-5643-ASG
  • Screen Dimension:50.2*19mm


Product Describtion

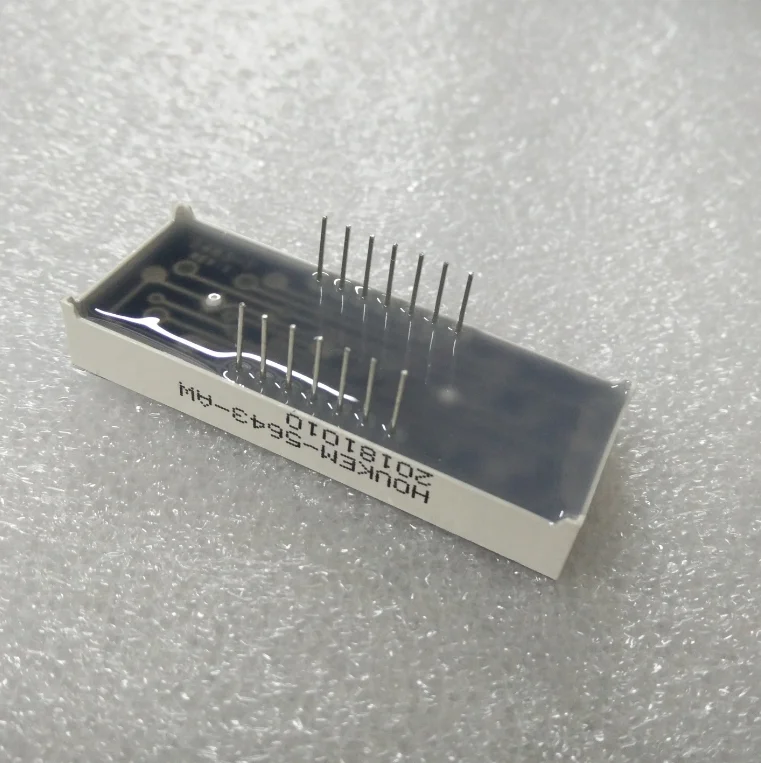

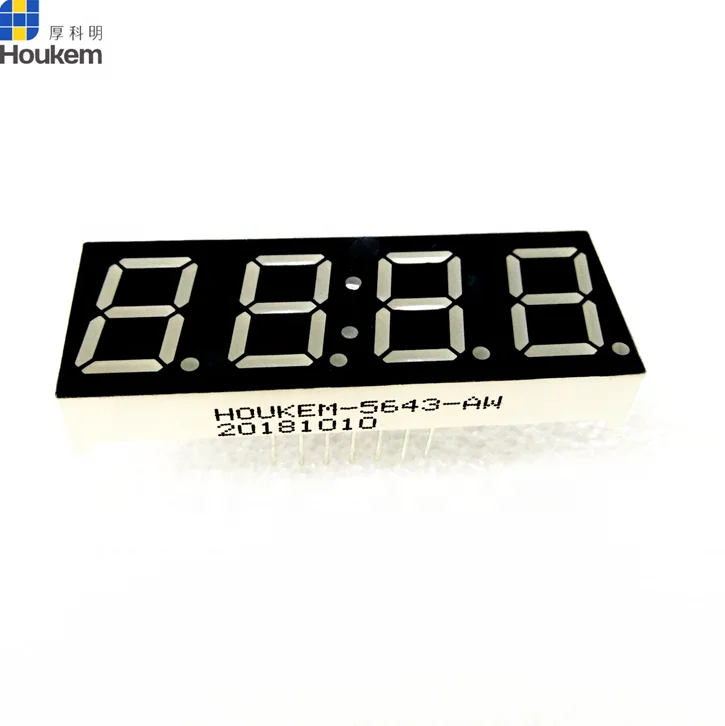

green 0.56"7 segment  led display  14pins 4 digit  seven  segment  diamond shaped







Item No.Houkem-5643-ASG
Dimension50.2*19*8mm
Surface color  Black  /Grey
epoxy color white
Emitting color super green

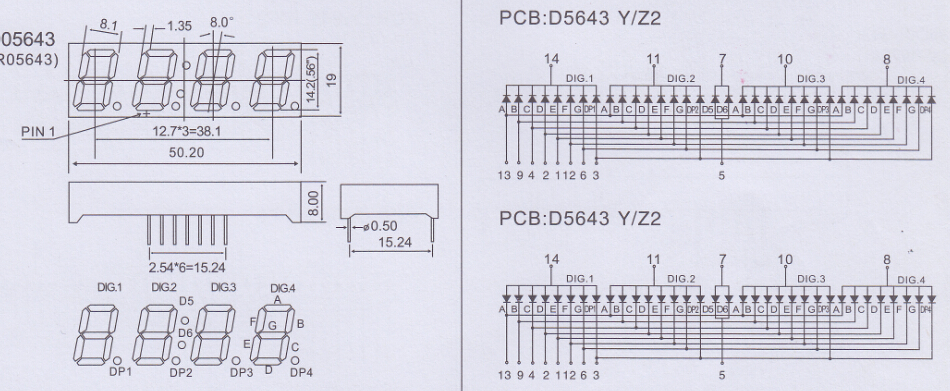

Package dimension & Internal circuit diagram





5643.YZ2

Note: If this PCB layout don't meet your requirements, please contact me for other choices.





Two years quality warranty



1,Low power consumption

2, High brightness

3, High intensity and reliability

4, Easy assembly



 5643 (2).png

5643 (3).png























Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)





Emitting Color



Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=18mA

600-605

30

1.9

2.0

90

100

Super green

IF=18mA

565-575

30

1.9

2.0

48

55

Super red

IF=18mA

620-625

20

1.8

2.0

110

130

Ultra red

IF=18mA

620-625

20

2

2.1

300

350

High red

IF=18mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=18mA

570-580

30

1.9

2.0

43

50

Yellow

IF=18mA

580-600

35

1.9

2.0

70

80

Blue

IF=20mA

465-475

40

2.8

3.0

150

200

Pure green

IF=20mA

515-525

40

2.8

3.0

180

250

White

IF=20mA

-

-

2.8

3.0

180

200
