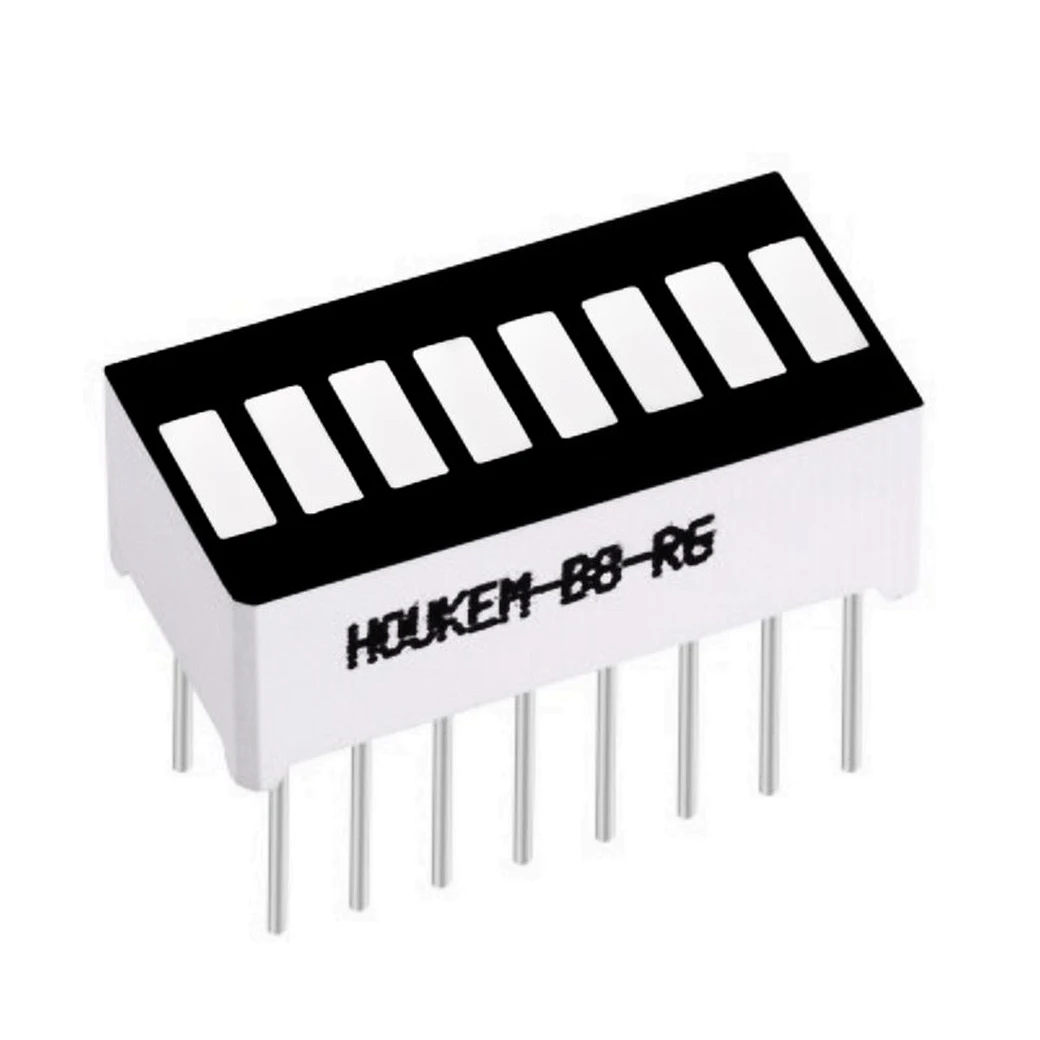

HOUKEM-B8-SG 8 Segment Bar Graph Display
8 Segment Bar Graph Display for OEM Applications
The HOUKEM-B8-SG is an 8 Segment Bar Graph Display designed for indoor electronic equipment, radios, instruments, control panels, and other applications that require compact visual level or status indication. This customized LED light bar uses super green LED output and combines low power consumption with high brightness in a compact 20.4 × 10.3 × 7.8mm package.
As a professional LED manufacturer, HOUKEM supports customized LED display solutions for B2B customers, including component sourcing, engineering projects, OEM and ODM requirements.
Product Specifications
| Item | Specification |
|---|---|
| Product Type | 8 Segment Bar Graph Display |
| Item No. | HOUKEM-B8-SG |
| Model Number | HOUKEM-B8-SG |
| Brand | HOUKEM |

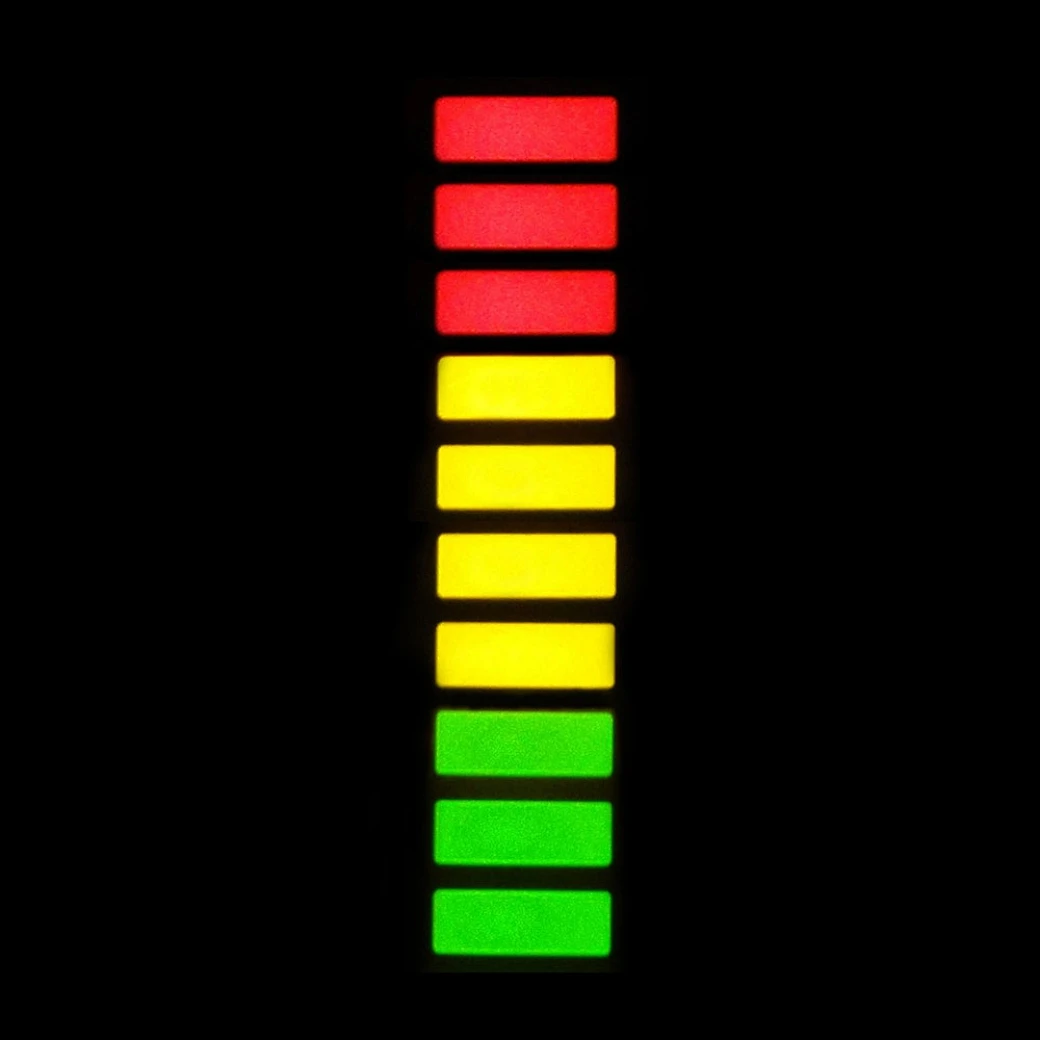

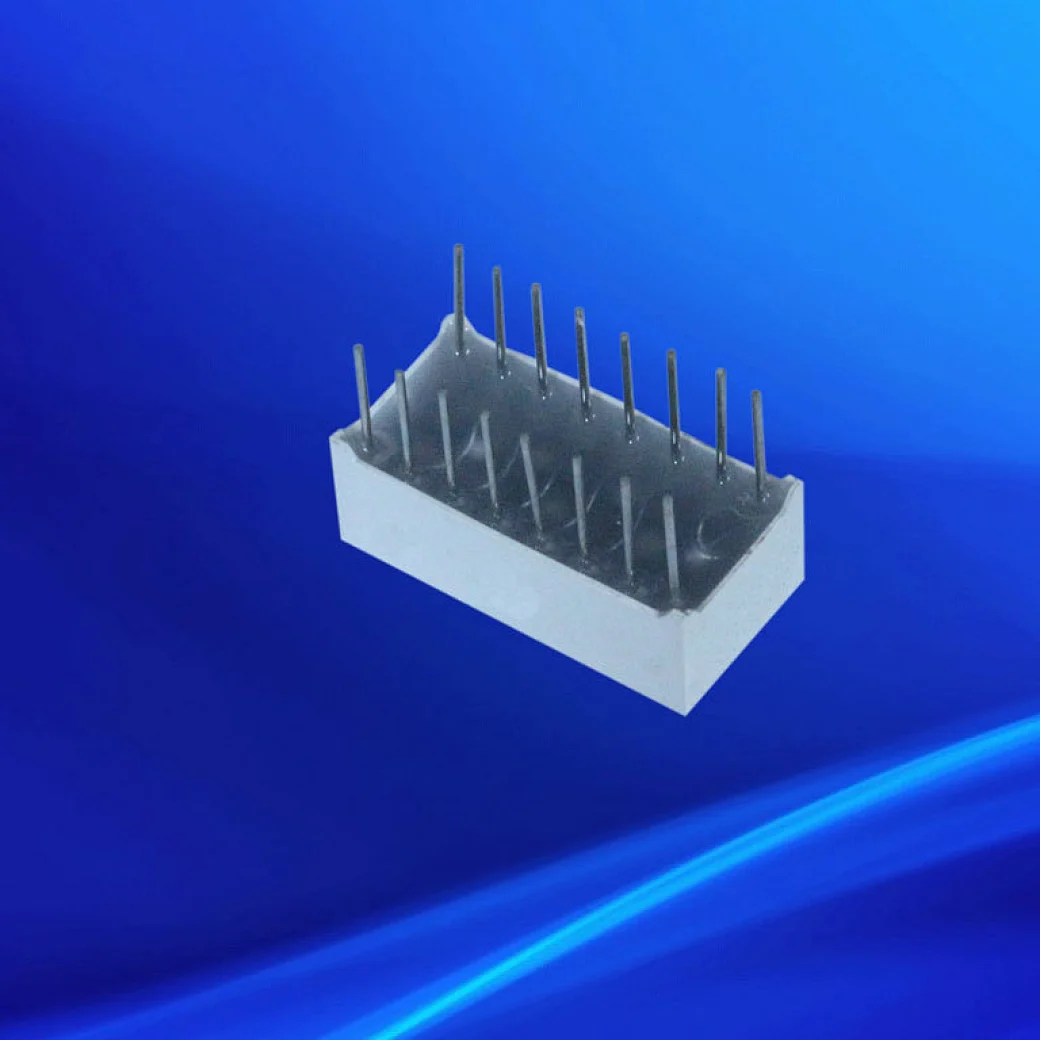

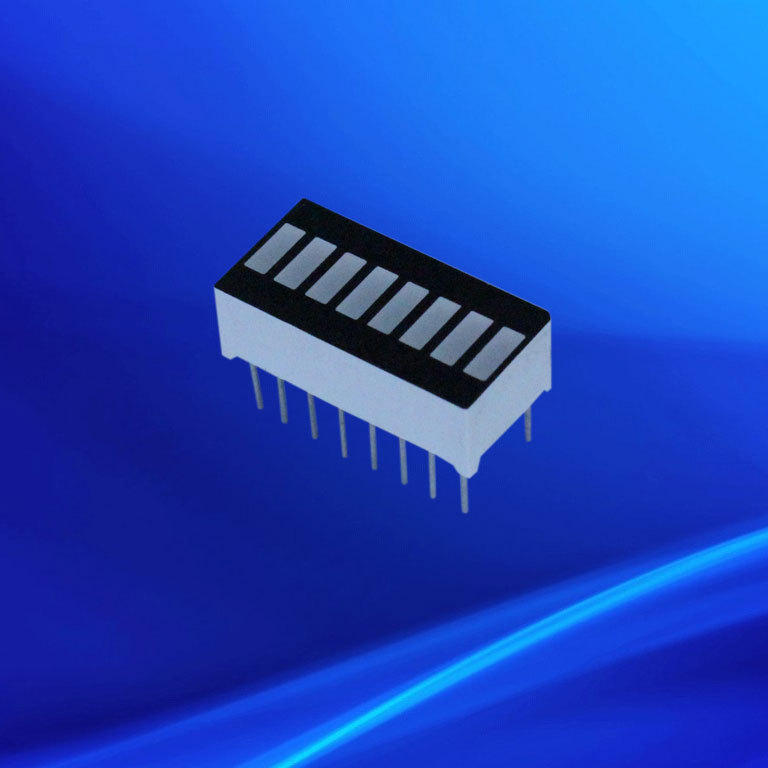

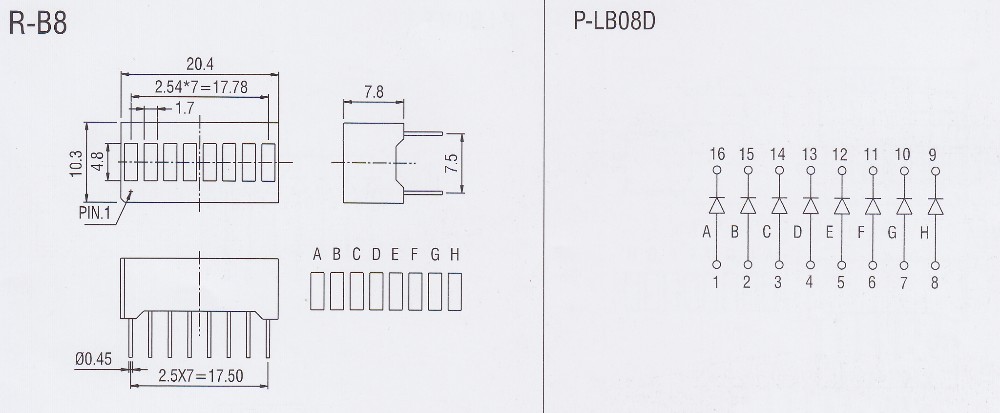

| Dimension | 20.4 × 10.3 × 7.8mm |
| Screen Dimension | 20.4 × 10.3mm |
| Surface Color | Black / Grey |
| Segment Color | White / Clear |
| Emitting Color | Super Green |
| Tube Chip Color | Green |
| Display Function | Graphics |
| Pixels | 25mm |
| Usage | Indoor |
| Place of Origin | CN; GUA |
| MOQ | 100 pieces |
| Supply Ability | 50,000 pieces/day |
| Delivery | FOB |
| Price | USD 0.40–USD 1.00/piece |
The compact structure makes this 8 Segment LED Bar Graph Display suitable for equipment where panel space is limited. The standard product uses super green emission, while HOUKEM also provides customized LED display configurations according to project requirements.
LED Chip Characteristics
The following chip characteristics are based on the original specification and are tested at IF=10–15mA.
| Emitting Color | Wavelength (nm) | Forward Voltage Typ./Max (V) | Luminous Intensity Typ./Max (mcd) |
|---|---|---|---|
| Amber | 600–605 | 1.9 / 2.0 | 90 / 100 |
| Super Green | 565–575 | 1.9 / 2.0 | 48 / 55 |
| Super Red | 620–625 | 1.8 / 2.0 | 110 / 130 |
| Ultra Red 1 | 620–625 | 1.8 / 2.0 | 200 / 210 |
| Ultra Red 2 | 620–625 | 2.0 / 2.1 | 300 / 350 |
| High Red | 638–660 | 1.8 / 1.9 | 15 / 20 |
| Yellow Green | 570–580 | 1.9 / 2.0 | 43 / 50 |
| Yellow | 580–600 | 1.9 / 2.0 | 70 / 80 |
| Blue | 465–475 | 2.7 / 2.9 | 150 / 200 |
| Pure Green | 515–525 | 2.7 / 2.9 | 180 / 250 |
| White | — | 2.7 / 2.9 | 180 / 200 |
These specifications allow engineers to evaluate the LED bar graph display according to emission color, forward voltage, wavelength, and luminous intensity before integrating it into their equipment.
Custom LED Display Solutions

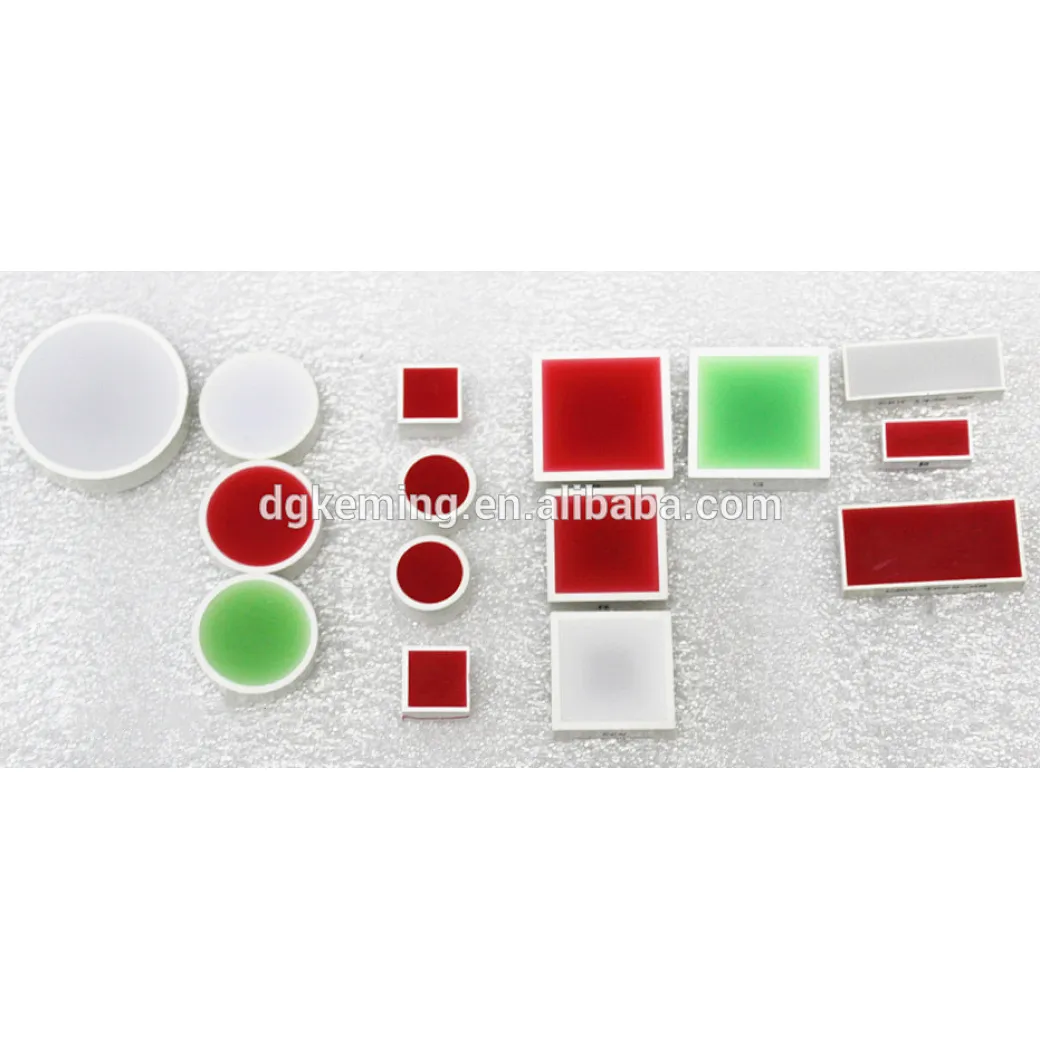

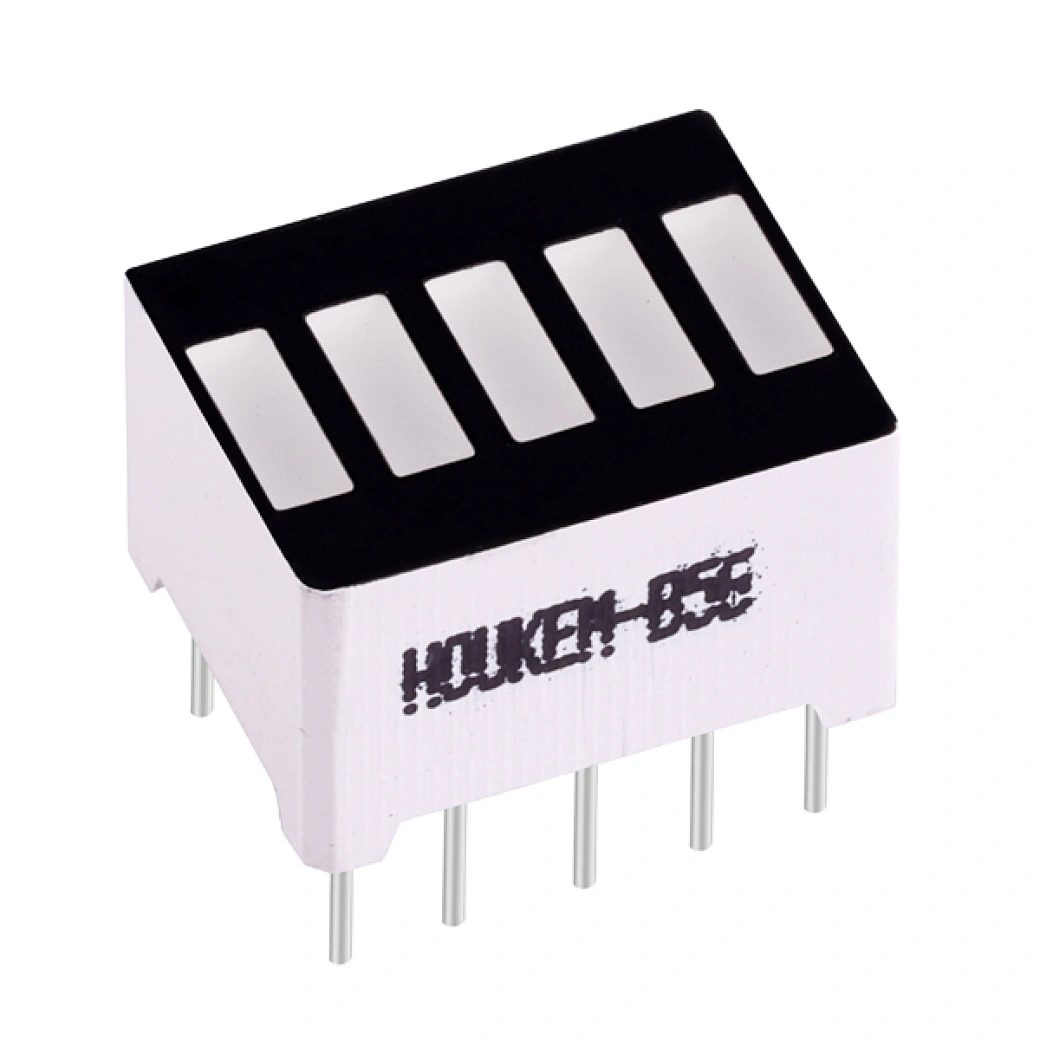

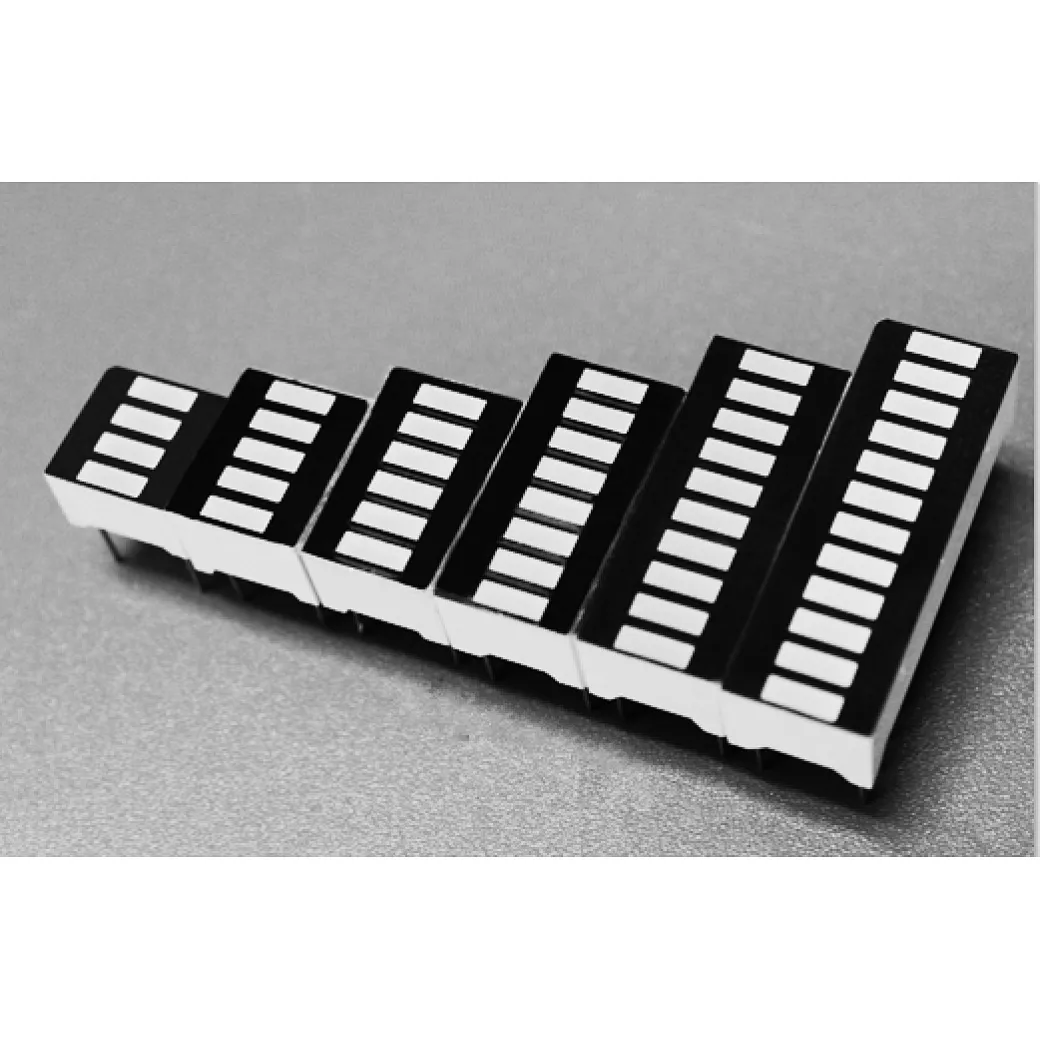

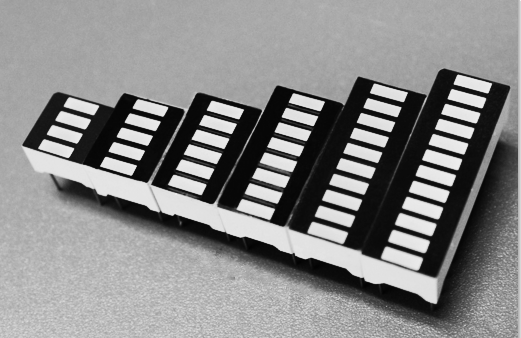

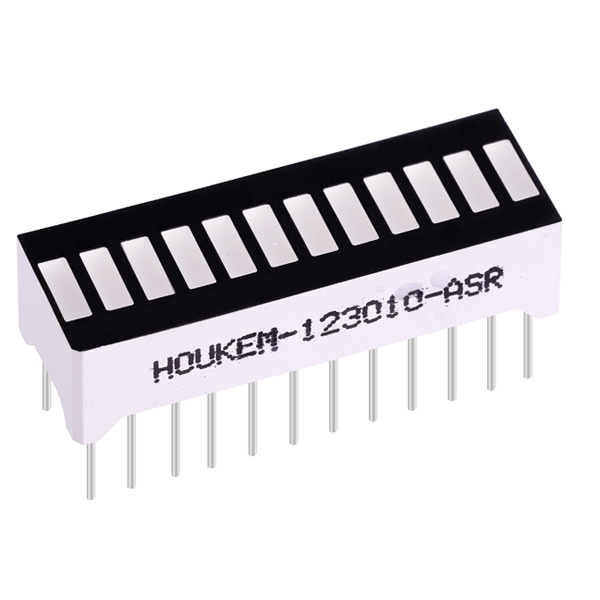

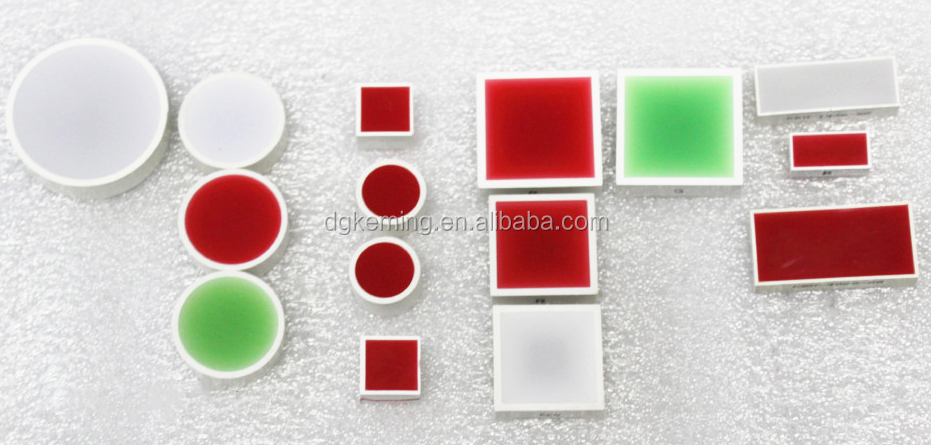

HOUKEM provides customization for different electronic display projects. Available options include 8 Segment Bar Graph Display configurations as well as other LED display formats.
7-segment LED displays from 0.25"to 20"
1–6 digit configurations
7-segment and 14-segment displays
Super red, ultra red, high red, yellow green, pure green, super green, blue, yellow, white, amber, bi-color and RGB options
LED dot matrix sizes including 5×7, 5×8, 8×8, 11×7 and 16×16
High-power white, red, blue, green, IR and UV LEDs
Customized LED products for specific equipment requirements
Samples are available for testing, with samples offered within 3–5 days according to the original service specification.
B2B Applications

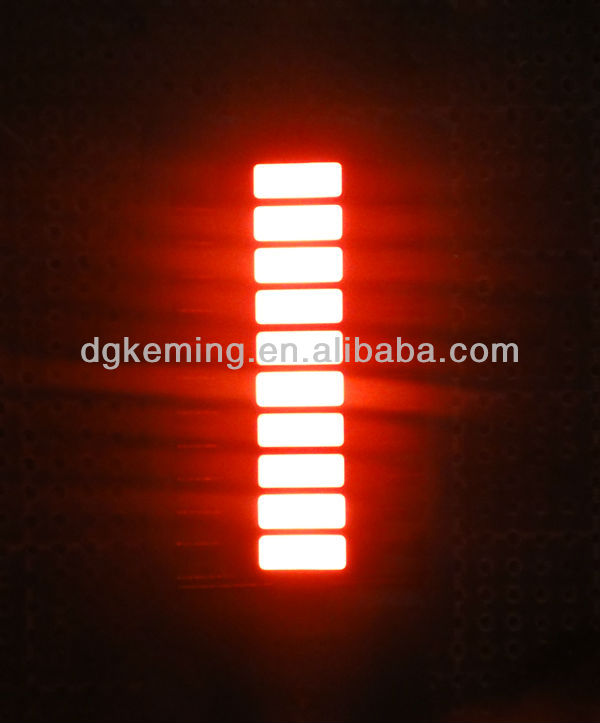

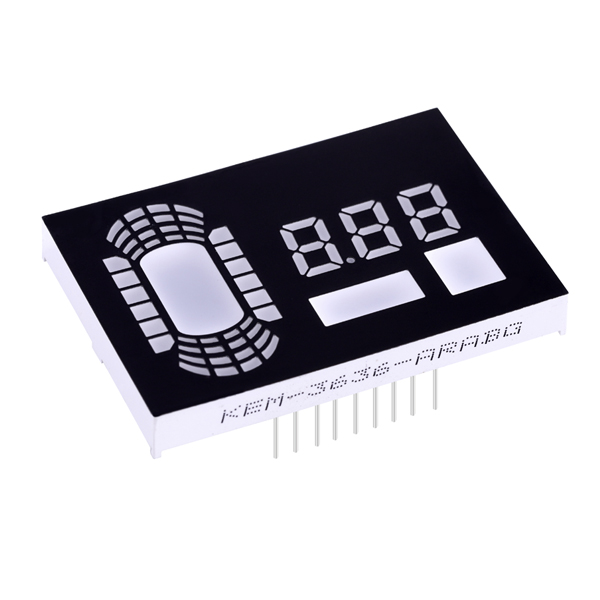

This LED Bar Graph Display can be integrated into radios, electronic instruments, control panels, measurement equipment and other indoor devices requiring compact visual indicators. For OEM projects, HOUKEM can work with customer specifications to develop customized LED display solutions.
Frequently Asked Questions
Can the HOUKEM-B8-SG be customized for OEM projects?
Yes, HOUKEM supports customized LED displays for professional OEM and ODM applications. Customers can provide dimensions, color, circuit requirements and application details for evaluation.
What is the MOQ for this 8 Segment Bar Graph Display?
The listed MOQ is 100 pieces. This allows B2B buyers to evaluate the component before moving to larger production orders.
Can I request samples before bulk production?
Yes, samples are available and the stated sample lead time is 3–5 days. Sample testing can help engineers verify fit, brightness and electrical performance.
Are other LED colors available?
Yes, HOUKEM can provide multiple emission colors including super green, red, blue, yellow, amber, white, bi-color and RGB. Final availability should be confirmed according to the required configuration.
Can HOUKEM support a complete customized LED display project?
Yes, HOUKEM provides customized LED display manufacturing and engineering support for professional B2B projects. Customers can submit drawings, technical specifications or application requirements for project evaluation.
