Model No: Houkem-6432-BRGB

custom mini rgb led dot matrix module screen P1.25

64*32 dot arry matrix
custom size rgb dot matrix
P1.25
Quantity :
add to cart
Contact Now

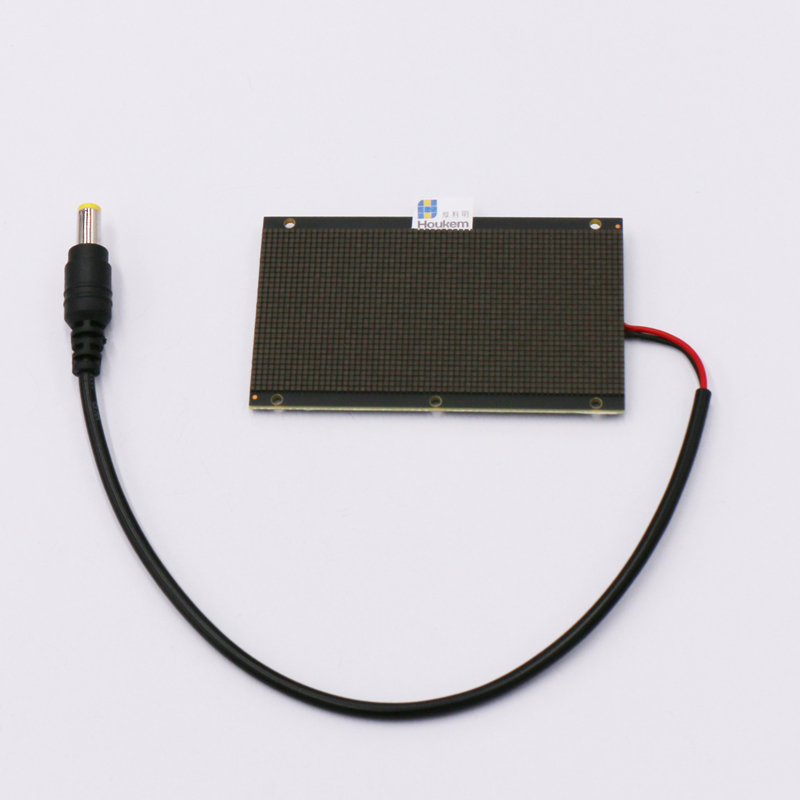

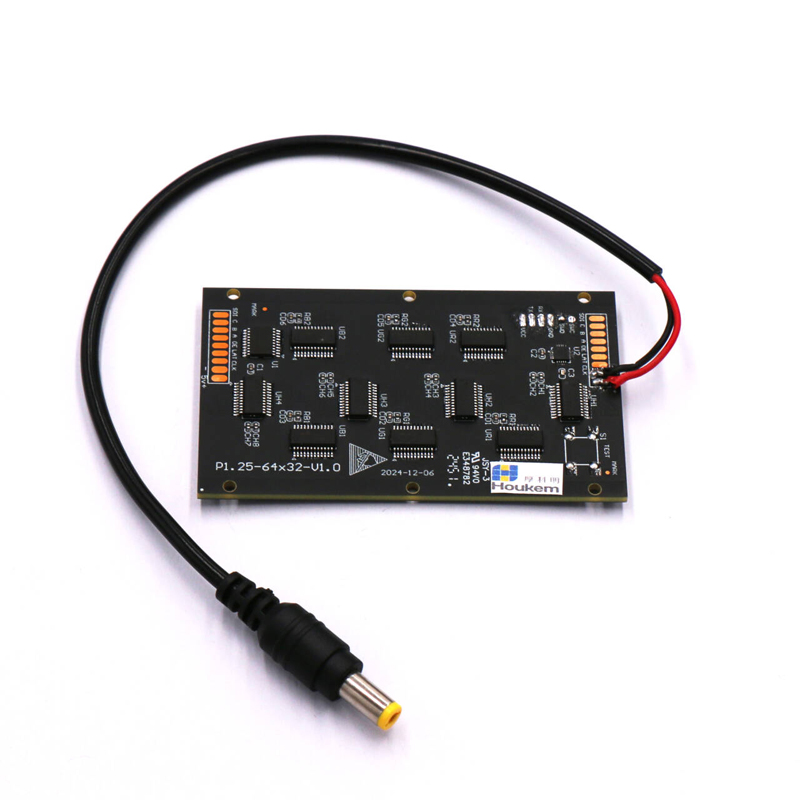

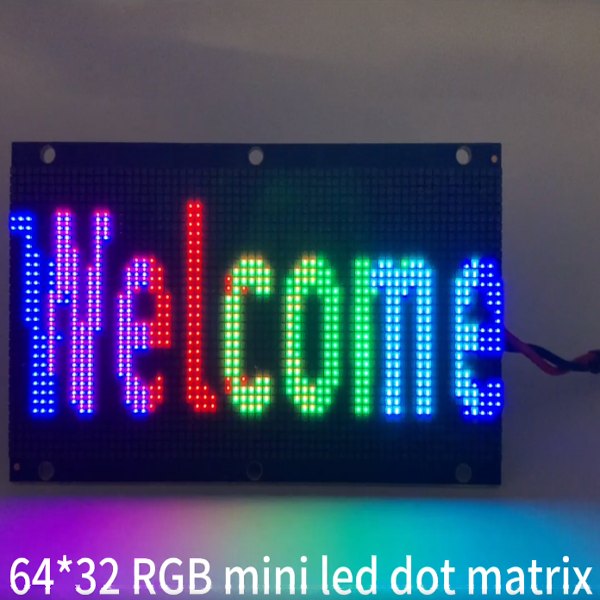

Custom mini rgb led dot matrix module screen P1.25
  • Application:Advertising/Message
  • Color:RGB
  • Panel Size: 80x60x9mm
  • Pixel Pitch:1.25mm
  • Supplier Type:Original manufacturer
  • Place of Origin:Guangdong
  • Model Number:Houkem-6432-BRGB
  • Brand Name:Houkem
  • use:advertising publish
  • Pixels:1mm
  • Life span:100000hours
  • Dot array:64*32
  • Product name:mini rgb dot matrix screen
  • Voltage:3.3-5v
Products Description
Part No.
Houkem-6432-BRGB
Dimension
80*60*9mm
Pixel
1mm
   led package
1010 smd led
Epoxy Color
Milky White
Emitting Color
RGB
Luminous intensity
100-300mcd/chip
Polarity
Common anode/cathode
If need other specifications, Please contact with our sales to get what you want.
Details Images
Features:
1. 32*64 dot matrix 1mm.
2.Uniform glow.
3.Low current consumption.
4.2 years of warranty.
5.Rohs & CE compliant.

All colors and others items we can supply:
Items
Wavelength(nm)
Forward Voltage(V)
Forward current(mA)
Luminous Intensity (mcd)
Peak Forward Current(mA)
Reverse Voltage (V)
Reverse Current(uA)
super red
630-635
1.8-2.0
18
100-150
100
5
10
high red
638-660
1.8-1.9
18
15-20
100
5
10
ultra red
620-625
2.0-2.1
18
200-300
100
5
10
super green
565-575
1.9-2.0
18
48-55
100
5
10
pure green
615-625
2.8-3.0
20
260-300
100
5
10
white
/
2.6-2.8
20
200-250
100
5
10
blue
465-475
2.8-3.0
20
150-200
100
5
10
yellow
580-600
1.9-2.0
18
70-80
100
5
10
amber
600-605
1.9-2.0
18
100-110
100
5
10
1 digit 7 segment led display
0.28"/0.3"/0.32"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"/1.0"/1.2"/1.5"/1.8"/2.3"/3"/4"/5"/6"/7"/8"/10"/12"/16"/20"
2 digit 7 segment led display
0.25"/0.26"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"/1.0"/1.2"/1.3"/1.5"/1.8"/2.3"
3 digit 7 segment led display
0.25"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"
4 digit 7 segment led display
0.25"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"/1.2"
5 digit 7 segment led display
0.28"/0.36"/0.39"/0.56"
6 digit 7 segment led display
0.3"/0.36"
Application
Industrial Equipment led display
Clock LED Display
Home Appliance LED Display
Company Profile
Houkem has 18 years of experience in manufacturing,developing,selling of led products,and certified by ISO 9001 international quality system.our main products are:customized led display,7 segment smd /led display,dot matrix,uv led & IR led.Our reliable quality and excellent service acquired high reputation from our customers.Sincerely hope to cooperate with you and create a bright future!
Certifications

Exhibition
FAQ
Q1: Can you accept the sample order?
Yes, we can. we welcome sample order to test and check quality.

Q2: Could I put my logo on it?
Of course. The logo can be made according to your requirements once you reached our MOQ.

Q3: What's your packaging?
We have a color box and a carton. Welcome to customize if you need it.

Q4: What's your lead time?
3-7 days for the sample orders in the stock. 20-30 days for mass production.

Q5: What's your quotation terms?
EXW.

Q6: How about your quality?
Our products are CE, Rohs listed.

Q7: What's your warranty?
With over 18 years of experience in manufacturing the LED equipment, we're fully confident about our quality.
All of the products will be tested two times before shipment. and have 2 years of warranty.

Q8: Why choose us?
1) We provide factory-direct prices.
2) We have our own R&D team, the products can be customized according to your requirements.
3) We provide superior and timely pre-sales advice and after-sales service.
4) We provide logistic service door to door (China:to your warehouse), much easier to transport.
