custom 10w uv 275nm led strip germicidal 280nm 275nm uvc led module
- Color Temperature(CCT):275nm
- Input Voltage(V):DC 12V
- Warranty(Year):2-Year
- Type:LED Modules
- Support Dimmer:NO
- Lighting solutions service:Lighting and circuitry design
- Luminous Efficacy(lm/w):30
- Lifespan (hours):10000
- Working Time (hours):10000
- Product Weight（kg）:0.001
- Chip Material:AlGaInP
- Emitting Color:purple
- Power:10W
- Viewing Angle(°):60 or 120 or 30
- Color Temperature:275nm
- Operating Temperature(℃):20 - 50
- Storage Temperature(℃):20 - 60
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:10w 275nm uvc led module
- Application:sterilization
- Wave length:275nm
- LED QTY:12pcs
- current:600mA
- wavelength:270-280nm
- LED Chip:20mil
- Material:Aluminum PCB
- Dimension:235*36*1.6mm
- Certification:RoHS, CE, ISO9001
| Item | High Power 10w uvc LED module |
| Power | 10w |
| chip quantity | 12pcs |
| Color | purple |
| Diode type | 275nm 3535 smd type (or 6565 smd) |
| material | aluminum , ( copper are available) |
| size | 235*36*1.5mm( customized size are avilable) |
| Radiant flux | 160-200mw |
| View Angle of the Lens | 60 degree/120degree(flat lens) |
| Wavelength | 250-260nm,260-270nm,270-280nm |
| other wavelength | 255-340nm, 365-430nm, 440-1550nm |
| Forward Voltage | DC 12V |
| Application | Toilet , Bedding , Crawling mat ,Crib ,Pet items,Pet environmental ,etc Object disinfection |
235*36*1.6mm
2 series 6 parallel
other size uv led module
40*40*1.6mm
5 series 5 parallel
585*36*1.6mm
5 series 8 parallel
985*36*1.6mm
5 series 12 parallel
UVC LED sterilizer light

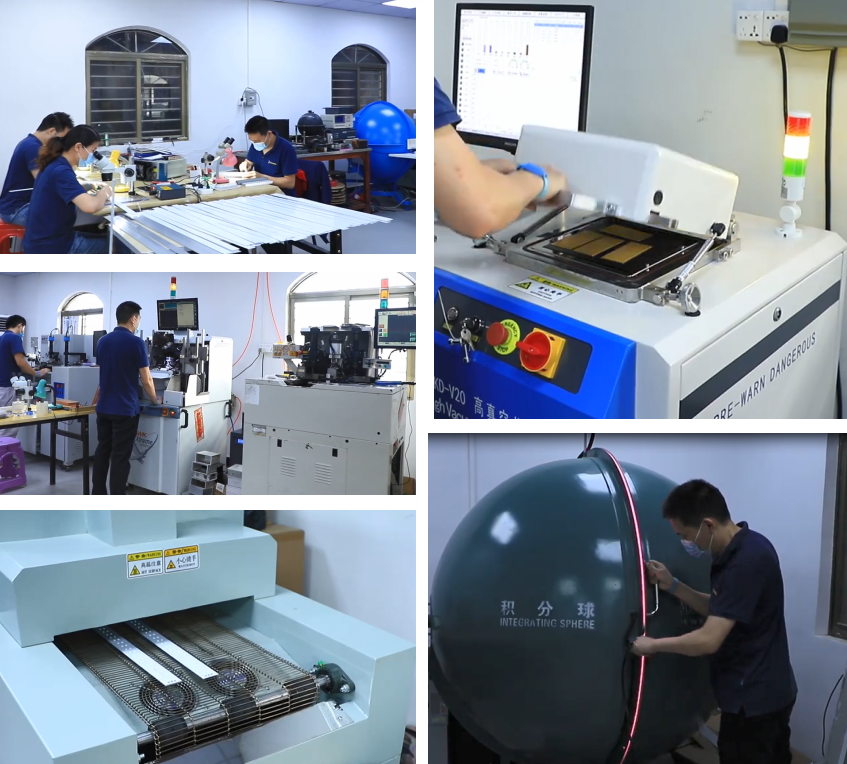

Established in 2003, our factory is specialized in LED products, including high power 255nm to 1550nm LED arrays,COB LEDs, SMD LEDs, LED optical lens, UVC LED sterilizer light, LED flood light, and all LED lighting application solution, etc.
Q1. Can I have a sample order for your products?
A: For standard type,Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-7 days, mass production time needs 1-3 weeks .
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc for sample checking is available for most types.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 work days to arrive. Airline and sea shipping also optional.
Q5.what payment method can you accept?
A: T/T, Paypal, Western Union, Credit card, Alipay, Wechat.
Q6. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q7. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q8: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q9: What are the main markets for your products?
All over the world, especially Southeast Asia, Asia, North America, Europe, the Middle East, etc
