common cathode green 3mm square 8x8 dot matrix
- Place of Origin:Guangdong, China
- Model Number:KEM-12288A/BSG
- Brand Name:KEM
- Screen Dimension:31.7*31.7mm
- emitting color:green
- Face color:Black or Gray or red
- Polarity:Common Cathode or Common Anode
- Working current:15-20mA
- Working voltage:1.8-2V
- OEM:Yes
- Manufature:China factory
- package:EPE
- Rohs:yes
common cathode green 3mm square 8x8 dot matrix,8*8 led matrix square

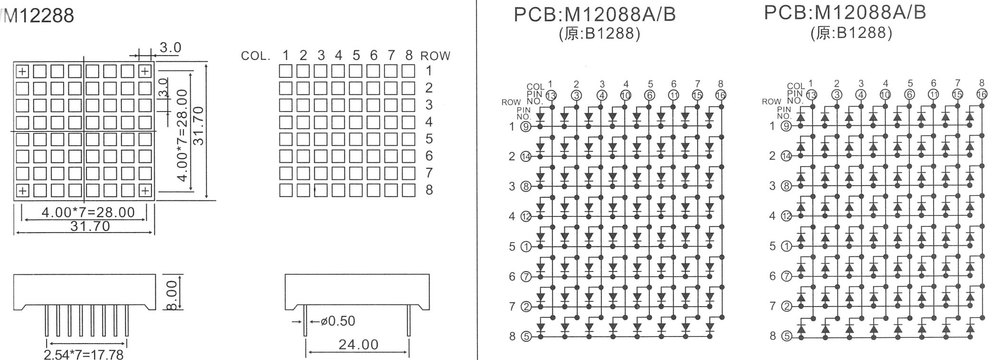

Dimension and Internal Curcuit:

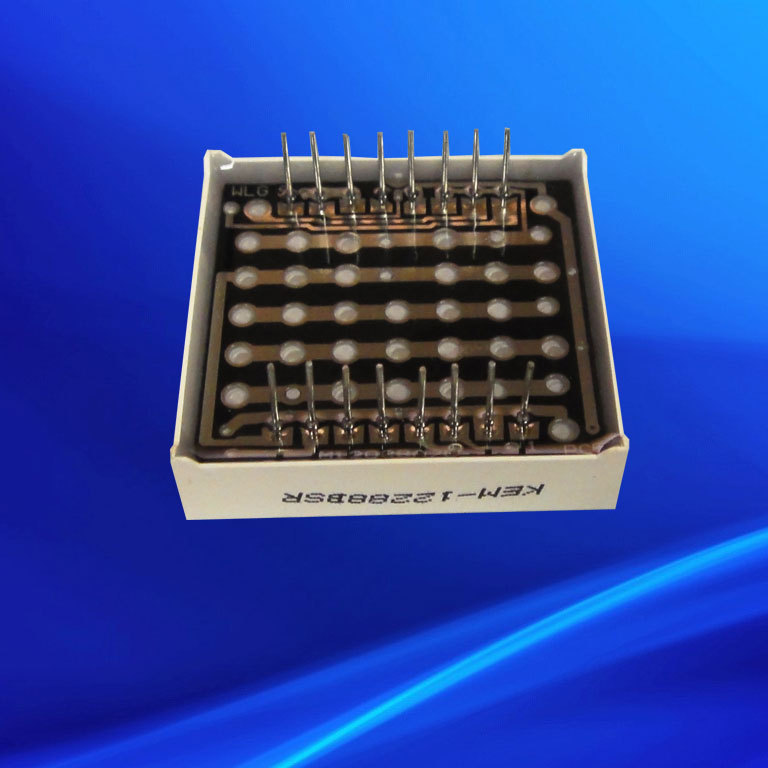

More Pictures
Other hot products(more details please click the link or picture):
Features :
- Low current operation.
- Low power consumption.
- Full color.
- High brightness.
- Industrial standard size.
- Easy mounting on P.C. board or sockets.
- Emitting color : red / green/ yellow/ blue/ orange/ white/ bi-color/ RGB .
- Face color : black / gray .
- Surface dot type : epoxy diffusion / clear lens .
Part details:
Model. | : | KEM-12288A/B |
Description | : | 31.7*31.7mm |
Surface color | : | Black / gray/red |
Emitting color | : | green |
Luminous intensity | : | 200mcd |
Voltage/ Current | : | 2.9-3.1v / 15-20mA |
PCB Polarity | : | Common Cathode or Common Anode |
If the PCB curcuit can not meet your need, pls contact me for other choices.

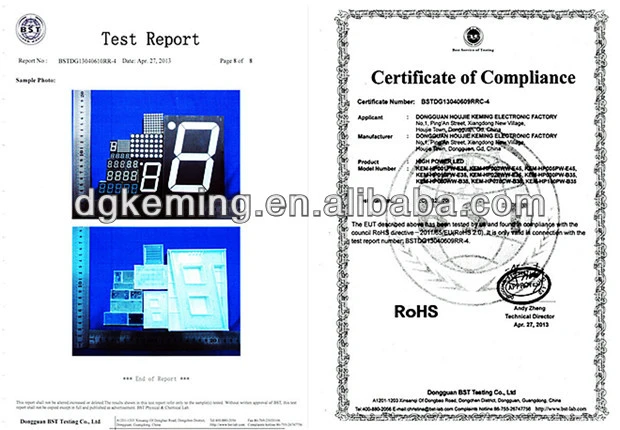

Certificate and package:
What We Can Provide:
7 segment / 14 segment / 16 segment display :
1 Digit | : | 0.28"0.3"0.36"0.39"0.5"0.52"0.56"0.8" 1.0"1.2"1.5"1.8"2.3"4"5"8"12"16" |
2 Digit | : | 0.36"0.39"0.4"0.56 0.8"1"1.5"1.8"2.3" |
3 Digit | : | 0.25"0.3"0.36"0.4"0.5"0.52"0.56"0.8" |
4 Digit | : | 0.25"0.28"0.3"0.36"0.39"0.4" 0.5"0.52"0.56"0.8" |
Emitting Color Available | : | Red, Green, Yellow, Amber, Blue, White, Bi-color, RGB |
Standard Face color | : | Black Face / Gray Face (white segment) |
PCB Polarity | : | Common Anode / Commone Cathode |
LED Dot Matrix Display:
Dot Array | : | 8*8 / 5*7 / 5*8 / 7*11 |
Dot Shape | : | Round Dot , Square Dot |
Dot Diameter | : | 1.9mm, 3.0mm, 3.45mm,3.7mm 4.8mm, 5.0mm, 6.0mm, 10mm |
Various Color | : | Red, Green, Yellow, Amber, Blue, White, Bi-color, RGB. |

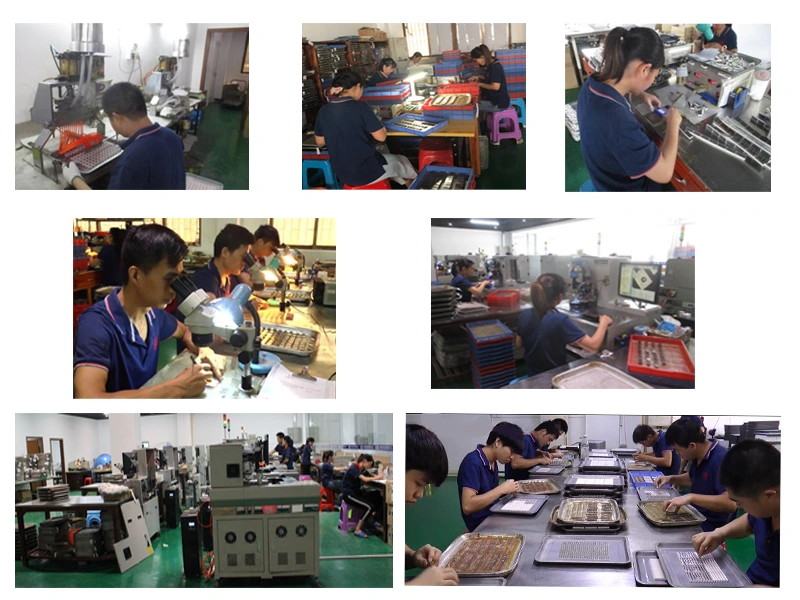

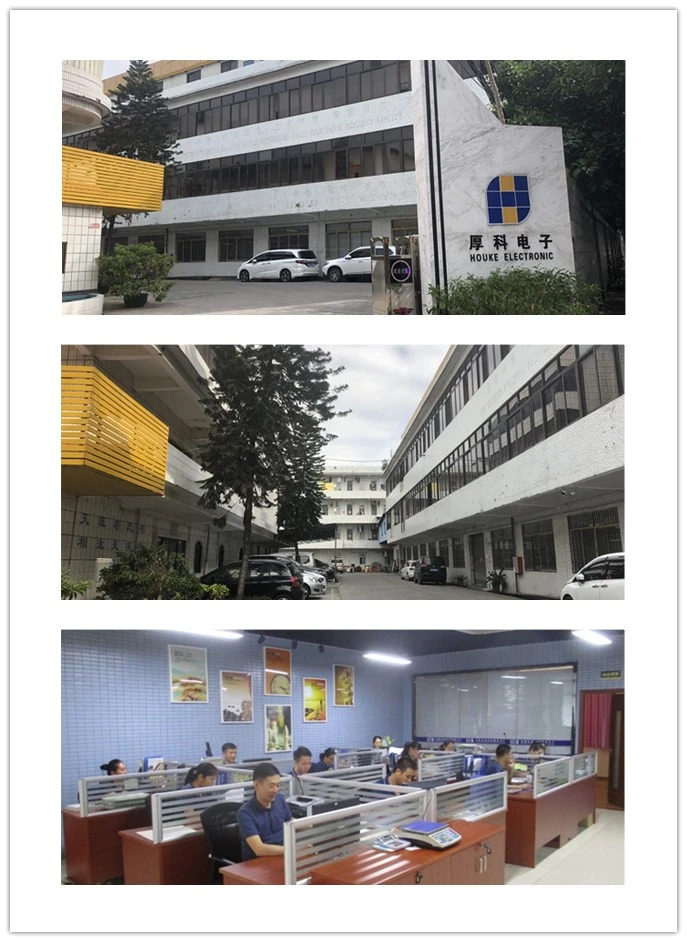

Established in 2003,our factory is specialized in LED products, including 7 segment
LED/SMD displays,Alphanumeric displays,SMD LEDs,dot-matrix ,bar graph
arrays,arrow led display and high power led.etc.
Q1. Can I have a sample order for your products?
A: For standard type,Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-7 days, mass production time needs 1-3 weeks .
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc for sample checking is available for most types.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5.what payment method can you accept?
A:we accept :T/T,paypal,Western Union,Credit card.
Q6. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q7. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q8: Do you offer guarantee for the products?
A: Yes, we offer 2-3 years warranty to our products.
Q9: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.
Fordefective batch products, we will resend them to you or we can discuss the solution
including re-call according to real situation.
