Common cathode full color round 8x8 dot matrix 0.7 inch rgbdot matrix red green blue led matrix 8*8
Common cathode full color round 8x8 dot matrix 0.7 inch rgbdot matrix red green blue led matrix 8*8
Common cathode full color round 8x8 dot matrix 0.7 inch rgbdot matrix red green blue led matrix 8*8
Common cathode full color round 8x8 dot matrix 0.7 inch rgbdot matrix red green blue led matrix 8*8
Common cathode full color round 8x8 dot matrix 0.7 inch rgbdot matrix red green blue led matrix 8*8
Common cathode full color round 8x8 dot matrix 0.7 inch rgbdot matrix red green blue led matrix 8*8
Common cathode full color round 8x8 dot matrix 0.7 inch rgbdot matrix red green blue led matrix 8*8
Common cathode full color round 8x8 dot matrix 0.7 inch rgbdot matrix red green blue led matrix 8*8
Common cathode full color round 8x8 dot matrix 0.7 inch rgbdot matrix red green blue led matrix 8*8

Common cathode full color round 8x8 dot matrix 0.7 inch rgbdot matrix red green blue led matrix 8*8

Model NO.
Houkem-7088-ARGB
Price:
USD 3.10-3.50
Delivery:
FOB
Minimum order quantity:
10
Quantity:
  • Place of Origin:CN;GUA
  • Usage:Indoor
  • Display Function:Graphics
  • Pixels:20mm
  • Tube Chip Color:red green blue
  • Brand Name:KEM
  • Model Number:Houkem-7088-ARGB
  • Screen Dimension:20*20mm


Product Describtion

 business



rgb 1.9mm dot 8*8 dot matrix display 20*20mm common cathod led matrix



Features:

1, Low consumption

2, High brightness

3,High intensity and reliability

4,Easy assembly

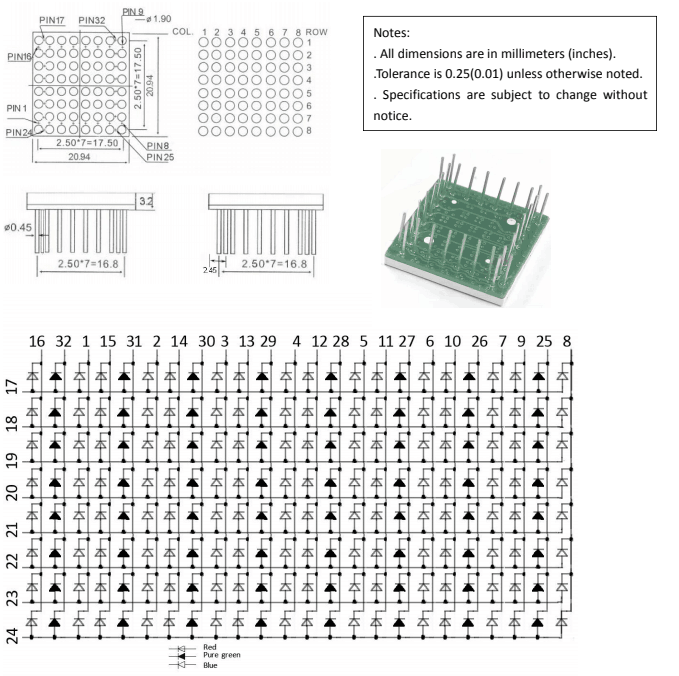

Package dimension & Internal circuit diagram



 7088.01



Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)





Emitting Color



Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=18mA

600-605

30

1.9

2.0

90

100

Super green

IF=18mA

565-575

30

1.9

2.0

48

55

Super red

IF=18mA

625-640

20

1.8

2.0

110

130

Ultra red

IF=18mA

620-625

20

2

2.1

300

350

High red

IF=18mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=18mA

570-580

30

1.9

2.0

43

50

Yellow

IF=18mA

580-600

35

1.9

2.0

70

80

Blue

IF=20mA

465-475

40

2.8

3.0

150

200

Pure green

IF=20mA

515-525

40

2.8

3.0

180

250

White

IF=20mA

-

-

2.8

3.0

180

200



 Product details:

Item No.Houkem-7088-ARGB
Dimension20*20*5.9mm
dot1.9mm
Surface color  Black  / Grey
Segment colorWhite  /Clear
Emitting color ultra red/pure green/blue



 0.7'' 8*8 led matrix

7088rgb



Our Services

Customized product are available



Custom service:

1. We can supply you all kinds of 7 segment LED display

---Digit size: from 0.25"to 20"

---Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment and 14 segment both available

3. Various colors: super red, ultra red, high red, yellow green, pure green, super green, pure green, blue, yellow, white, amber, Bi-color, RGB.

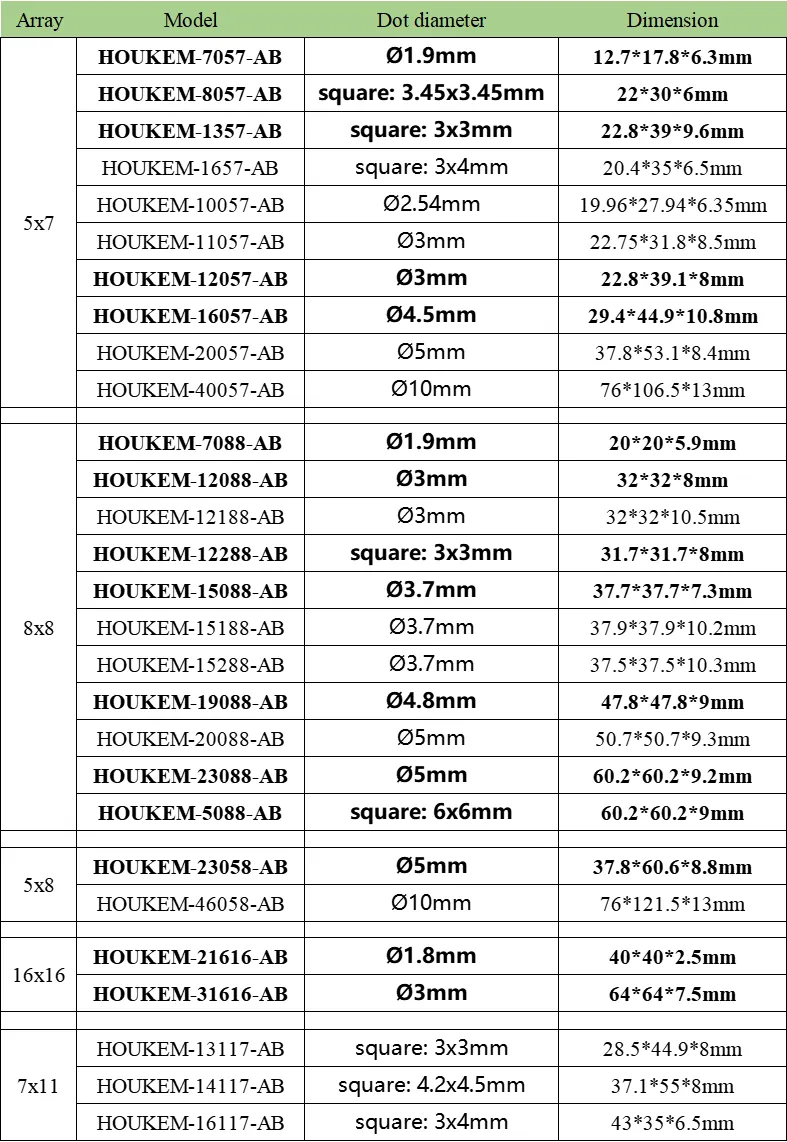

4.Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16


led dot matrix display







Packaging & Shipping

Working process

kem working process



 packing & shipping



Factory pictures

 We are the LED professional manufacturer, have over 14 years experience on LEDs. We can offer you 7 segment led display,  dot matrix,

high power 255nm to 1550nm LED arrays,COB LEDs, SMD LEDs, street light LED, LED optical lens, LED spot light, led grow  light, street light,

and all LED lighting application solution.

factory
