Model No: HOUKEM-23088-ASR
Common cathode 2.3 inch 8x8 red led dot matrix display kem-23088-ASR
dot matrix led houkem is led dot matrix display professional manufacturer
minimum order :
1 piece
Quantity :
$1.00 - $1.20 / piece
- Application:Indoor, Graphics, elevator, digital counter
- Color:red
- Panel Size:60.2*60.2mm
- Pixel Pitch:2.54
- Supplier Type:Original manufacturer, ODM, OEM
- Media Available:datasheet, Photo
- Place of Origin:Guangdong, China
- Model Number:HOUKEM-23088-ASR
- Brand Name:HOUKEM
- use:advertising publish, shopping mall, subway, elevator
- Pixels:2.54
- Specification:--
- Product name:RED 5mm8*8 dot matrix
- Warranty:2Years
- PCB Polarity:common anode
- operating temperature:-20 ~ +50 ℃
- OEM:YES
- Custom made:YES
- Life span:100000hours
- Certificate:CE ROHS ISO9001 REACH
Product Describtion

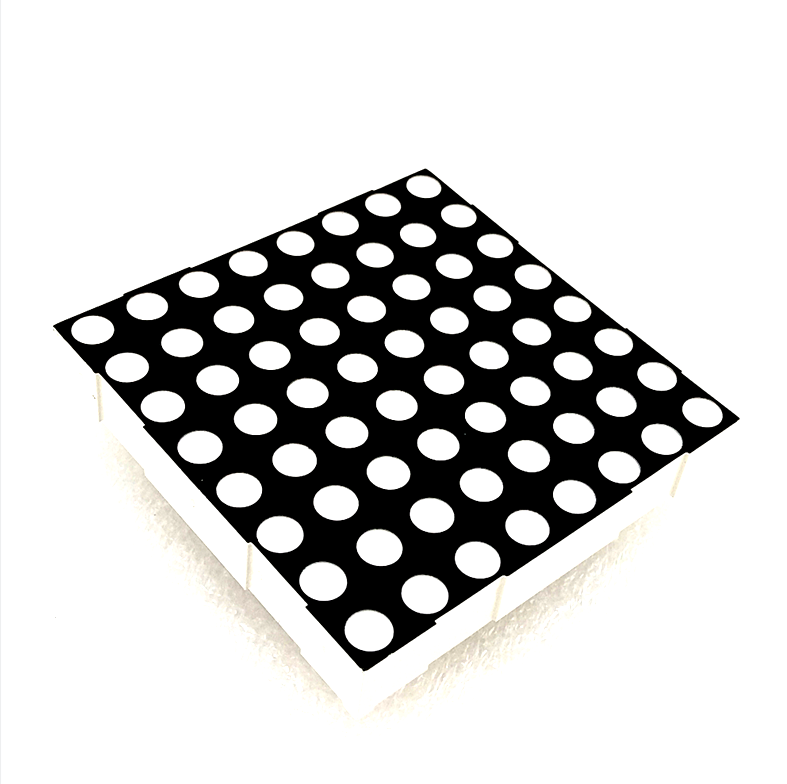

red 5mm dot 8x8 led matrix
Features:
1, Low consumption
2, High brightness
Product details:
| Item No. | HOUKEM-23088-ASR |
| Dimension | 60.2*60.2*9.2mm |
| dot | 5mm |
| Surface color | Black / Grey |
| Segment color | White /Clear |
| Emitting color | Super red |

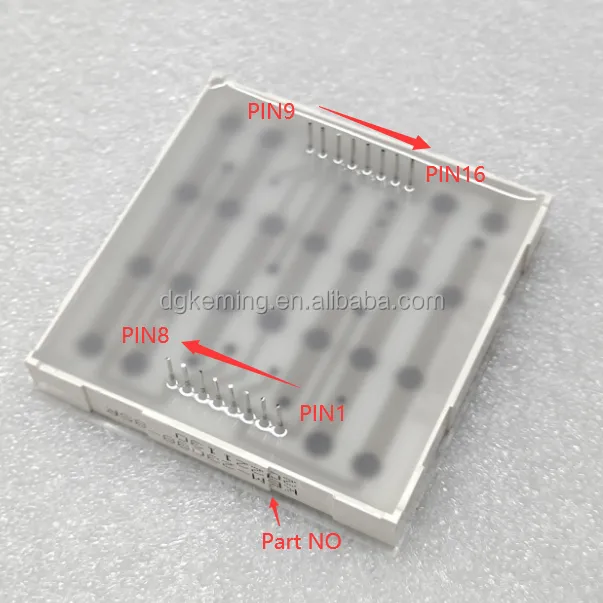

Package dimension & Internal circuit diagram
Color Code & Chip characteristic PER CHIP: (Test Condition: IF=15Ma)
Emitting Color | Test Condition | Wavelength(nm) | Forward Voltage(V) | Luminous Intensity (mcd) | |||
(λp) | λ | Typ | Max | Typ | Max | ||
Amber | IF=15mA | 600-605 | 30 | 1.8 | 2.0 | 90 | 100 |
Super green | IF=15mA | 565-575 | 30 | 1.8 | 2.0 | 48 | 55 |
Super red | IF=15mA | 620-625 | 20 | 1.8 | 2.0 | 110 | 130 |
Ultra red 1 | IF-15mA | 620-625 | 20 | 1.8 | 2.0 | 200 | 210 |
Ultra red 2 | IF=15mA | 620-625 | 20 | 1.8 | 2.0 | 300 | 350 |
High red | IF=15mA | 638-660 | 20 | 1.8 | 1.9 | 15 | 20 |
Yellow green | IF=15mA | 570-580 | 30 | 1.8 | 2.0 | 43 | 50 |
Yellow | IF=15mA | 580-600 | 35 | 1.8 | 2.0 | 70 | 80 |
Blue | IF=15mA | 465-475 | 40 | 2.95 | 3.0 | 150 | 200 |
ultra blue | IF=15mA | 467-469 | 40 | 2.9 | 3.0 | 360 | 385 |
Pure green | IF=15mA | 515-525 | 40 | 2.95 | 3.0 | 600 | 640 |
White | IF=15mA | - | - | 2.8 | 3.0 | 180 | 200 |
Two years quality warranty
Our Services
Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16
7 segment LED display
| 1 digit | 0.2'', 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.5'', 0.52'', 0.56'', 0.6'', 0.8'', 1'', 1.2'', 1.5'', 1.8'', 2.3'', 3'', 4'', 5'', 6'', 7'', 8'', 10'', 12'', 16'', 20'' |
| 2 digit | 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.43'', 0.5'', 0.52'', 0.56'', 0.8'', 1'', 1.2'', 1.5'' |
| 3 digit | 0.25'', 0.28'', 0.3'', 0.4'', 0.52'', 0.56'', 0.8'' |
| 4 digit | 0.25'', 28'', 0.3'', 0.36'', 0.4'', 0.5'', 0.56'', 0.8'', 1.2'' |
| 5 digit | 0.28'', 0.36'', 0.56'' |
| 6 digit | 0.3'', 0.36'' |
14 /16 segment
| 1 digit | 0.39'', 0.5'', 0.8'', 1'', 1.2'', 2.3'' |
| 2 digit | 0.54'' |
| 3 digit | 0.54'' |
| 4 digit | 0.39'', 0.54'' |
| 6 digit | 0.4'' |
Various colors: super red, ultra red, high red, yellow green, pure green, super green,
pure green, blue, yellow, white, amber, orange, Bi-color, RGB.
Custom 7 segment display are available

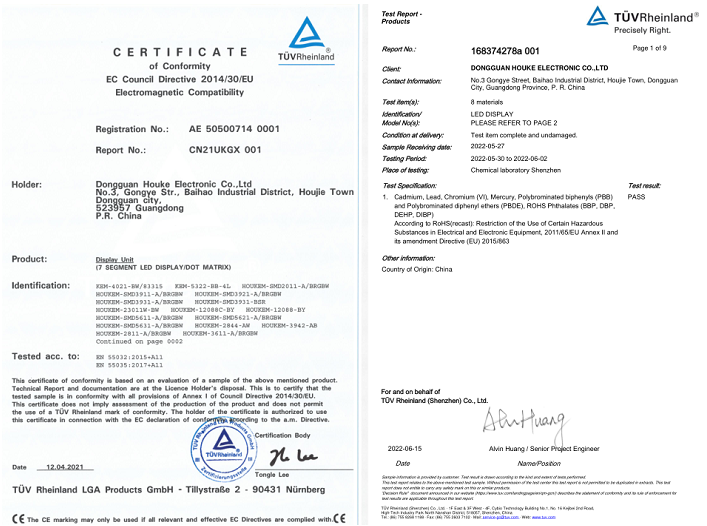

Certifications
Contact us
Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays,
SMD LEDs, dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power led, high power 255nm
to 1550nm LED arrays,COB LEDs, SMD LEDs, street light LED, LED optical lens, and all LED lighting application solution, etc.
