Common cathode 2.3 inch 5mm led dot matrix 8x8 large led round module pure green for elevator
Common cathode 2.3 inch 5mm led dot matrix 8x8 large led round module pure green for elevator
Common cathode 2.3 inch 5mm led dot matrix 8x8 large led round module pure green for elevator
Common cathode 2.3 inch 5mm led dot matrix 8x8 large led round module pure green for elevator
Common cathode 2.3 inch 5mm led dot matrix 8x8 large led round module pure green for elevator
Common cathode 2.3 inch 5mm led dot matrix 8x8 large led round module pure green for elevator
Common cathode 2.3 inch 5mm led dot matrix 8x8 large led round module pure green for elevator
Common cathode 2.3 inch 5mm led dot matrix 8x8 large led round module pure green for elevator
Common cathode 2.3 inch 5mm led dot matrix 8x8 large led round module pure green for elevator
Common cathode 2.3 inch 5mm led dot matrix 8x8 large led round module pure green for elevator
Common cathode 2.3 inch 5mm led dot matrix 8x8 large led round module pure green for elevator
Common cathode 2.3 inch 5mm led dot matrix 8x8 large led round module pure green for elevator
Common cathode 2.3 inch 5mm led dot matrix 8x8 large led round module pure green for elevator

Common cathode 2.3 inch 5mm led dot matrix 8x8 large led round module pure green for elevator

Model NO.
HOUKEM-23088-APG
Price:
USD 1.10-1.30
Minimum order quantity:
5
Quantity:
  • Place of Origin:CN;GUA
  • Application:elevator
  • Color:GREEN
  • Panel Size:60.2*60.2mm
  • Pixel Pitch:7.62mm
  • Model Number:HOUKEM-23088-APG
  • Brand Name:HOUKEM
Product Describtion





 5mm 8*8 dot matrix display 60.2*60.2mm green



Features:

1, Low consumption

2, High brightness

3,High intensity and reliability

4,Easy assembly





Package dimension & Internal circuit diagram



 23088AB





Color Code & Chip characteristic PER CHIP: (Test Condition: IF=10-15Ma)





Emitting Color



Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=10-15mA

600-605

30

1.9

2.0

90

100

Super green

IF=10-15mA

565-575

30

1.9

2.0

48

55

Super red

IF=10-15mA

620-625

20

1.8

2.0

110

130

Ultra red 1

IF=10-15mA

620-625

20

1.8

2.0

200

210

Ultra red 2

IF=10-15mA

620-625

20

1.8

2.0

300

350

High red

IF=10-15mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=10-15mA

570-580

30

1.9

2.0

43

50

Yellow

IF=10-15mA

580-600

35

1.9

2.0

70

80

Blue

IF=10-15mA

465-475

40

2.7

2.9

150

200

Pure green

IF=10-15mA

515-525

40

2.7

2.9

180

250

White

IF=10-15mA

-

-

2.7

2.9

180

200



 Product details:

Item No.HOUKEM-23088-APG
Dimension60.2*60.2*9.2mm
dot5mm
Surface color  Black  / Grey
Segment colorWhite  /Clear
Emitting color  green



 2.3 inch led dot matirx green

5mm dot matrix





Our Services

Customized product are available

customized led 7 segment display


Custom service:

1. We can supply you all kinds of 7 segment LED display

---Digit size: from 0.25"to 20"

---Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment and 14 segment both available

3. Various colors: super red, ultra red, high red, yellow green, pure green, super green,

pure green, blue, yellow, white, amber, Bi-color, RGB.



4.Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16


led dot matrix display







Packaging & Shipping

Working process

working process



 packing & shipping



Factory pictures

 factory

Related Products

 3161612088 (2).png

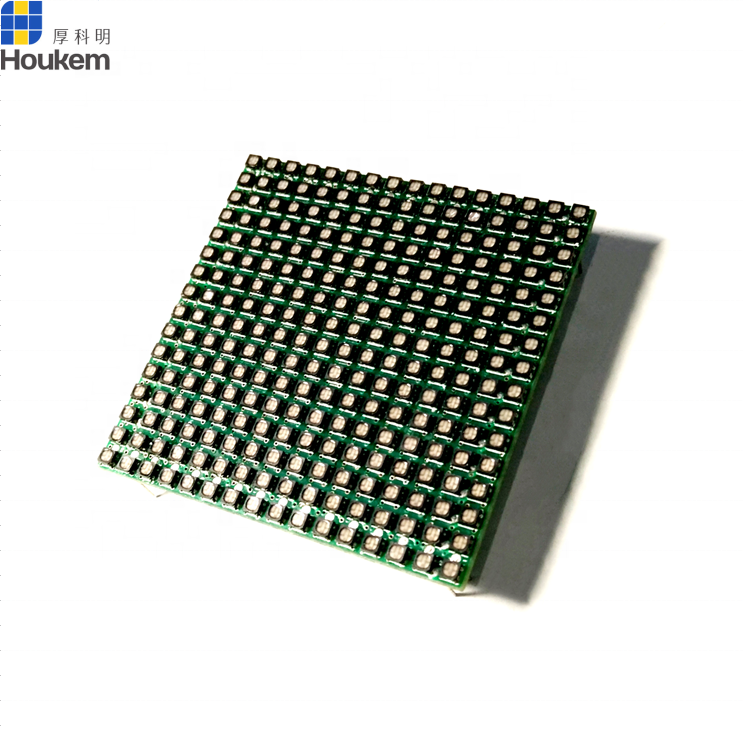

51616 (2).png7057.png
