kem-5632 three digit 7 segment led display
kem-5632 three digit 7 segment led display
kem-5632 three digit 7 segment led display
kem-5632 three digit 7 segment led display
kem-5632 three digit 7 segment led display
kem-5632 three digit 7 segment led display
Model No: HOUKEM-5632-BW

Common anode white 0.56 inch 3 digit 7 segment display houkem-5632-bw

7 segment led display houkem is 7 segment led display professional manufacturer
Delivery :
EXW
minimum order :
100 pieces
Stock Time :
7-14Day
Country of Origin :
Dongguan/ Guangdong
Quantity :
US $0.50 - US $0.50 / pieces
add to cart
Contact Now
  • Place of Origin:CN;GUA
  • Application:Graphics
  • Color:white
  • Panel Size:37.5*19*8mm
  • Pixel Pitch:20mm
  • Model Number:HOUKEM-5632-BW
  • Brand Name:HOUKEM
Product Describtion

white 3 digit 7 segment led display 0.56 inch

1,Low consumption 2, High brightness

Item No.HOUKEM-5632-BW
Dimension37.5*19*8mm
Surface color Black /Grey
epoxy colorwhite
Emitting color white

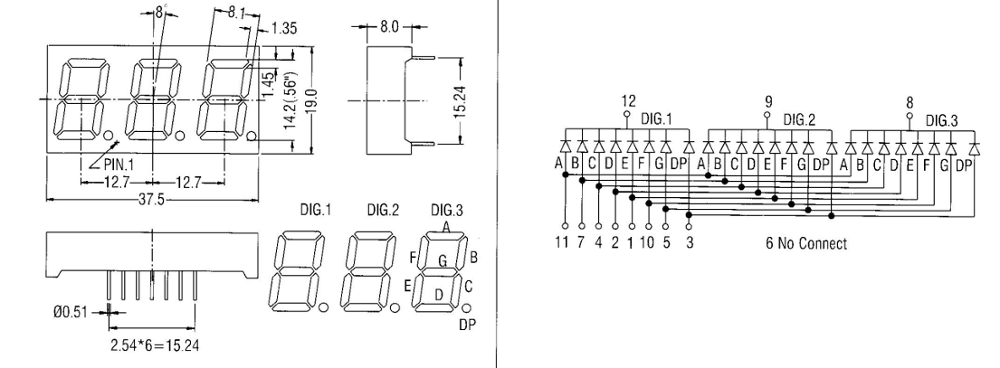

Package dimension & Internal circuit diagram

Note: If this PCB layout don't meet your requirements, please contact me for other choices.

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=10-15Ma)

Emitting Color

Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=10-15mA

600-605

30

1.9

2.0

90

100

Super green

IF=10-15mA

565-575

30

1.9

2.0

48

55

Super red

IF=10-15mA

620-625

20

1.8

2.0

110

130

Ultra red 1

IF=10-15mA

620-625

20

1.8

2.0

200

210

Ultra red 2

IF=10-15mA

620-625

20

1.8

2.0

300

350

High red

IF=10-15mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=10-15mA

570-580

30

1.9

2.0

43

50

Yellow

IF=10-15mA

580-600

35

1.9

2.0

70

80

Blue

IF=10-15mA

465-475

40

2.7

2.9

150

200

Pure green

IF=10-15mA

515-525

40

2.7

2.9

180

250

White

IF=10-15mA

-

-

2.7

2.9

180

200

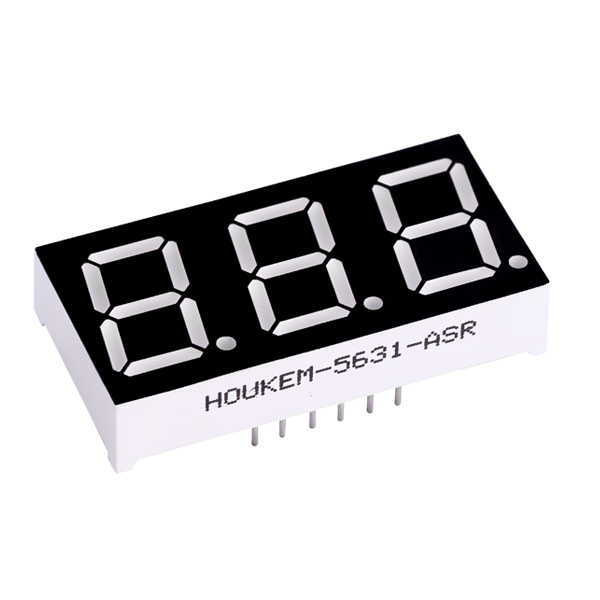

0.56'' 3 digit 7 segment display white

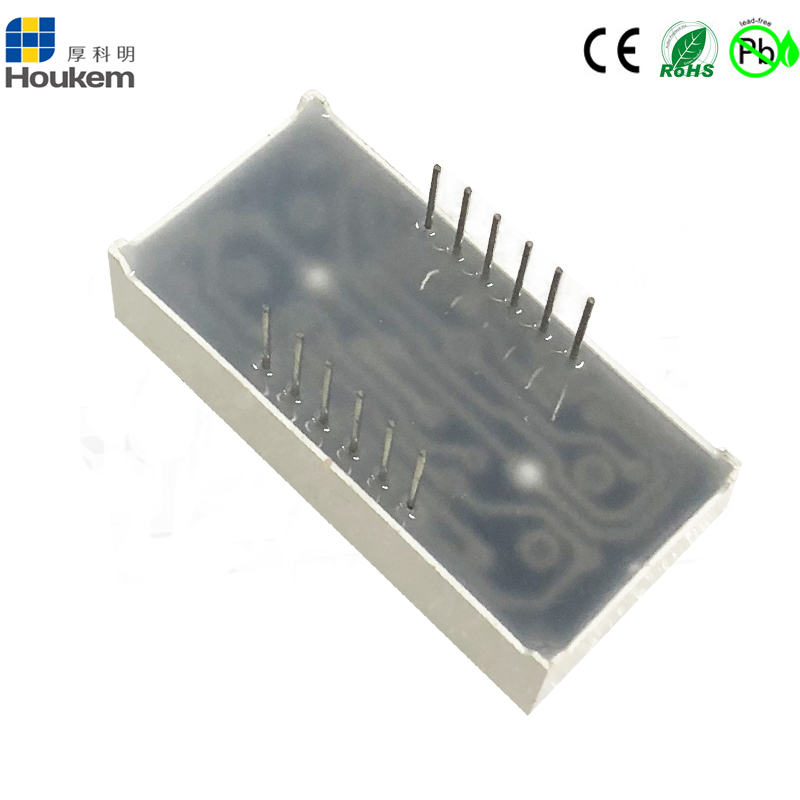

0.56 inch 7 segment display 3 digit

Our Services




Custom 7 segment display

customized 7 segment led display

Related Products

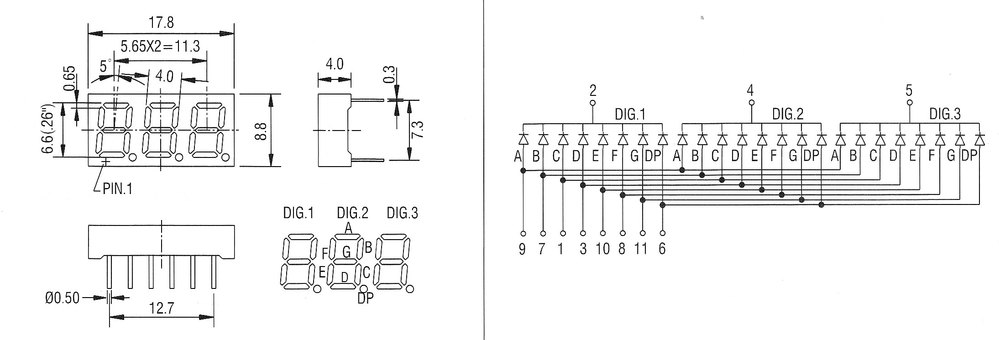

2631

0.26 inch 3 digit 7 segment display

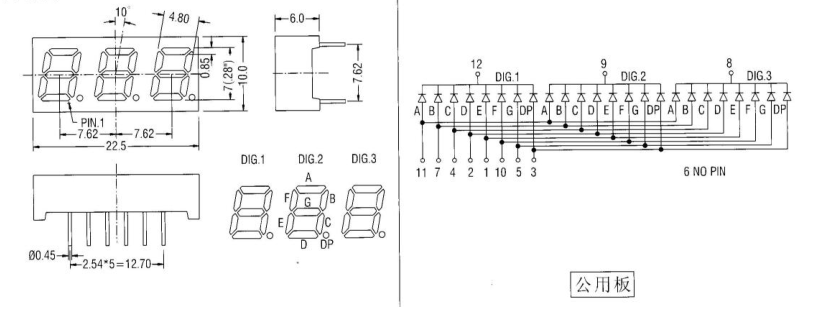

2831

0.28 inch 3 digit 7 segment display

3631

0.36 inch 3 digit 7 segment display

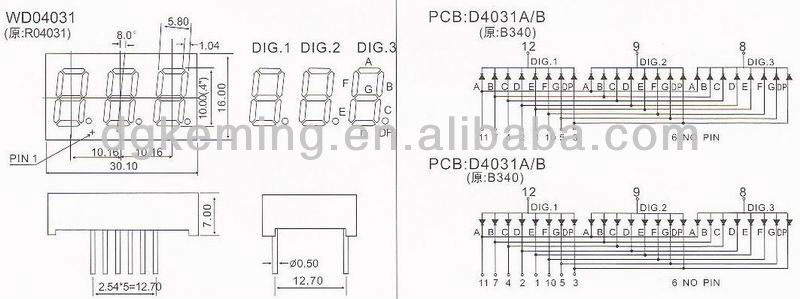

4031

0.4 inch 3 digit 7 segment display

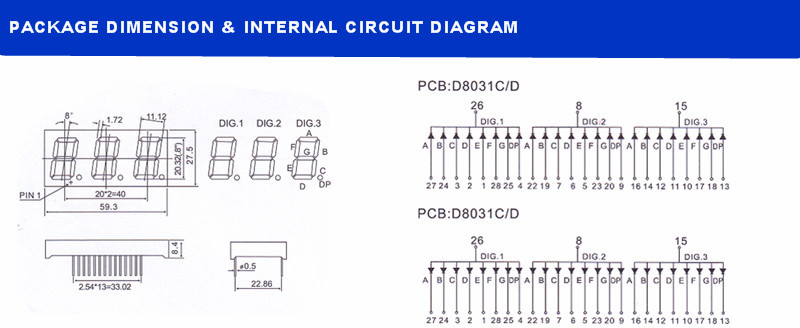

8031
