1.9mm dot matrix 8x8
1.9mm dot matrix 8x8
1.9mm dot matrix 8x8
1.9mm dot matrix 8x8
Model No: HOUKEM-7088-BSRG

KEM-7088-BSRG dual color round 8x8 dot matrix red green

dot matrix display houkem is led dot matrix display professional manufacturer
minimum order :
1 piece
Quantity :
$0.60 - $0.70 / piece
add to cart
Contact Now
  • Application:Indoor, Graphics, Text
  • Color:red+green
  • Panel Size:20*20mm
  • Pixel Pitch:20mm
  • Supplier Type:Original manufacturer, ODM
  • Media Available:datasheet, Photo
  • Place of Origin:Guangdong, China
  • Model Number:HOUKEM-7088-BSRG
  • Brand Name:HOUKEM
  • use:advertising publish
  • Pixels:2.54
  • Specification:--
  • Usage:Indoor
  • Product name:1.9mm dual color dot matrix 8x8
  • Warranty:2Years
  • PCB Polarity:common anode
  • operating temperature:-35 ~ +50 ℃
  • OEM:YES
  • Custom made:YES
  • Certificate:CE/ROHS/ISO9001/REACH
Product Describtion

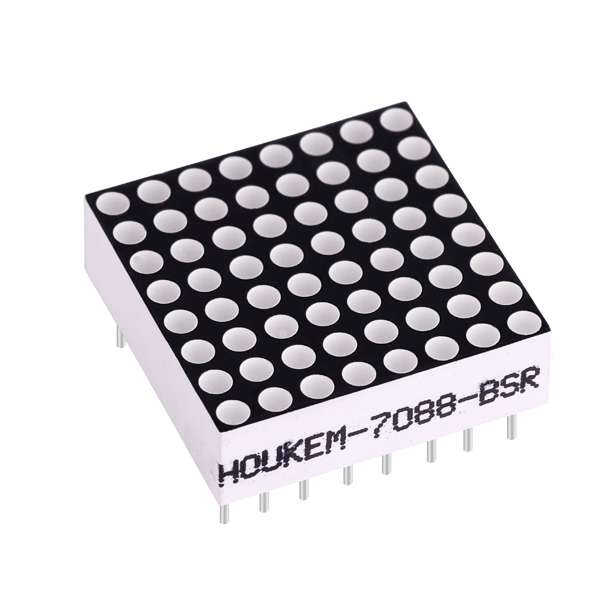

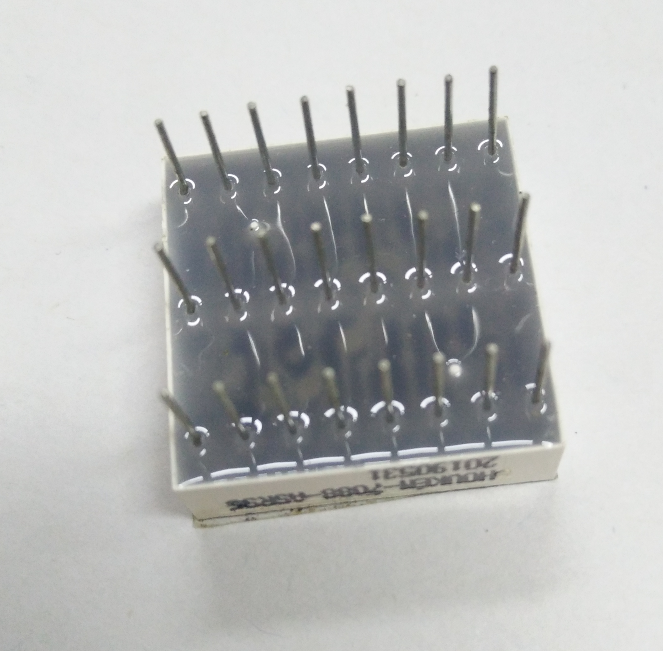

RED+green dual color dot matrix 8x8 1.9mm round module

1,Low consumption 2, High brightness

Item No.HOUKEM-7088-BSRG
Dimension20*20*5.9mm
Surface color Black /Grey
epoxy colorwhite
Emitting color super red +super green

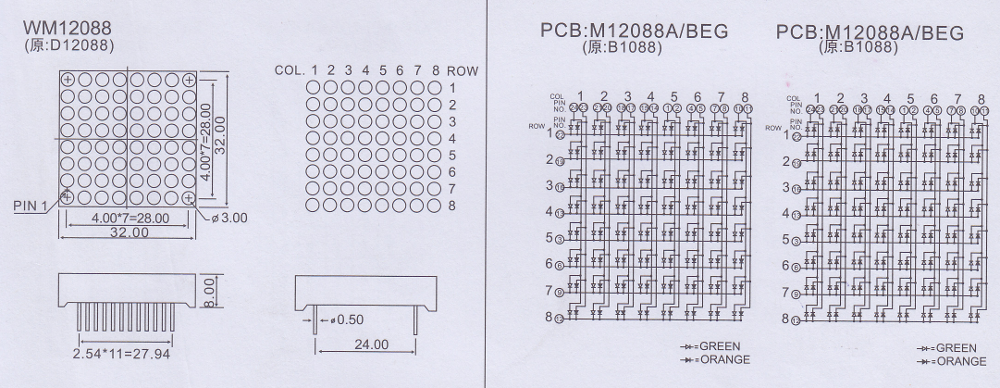

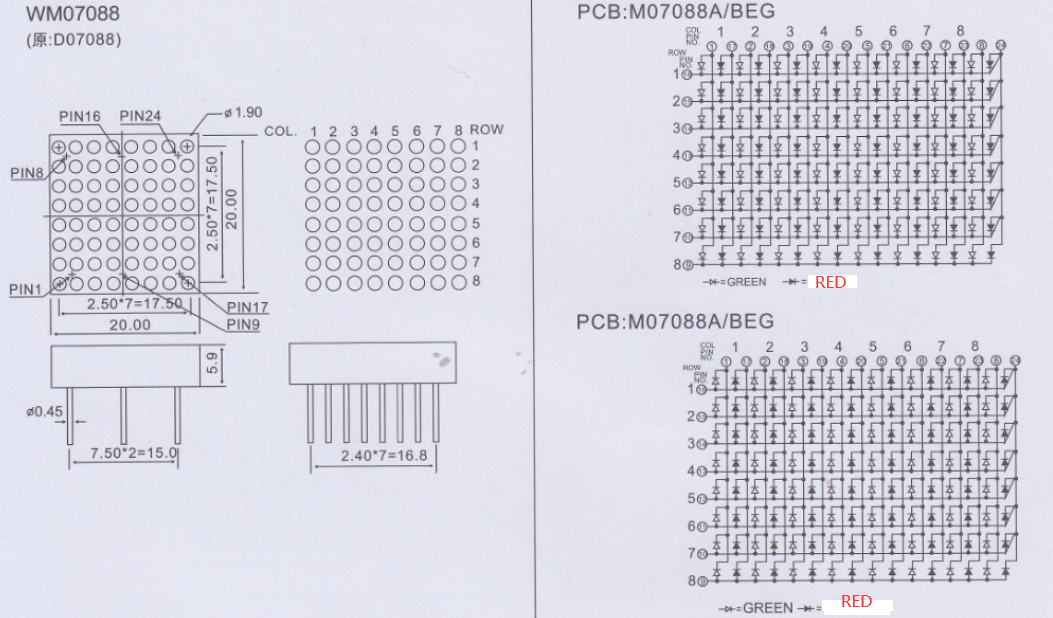

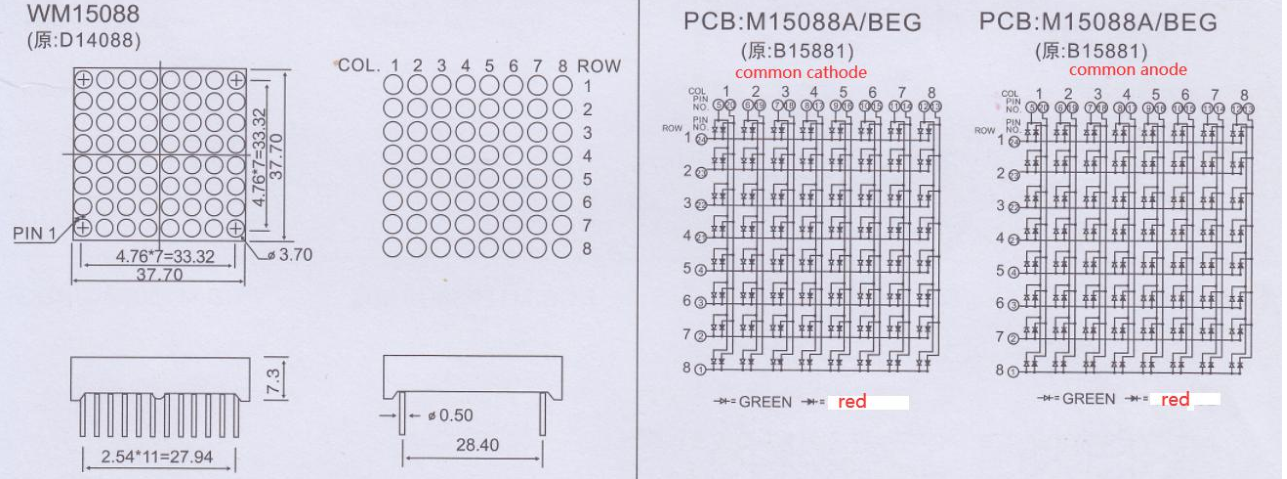

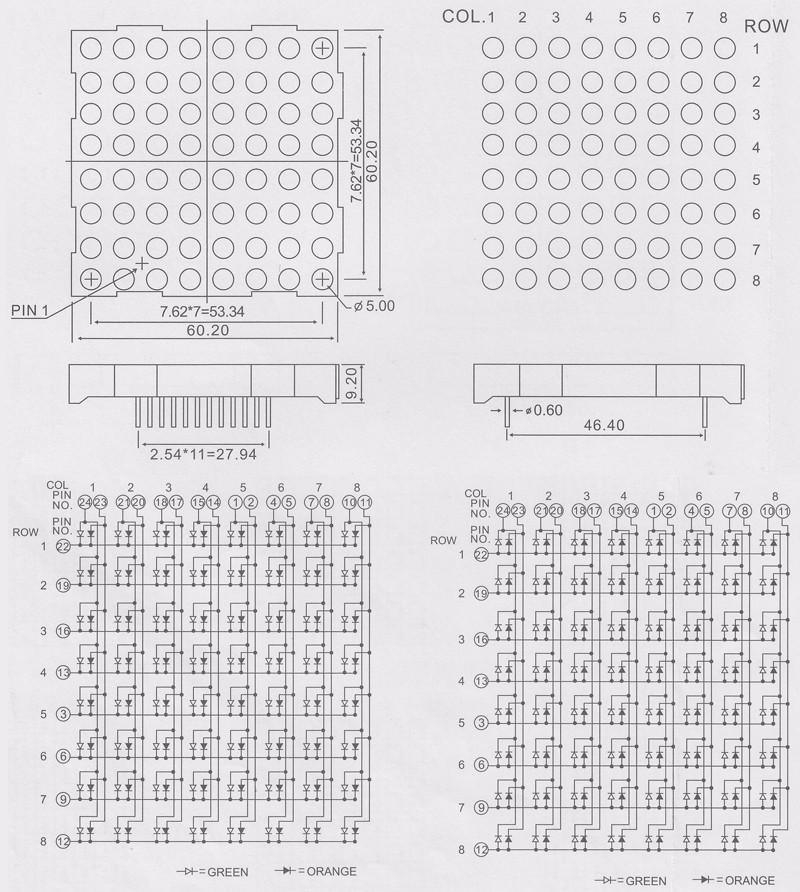

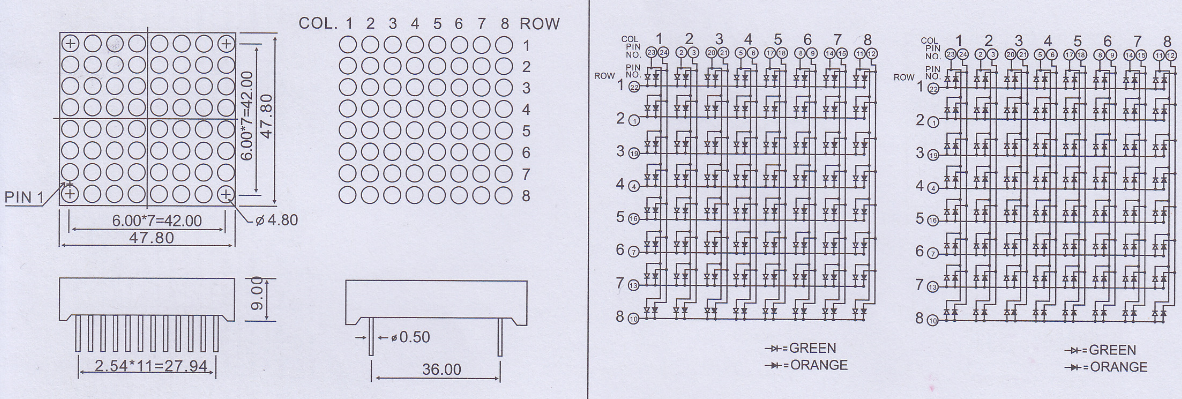

Package dimension & Internal circuit diagram

Note: If this PCB layout don't meet your requirements, please contact me for other choices.

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=15Ma)

Emitting Color

Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=15mA

600-605

30

1.9

2.0

90

100

Super green

IF=15mA

565-575

30

1.9

2.0

48

55

Super red

IF=15mA

620-625

20

1.8

2.0

110

130

Ultra red 1

IF=15mA

620-625

20

1.8

2.0

200

210

Ultra red 2

IF=15mA

620-625

20

1.8

2.0

300

350

High red

IF=15mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=15mA

570-580

30

1.9

2.0

43

50

Yellow

IF=15mA

580-600

35

1.9

2.0

70

80

Blue

IF=15mA

465-475

40

2.95

3.0

150

200

Pure green

IF=15mA

515-525

40

2.95

3.0

600

250

White

IF=15mA

-

-

2.8

2.9

180

200

Related Products

Our Services

Custom 7 segment display

Contact us

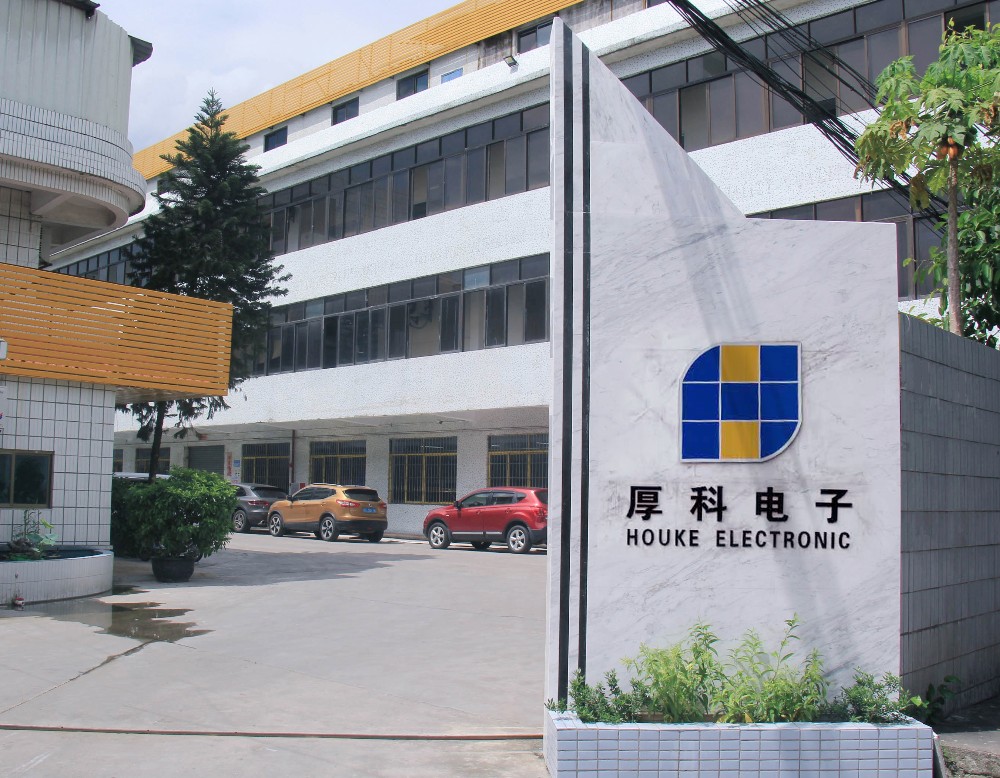

Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays,
