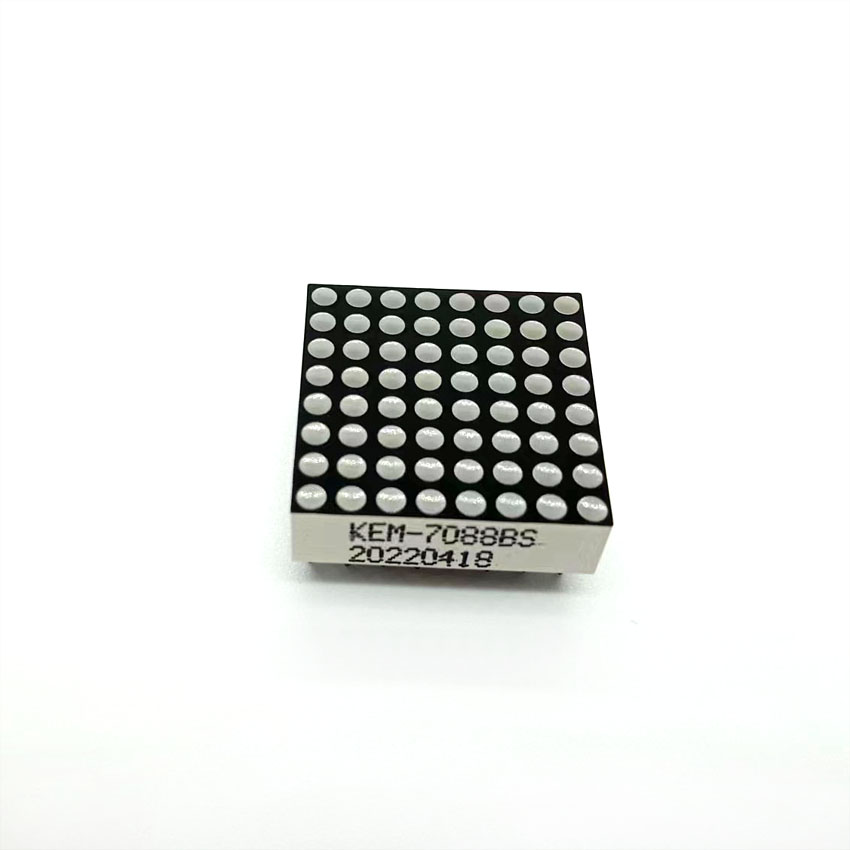

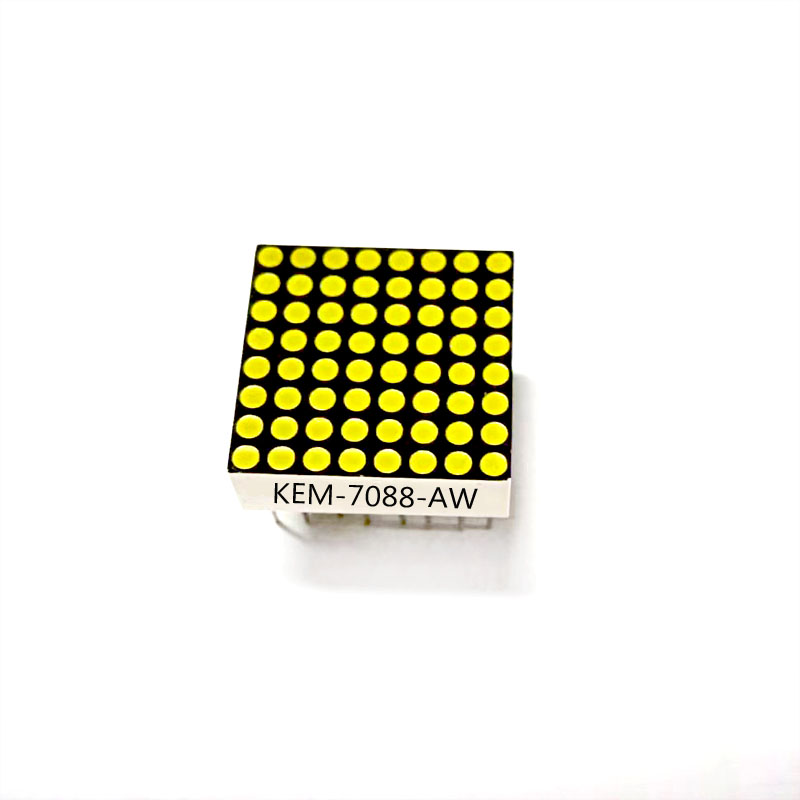

8×8 Bi-Color LED Matrix Display
8×8 Dot Matrix Display for Industrial and Electronic Applications
The8×8 dot matrix display is a compact and reliable LED display module designed for industrial equipment, consumer electronics, digital indicators, and embedded control systems. Supporting both common anodeandcommon cathode configurations, this 8x8 LED matrix display offers stable performance, low power consumption, and long service life, making it an excellent choice for OEM and ODM projects.
Manufactured by Houkem, this LED matrix module is available in bi-color red and green as standard, with multiple emitting color options to meet different product requirements. With over 18 years of manufacturing experience and ISO 9001 certified production, Houkem provides dependable display solutions for global electronic equipment manufacturers.
Product Features
This8×8 dot matrix display is engineered to deliver consistent brightness and reliable performance for long-term industrial use.
Key features include:
- 8×8 dot matrix structure with 1.9 mm pixel size
- Standard 20 × 20 mm package
- Common anode or common cathode available
- Uniform light output and excellent display consistency
- Low current consumption for energy-efficient operation
- CE and RoHS compliant
- Up to 50,000 hours operating life
- Two-year product warranty
- OEM and customized specifications supported
These advantages make the module suitable for both high-volume production and customized electronic display solutions.

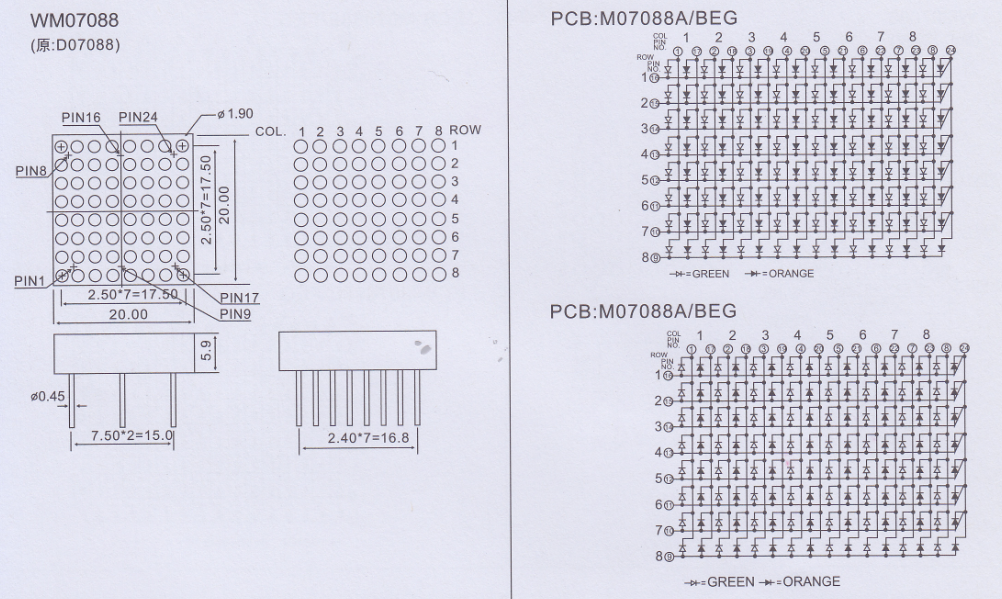

Technical Specifications
| Item | Specification |
|---|---|
| Part Number | Houkem-7088-A/BRG |
| Display Type | 8×8 Dot Matrix Display |
| Module Size | 20 × 20 mm |
| Pixel Pitch | 2.54 mm |
| Dot Size | 1.9 mm |
| Surface Color | Black / Grey |
| Epoxy Color | Milky White / Clear |
| Emitting Color | Red + Green (Bi-color) |
| Polarity | Common Anode / Common Cathode |
| Luminous Intensity | 80–100 mcd/chip |
| Forward Voltage | 1.8–2.0 V |
| Operating Current | 18 mA |
| Lifetime | 50,000 Hours |
| Certification | CE, RoHS |
If your project requires different dimensions, colors, brightness levels, or electrical specifications, Houkem also provides customized LED display solutions.

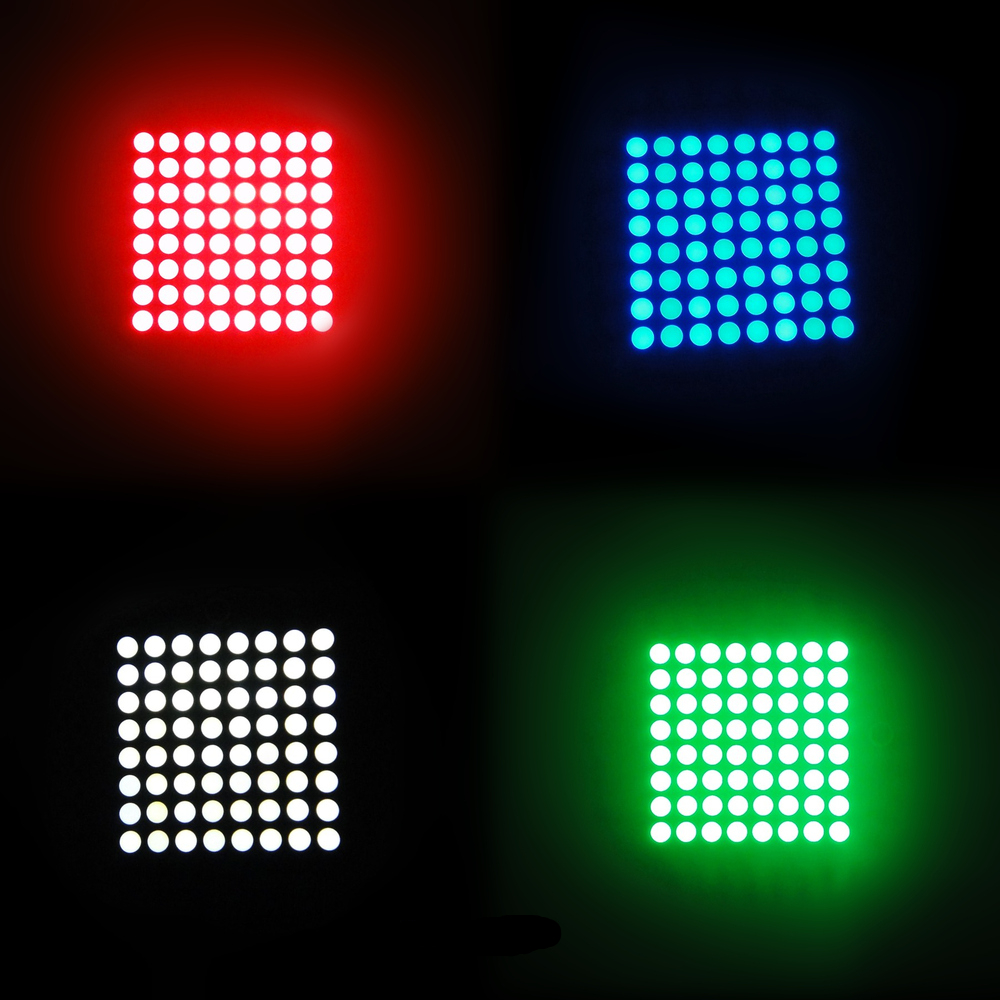

Available LED Colors
Besides the standard red and green version, this LED matrix module can be manufactured in various emitting colors to match different application requirements.
| Color | Wavelength (nm) | Forward Voltage (V) | Forward Current (mA) | Luminous Intensity (mcd) |
|---|---|---|---|---|
| Super Red | 630–635 | 1.8–2.0 | 18 | 100–150 |
| High Red | 638–660 | 1.8–1.9 | 18 | 15–20 |
| Ultra Red | 620–625 | 2.0–2.1 | 18 | 200–300 |
| Super Green | 565–575 | 1.9–2.0 | 18 | 48–55 |
| Pure Green | 615–625 | 2.8–3.0 | 20 | 260–300 |
| White | — | 2.6–2.8 | 20 | 200–250 |
| Blue | 465–475 | 2.8–3.0 | 20 | 150–200 |
| Yellow | 580–600 | 1.9–2.0 | 18 | 70–80 |
| Amber | 600–605 | 1.9–2.0 | 18 | 100–110 |
Peak Forward Current: 100 mA
Reverse Voltage: 5 V
Reverse Current: 10 μA
Typical Applications
The8×8 dot matrix display is widely used in electronic products requiring clear character, symbol, or status indication.
Typical applications include:
- Industrial control equipment
- Digital clocks and timers
- Home appliances
- Elevator floor indicators
- Message display systems
- Advertising displays
- Embedded electronic devices
- Instrument panels
- Medical equipment
- Smart control systems
Its compact size and flexible polarity options make it suitable for a wide variety of industrial and commercial electronic products.

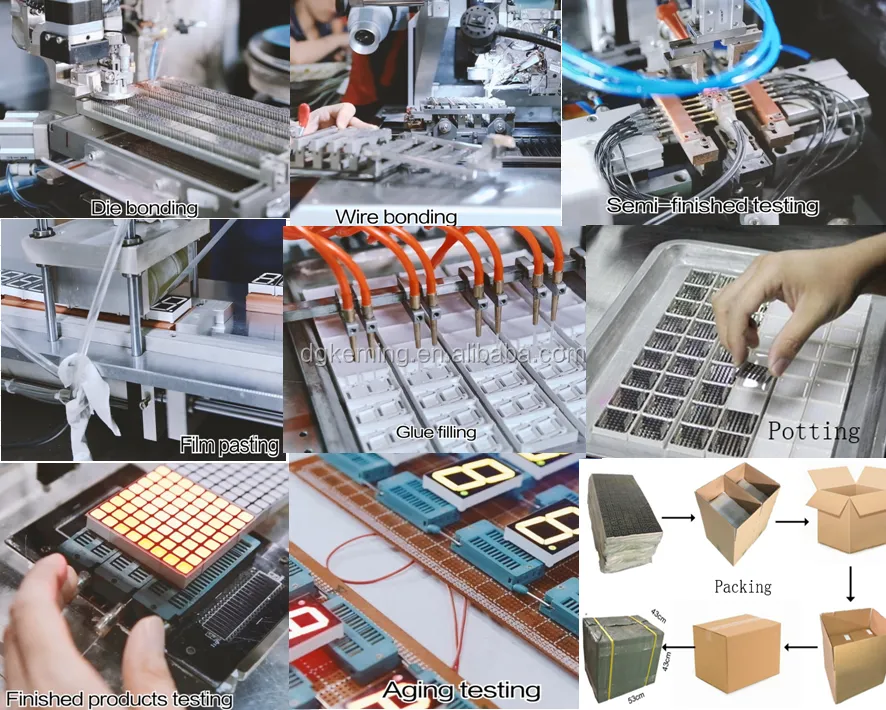

Manufacturing Advantages
Houkem specializes in LED display components and electronic optoelectronic products with more than 18 years of manufacturing experience.
Why customers choose Houkem:

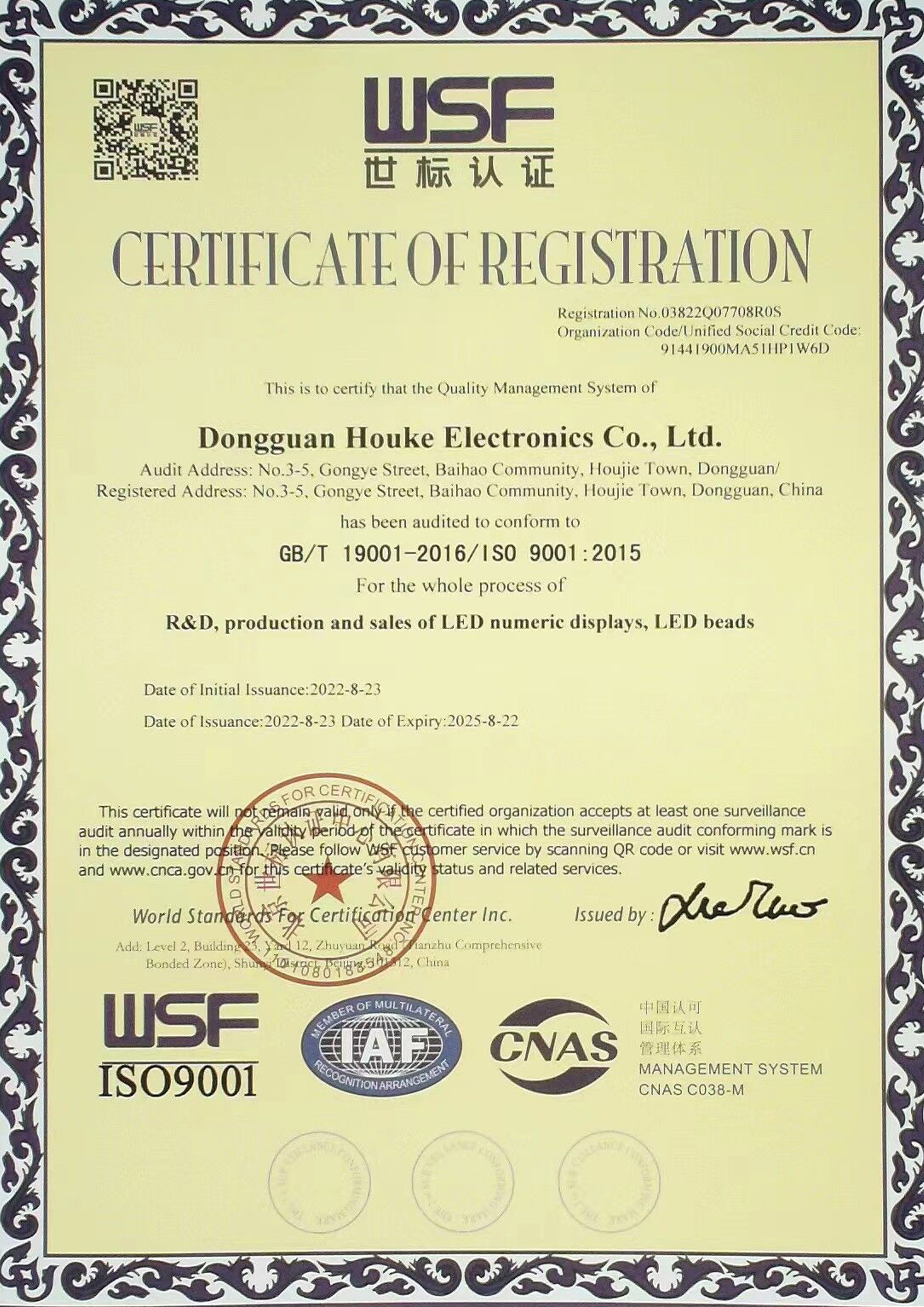

- ISO 9001 certified manufacturing
- Factory-direct pricing
- Professional R&D team
- OEM & ODM customization
- Stable quality control
- Sample orders supported
- Fast delivery for standard models
- Global export experience
- Professional technical support before and after sales
In addition to 8×8 dot matrix displays, Houkem also manufactures:
- 1 Digit LED Displays
- 2 Digit LED Displays
- 3 Digit LED Displays
- 4 Digit LED Displays
- 5 Digit LED Displays
- 6 Digit LED Displays
- Customized LED Displays
- UV LEDs
- IR LEDs
Frequently Asked Questions
What is the difference between a common anode and a common cathode 8×8 dot matrix display?
A common anode display shares the positive terminal, while a common cathode display shares the negative terminal.
The correct option depends on your driver IC and circuit design requirements.
Can this 8×8 dot matrix display be customized?
Yes. Houkem supports OEM and ODM customization, including emitting color, dimensions, brightness, pin configuration, and packaging.
Customized solutions are available for industrial and commercial projects.
What industries commonly use this LED matrix module?
This module is widely used in industrial automation, consumer electronics, digital clocks, medical devices, elevators, and information display systems.
It is suitable for both standard products and customized electronic equipment.
Do you provide samples before mass production?
Yes. Sample orders are available for testing and design verification.
Mass production can be arranged after sample approval.

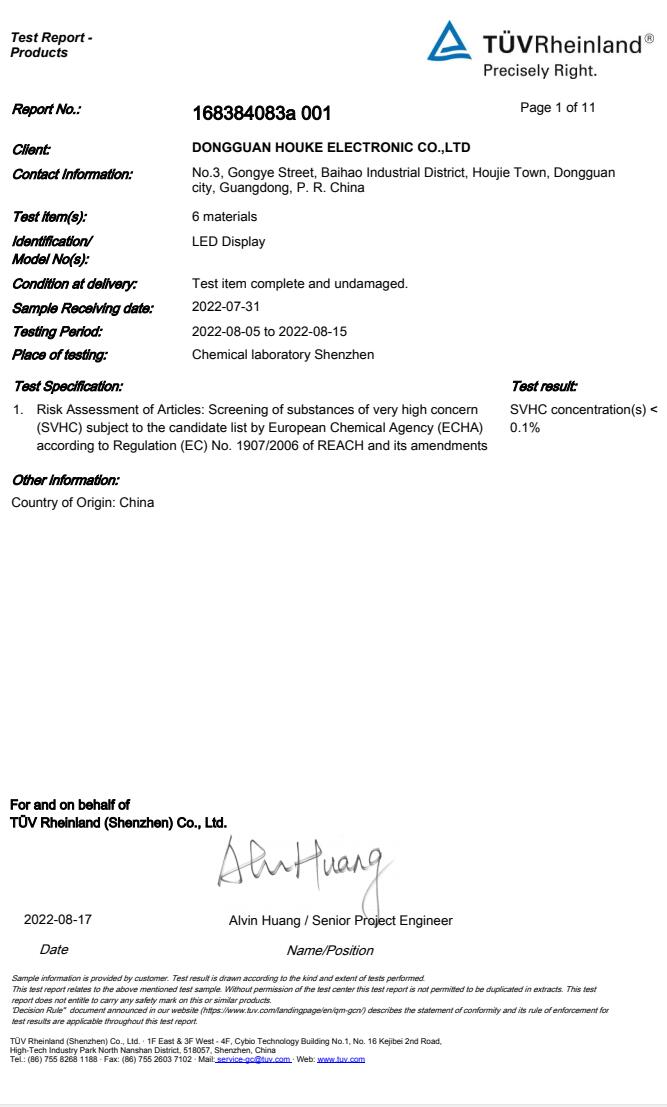

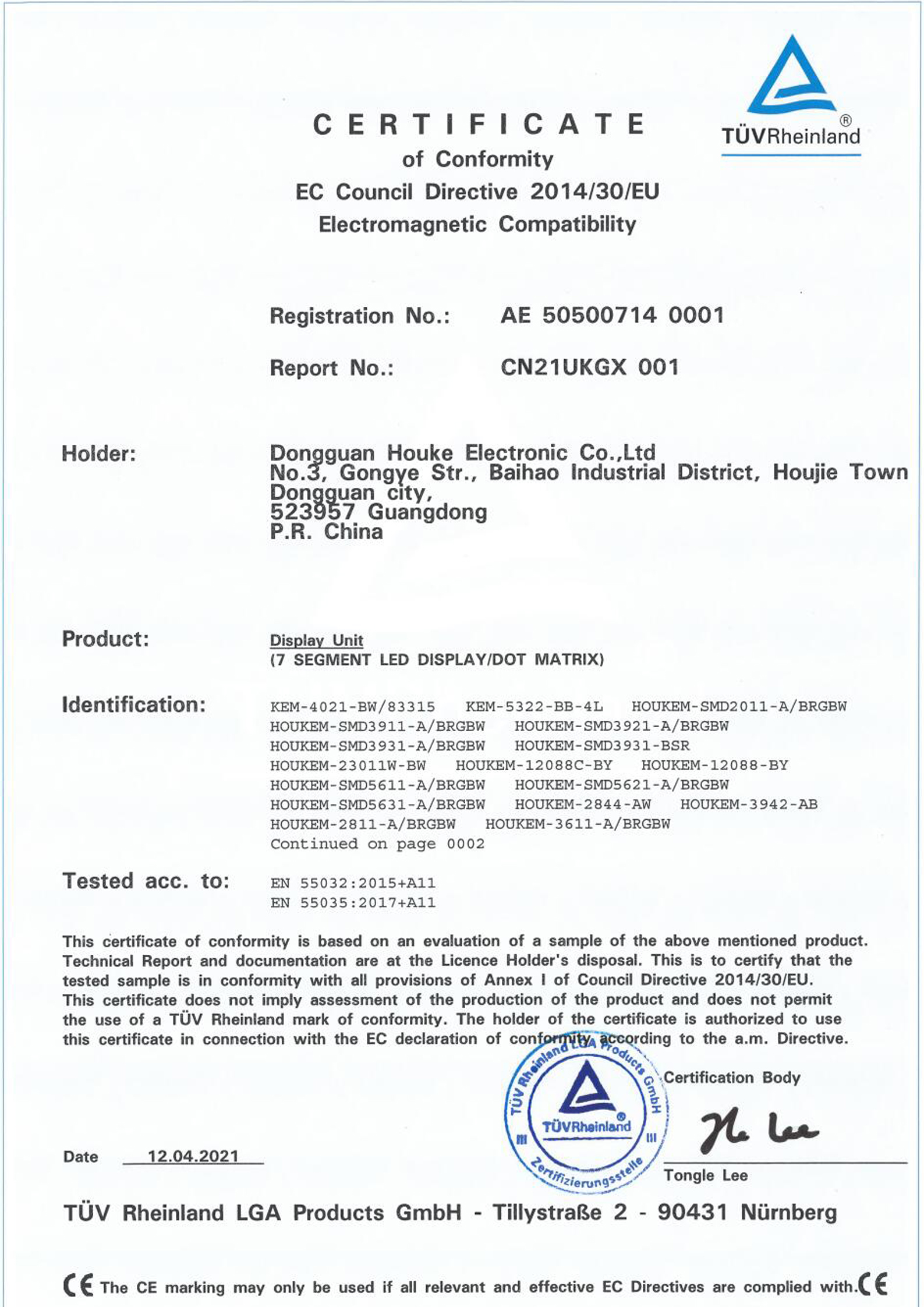

What certifications and quality assurance do you provide?
All products comply with CE and RoHS standards and undergo 100% testing before shipment.
Every8×8 dot matrix display is backed by a 2-year warranty and strict factory quality control.
Request a Quote
Looking for a reliable 8×8 dot matrix display manufacturer for your next project?
Whether you need standard LED matrix modules or fully customized display solutions, Houkem offers factory-direct production, OEM/ODM services, stable quality, and responsive technical support.
Contact our sales team today to request a quotation, technical specifications, samples, or customization options for your application.
