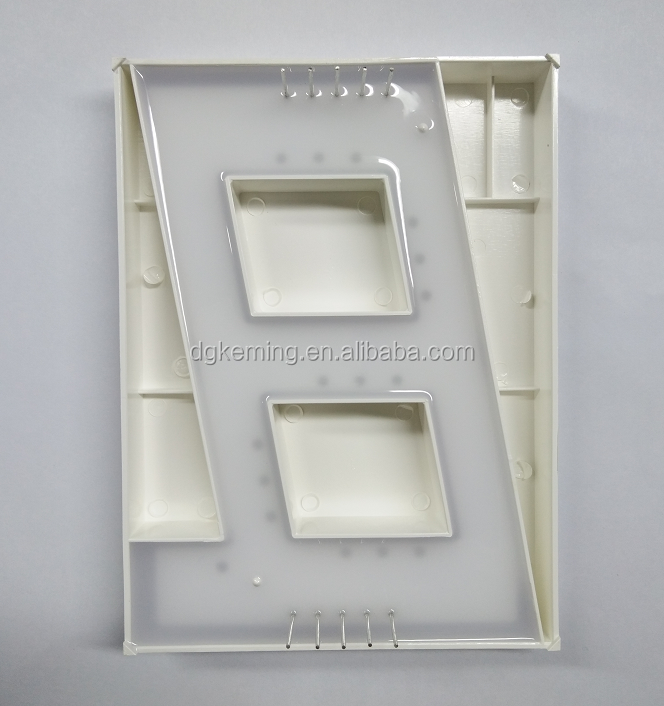

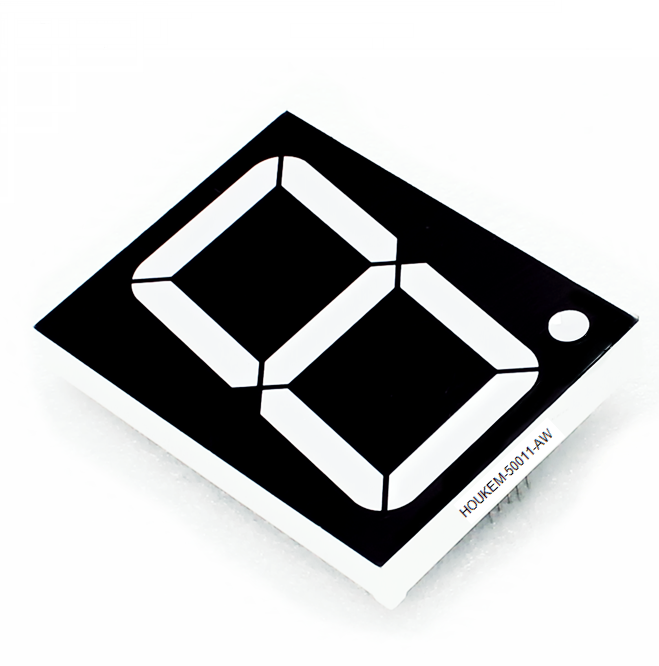

5'' single digit 7 segment display blue
5'' single digit 7 segment display blue
5'' single digit 7 segment display blue
5'' single digit 7 segment display blue
5'' single digit 7 segment display blue
5'' single digit 7 segment display blue
Model No: HOUKEM-50011-BB

HOUKEM-50011-BB fnd blue 5 inch 7 segment display big 7 segment led display 5''

7 segment led display houkem is 7 segment led display professional manufacturer
Delivery :
EXW
minimum order :
1 piece
Stock Time :
7-14Day
Country of Origin :
Dongguan/ Guangdong
Quantity :
US $2.80 - US $3.10 / piece
add to cart
Contact Now
  • Application:Indoor, game machine, time clock, scoreboard, digital counter, time clock, score board
  • Color:BLUE, blue
  • Panel Size:105*140mm
  • Pixel Pitch:2.54
  • Supplier Type:Original manufacturer, ODM, OEM
  • Media Available:datasheet, Photo
  • Place of Origin:Guangdong, China
  • Model Number:HOUKEM-50011-BB
  • Brand Name:HOUKEM
  • use:advertising publish, shopping mall, exhibition hall, elevator, Restaurant & Hotel Supplies
  • Pixels:2.54mm
  • Specification:--
  • Product name:5'' 1 digit 7 segment display
  • Warranty:2Years
  • PCB Polarity:common anode
  • operating temperature:-35 ~ +50 ℃
  • OEM:YES
  • Custom made:YES
  • Certificate:CE/ROHS/ISO9001/REACH
  • Tube Chip Color:blue
Product Describtion

10 PIN common anode 5'' 1 digit 7 segment led display

Features:

1, Low consumption

2, High brightness

HOUKEM-50011-BB---common anode, CA

HOUKEM-50011-AB---common anode, CC

Product details:

Item No.HOUKEM-50011-BB
Dimension105*140*15.8mm
digit height4'' (101.6mm)
Surface color Black / Grey/white
Segment colorWhite /Clear
Emitting color blue

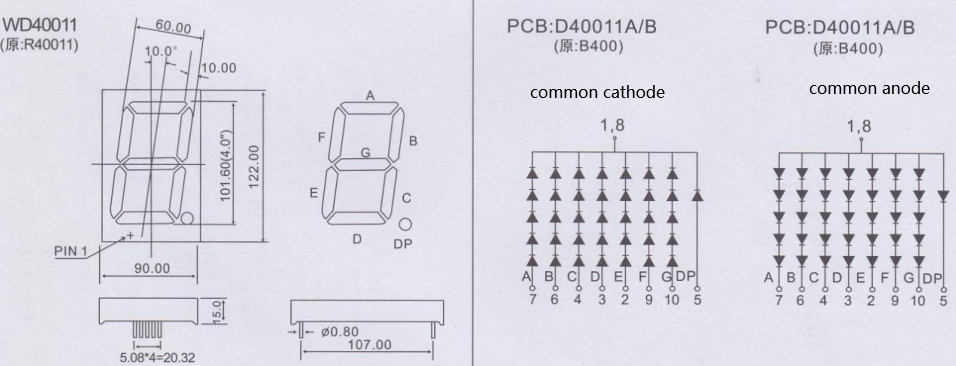

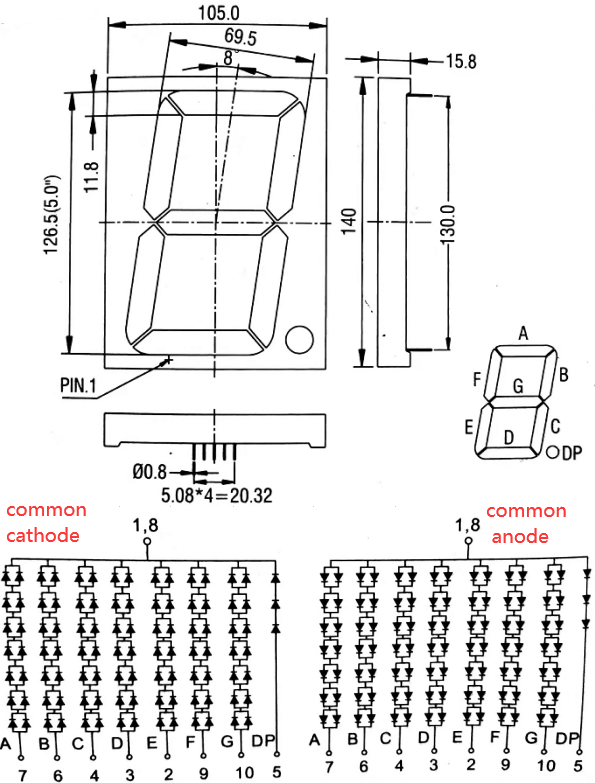

Package dimension & Internal circuit diagram

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=15Ma)

Emitting Color

Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=15mA

600-605

30

1.8

2.0

90

100

Super green

IF=15mA

565-575

30

1.8

2.0

48

55

Super red

IF=15mA

620-625

20

1.8

2.0

110

130

Ultra red 1

IF=15mA

620-625

20

1.8

2.0

200

210

Ultra red 2

IF=15mA

620-625

20

1.8

2.0

300

350

High red

IF=15mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=15mA

570-580

30

1.8

2.0

43

50

Yellow

IF=15mA

580-600

35

1.8

2.0

70

80

Blue

IF=15mA

465-475

40

2.95

3.0

150

200

Pure green

IF=15mA

515-525

40

2.95

3.0

600

640

White

IF=15mA

-

-

2.8

2.9

180

200

Related Products

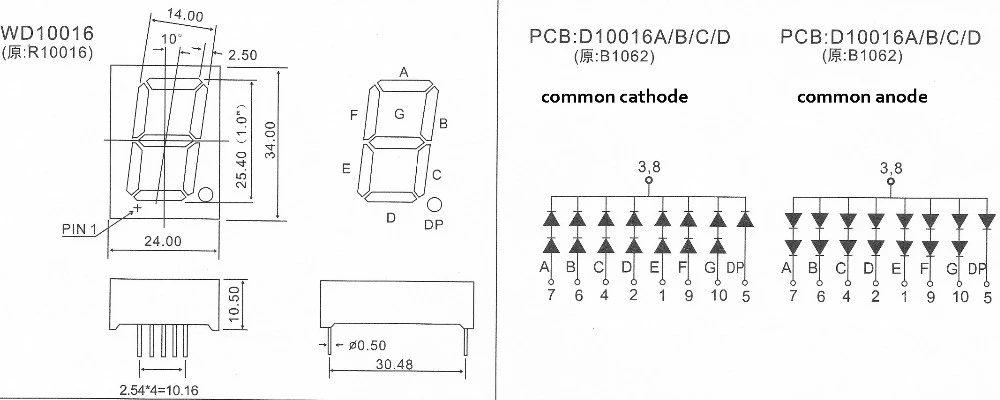

4 inch(90*122*15mm)

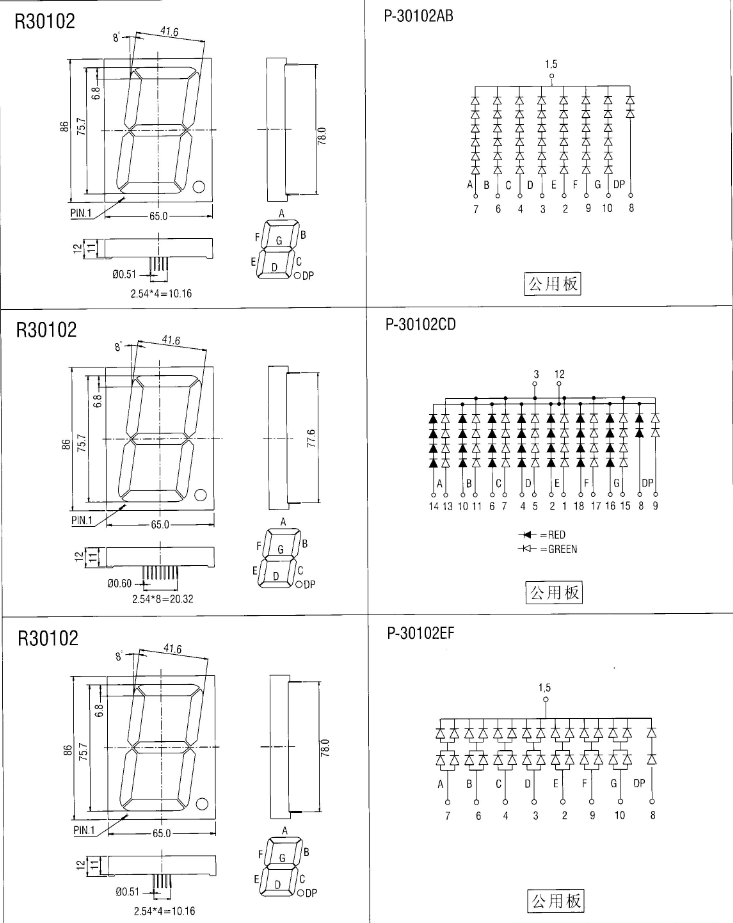

3inch(65*86*12mm)

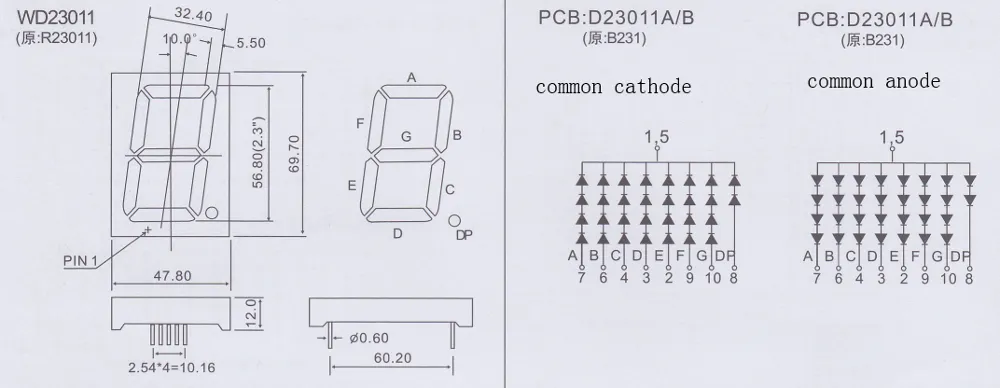

2.3inch(47.8*69.7*12mm)

1 inch(24*34*10.5mm)

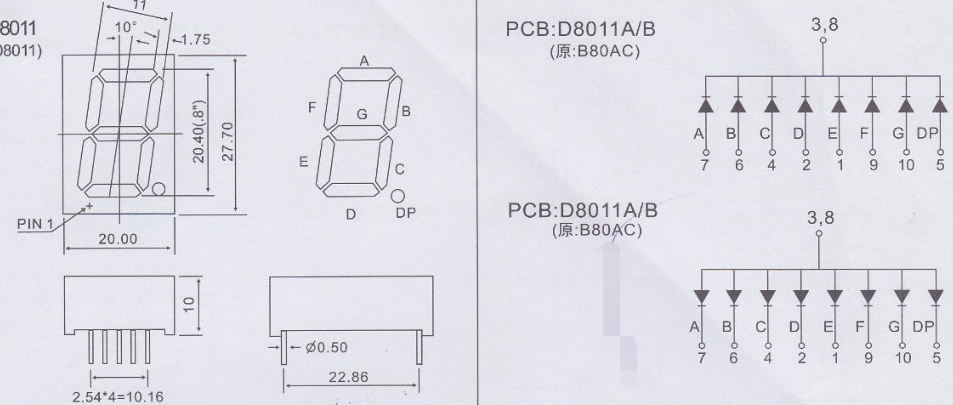

0.8 inch(20*27.7*10mm)

Our Services

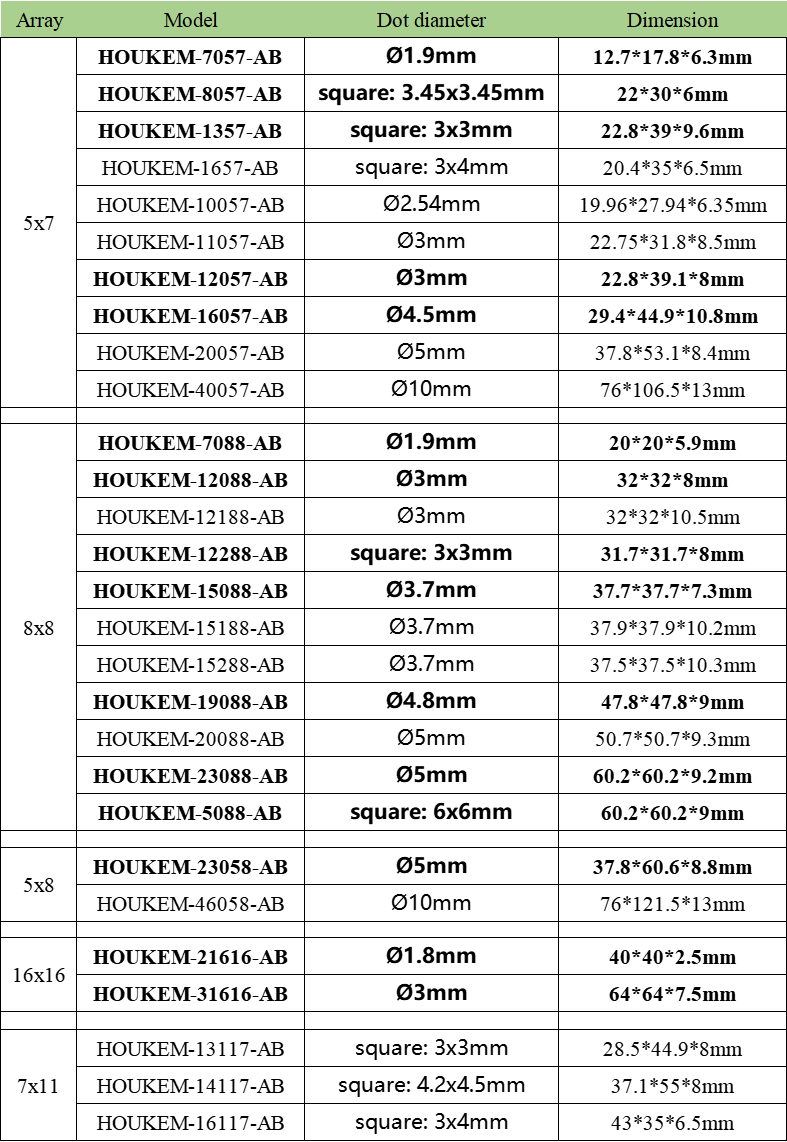

Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16

7 segment LED display

1 digit0.2'', 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.5'', 0.52'', 0.56'', 0.6'', 0.8'', 1'', 1.2'', 1.5'', 1.8'', 2.3'', 3'', 4'', 5'', 6'', 7'', 8'', 10'', 12'', 16'', 20''
2 digit0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.43'', 0.5'', 0.52'', 0.56'', 0.8'', 1'', 1.2'', 1.5''
3 digit0.25'', 0.28'', 0.3'', 0.4'', 0.52'', 0.56'', 0.8''
4 digit0.25'', 28'', 0.3'', 0.36'', 0.4'', 0.5'', 0.56'', 0.8'', 1.2''
5 digit0.28'', 0.36'', 0.56''
6 digit0.3'', 0.36''

14 /16 segment

1 digit0.39'', 0.5'', 0.8'', 1'', 1.2'', 2.3''
2 digit0.54''
3 digit0.54''
4 digit0.39'', 0.54''
6 digit0.4''

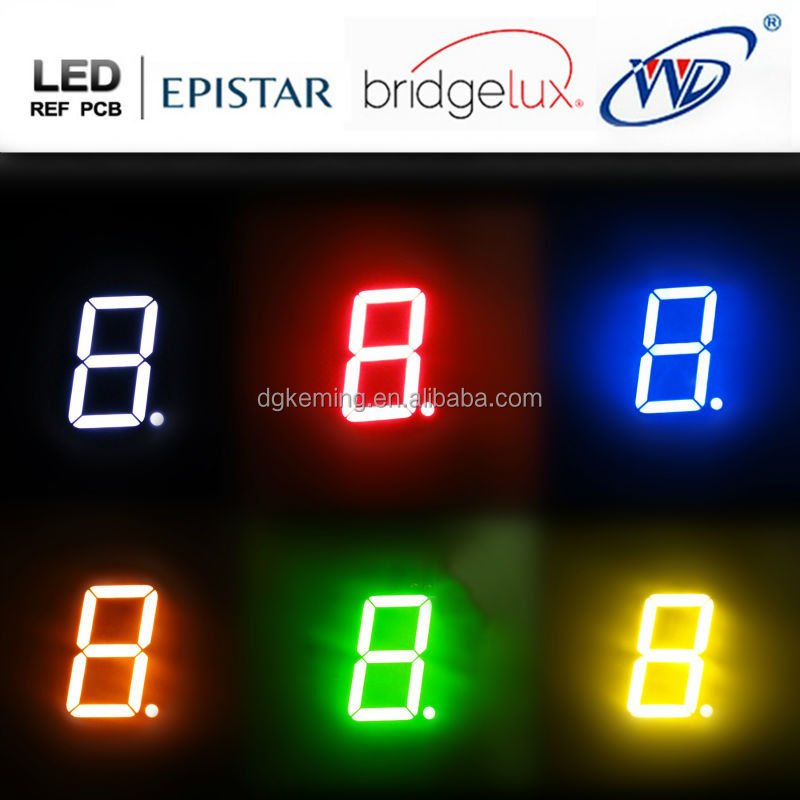

Various colors: super red, ultra red, high red, yellow green, pure green, super green,

pure green, blue, yellow, white, amber, orange, Bi-color, RGB.

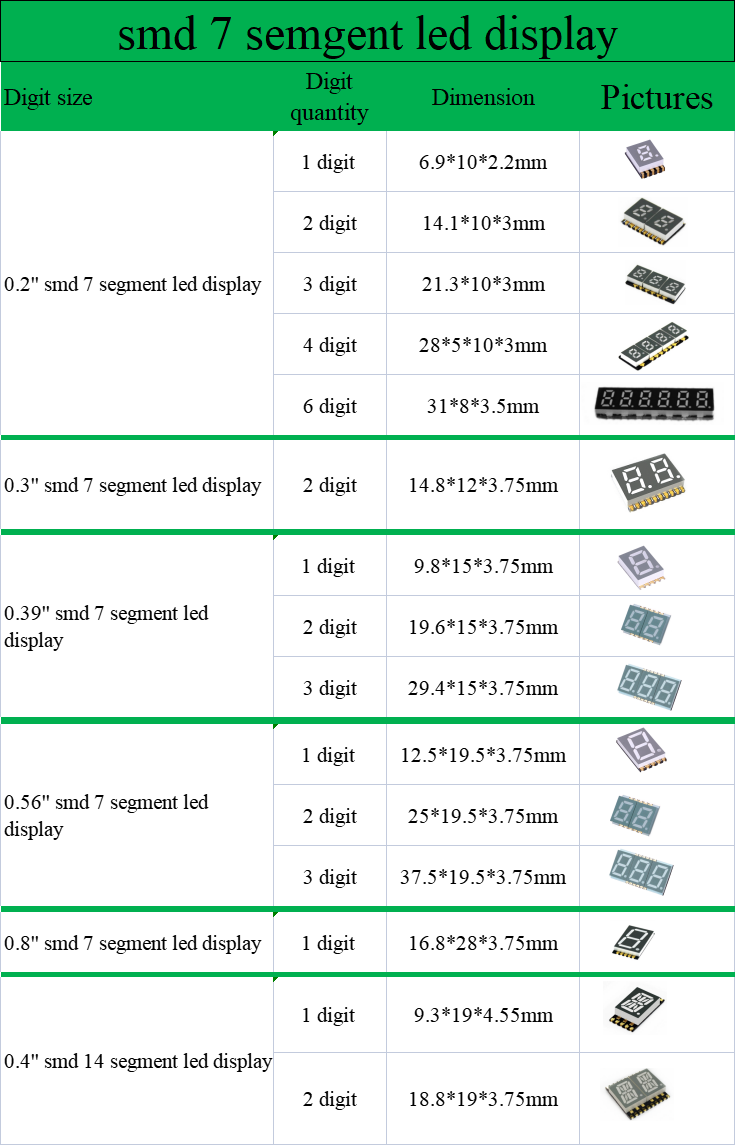

smd 7 segment display


Custom 7 segment display are available

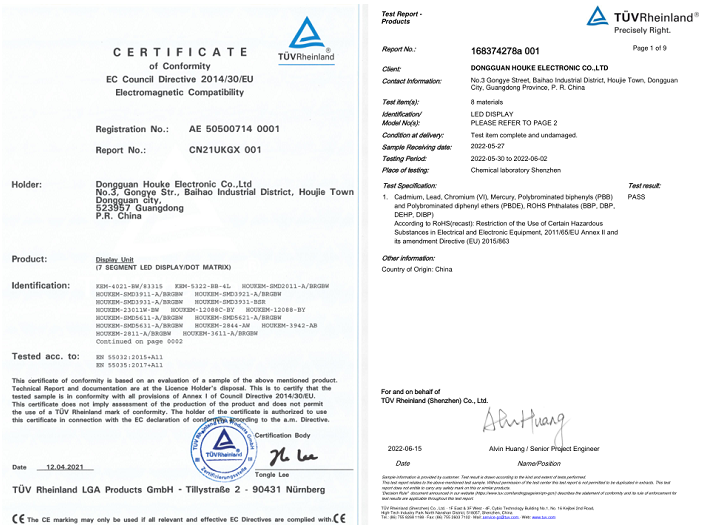

Certifications
