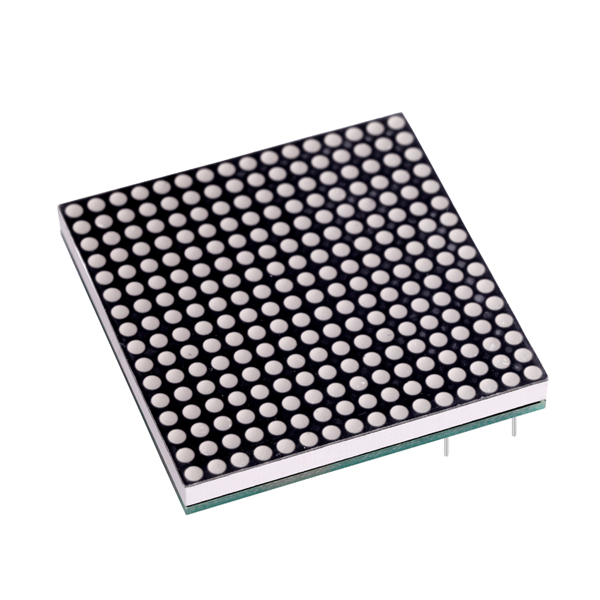

1.8mm 16x16 LED matrix 40x40mm 16*16 amber dot matrix display HOUKEM-21616-BA
- Application:elevator,
- Color:amber, amber (orange)
- Panel Size:40*40MM
- Pixel Pitch:2.54
- Place of Origin:Guangdong, China
- Model Number:HOUKEM-21616-BA
- Brand Name:HOUKEM
- Function:SDK
- Type:LED
- Screen Dimension:40*40mm
- Product name:16x16 led matrix
- Warranty:2Years
- Luminous Intensity:90-100mcd
- PCB Polarity:common anode
- operating temperature:-35 ~ +50 ℃
- OEM:YES
- Custom made:YES
- Certificate:CE ROHS ISO9001
orange 16x16 LED matrix display 40*40mm amber16*16 led dot matrix display
1, Low consumption
2, High brightness
Item No. HOUKEM-21616-BA

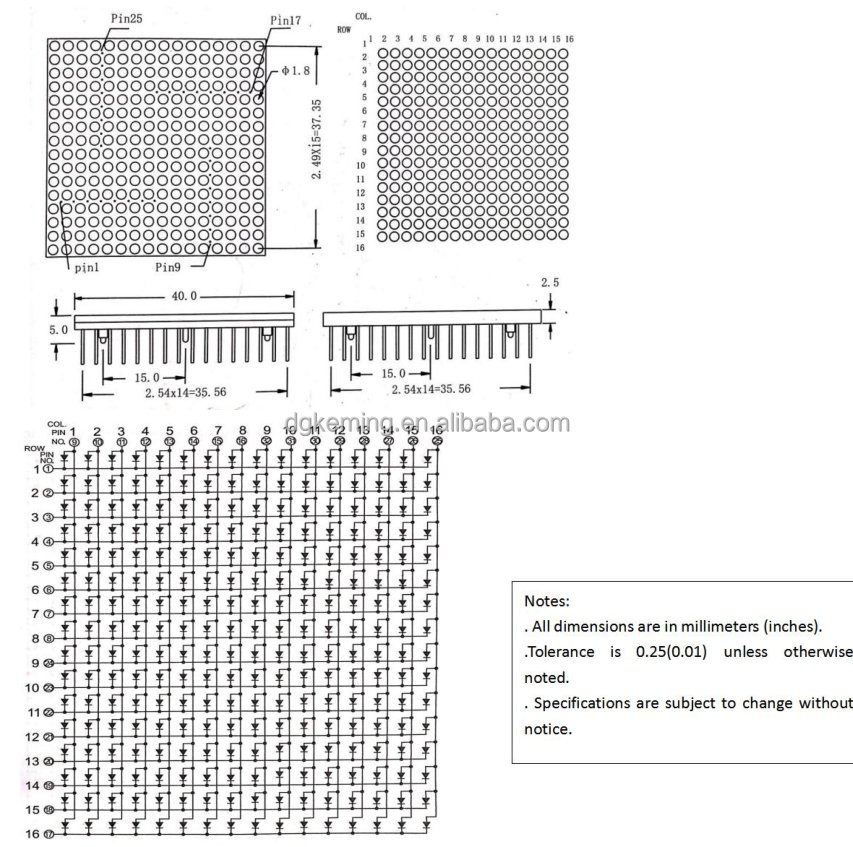

Part:Dot diameter | 1.8mm | Plastic film color | Milky white(diffuse) |
Array | 16x16 | Polarity | common cathode on row |
Surface color | Black | Emitting color | Amber |
Color Code & Chip characteristic PER CHIP: (Test Condition: IF=15Ma)
Emitting Color | Test Condition | Wavelength(nm) | Forward Voltage(V) | Luminous Intensity (mcd) | |||
(λp) | λ | Typ | Max | Typ | Max | ||
Amber | IF=15mA | 600-605 | 30 | 1.9 | 2.0 | 90 | 100 |
Super green | IF=15mA | 565-575 | 30 | 1.9 | 2.0 | 48 | 55 |
Super red | IF=15mA | 620-625 | 20 | 1.8 | 2.0 | 110 | 130 |
Ultra red | IF=15mA | 620-625 | 20 | 2 | 2.1 | 300 | 350 |
High red | IF=15mA | 638-660 | 20 | 1.8 | 1.9 | 15 | 20 |
Yellow green | IF=15mA | 570-580 | 30 | 1.9 | 2.0 | 43 | 50 |
Yellow | IF=15mA | 580-600 | 35 | 1.9 | 2.0 | 70 | 80 |
Blue | IF=15mA | 465-475 | 40 | 2.95 | 3.0 | 150 | 200 |
Pure green | IF=15mA | 515-525 | 40 | 2.95 | 3.0 | 600 | 640 |
White | IF=15mA | - | - | 2.8 | 3.0 | 180 | 200 |
Two years quality warranty
Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays, SMD LEDs,
dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power led,
high power 255nm to 1550nm LED arrays,COB LEDs, SMD LEDs, LED optical lens, uvc led light, and all LED lighting application solution, etc.
