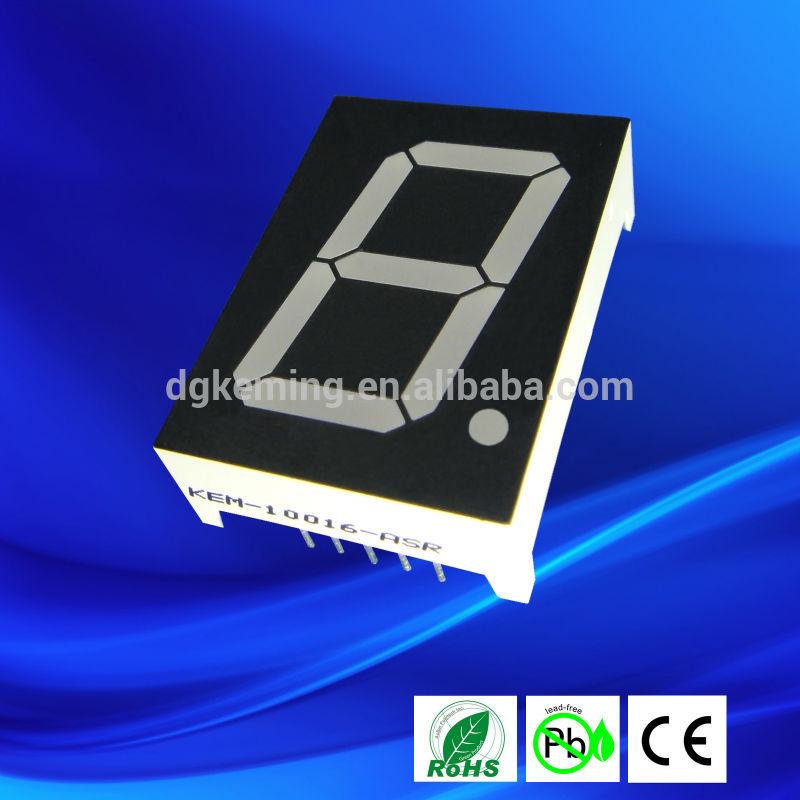

Common anode 26mm 1.02 inch super bright red single Digit 7 Segment LED Display sa10-11srwa
- Place of Origin:CN;GUA
- Application:Led 7 segment display
- Color:Super bright red
- Panel Size:32.9*22.5mm
- Pixel Pitch:2.54
- Model Number:SA10-11SRWA
- Brand Name:KB

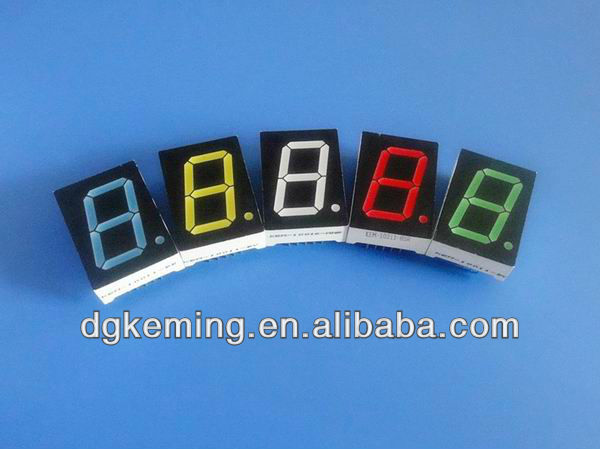

All of colors are available:

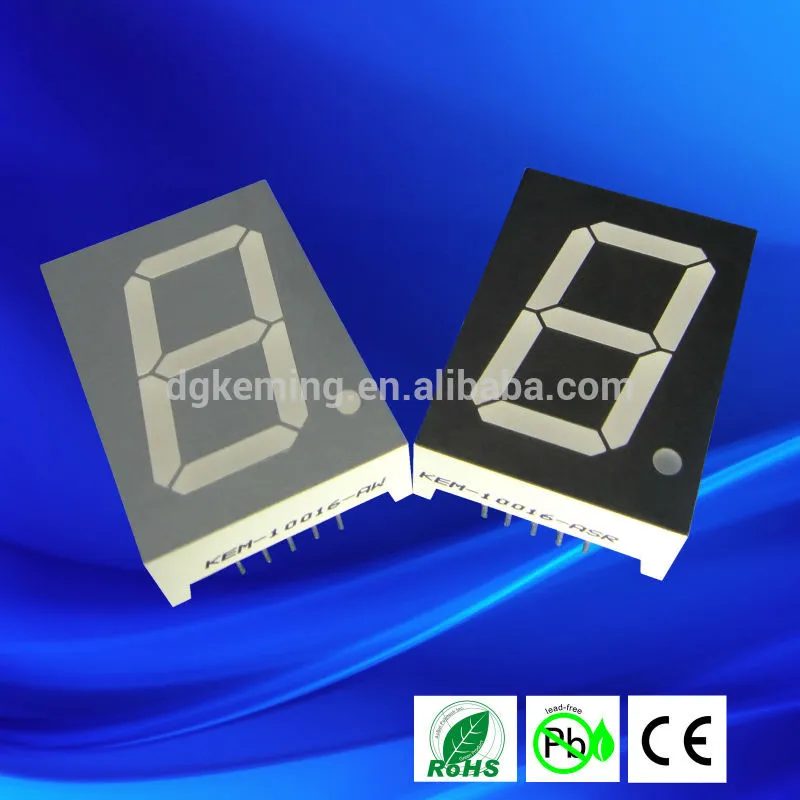

Light off:
Part No | SA10-11SRWA(KEM-10011-A/BW) |
| Dimension | 34*24*10.5mm |
| Digit height | One |
| Surface color | Black/gray |
| Segment color | white / clear |
| Emitting color | Super bright red |
| Luminous intensity | 100mcd/chip |
| Pin configuration | common anode/common cathode |
Dimension and Internal Circuit Diagram:
see the picture
Note: If this PCB layout don't meet your requirements, please contact me for other choices.
Application:

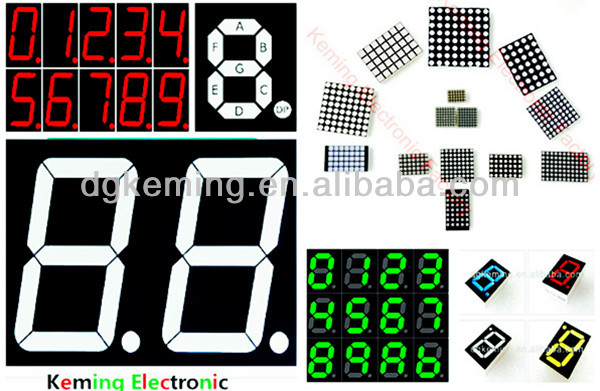

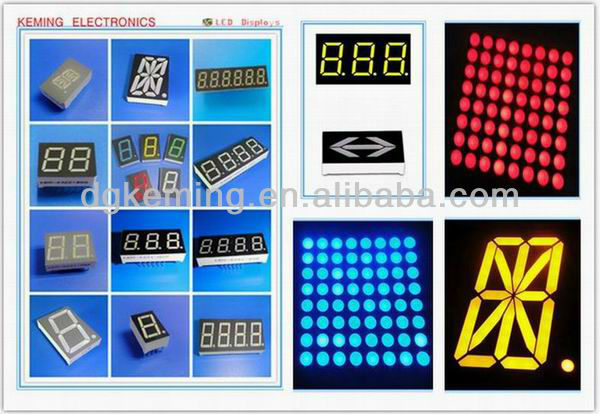

1. We can supply you all kinds of 7 segment LED display:
---Digit size: from 0.25"to 16"
---Digit Numer: 1, 2, 3, 4, 5 and 6 digits
2. Segment : 7 segment and 16 segment both available

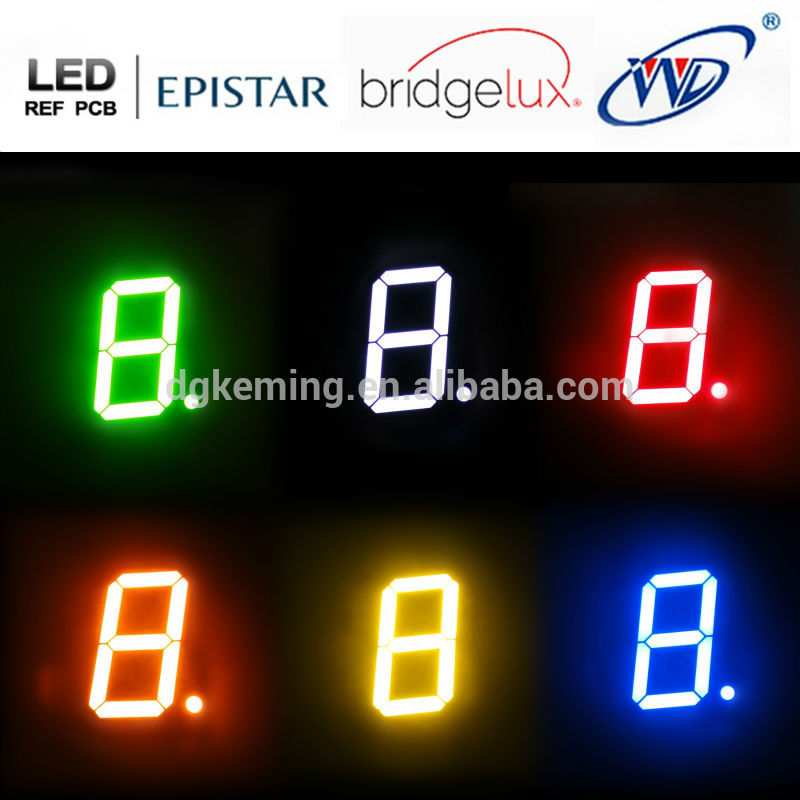

3. Available Emitting color: Red, green, blue, yellow, amber, white, bi-color
4. Available surface color: black,grey or red
5. Lens color: white or same as emitting color
All of our led products with 3 years warranty.
Main Processes of Our Segment Display(Factory pictures):
Delivery Time:
Quantity Lead time
1-10K pcs 3-7 days
10.1K-50K pcs 7-15 days

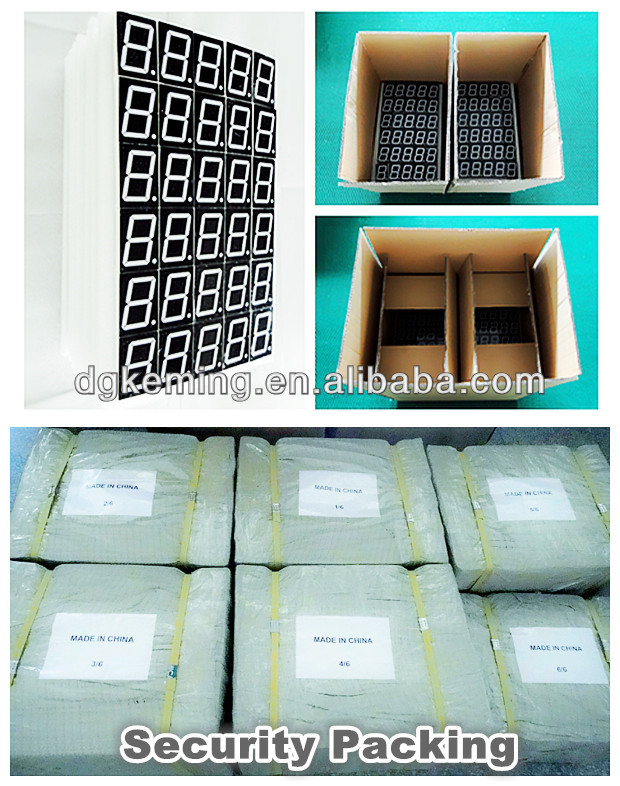

Our safety packing for your goods:
Small carton size:40*27*40cm.
Export carton size:50*43*43cm(two small cartons packed inside)
LED professional manufacturer KEM with over 11 years experience in led field,
we do believe we can become your reliable supplier!
