Model No: HOUKEM-HP20W-780
cob led 780nm 785nm far infrared led high power 30w 780nm ir led
ir led houkem is led infrared professional manufacturer
Delivery :
EXW
minimum order :
1 piece
Supply Ability :
500piece / Month
Stock Time :
7-14Day
Country of Origin :
Dongguan/ Guangdong
Quantity :
US $15.44 - US $17.00 / piece
- Input Voltage(V):DC 20-22V
- Warranty(Year):2-Year
- Type:High Power LED
- Lighting solutions service:Lighting and circuitry design
- Lifespan (hours):50000
- Working Time (hours):50000
- Product Weight（kg）:0.03
- Chip Material:AlGaInP
- Emitting Color:Red
- Power:20w
- Viewing Angle(°):140
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:30W High Power ir LED 780nm
- Emitting Colour:red
- Forward Current:600-700mA
- Forward Voltage:20-22v
- Application:camera
- Warranty:2 Years
- Wave length:780-785nm
- Chip Size:42mil
- Certification:RoHS, ROHS
Product Description
High power 20w 780nm ir led
Electrical and optical characteristics (Ta = 25℃)
Parameter | Symbol | Test Condition | Value | Unit | ||
Min. | Typ. | Max. | ||||
Forward Voltage | VF | IF = 700mA | 20 | 21 | 22 | V |
Luminous Flux | Φv | IF = 700mA | 2440 | 2660 | 2700 | mw |
Viewing Angle | 2θ1/2 | IF = 700mA | ---- | 140 | ---- | Deg. |
Dominate Wavelength | λd | IF = 700mA | 780 | 782 | 785nm | |

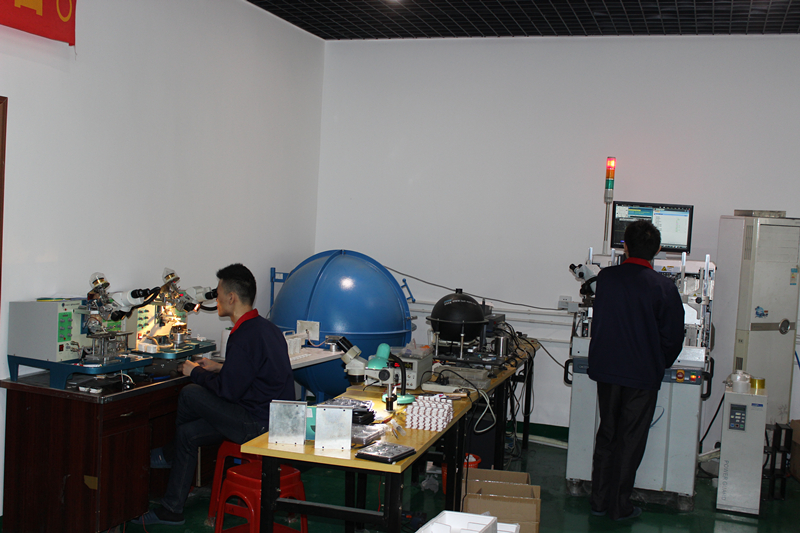

Factory pictures
Established in 2003, Houkem has 18 years professional manufacturer experience, development, production, sale and service of LED products,
including 7 segment LED/SMD displays, Alphanumeric displays, SMD LEDs, dot-matrix Led displays, bar graph arrays and LED direction indicator displays,
High power led, high power 255nm to 1550nm LED arrays,COB LED, SMD LED, street light LED, ,and all LED lighting application solution, etc..
In recent years, our company has introduced a series of advanced equipment including Automatic Production Machines and Spectrum Test Machine.
The products are also exported to clients in countries like USA, Germany, Japan, Korea etc.
Application
Certifications
