Model NO.
Houkem-2841-ASR
Price:
USD 0.26-0.50 / piece
Delivery:
FOB
Minimum order quantity:
1 piece
Supply Ability:
50000 piece / Day
Country of Origin:
shenzhen guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Usage:Indoor
  • Tube Chip Color:Red
  • Display Function:Graphics
  • Pixels:25mm
  • Brand Name:KEM
  • Model Number:Houkem-2841-ASR
  • Screen Dimension:32.1*10mm


Product Describtion
 business card (2)Wechat

 12 PIN 4 digit 0.28 inch seven segment led display red



1,Low consumption

2, High brightness



Item No.Houkem-2841-ASR
PG32.1*10*5.8mm
Surface color  Black  /Grey
epoxy color white
Emitting color super red

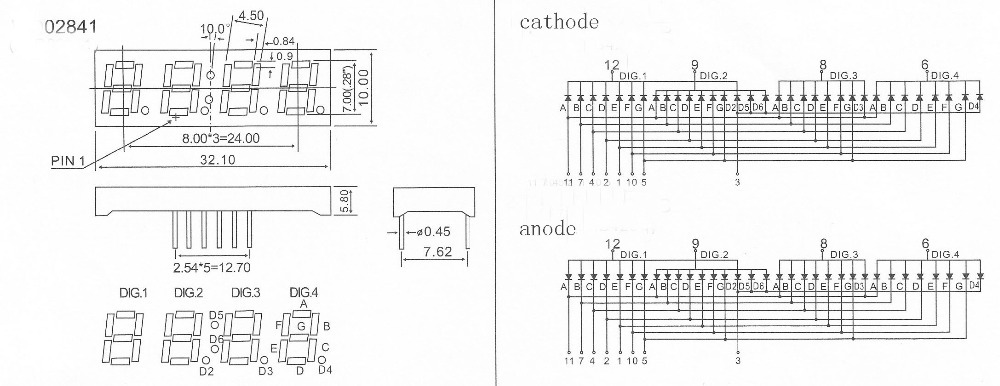

Package dimension & Internal circuit diagram



2841







Note: If this PCB layout don't meet your requirements, please contact me for other choices.









Two years quality warranty

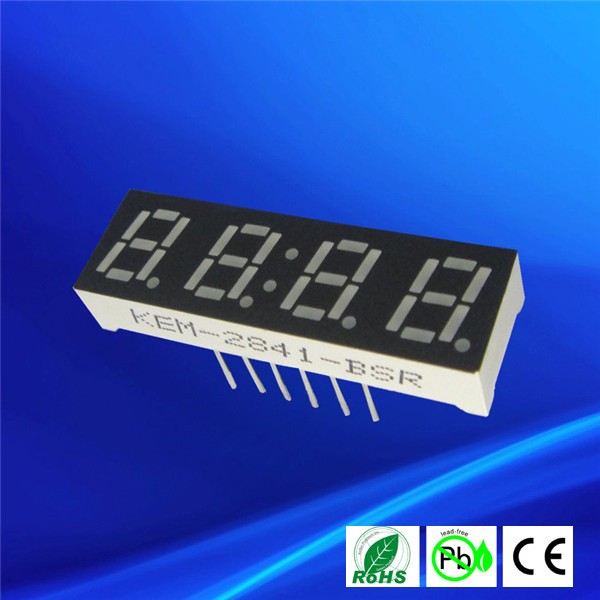

2841-1

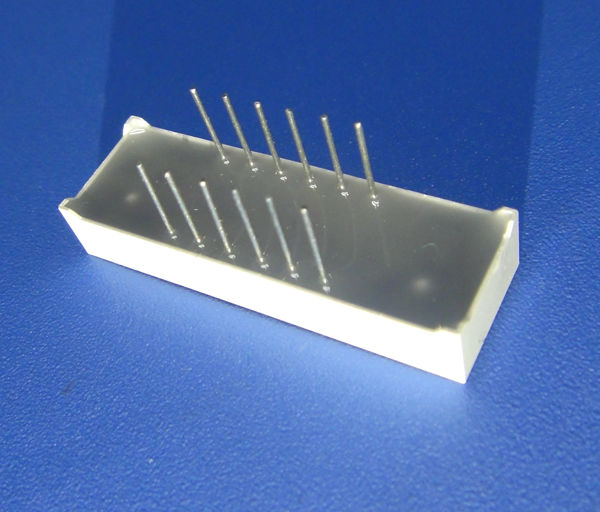

2841-b







Note: If this PCB layout don't meet your requirements, please contact me for other choices.









Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)





Emitting Color



Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=18mA

600-605

30

1.9

2.0

90

100

Super green

IF=18mA

565-575

30

1.9

2.0

48

55

Super red

IF=18mA

620-625

20

1.8

2.0

110

130

Ultra red

IF=18mA

620-625

20

2

2.1

300

350

High red

IF=18mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=18mA

570-580

30

1.9

2.0

43

50

Yellow

IF=18mA

580-600

35

1.9

2.0

70

80

Blue

IF=20mA

465-475

40

2.8

3.0

150

200

Pure green

IF=20mA

515-525

40

2.8

3.0

180

250

White

IF=20mA

-

-

2.8

3.0

180

200





Our Services

Customized products are available

Our service:

 Sample are available

In order to let you have an enjoyable experience on our best quality product and satisfied service,

we can offer----  SAMPLES for your test within 3-5 days.

Custom service:

1. We can supply you all kinds of 7 segment LED display

---Digit size: from 0.25"to 20"

---Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment and 14 segment both available

3. Various colors: super red, ultra red, high red, yellow green, pure green, super green, pure green, blue, yellow, white, amber, Bi-color, RGB.











Packaging & Shipping

packing & shipping

Related Products



0.25inch

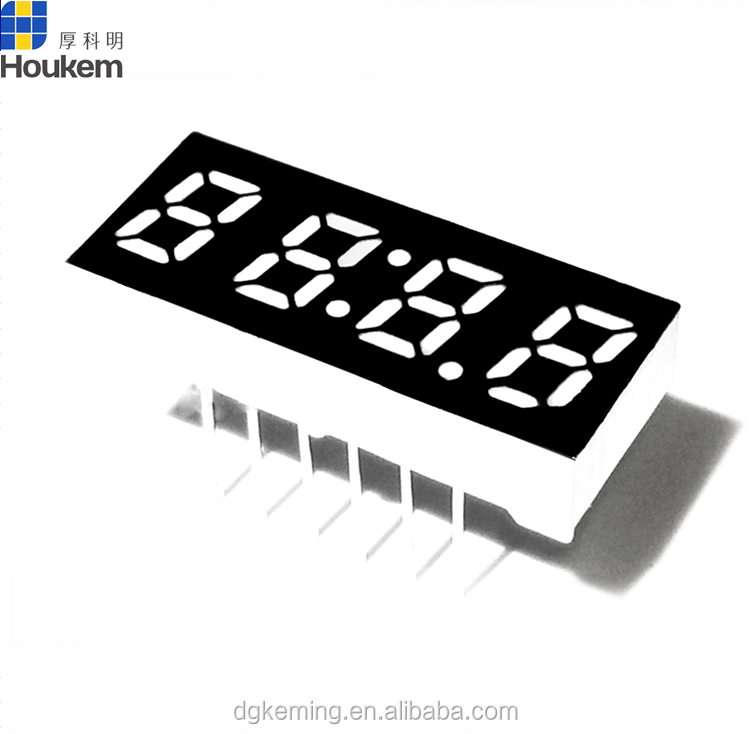

2543 (2)





0.36inch

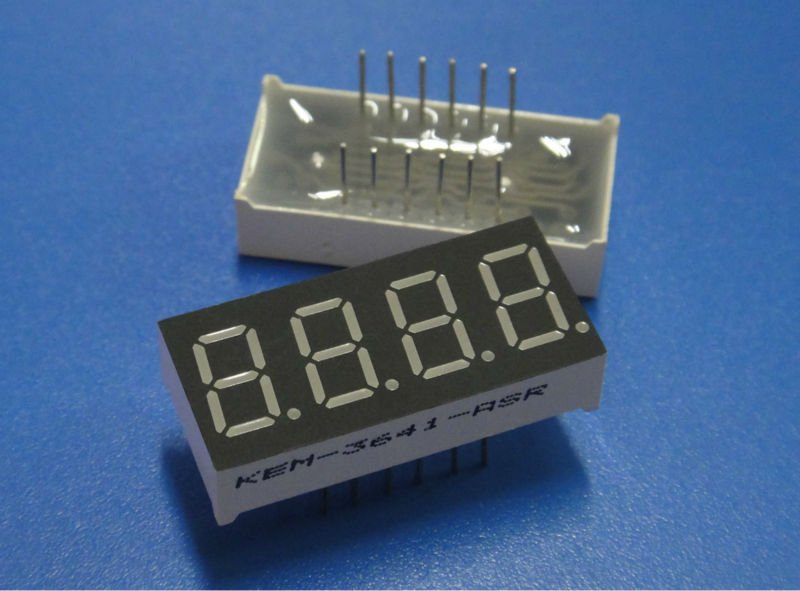

3641-1



0.8inch

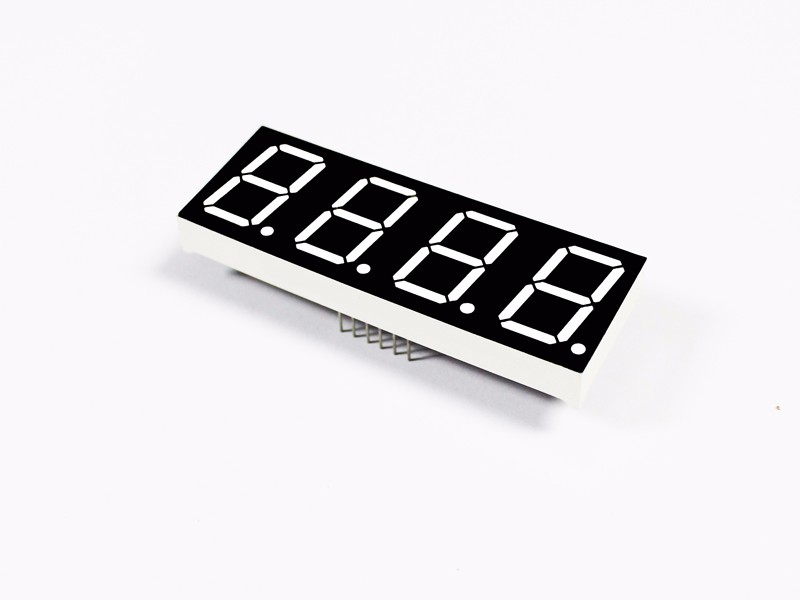

1.2 inch 4 digit 7 segment led display
