5mm 8×8 LED Matrix Display
5mm LED Matrix Display for Industrial and Information Display Systems

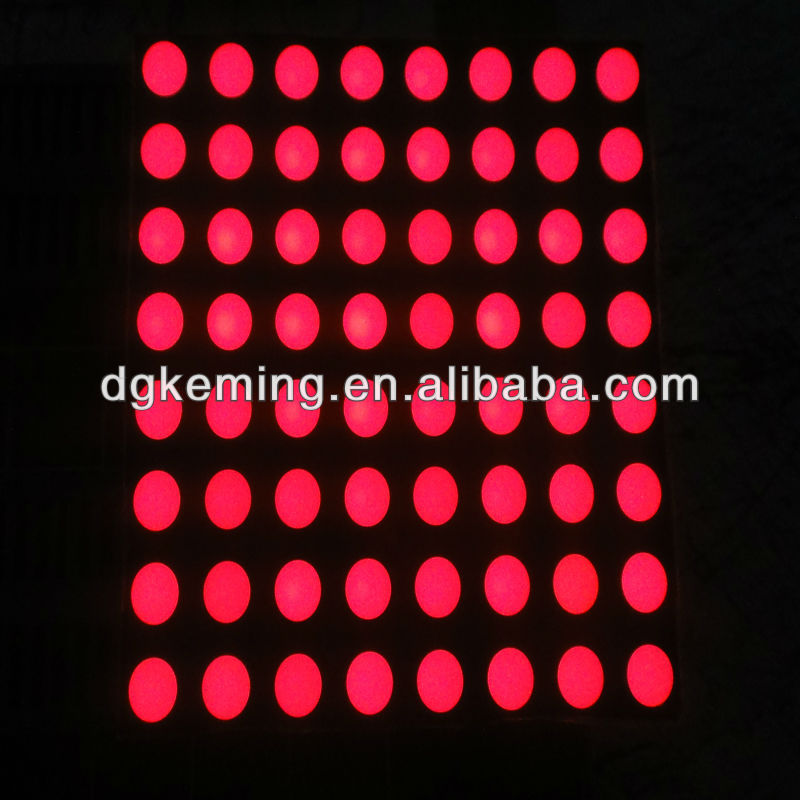

The5mm LED Matrix Display is a high-brightness 8×8 LED matrix module designed for industrial equipment, digital signage, message boards, traffic information systems, and embedded electronic devices. Featuring a large 60.2 × 60.2 mm display area with an 8×8 dot array, this module provides excellent visibility and stable performance for applications that require clear character, symbol, or status indication.
Manufactured by Houkem, this 5mm 8×8 LED matrix is available in common anodeandcommon cathode configurations to support different circuit designs. The standard model features super red LEDs, while additional colors and customized specifications are available for OEM and ODM projects. With ISO-certified manufacturing, strict quality control, and reliable production capacity, Houkem supplies LED display solutions to customers worldwide.
Product Features
This5mm LED Matrix Display is engineered for long-term, high-performance operation in industrial and commercial environments.
Key features include:
- Large 5mm LED dot diameter for improved viewing distance
- 8×8 dot matrix configuration
- Display size: 60.2 × 60.2 × 9.2 mm
- High brightness with 100–230 mcd luminous intensity
- Common anode and common cathode options
- Uniform light output and excellent display consistency
- Low power consumption and stable operation
- Black or grey housing available
- Water clear or milk diffusion epoxy options
- CE, RoHS, REACH, and ISO certified
- OEM and customized manufacturing supported
These features make the module suitable for both standard electronic products and customized display solutions.

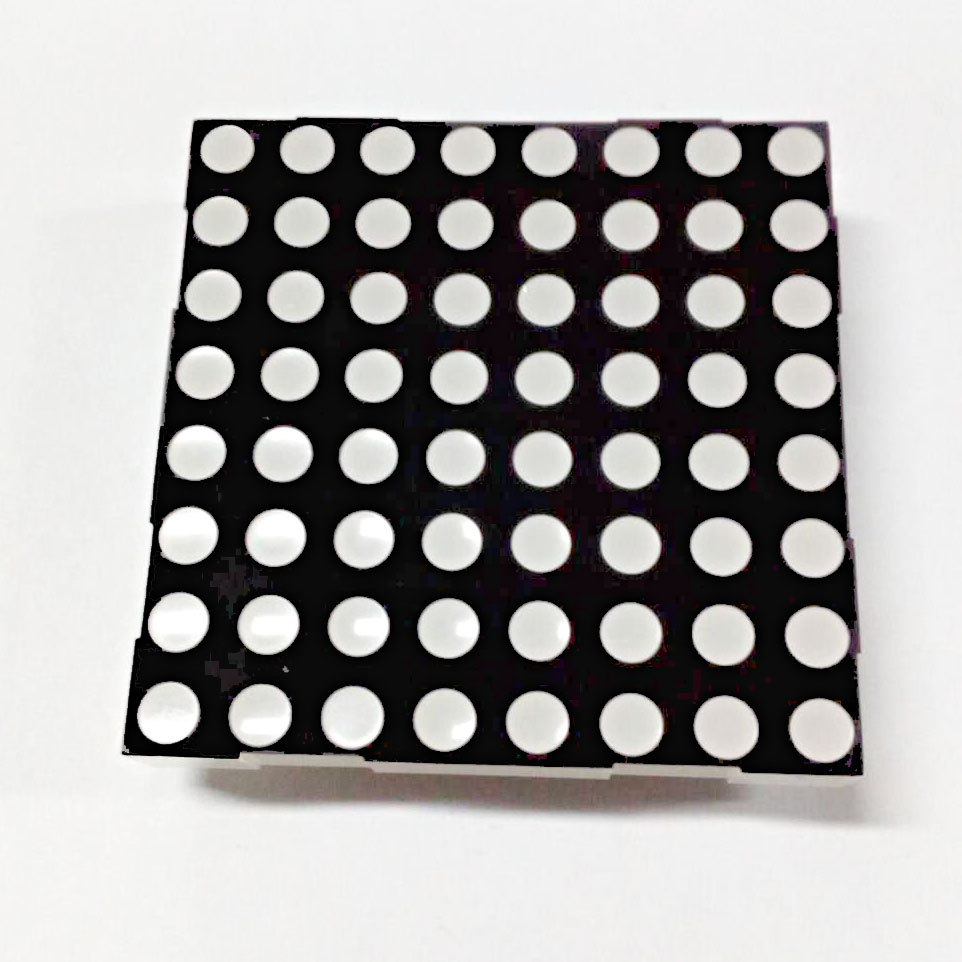

Technical Specifications
| Item | Specification |
|---|---|
| Part Number | KEM-23088-A/BSR |
| Product Type | 5mm LED Matrix Display |
| Dot Array | 8 × 8 |
| LED Diameter | 5.0 mm |
| Display Size | 60.2 × 60.2 × 9.2 mm |
| Pixel Pitch | 2.54 mm |
| Emitting Color | Super Red |
| Luminous Intensity | 100–230 mcd |
| Surface Color | Black or Grey |
| Epoxy Color | Water Clear or Milk Diffusion |
| Polarity | Common Anode / Common Cathode |
| Certifications | CE, RoHS, ISO, REACH |
If your project requires different colors, display sizes, brightness levels, or pin configurations, Houkem provides flexible OEM and ODM customization services.
Available Sizes and Custom Options
To meet different application requirements, Houkem manufactures multiple LED dot matrix display sizes and configurations.
Available options include:
- 5 × 7 Dot Matrix Display
- 5 × 8 Dot Matrix Display
- 8 × 8 Dot Matrix Display
- Dot diameters from 1.9 mm to 10 mm
- Display sizes from 12.7 × 17.8 mm up to 76 × 121.5 mm
Customized specifications such as LED color, brightness, polarity, housing color, pin layout, and packaging are also available for volume production.
Typical Applications
The5mm LED Matrix Display is widely used in products that require highly visible character or status displays.
Typical applications include:
- Industrial control equipment
- Digital signage
- Electronic message boards
- Advertising displays
- Public information systems
- Queue management systems
- Traffic guidance displays
- Digital clocks and timers
- Instrument panels
- Consumer electronics
- Smart control devices
- OEM electronic equipment
The larger 5mm LED size offers improved readability, making it suitable for medium-distance viewing environments.
Why Choose Houkem
With more than 18 years of experience in LED component manufacturing, Houkem has become a trusted supplier of LED display solutions for customers worldwide.
Our advantages include:
- ISO 9001 certified manufacturing
- Factory-direct pricing
- Professional R&D team
- OEM & ODM customization
- Strict quality inspection before shipment
- Stable production capacity
- Sample orders supported
- Fast lead times for standard products
- Technical support throughout your project
In addition to 5mm LED Matrix Displays, Houkem also manufactures:
- 7 Segment LED Displays
- Dot Matrix LED Displays
- Customized LED Displays
- UV LEDs
- IR LEDs
- SMD LED Displays
Frequently Asked Questions
Can I choose between common anode and common cathode versions?
Yes. This 5mm LED Matrix Display is available in both common anode and common cathode configurations.
Our engineering team can recommend the most suitable option based on your driver circuit.
Can the display color or brightness be customized?
Yes. Besides the standard super red version, Houkem can customize LED color, luminous intensity, housing color, and epoxy type.
Customization is available for OEM and ODM production projects.
Is this LED matrix suitable for outdoor display equipment?
This module is primarily designed for industrial and commercial electronic equipment used in protected environments.
For outdoor applications, we can recommend more suitable LED display solutions based on your project requirements.
What certifications does this product comply with?
The product complies with CE, RoHS, ISO, and REACH standards.
Every module is tested before shipment to ensure stable quality and reliable performance.
What information should I provide before requesting a quotation?
Please provide your required quantity, LED color, polarity, application, and any customization requirements.
This helps our team recommend the most suitable 8×8 LED matrix module and prepare an accurate quotation quickly.
Request a Quote
Looking for a reliable 5mm LED Matrix Display manufacturer for your next project?
Houkem offers factory-direct manufacturing, OEM and ODM customization, consistent product quality, and professional technical support for global B2B customers.
Contact our sales team today to request pricing, samples, technical drawings, or customized LED matrix display solutions tailored to your application.
Our valid EU‑related certifications include CE, RoHS 2.0, REACH (SVHC), EMC. We are able to provide complete MSDS (Material Safety Data Sheet) documents for customers upon request.
All our LED products follow EU EMC directive, RoHS hazardous‑substance restrictions and REACH chemical regulations. Full certification files can be supplied before shipment.
