China led dot metrix kwm-20882c fym 4.8mm 8x8 dot matrix led display
- Pixel Pitch:2.54
- Model Number:KEM-2088s-2c
- Brand Name:KEM
- Place of Origin:CN;GUA
- Application:Led dot matrix
- Panel Size:47.8 x 47.8mm
- Color:Green

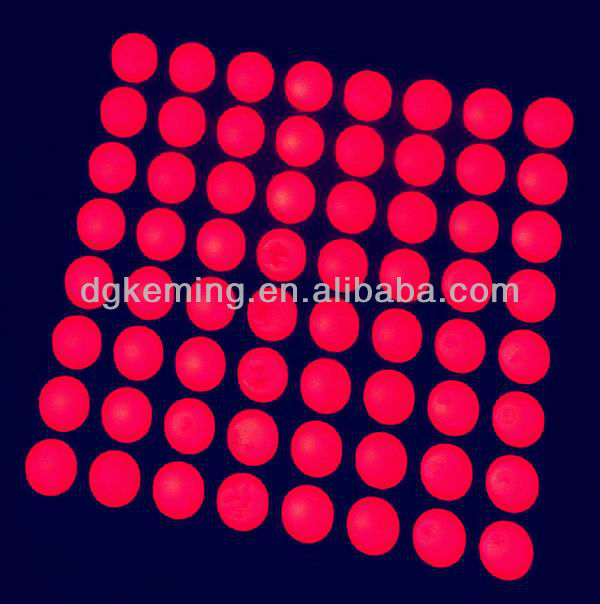

19088-bsr 1.9"red dot 4.8mm 8x8 dot matrix led display:

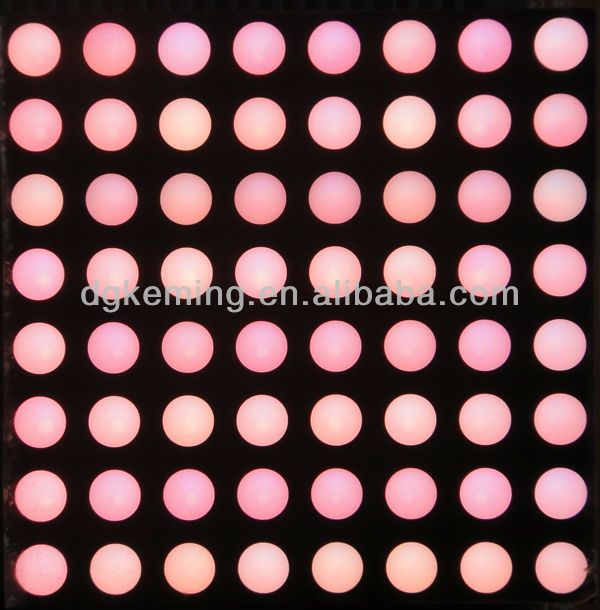

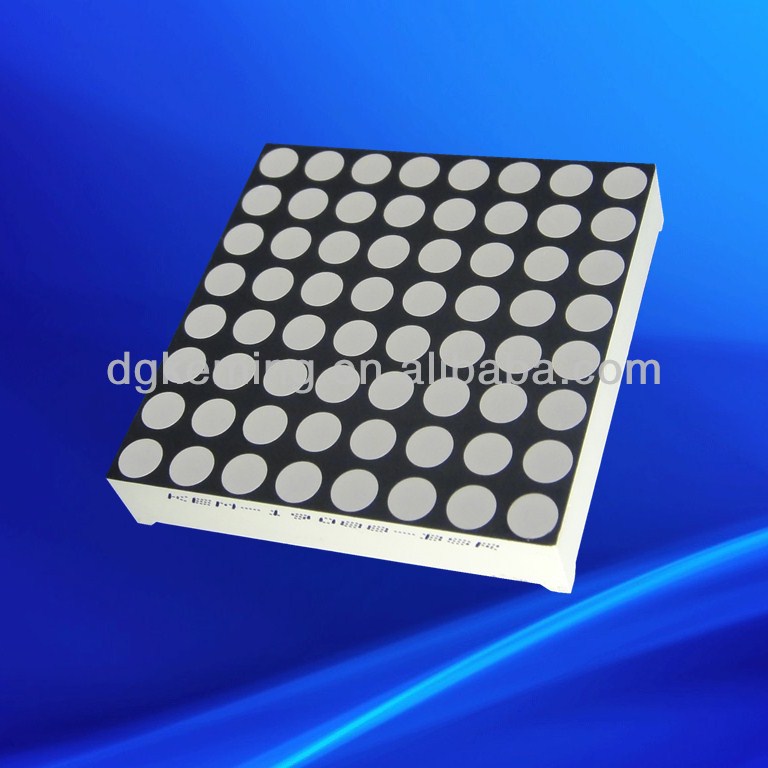

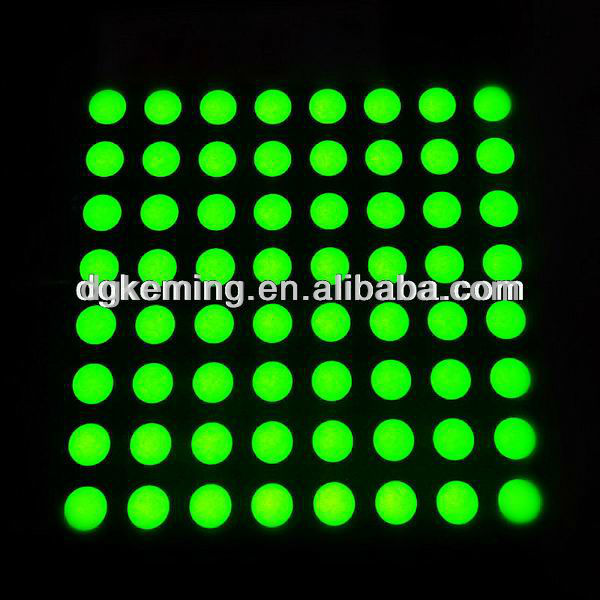

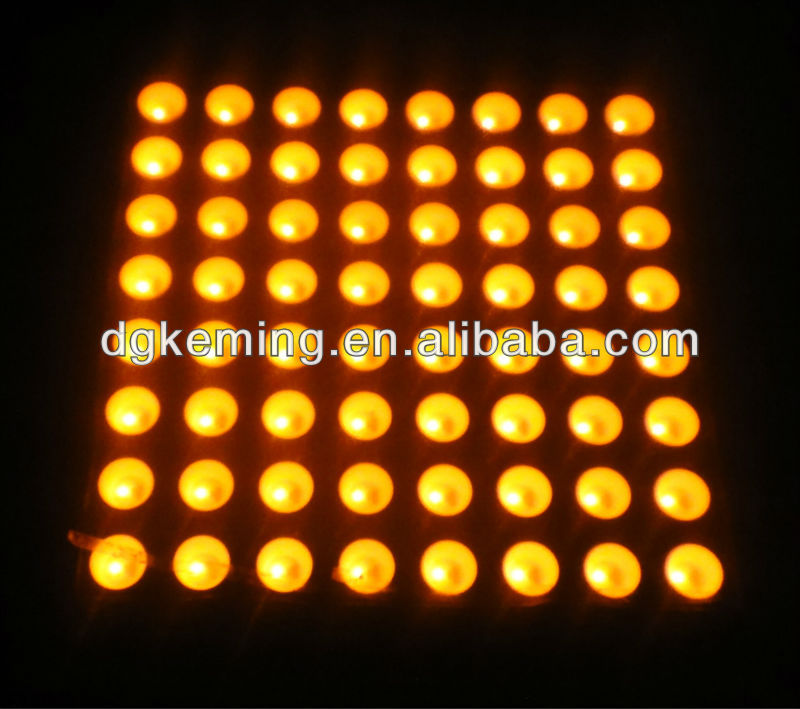

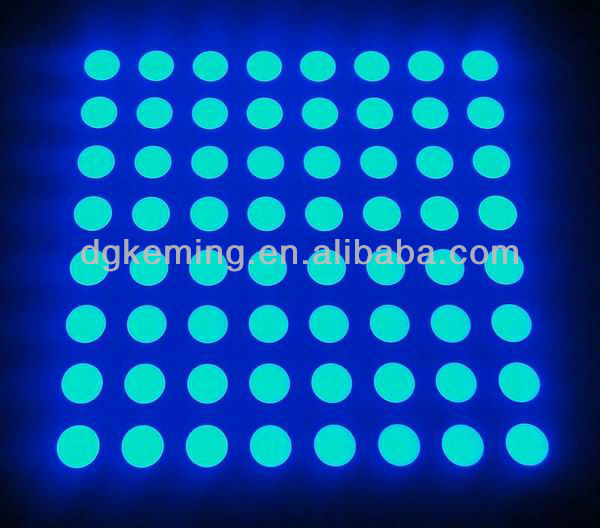

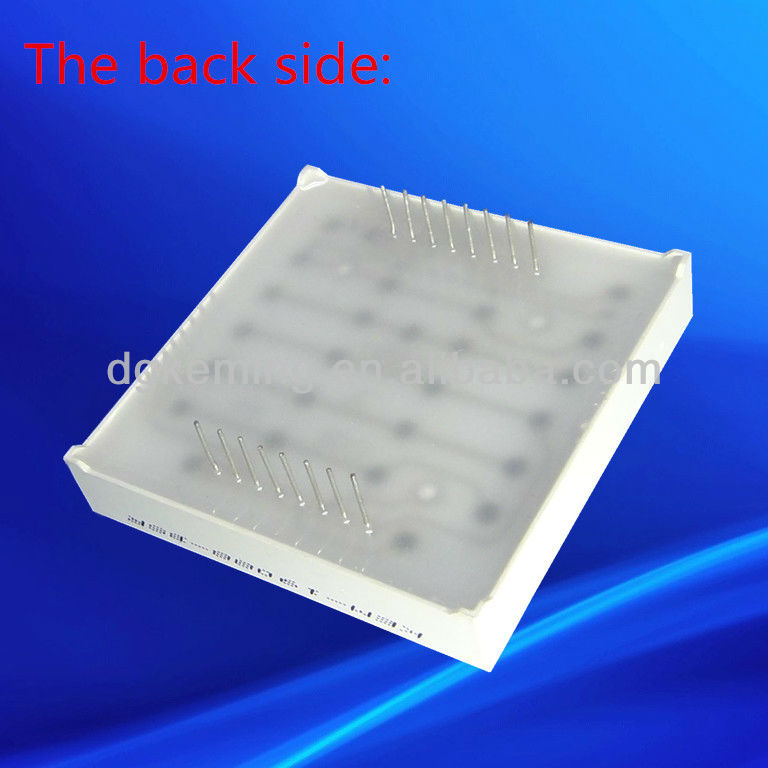

Product Pictures:
Overview:
1. We can supply you all kinds of Dot Matrix Display:
---Dot Dia. from 1.9mm to 10mm
---Array type: 5x7 dots, 5x8 dots, 8x8 dots
2. Available Emitting color: Red, green, blue, yellow, amber, white, RGB,etc
3. Available surface color: black and grey
4. Dot exposy color: milky white, water clear or same with emitting color
Spec of 4.8mm 8x8 super red led dot matrix display module

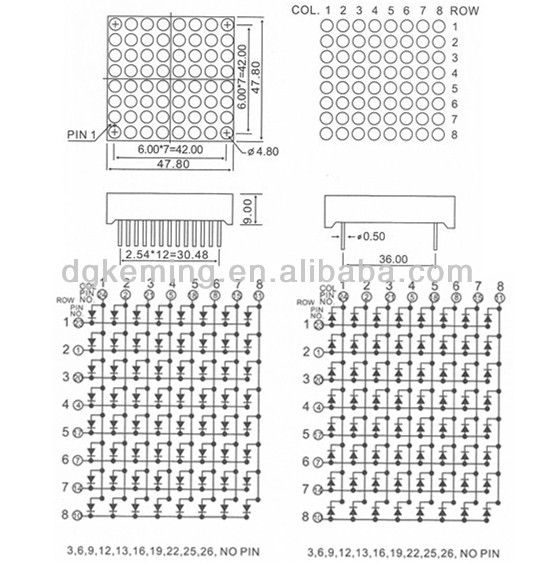

Dimension and Internal Circuit Diagram
Note: If above dimension & PCB layout not meet your requirements, please come to me for other choices.
Other size for you choice:
| model | dot diameter | array | length*width |
| KEM-7057-AB | 1.9mm | 5*7 dot | 12.7*17.8mm |
| KEM-7088-AB | 1.9mm | 8*8 dot | 20*20mm |
| KEM-10057-AB | 2.54mm | 5*7 dot | 19.96*27.94mm |
| KEM-11057-AB | 3.0mm | 5*7 dot | 22.75*31.8mm |
| KEM-12057-AB | 3.0mm | 5*7 dot | 22.80*39.1mm |
| KEM-12088-AB | 3.0mm | 8*8 dot | 32.0*32.0mm |
| KEM-12288-AB | square 3.0*3.0mm | 8*8 dot | 31.7*31.7mm |
| KEM-15088-AB | 3.7mm | 8*8 dot | 37.9*37.9mm |
| KEM16057-AB | 4.5mm | 5*7 dot | 29.4*44.9mm |
| KEM-19088-AB | 4.8mm | 8*8 dot | 47.8*44.9mm |
| KEM-20057-AB | 5.0mm | 5*7 dot | 37.8*53.1mm |
| KEM-20088-AB | 5.0mm | 8*8 dot | 50.7*50.7mm |
| KEM-23058-AB | 5.0mm | 5*8 dot | 37.8*60.6mm |
| KEM-2488-AB | square6.0*6.0mm | 8*8 dot | 60.2*60.2mm |
| KEM-40057-AB | 10.0mm | 5*7 dot | 76.0*106.5mm |
| KEM-46058-AB | 5.0mm | 5*8 dot | 76.0*121.5mm |
Delivery time:
Quantity lead time
1-10Kpcs 3-7 days
10.1K-50Kpcs 7-15 days
All delivery way is available.

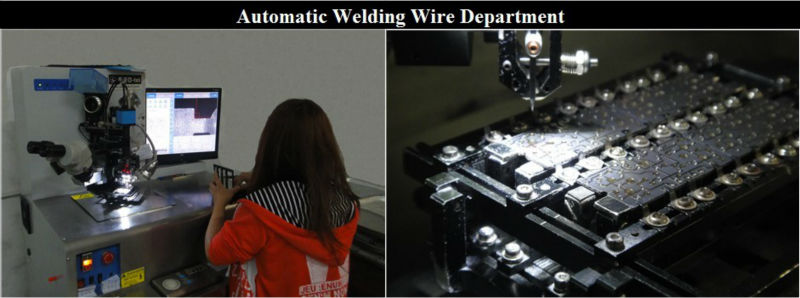

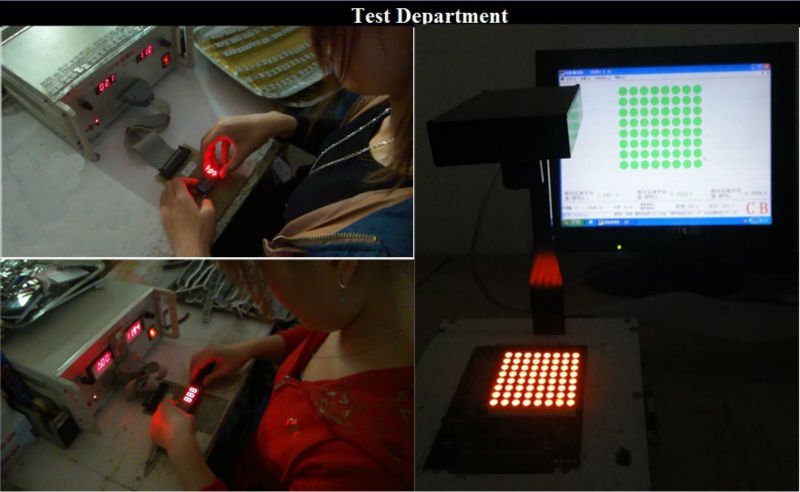

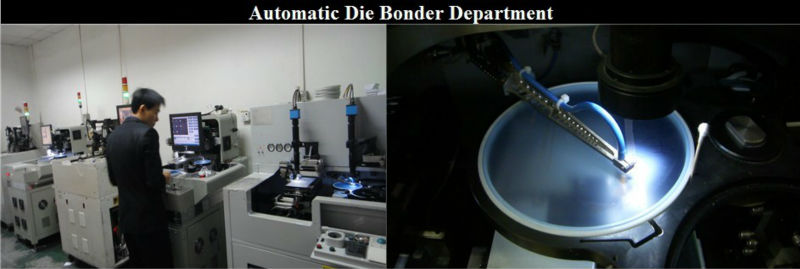

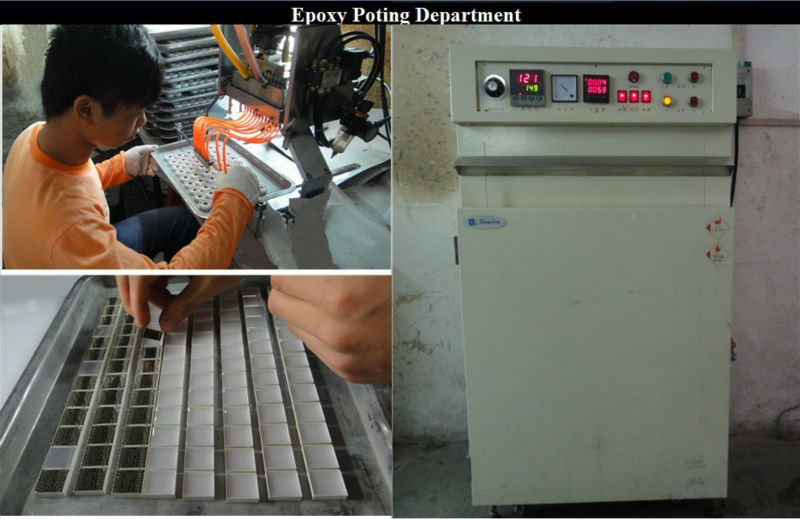

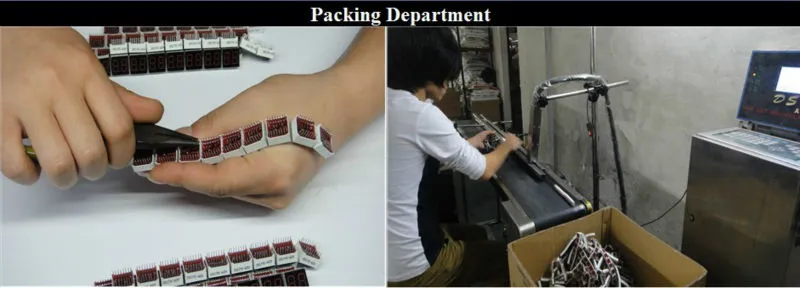

Main Processes of Our Segment Display & Matrix Display(Factory pictures)
With over 15 years experience in this field, we do believe we can become your reliable supplier!
