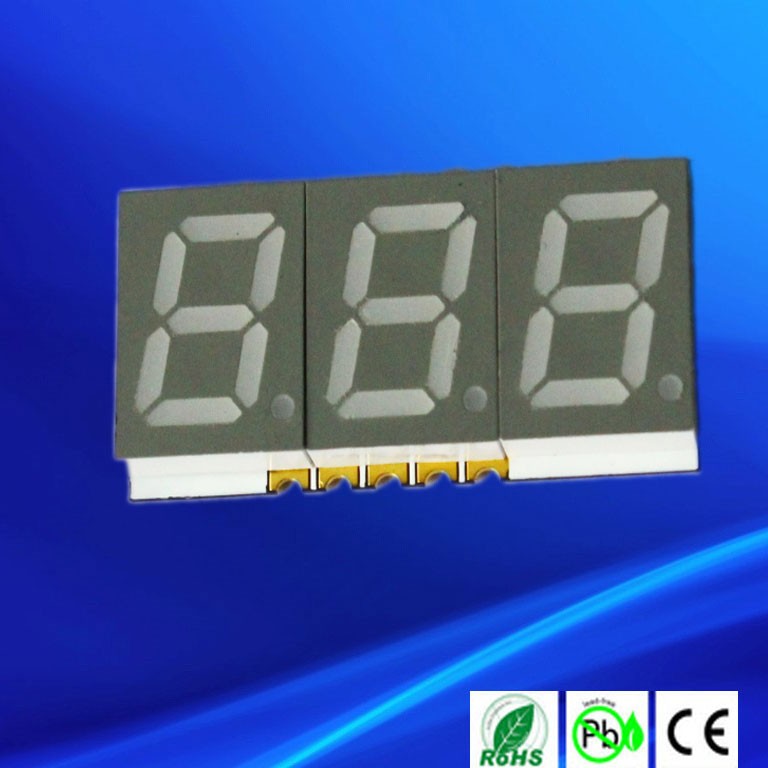

0.39 inch 3 digit 7 segment display smd
- Application:Indoor
- Color:Red
- Panel Size:29.4*15mm
- Pixel Pitch:2.54
- Supplier Type:Original manufacturer, ODM, OEM
- Media Available:datasheet, Photo
- Place of Origin:Guangdong, China
- Model Number:HOUKEM-SMD3931-BSR
- Brand Name:HOUKEM
- use:advertising publish, display of dishes, exhibition hall
- Pixels:2.5mm
- Specification:Digital Poster
- Tube Chip Color:White diffused
- Digit height:0.39"
- Digit quantity:Three / 3 digit
- Full size:29.4*15*3.75mm
- Emitting color:super red
- Wavelength:625-640nm
- Luminous intensity:100mcd/chip
- Input voltage:1.8-2.3V (7 segment led smd display)
- Screen Dimension:29.4*15mm
- Surface color:Gray
0.39 inch 3 digit 7 segments smd led displays
| Part number | KEM-3931SMD-A/B | Emittingcolor | red/blue/amber/green/white/yellow |
| Polarity | Common anode Common cathode | Epoxy color | white/blue/red/green/yellow |
| Currenty | 20mA | Surface color | Black/gray/white |

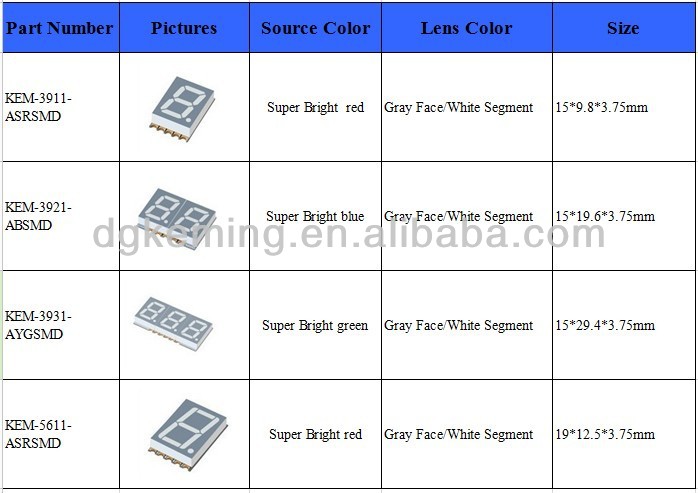

Selection guide (7 segment led smd display)

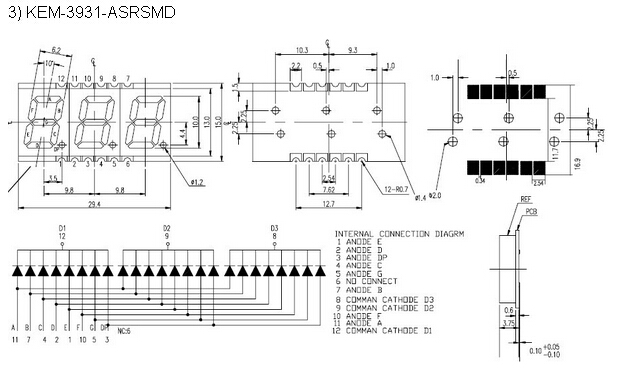

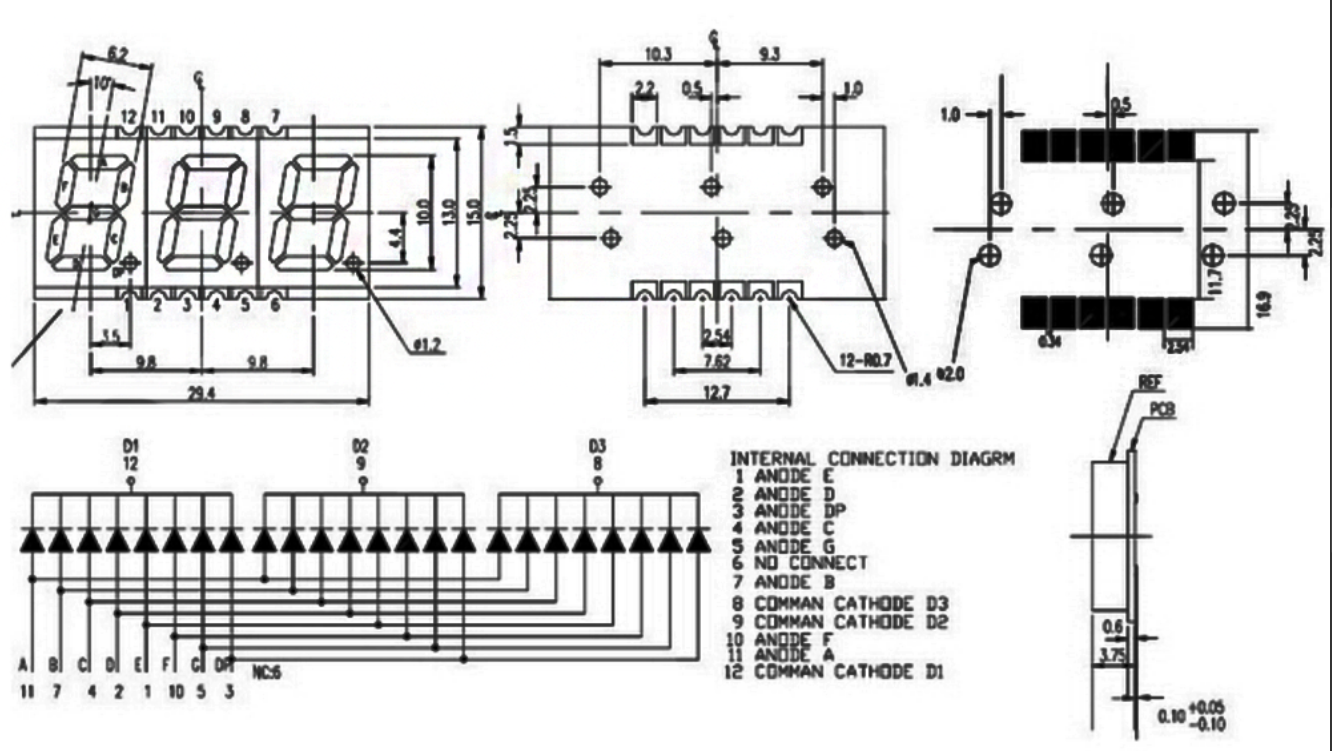

Package dimension & Internal circuit diagram (7 segment led smd display)
If the circuit cannot meet your need, pls advise me for other choices. Thank you.
All of colors are available (7 segment led smd display)
Model | KEM-SMD3931-BSR |
Digit height | 0.39" |
Digit number | Three |
Segment color | White |
Face color | Gray |
Emitting color | Ultra red |
Dominant wavelength | 625-640nm |
Luminous intensity | 120mcd/chip |
Forward voltage | 1.9 v/ chip |
Reverse voltage | 5v |
Recommend used current | 20mA |
Operating temperature range | 25~75 |

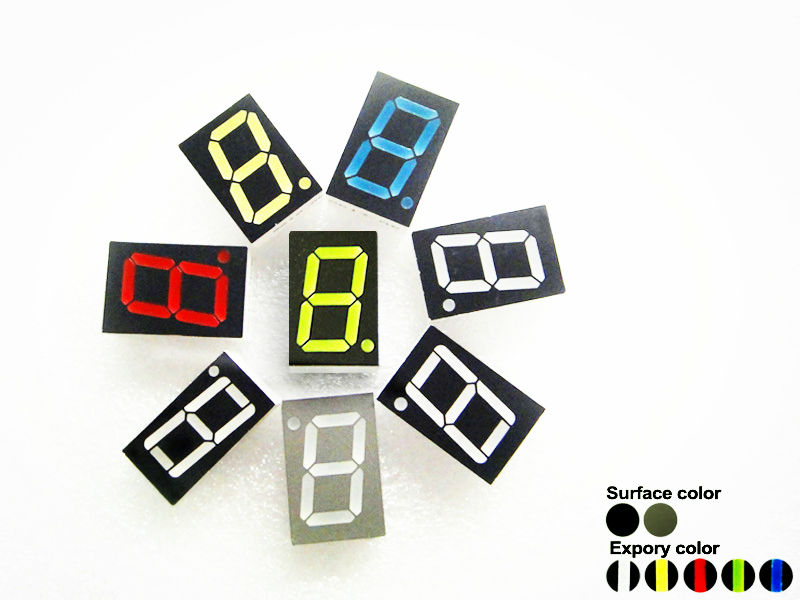

Choice for Surface color & Epoxy color (7 segment led smd display)

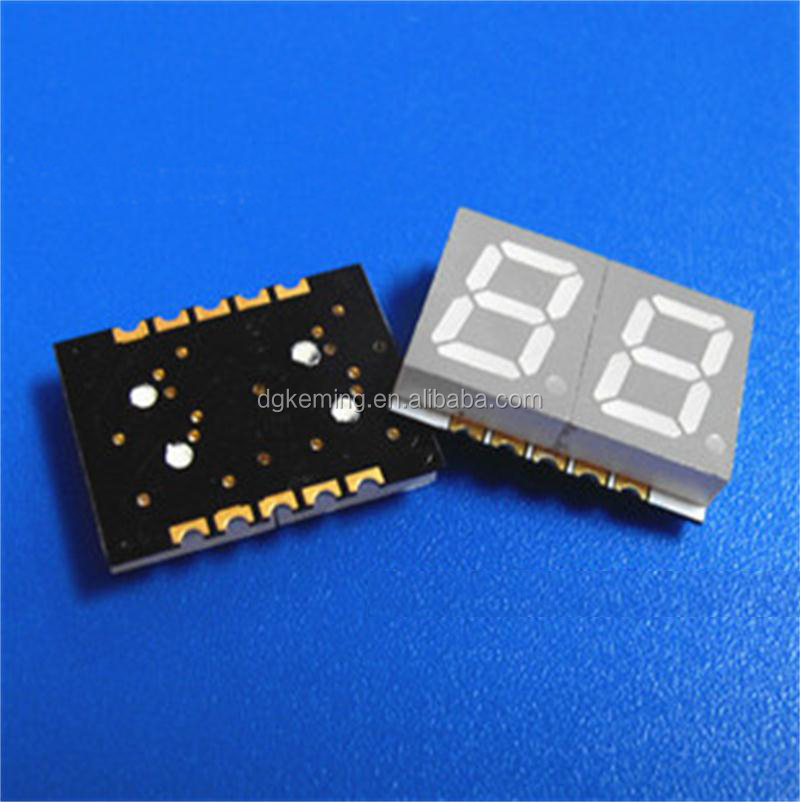

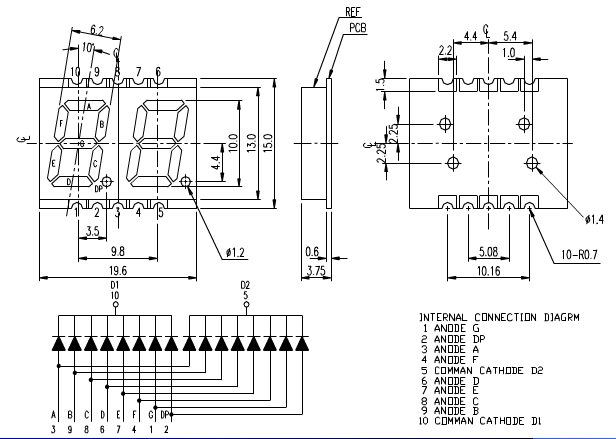

0.2 inch single digit 7 segment led smd display for your choice:
Quantity lead time
1-10Kpcs 3-7 days
10.1K-50Kpcs 7-15 days
All delivery way is available. (7 segment led smd display)
Under proper use, all the displays made of Epistar led chips are with
3 years warranty. (7 segment led smd display)
1. We can supply you all kinds of 7 segment LED display:
---Digit size: from 0.25"to 16"
---Digit Numer: 1, 2, 3, 4, 5 and 6 digits
2. Segment : 7 segment and 14 segment both available
3. Available Emitting color: Red, green, blue, yellow, amber, white, bi-color
4. Available surface color: black,grey and red
5. Lens color: milky white or same with emitting color
Notice
In order to ensure you receive your order with low tax upon import, we will declare with
a lower value according to your inform.
