4'' single digit 7 segment display red

4'' single digit 7 segment display red

4'' single digit 7 segment display red

4'' single digit 7 segment display red

4'' single digit 7 segment display red

4'' single digit 7 segment display red

Model No: HOUKEM-40011-AUR2

CE Rohs Led Digital display ultra bright red 100mm single digit led numeric display 4 inch 7 Segment display cc

1 digit 7 segment display houkem is 7 segment led display professional manufacturer

Delivery :

EXW

minimum order :

1 piece

Stock Time :

7-14Day

Country of Origin :

Dongguan/ Guangdong

Quantity :

US $2.80 - US $3.00 / piece

add to cart

Contact Now

Application:score board, game machine, etc, elevator, digital counter
Color:ultra red2, ultra red(300mcd)
Panel Size:90*122mm
Pixel Pitch:2.54
Supplier Type:Original manufacturer, ODM, OEM
Media Available:datasheet, Photo
Place of Origin:Guangdong, China
Model Number:HOUKEM-40011-AUR2
Brand Name:HOUKEM
use:advertising publish
Pixels:2.54
Specification:-
Product name:4'' 1 digit 7 segment display
Warranty:2Years
PCB Polarity:common cathode
operating temperature:-20 ~ +50 ℃
OEM:YES
Custom made:YES
Life span:100000hours
Certificate:CE ROHS ISO9001 REACH

Product Describtion

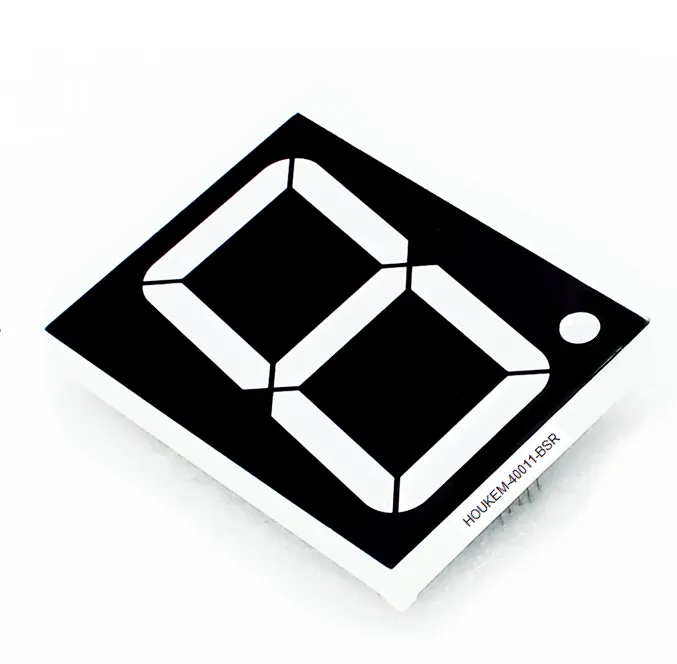

4'' single digit 7 segment 4 inch led display red

Features:

1, Low consumption

2, High brightness

Product details:

Item No.	HOUKEM-40011-AUR2
Dimension	9012215mm
digit height	4'' (101.6mm)
Surface color	Black / Grey
Segment color	White /Clear
Emitting color	ultra red2

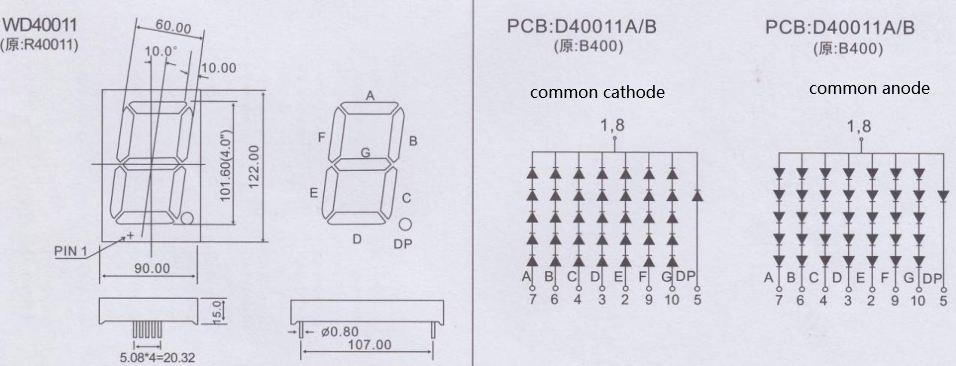

Package dimension & Internal circuit diagram

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=15Ma)

Emitting Color	Test Condition	Wavelength(nm)		Forward Voltage(V)		Luminous Intensity (mcd)
Emitting Color	Test Condition	(λp)	λ	Typ	Max	Typ	Max
Amber	IF=15mA	600-605	30	1.8	2.0	90	100
Super green	IF=15mA	565-575	30	1.8	2.0	48	55
Super red	IF=15mA	620-625	20	1.8	2.0	110	130
Ultra red 1	IF=15mA	620-625	20	1.8	2.0	200	210
Ultra red 2	IF=15mA	620-625	20	1.8	2.0	300	350
High red	IF=15mA	638-660	20	1.8	1.9	15	20
Yellow green	IF=15mA	570-580	30	1.8	2.0	43	50
Yellow	IF=15mA	580-600	35	1.8	2.0	70	80
Blue	IF=15mA	465-475	40	2.95	3.0	150	200
Pure green	IF=15mA	515-525	40	2.95	3.0	600	640
White	IF=15mA	-	-	2.8	2.9	180	200

Two years quality warranty

Our Services

7 segment LED display

1 digit	0.2'', 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.5'', 0.52'', 0.56'', 0.6'', 0.8'', 1'', 1.2'', 1.5'', 1.8'', 2.3'', 3'', 4'', 5'', 6'', 7'', 8'', 10'', 12'', 16'', 20''
2 digit	0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.43'', 0.5'', 0.52'', 0.56'', 0.8'', 1'', 1.2'', 1.5''
3 digit	0.25'', 0.28'', 0.3'', 0.4'', 0.52'', 0.56'', 0.8''
4 digit	0.25'', 28'', 0.3'', 0.36'', 0.4'', 0.5'', 0.56'', 0.8'', 1.2''
5 digit	0.28'', 0.36'', 0.56''
6 digit	0.3'', 0.36''

14 /16 segment

1 digit	0.39'', 0.5'', 0.8'', 1'', 1.2'', 2.3''
2 digit	0.54''
3 digit	0.54''
4 digit	0.39'', 0.54''

Various colors: super red, ultra red, high red, yellow green, pure green, super green,

pure green, blue, yellow, white, amber, orange, Bi-color, RGB.
Custom 7 segment display are available
