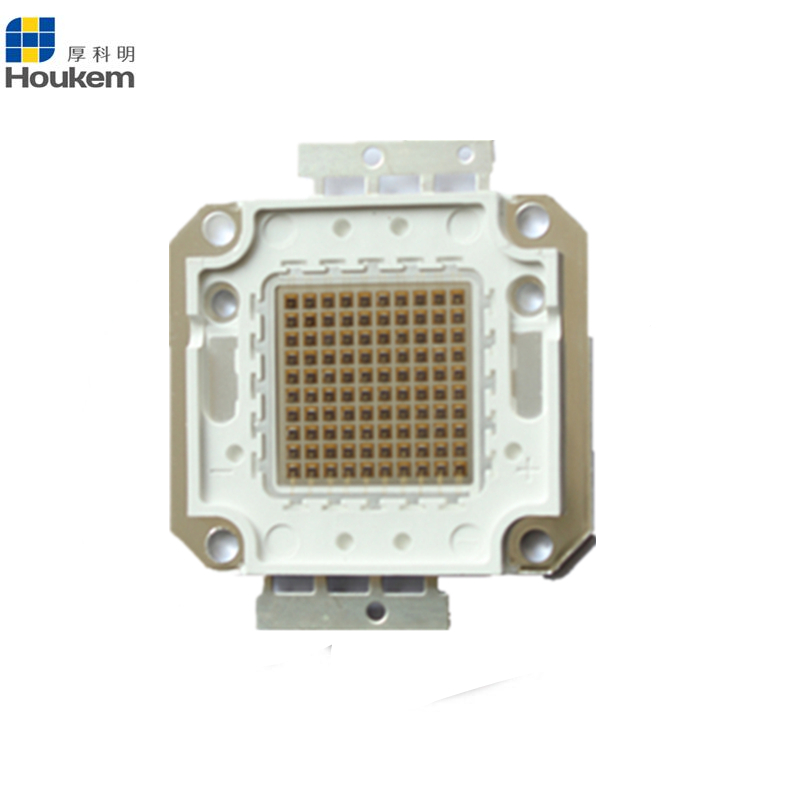

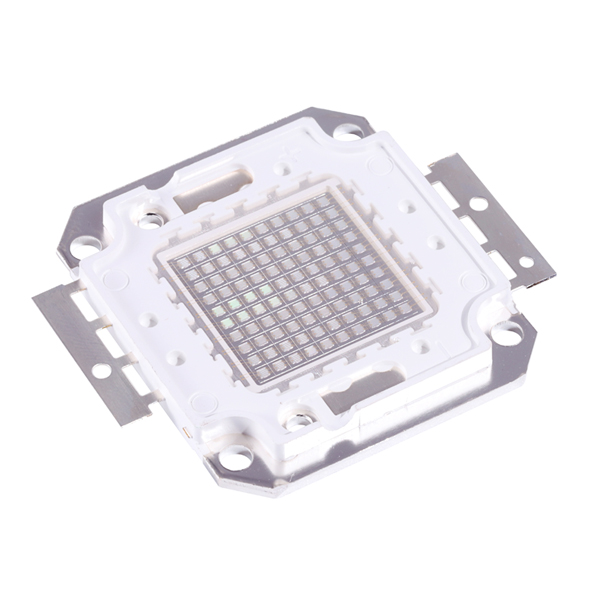

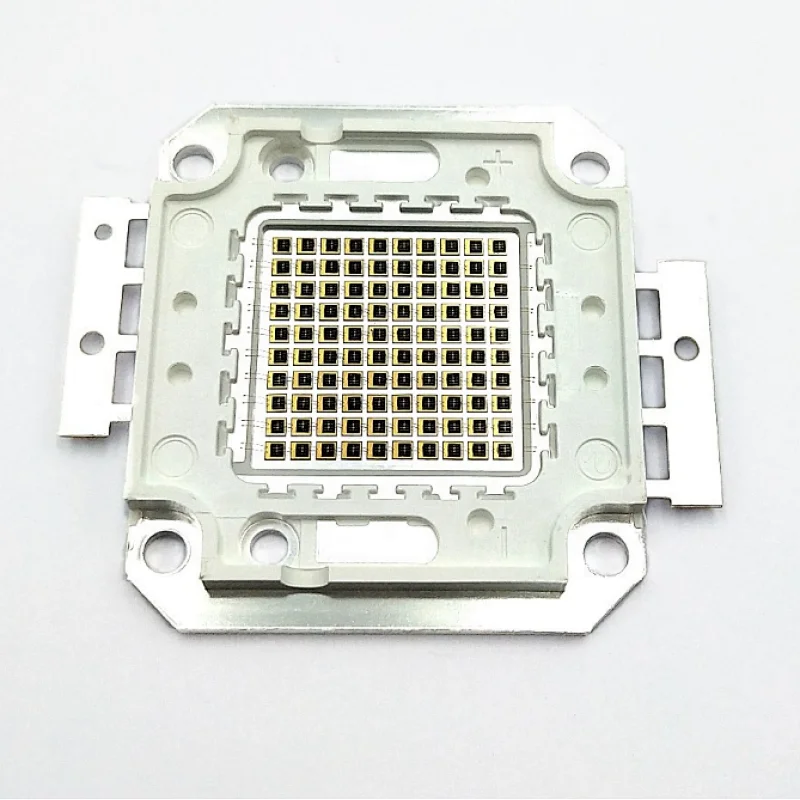

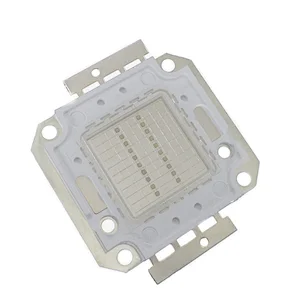

UV Curing 395nm LED Chip 100W
High Power UV Curing LED 395nm–405nm for Industrial Applications
TheUV curing LED 395nm from HOUKEM is a high-performance ultraviolet light source designed for industrial curing systems, including printing, coating, adhesive curing, and electronic manufacturing processes. This high power UV LED 395nm chip delivers stable UVA output in the 395–405nm range, ensuring fast curing speed and reliable production performance for OEM and industrial equipment manufacturers.
Available in 50W and 100W configurations, this UV LED is built for continuous operation environments requiring high intensity, long lifespan, and stable optical performance. With Epiled chip technology and strict quality control, it is widely used in UV curing machines worldwide.
Key Features of UV Curing LED 395nm
- StableUV curing LED 395nm–405nm wavelength
- High power output up to 100W available
- Designed for industrial UV curing systems
- Epiled chip for reliable performance
- Wide120° beam angle
- Long lifetime up to 50,000 hours
- High thermal stability for continuous operation
- CE & RoHS certified quality
- OEM & ODM customization supported
- Suitable for modular UV curing system integration
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | High Power UV Curing LED |
| Wavelength | 395–405nm |
| Power Options | 50W / 100W |
| Input Voltage | 30–34V |
| Forward Current | 3000–3500mA |
| Chip Brand | Epiled |
| Chip Quantity | 100 pcs |
| Beam Angle | 120° |
| Radiant Flux | 35000–40000mW |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 80°C |
| Lifetime | 50,000 hours |
| Warranty | 2 Years |
| Origin | Guangdong, China |
Applications of UV Curing LED 395nm
TheUV curing LED 395nm chip is widely used in industrial manufacturing processes that require fast and efficient ultraviolet curing.
UV Curing Systems
This is the primary application field:
- UV glue curing machines
- UV ink curing systems
- UV coating production lines
- PCB curing equipment
- Industrial adhesive curing systems
UV Printing Industry
Thehigh power UV LED 395nm is widely used in modern printing systems:
- Digital UV printing machines
- Label printing systems
- Packaging printing equipment
- Industrial inkjet curing systems
Industrial Inspection & Fluorescence
Used for detection and analysis systems:
- Fluorescent inspection systems
- Material crack detection
- Leak detection equipment
- Quality control systems
Scientific & Laboratory Equipment
Also suitable for research applications:
- UV excitation light sources
- Laboratory curing systems
- Biofluorescence experiments
- Optical testing systems
Why Choose HOUKEM UV Curing LED?
HOUKEM specializes in high power UV LED, IR LED, and industrial LED solutions with over 16 years of manufacturing experience.
We provide not only LED chips, but complete industrial solutions:
- Factory-direct pricing for OEM buyers
- Stable mass production capability
- Customized wavelength and power options
- Integrated UV curing module solutions
- Driver and heat dissipation system support
- Strict pre-shipment testing for every unit
EachUV curing LED 395nm chip is engineered for stability, ensuring consistent curing performance in industrial production environments.
FAQ
What is a UV curing LED 395nm used for?
It is mainly used in UV curing machines for adhesives, inks, coatings, and industrial manufacturing processes requiring fast ultraviolet curing.
What is the difference between 395nm and 365nm UV LED?
395nm offers higher power output and is more suitable for industrial curing, while 365nm provides stronger UV energy but lower efficiency in large-area curing.
Can this UV LED be used in printing machines?
Yes, the UV curing LED 395nm is widely used in UV printing and ink curing systems.
Do you support OEM customization for UV LED modules?
Yes, we provide OEM/ODM services including wavelength adjustment, power customization, and full UV curing system integration.
What is the lifespan of this UV curing LED?
The LED has a rated lifetime of up to 50,000 hours under proper thermal management conditions.
Contact HOUKEM for UV Curing LED Solutions
Looking for a reliable UV curing LED 395nm manufacturer for your industrial project?
HOUKEM provides factory-direct UV LED solutions with stable performance, OEM customization, and global supply capability.
👉Contact us today for datasheets, samples, or a customized quotation for your UV curing system.
