Model No: HOUKEM-200011-AW

CC large 20 inch 7 segment LED display 1 digit white for LED time clock-Houke

7 segment display houkem is 7 segment led display professional manufacturer
Delivery :
EXW
Stock Time :
7-14Day
Country of Origin :
Dongguan/ Guangdong
Quantity :
US $65.00 - US $70.00 / piece
add to cart
Contact Now
  • Application:socreboard, time clock
  • Color:white
  • Panel Size:350*500mm
  • Pixel Pitch:2.54
  • Place of Origin:Guangdong, China
  • Model Number:HOUKEM-200011-AW
  • Brand Name:HOUKEM
  • Product name:20 inch 7 segment led display
  • Warranty:2Years
  • Luminous Intensity:180-200mcd
  • PCB Polarity:common cathode
  • operating temperature:-20 ~ +50 ℃
  • OEM:YES
  • Custom made:YES
  • emitting color:white
  • Certificate:CE ROHS
  • Display Function:Video Picture Graphic Text Message
Product Describtion

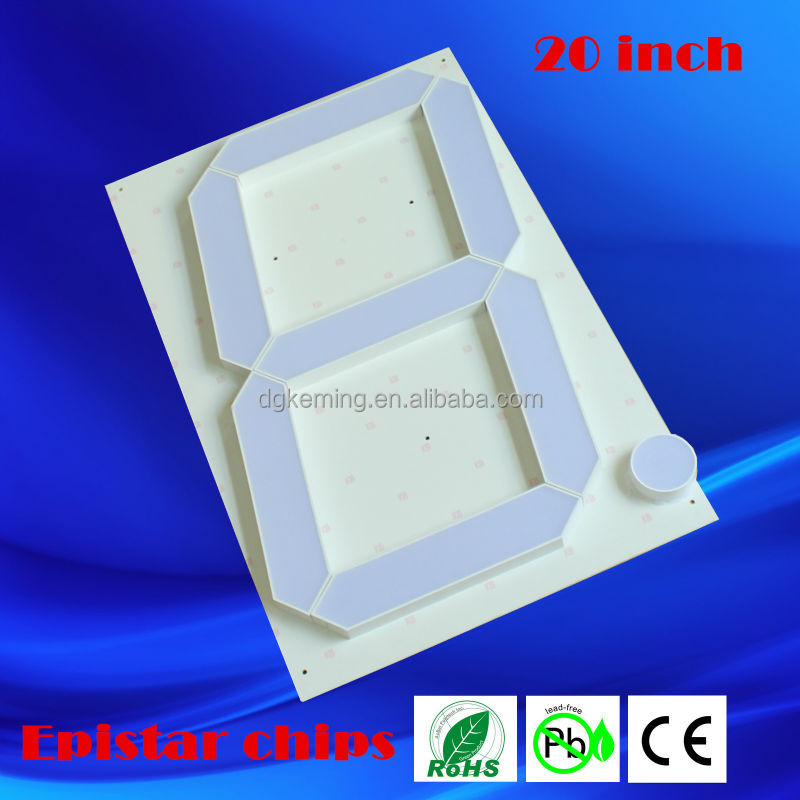

CC large 20 inch 1 digit white 7 segment LED display

Part no: HOUKEM-200011-BW -------common anode (CA)

HOUKEM-200011-AW -------common cathode (CC)

Item No.HOUKEM-200011-AW
Dimension350*500mm
Surface color Black /Grey
Emitting color white

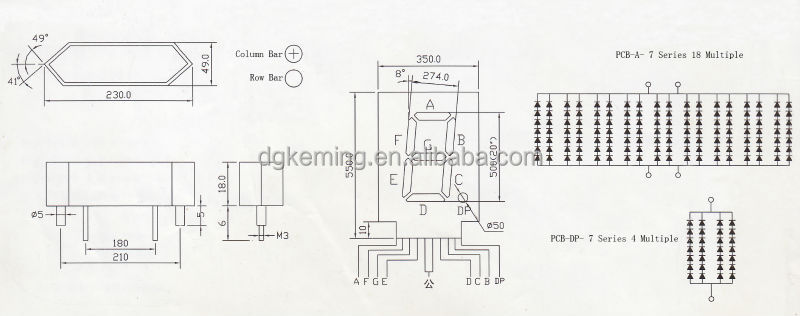

Package dimension & Internal circuit diagram

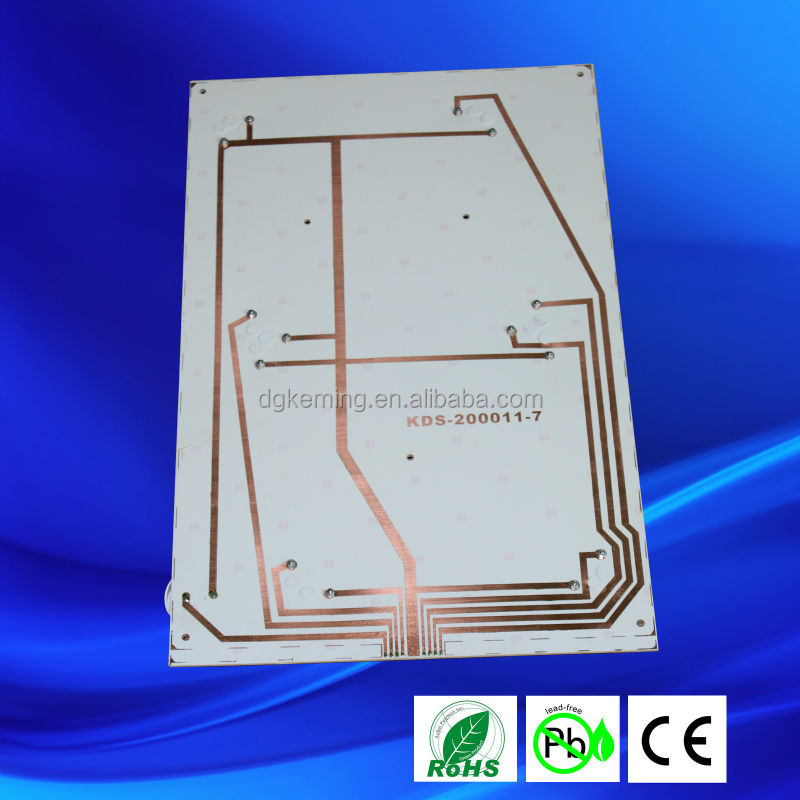

Note: If this PCB layout don't meet your requirements, please contact me for other choices.

1,Low consumption

2, High brightness

3,High intensity and reliability

4,Easy assembly

Two years quality warranty

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)

Emitting Color

Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=18mA

600-605

30

1.9

2.0

90

100

Super green

IF=18mA

565-575

30

1.9

2.0

48

55

Super red

IF=18mA

620-625

20

1.8

2.0

110

130

Ultra red

IF=18mA

620-625

20

2

2.1

300

350

High red

IF=18mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=18mA

570-580

30

1.9

2.0

43

50

Yellow

IF=18mA

580-600

35

1.9

2.0

70

80

Blue

IF=20mA

465-475

40

2.8

3.0

150

200

Pure green

IF=20mA

515-525

40

2.8

3.0

600

640

White

IF=20mA

-

-

2.8

3.0

180

200

Our Services



Custom service:

1. We can supply you all kinds of 7 segment LED display

---Digit size: from 0.25"to 20"

---Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment and 14 segment both available

3. Various colors: super red, ultra red, high red, yellow green, pure green,

super green, pure green, blue, yellow, white, amber, Bi-color, RGB.

Related Products

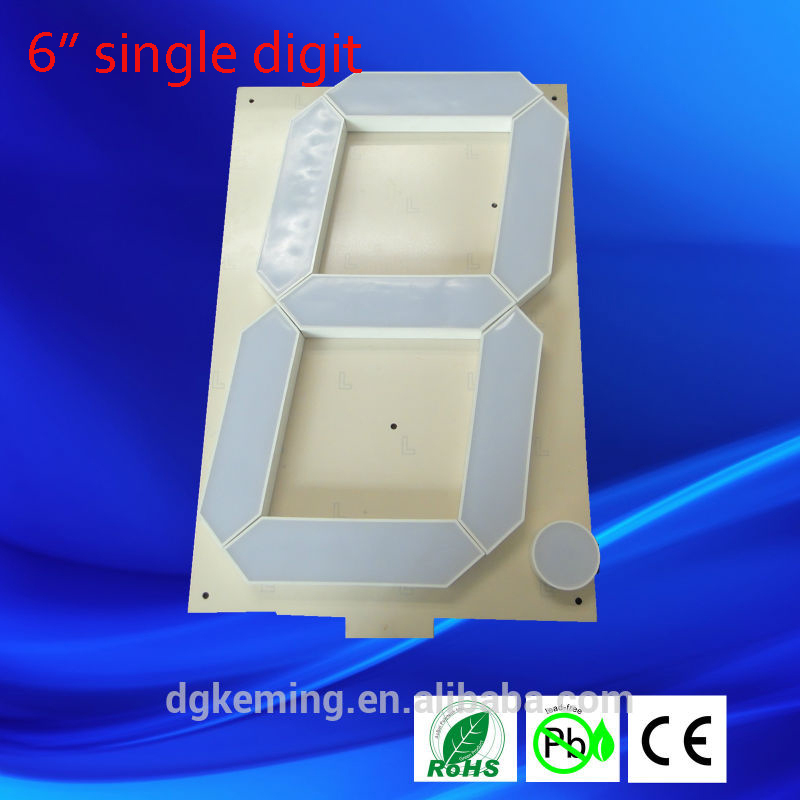

6 inch

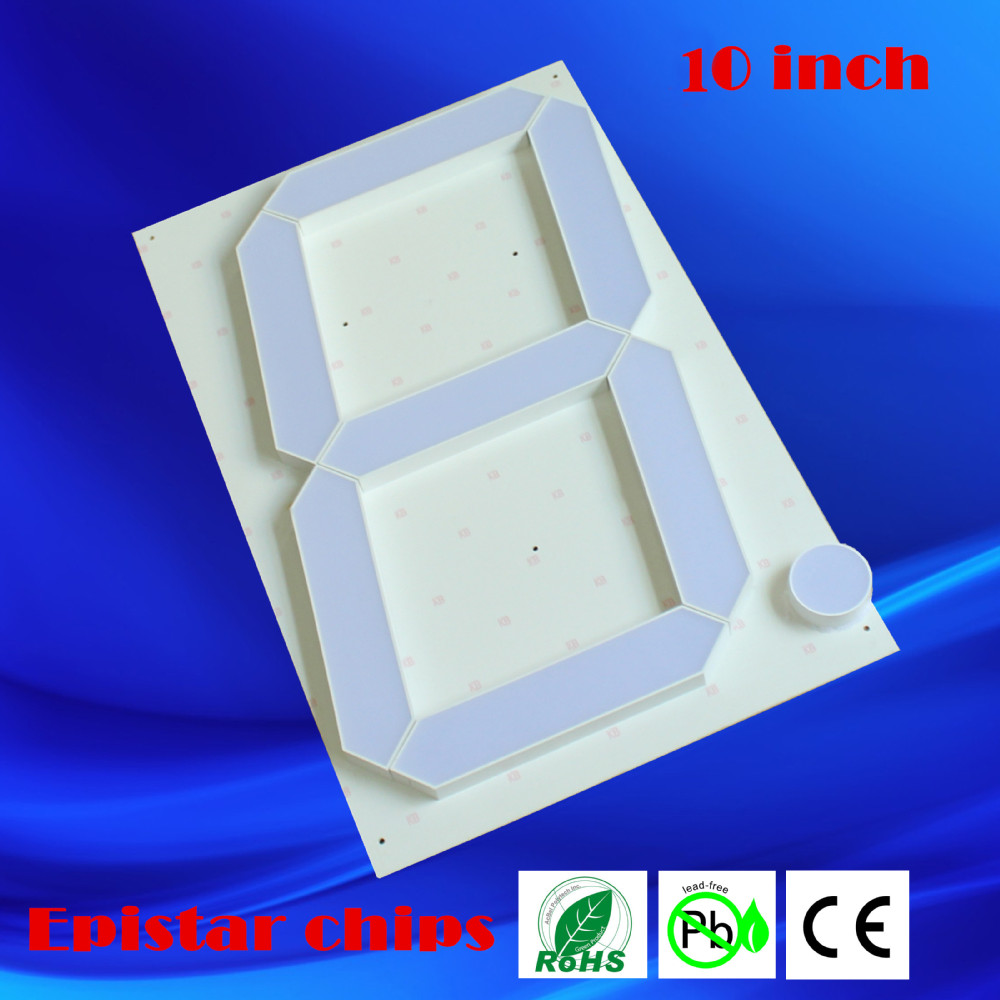

10inch
