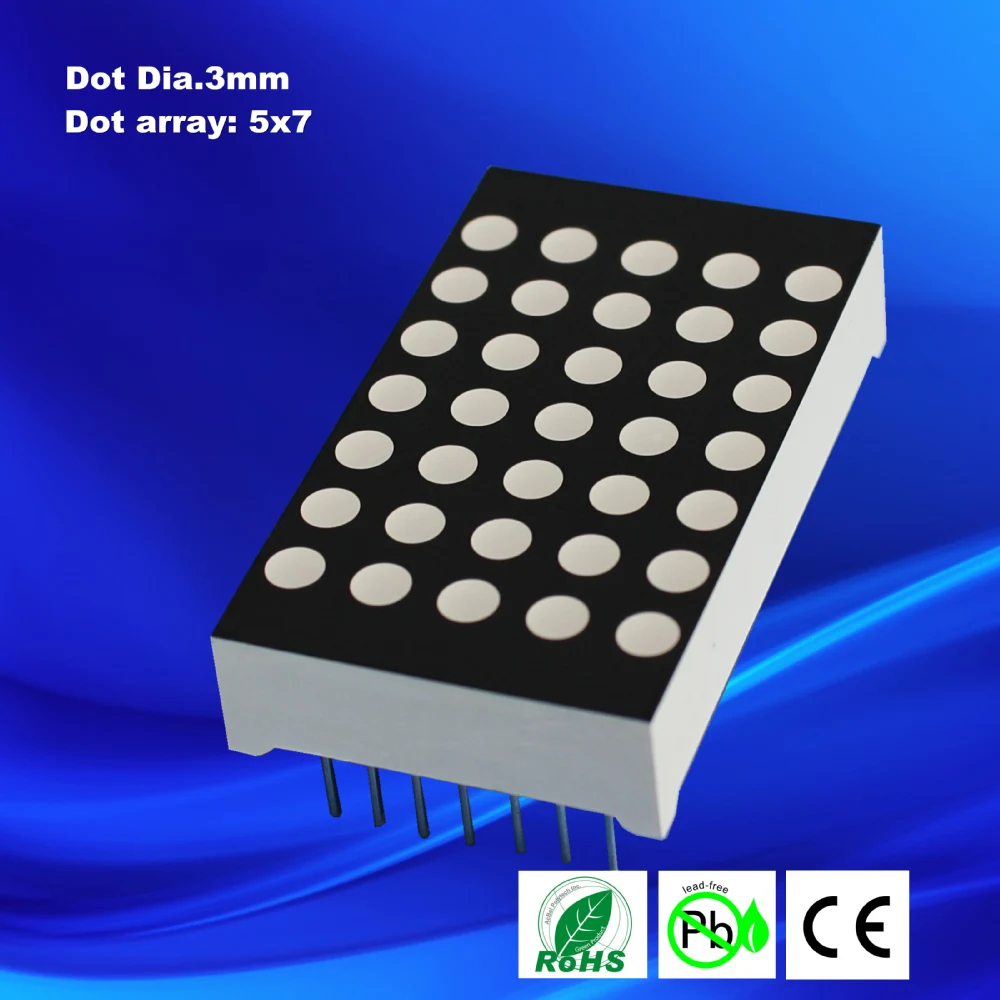

cc/ca 1.9mm 7x5 dot matrix led display, 3mm 5x7 white dot matrix
- Place of Origin:CN;GUA
- Display Function:Graphics
- Screen Dimension:31.8*22.75mm
- Brand Name:KEM
- Pixels:11mm
- Usage:Semi-outdoor
- Model Number:KEM-12057-A/BW
- Tube Chip Color:Ultra white

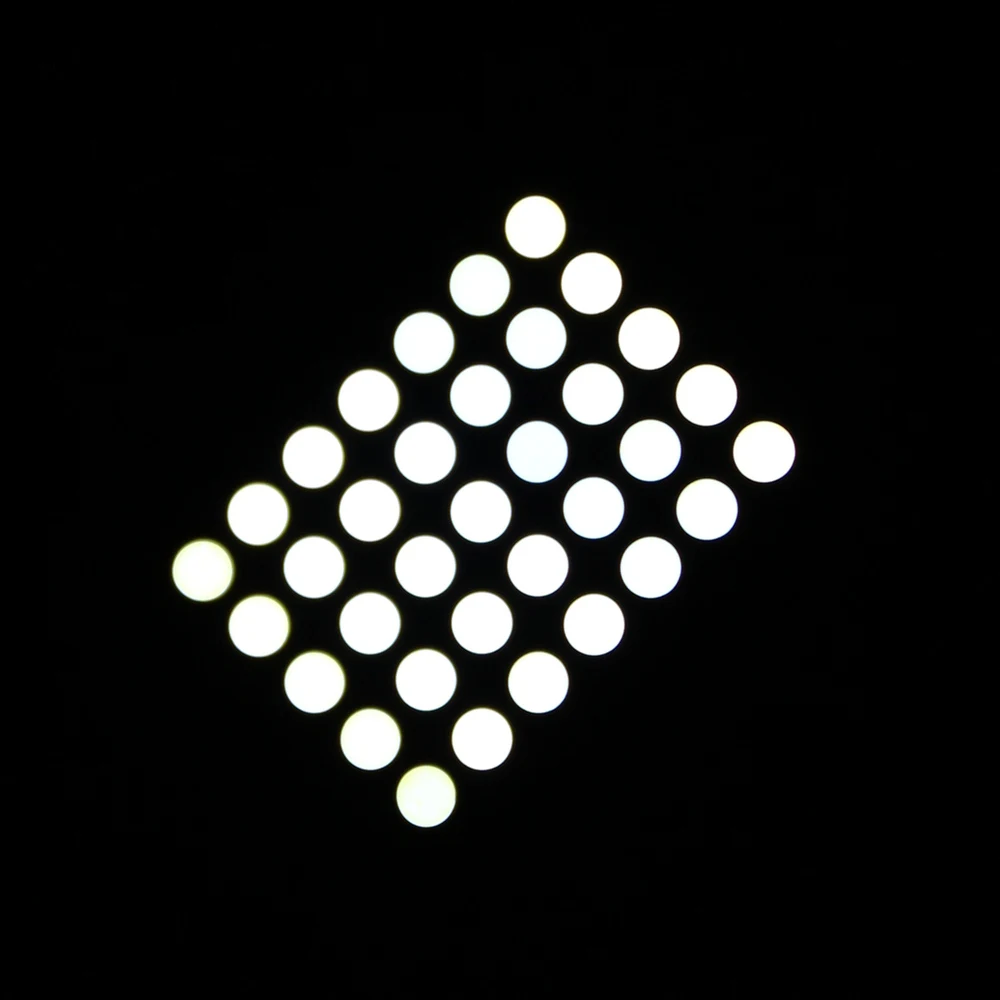

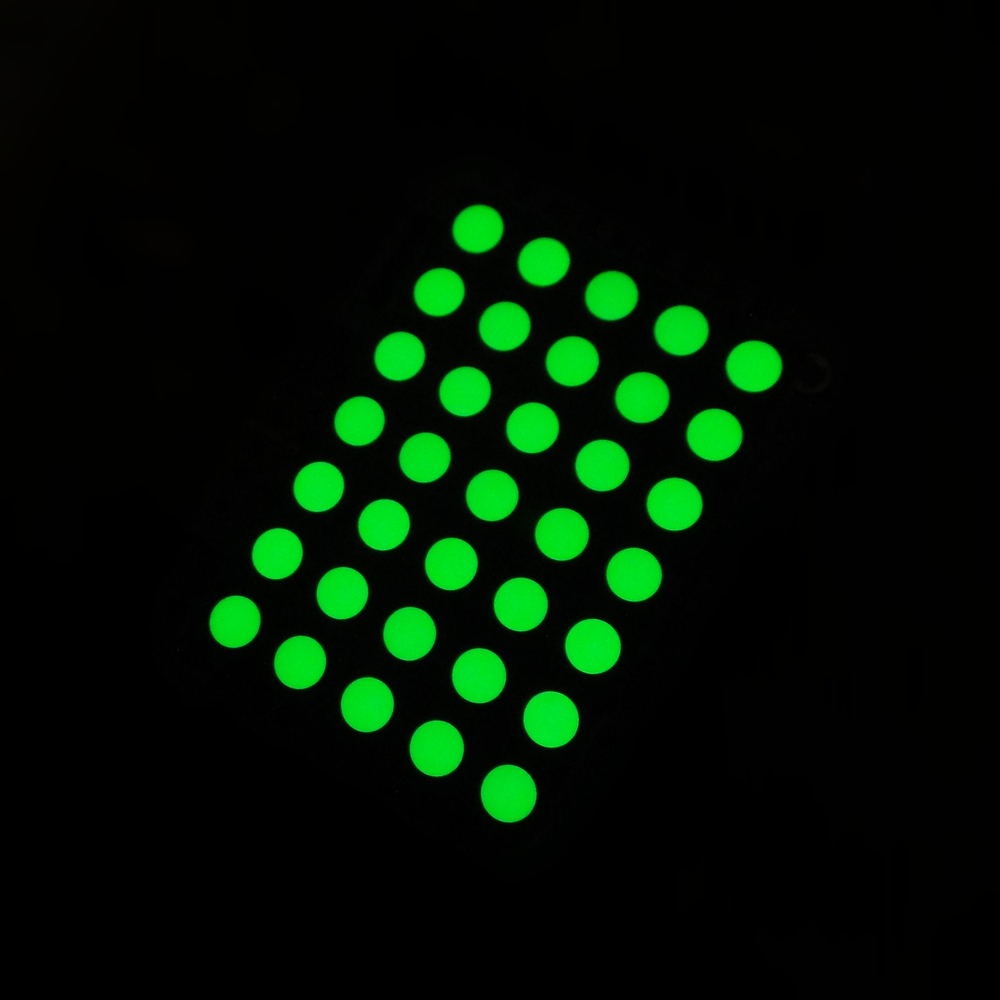

Light on:
Light off:

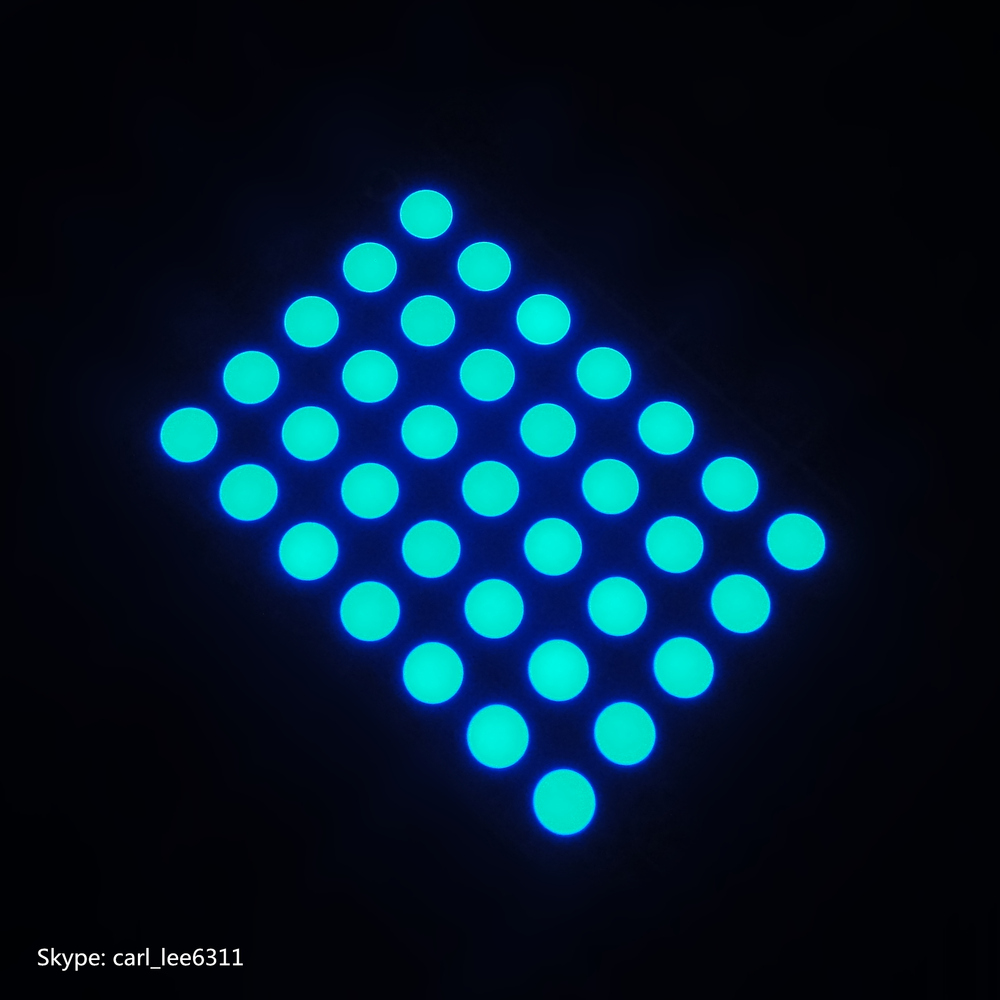

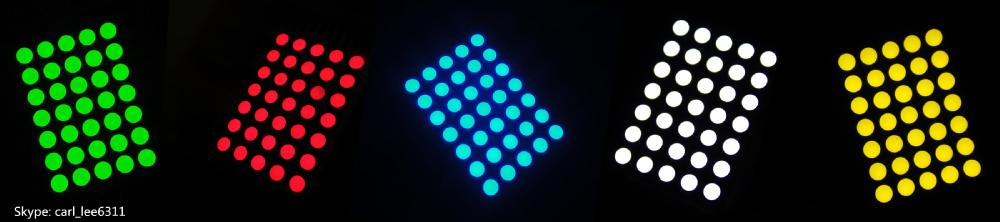

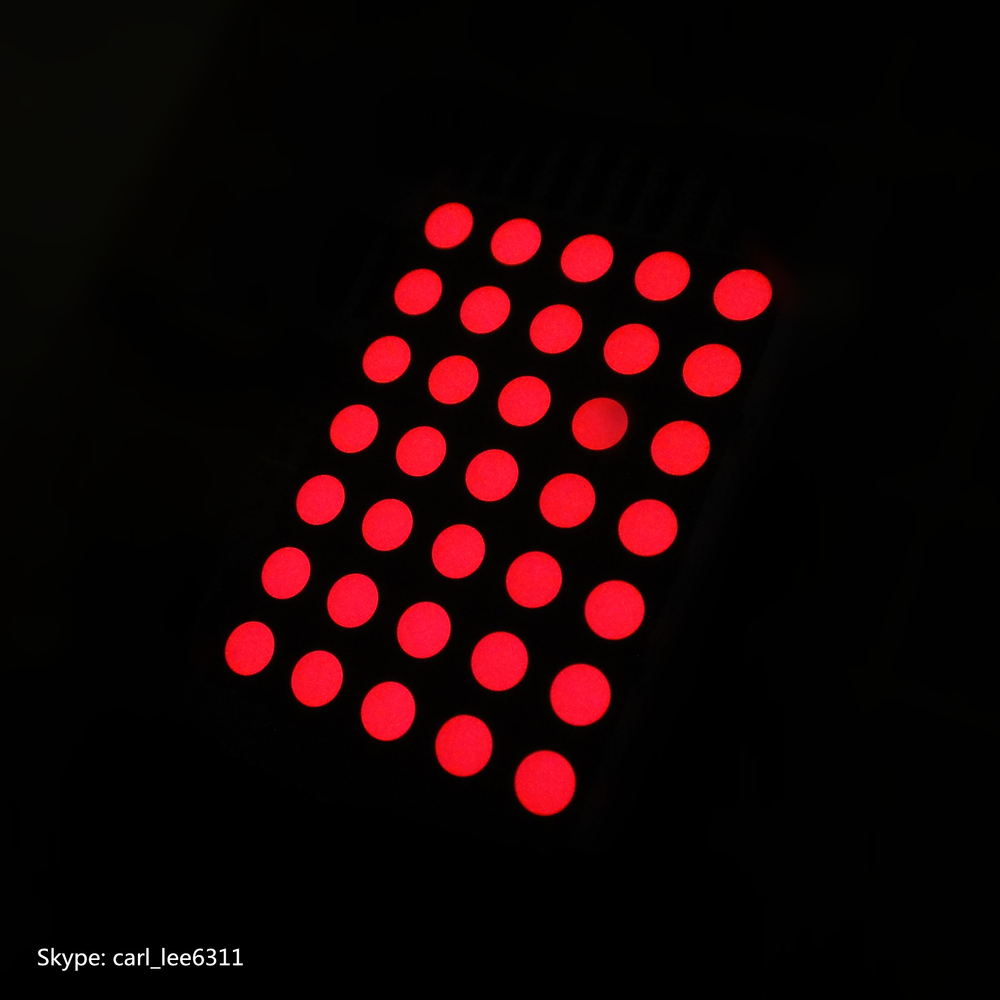

All of single colors and Bi-color are available controled by yourself:
Product Description
Part No | KEM-11057-A/BW |
| Dimension | 31.8*22.75*8.5mm |
| Dot array | 5x7 |

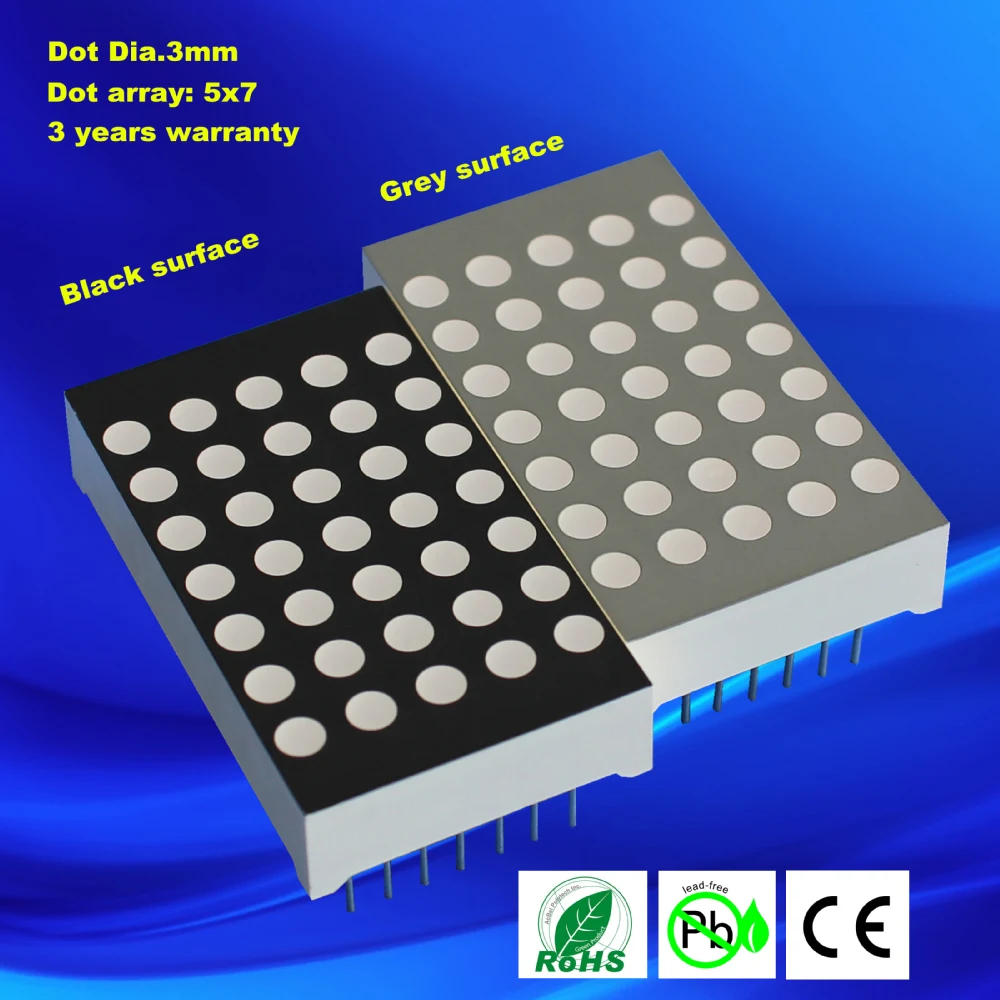

| Surface color | Black/gray |
| Segment color | white / water clear |
| Emitting color | Ultra White |
| Luminous intensity | 180mcd/chip |
| Pin configuration | common anode/common cathode |

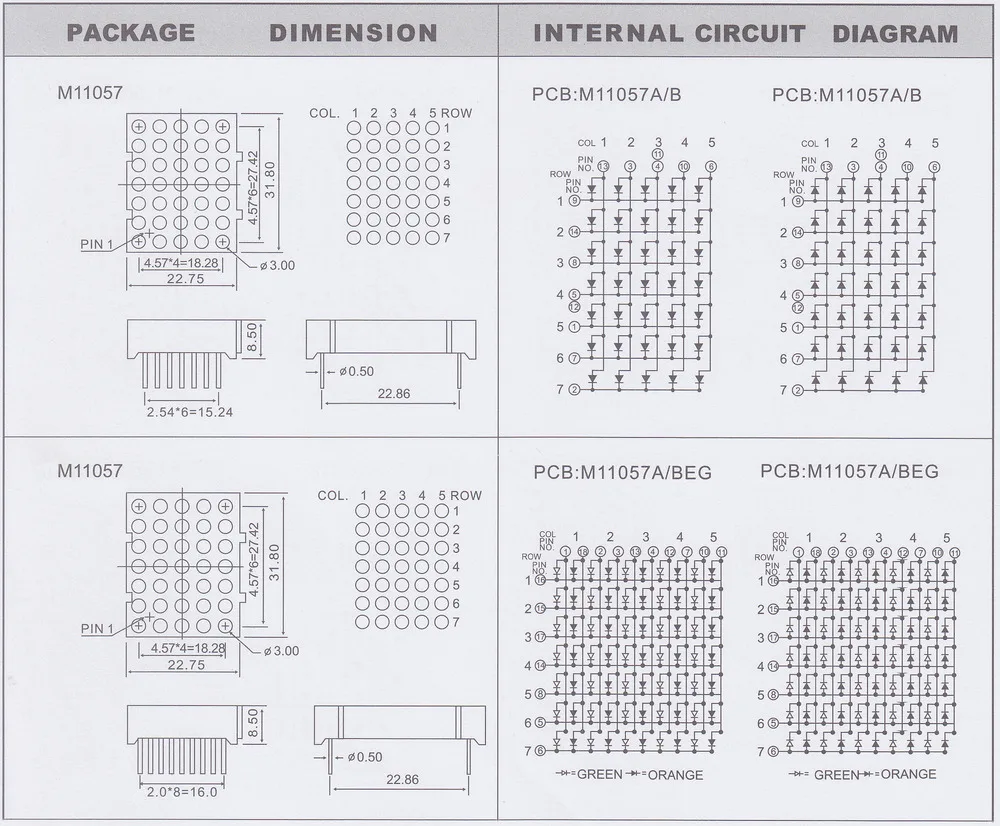

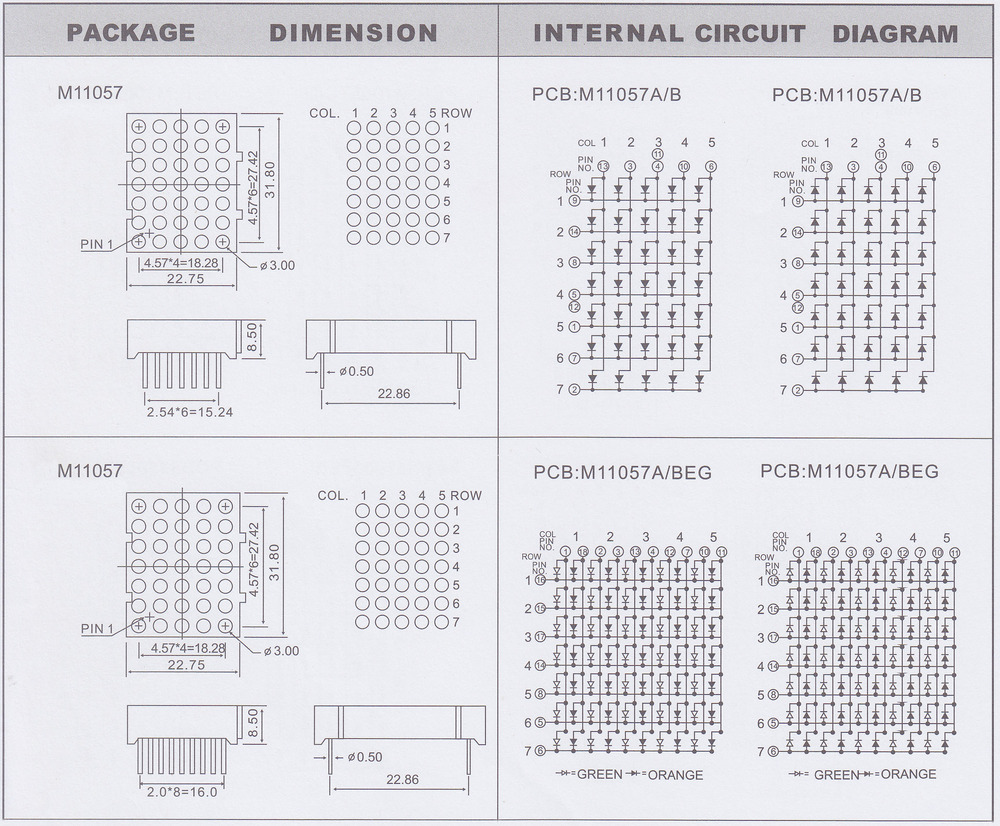

Dimension and Internal Circuit Diagram:
Note: If this PCB layout don't meet your requirements, please contact me for other choices.
Application:
Our Services
Overview:
1. We can supply you all kinds of Dot Matrix Display:
---Dot Dia. from 1.9mm to 10mm
---Array type: 5x7 dots, 5x8 dots, 8x8 dots
2. Available Emitting color: Red, green, blue, yellow, amber, white, RGB,etc
3. Available surface color: black and grey
4. Dot exposy color: milky white, water clear or same with emitting color
7 segments led display range:
1. We can supply you all kinds of 7 segment LED display:
---Digit size: from 0.25"to 16"
---Digit Numer: 1, 2, 3, 4, 5 and 6 digits
2. Segment : 7 segment and 16 segment both available
3. Available Emitting color: Red, green, blue, yellow, amber, white, bi-color
4. Available surface color: black,grey or red
5. Lens color: white or same as emitting color
All of our led products made of Epistar led chips with 3 yearswarranty.
Main Processes of Our Segment Display(Factory pictures):
Delivery Time:
Quantity Lead time
1-10K pcs 3-7 days
10.1K-50K pcs 7-15 days
Our safety packing for your goods:
Small carton size:40*27*40cm.
Export carton size:50*43*43cm(two small cartons packed inside)
LED professional manufacturer KEM with over 11 years experience in led field,
we do believe we can become your reliable supplier!
