Model No: HOUKEM-12288-ARGB

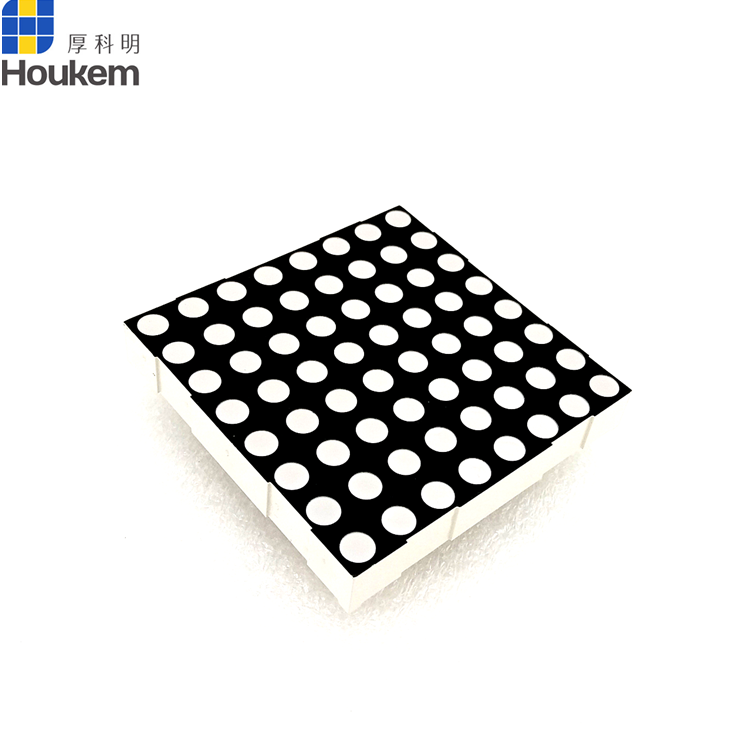

HOUKEM-12288-ARGB 1.2 inch square dot matrix display 8x8 RGB led matrix 32x32mm

dot matrix display houkem is led dot matrix display professional manufacturer

minimum order :

1 piece

Quantity :

$2.00 - $2.50 / piece

add to cart

Contact Now

Application:Indoor, elevator, home appliance, etc, elevator
Color:rgb
Panel Size:31.7*31.7*8mm
Pixel Pitch:2.54
Supplier Type:Original manufacturer, ODM, OEM
Media Available:datasheet
Place of Origin:Guangdong, China
Model Number:HOUKEM-12288-ARGB
Brand Name:HOUKEM
use:advertising publish
Pixels:2.54
Specification:--
Screen Dimension:31.7*31.7*8mm
Warranty:2Years
PCB Polarity:common cathode
operating temperature:-35 ~ +50 ℃
Certificate:CE ROHS
Emitting color:RGB
Function:Graphics
Surface color:Black Surface
Display Function:Video Picture Graphic Text Message

Product Describtion

32 PIN square dot matrix 8x8 rgb led matrix elevator display 31.7*31.7mm

Features:

1, Low consumption

2, High brightness

Product details:

Houkem-12288-ARGB---------common cathode(CC)

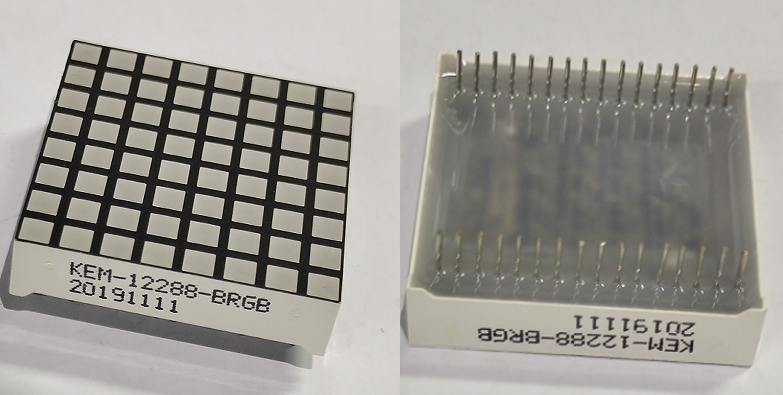

Houkem-12288-BRGB---------common anode(CA)

Item No.	HOUKEM-12288-ARGB
Dimension	31.731.78mm
square dot	3*3mm
Surface color	Black / Grey
Segment color	White /Clear
Emitting color	RGB

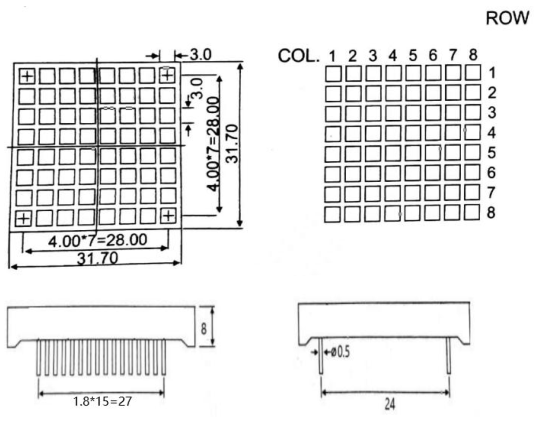

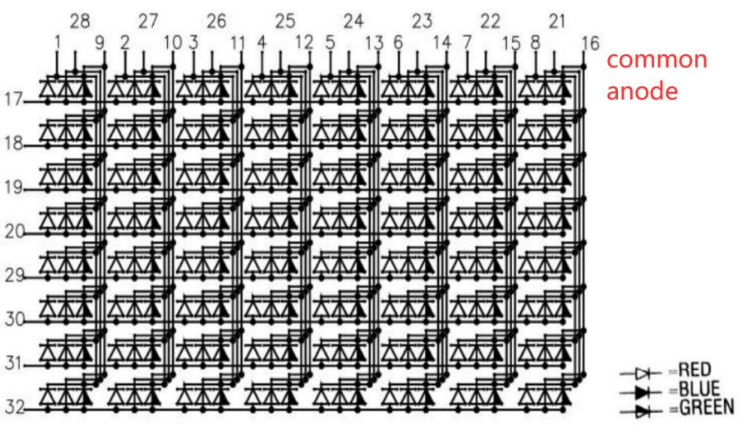

Package dimension & Internal circuit diagram

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)

Emitting Color	Test Condition	Wavelength(nm)		Forward Voltage(V)		Luminous Intensity (mcd)
Emitting Color	Test Condition	(λp)	λ	Typ	Max	Typ	Max
Amber/orange	IF=10-15mA	600-605	30	1.9	2.0	90	100
Super green	IF=10-15mA	565-575	30	1.9	2.0	48	55
Super red	IF=10-15mA	625-640	20	1.8	2.0	110	130
Ultra red 1	IF=10-15mA	620-625	20	1.8	2.0	200	210
Ultra red 2	IF=10-15mA	620-625	20	2	2.1	300	350
High red	IF=10-15mA	638-660	20	1.8	1.9	15	20
Yellow green	IF=10-15mA	570-580	30	1.9	2.0	43	50
Yellow	IF=10-15mA	580-600	35	1.9	2.0	70	80
Blue	IF=10-15mA	465-475	40	2.95	3.0	150	200
ultra blue	IF=10-15mA	467-469	40	2.9	3.0	365	380
Pure green	IF=10-15mA	515-525	40	2.95	3.0	600	640
White	IF=10-15mA	-	-	2.8	3.0	180	200

Two years quality warranty

Our Services

Led dot matrix: 57, 58, 88, 117, 16*16

7 segment LED display

1 digit	0.2'', 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.5'', 0.52'', 0.56'', 0.6'', 0.8'', 1'', 1.2'', 1.5'', 1.8'', 2.3'', 3'', 4'', 5'', 6'', 7'', 8'', 10'', 12'', 16'', 20''
2 digit	0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.43'', 0.5'', 0.52'', 0.56'', 0.8'', 1'', 1.2'', 1.5''
3 digit	0.25'', 0.28'', 0.3'', 0.4'', 0.52'', 0.56'', 0.8''
4 digit	0.25'', 28'', 0.36'', 0.4'', 0.5'', 0.56'', 0.8'', 1.2''
5 digit	0.28'', 0.36'', 0.56''
6 digit	0.3'', 0.36''

14 /16 segment

1 digit	0.39'', 0.5'', 0.8'', 1.2'', 2.3''
2 digit	0.54''
3 digit	0.54''
4 digit	0.39'',0.54''
6 digit	0.4''

Various colors: super red, ultra red, high red, yellow green, pure green, super green,

pure green, blue, yellow, white, amber, orange, Bi-color, RGB.
Custom 7 segment display are available
