Model NO.
KEMING-2531-BSR
Price:
USD 0.16-0.20 / piece
Delivery:
FOB
Minimum order quantity:
1 piece
Supply Ability:
50000 piece / Day
Country of Origin:
shenzhen guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Usage:Indoor
  • Tube Chip Color:Red
  • Display Function:Graphics
  • Pixels:25mm
  • Brand Name:KEM
  • Model Number:KEMING-2531-BSR
  • Screen Dimension:15*8mm


Product Describtion
1

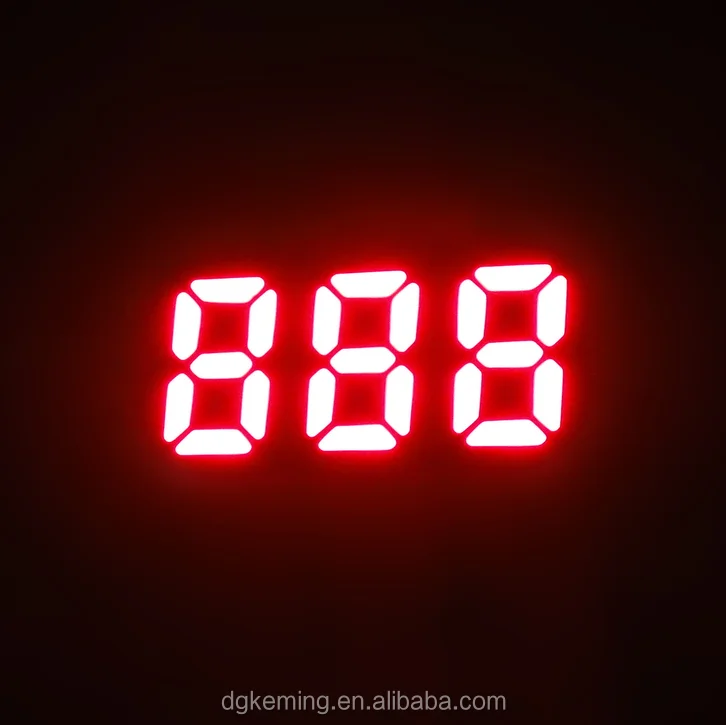

CA/CC mini led 7 segment display 3 digit 0.25 inch 7 seg super bright red without dot



KEMING-2531-BSR---------common anode(CA)

KEMING-2531-ASR ---------common cathode(CC)







Item No.KEMING-2531-BSR
Dimension15*8*4mm
Surface color  Black  /Grey
epoxy color white
Emitting color super red

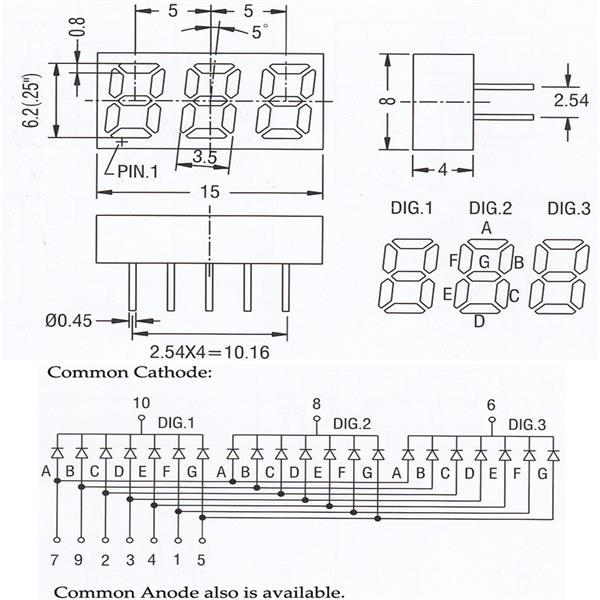

Package dimension & Internal circuit diagram

 2531-AB(1)





Note: If this PCB layout don't meet your requirements, please contact me for other choices.



                 TWO  years quality warranty





1,Low power consumption

2, High brightness

3, High intensity and reliability

4, Easy assembly

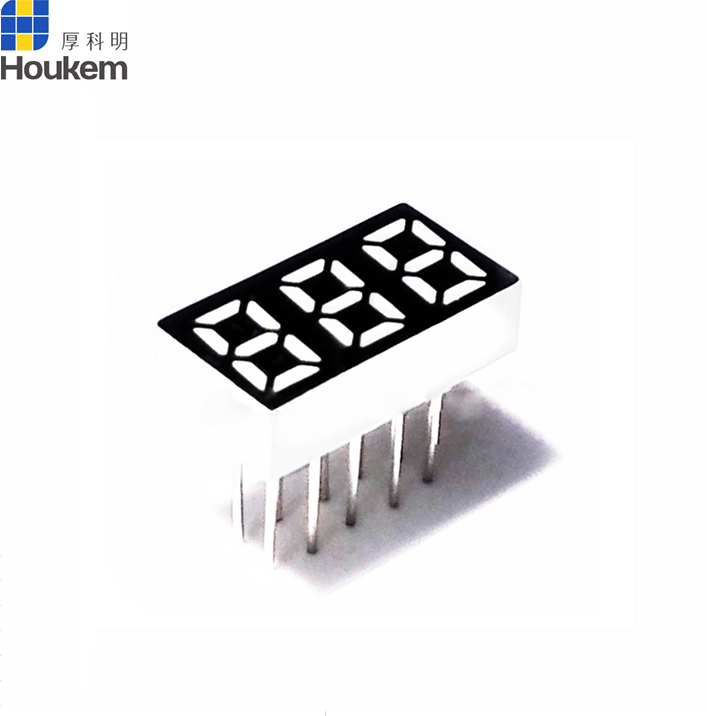

 2531













Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)





Emitting Color



Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=18mA

600-605

30

1.9

2.0

90

100

Super green

IF=18mA

565-575

30

1.9

2.0

48

55

Super red

IF=18mA

620-625

20

1.8

2.0

110

130

Ultra red

IF=18mA

620-625

20

2

2.1

300

350

High red

IF=18mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=18mA

570-580

30

1.9

2.0

43

50

Yellow

IF=18mA

580-600

35

1.9

2.0

70

80

Blue

IF=20mA

465-475

40

2.8

3.0

150

200

Pure green

IF=20mA

515-525

40

2.8

3.0

180

250

White

IF=20mA

-

-

2.8

3.0

180

200





Different color epoxy are available

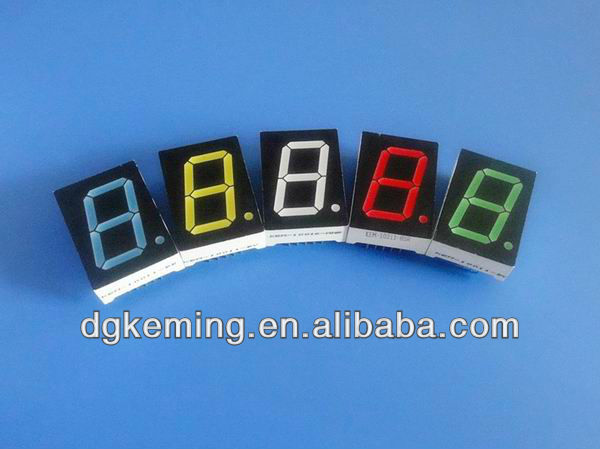

 1inch 10016 (27)

Our Services

Quantity Lead time

1-10K pcs 3-7 days

10.1K-50K pcs 7-15 days

Any delivery way is available.

Our service:

 Sample are available

In order to let you have an enjoyable experience on our best quality product and satisfied service,

we can offer----SAMPLES for your test within 3-5 days.

Custom service:

1. We can supply you all kinds of 7 segment LED display

---Digit size: from 0.25"to 20"

---Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment and 14 segment both available

3.Various colors: super red, ultra red, high red, yellow green, pure green, super green,

pure green, blue, yellow, white, amber, Bi-color, RGB.



4. Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16



5. high power led:  white /red /blue/green/IR/UV led

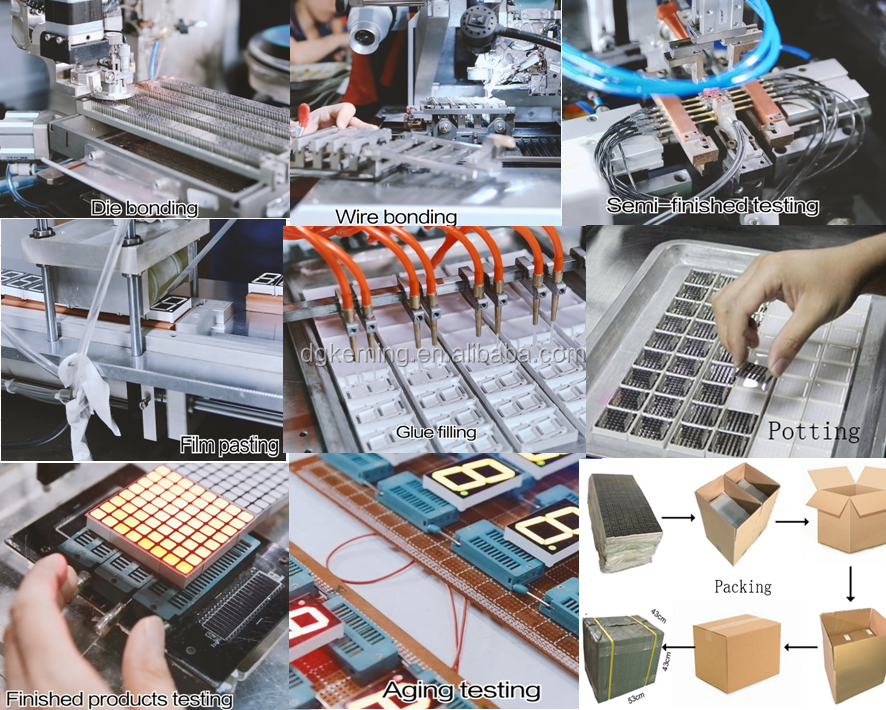

Working Process

working process

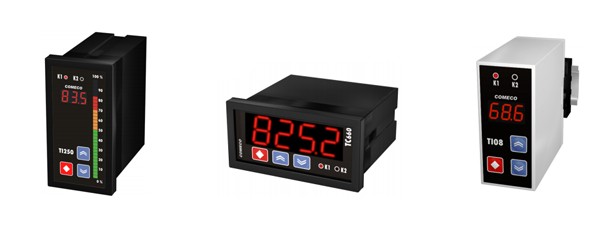

Application

 7-segment-application

application-6311

Packaging & Shipping

packing & shipping



Contact us





Established in 2003,our factory is specialized in LED products, including 7 segment

LED/SMD displays,Alphanumeric displays,SMD LEDs,dot-matrix Led displays,bar graph

arrays and LED directon indicator displays, high power led, etc.



 new factory7 segment dot matrix LED




Related Products

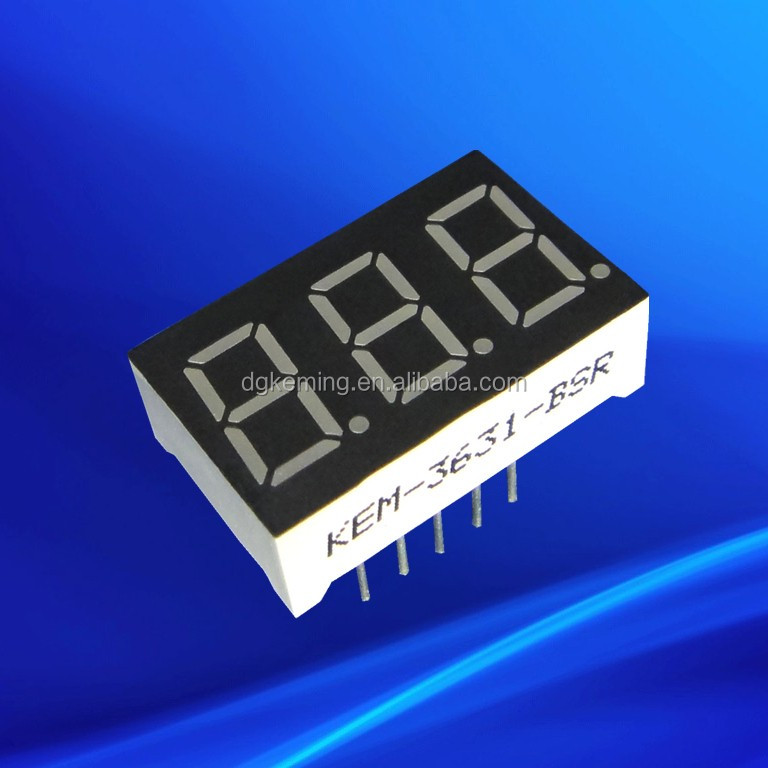

0.36inch

 3631-1

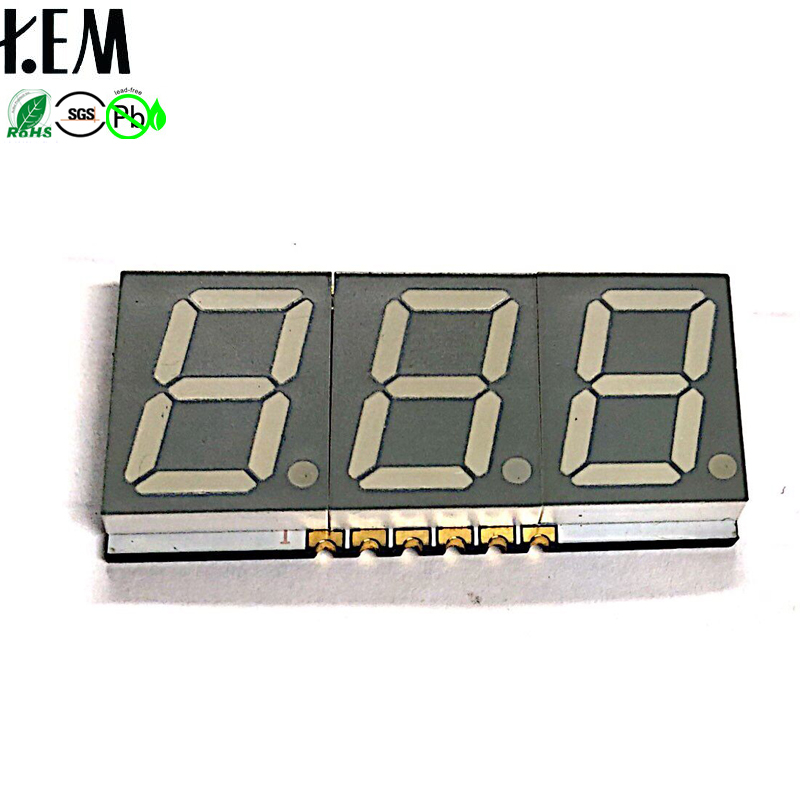

0.56 inch

5631 KEM led

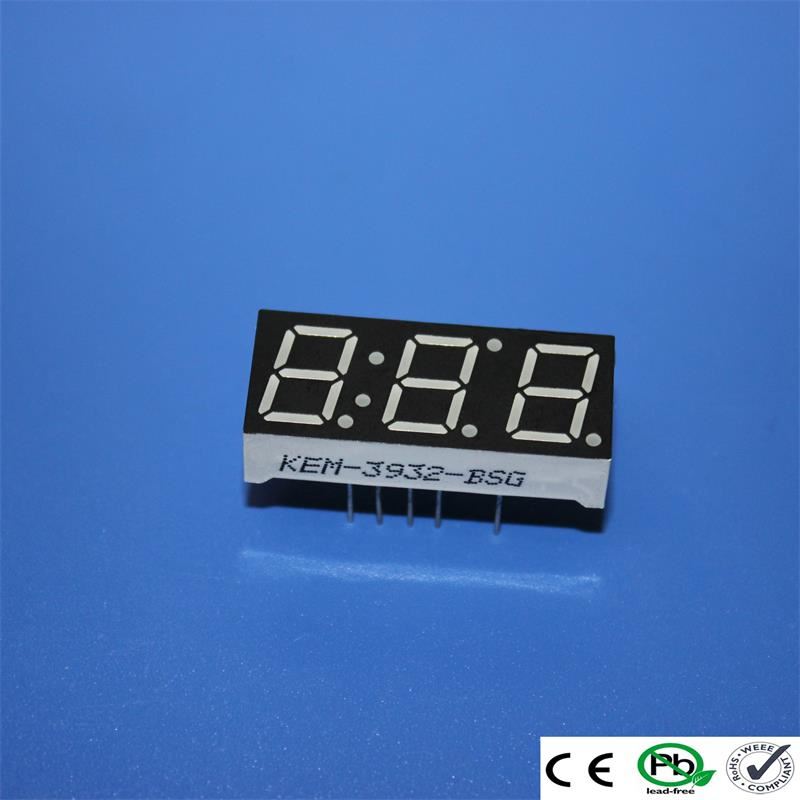

0.39INCH
