blue led display module 5*7

blue led display module 5*7

blue led display module 5*7

blue led display module 5*7

Model No: HOUKEM-20057-AB

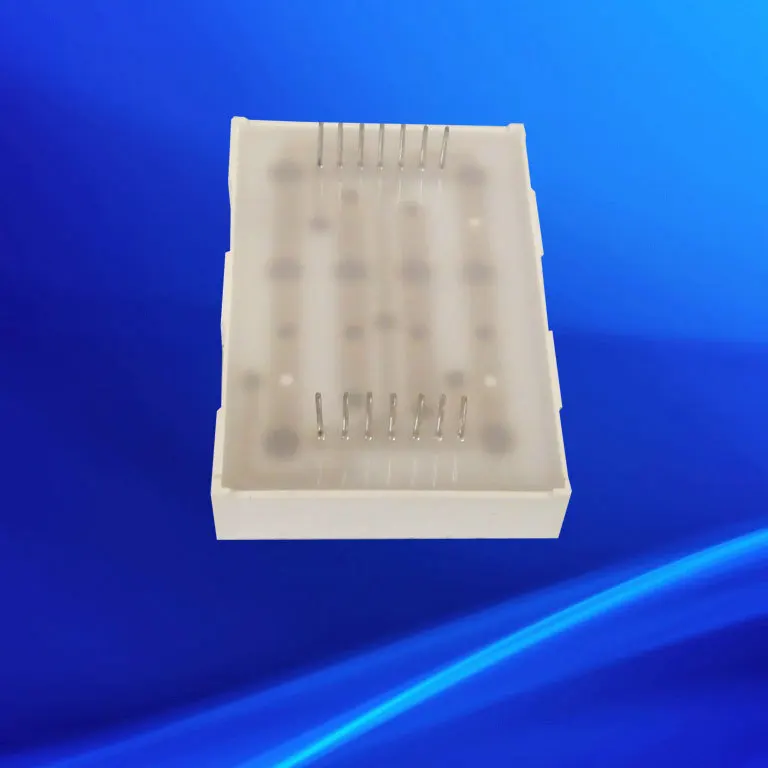

Blue 5mm 5x7 dots LED Dot Matrix Display/Module

led dot matrix display houkem is led dot matrix display professional manufacturer

Delivery :

FOB

minimum order :

10

Quantity :

USD1.10 - USD1.30

add to cart

Contact Now

Place of Origin:CN;GUA
Usage:Indoor
Tube Chip Color:Blue
Display Function:Graphics
Pixels:25mm
Brand Name:HOUKEM
Model Number:HOUKEM-20057-AB
Screen Dimension:37.8*53.1mm

Product Describtion

business

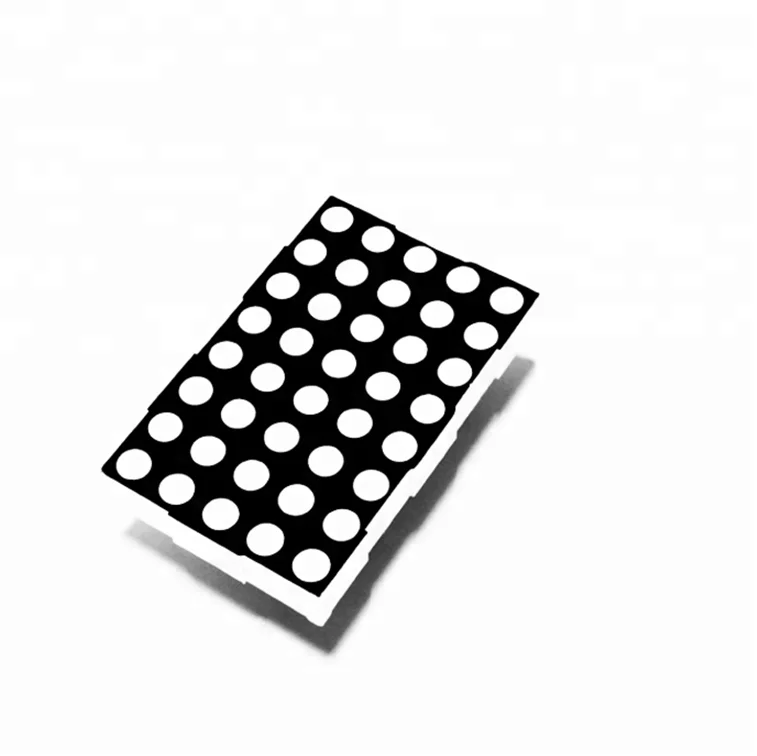

blue 5mm dot 5x7 led matrix

Features:

1, Low consumption

2, High brightness

Product details:

Item No.	HOUKEM-20057-AB
Dimension	37.853.18.4mm
dot	5mm
Surface color	Black / Grey
Segment color	White /Clear
Emitting color	blue

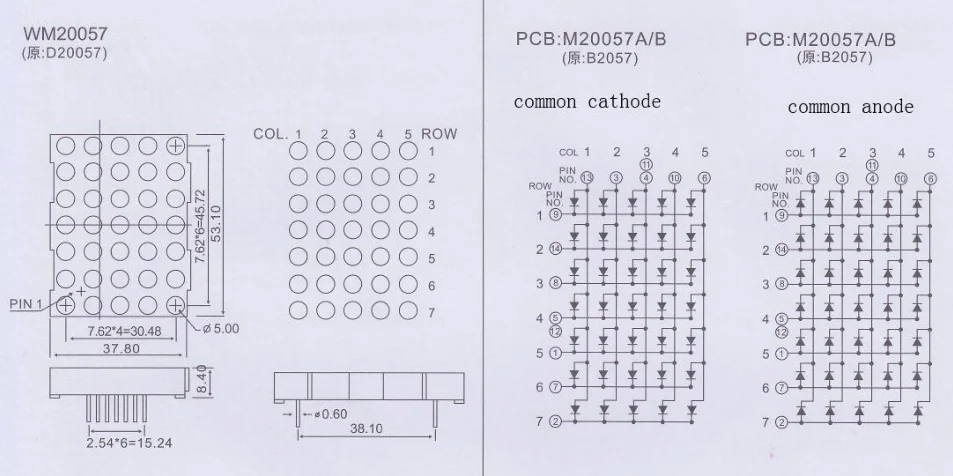

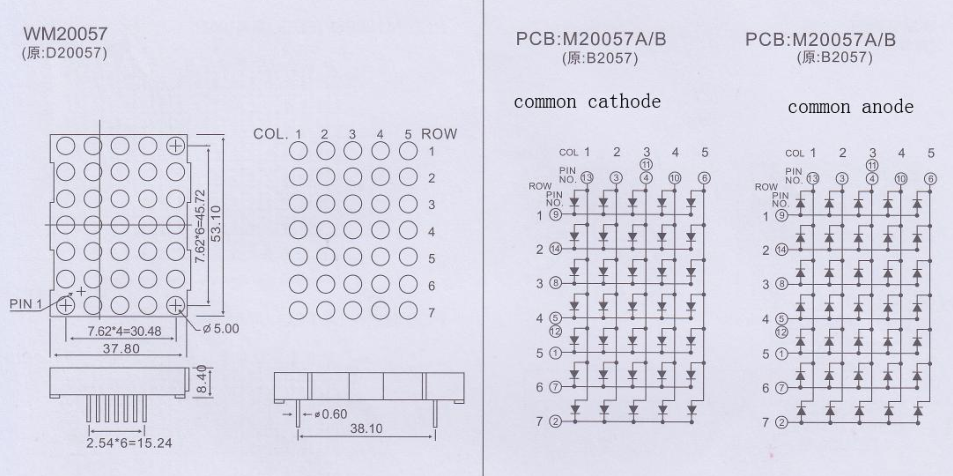

Package dimension & Internal circuit diagram

5x7 led matrix

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=10-15Ma)

Emitting Color	Test Condition	Wavelength(nm)		Forward Voltage(V)		Luminous Intensity (mcd)
Emitting Color	Test Condition	(λp)	λ	Typ	Max	Typ	Max
Amber	IF=10-15mA	600-605	30	1.8	2.0	90	100
Super green	IF=10-15mA	565-575	30	1.8	2.0	48	55
Super red	IF=10-15mA	620-625	20	1.8	2.0	110	130
Ultra red 1	IF-10-15mA	620-625	20	1.8	2.0	200	210
Ultra red 2	IF=10-15mA	620-625	20	1.8	2.0	300	350
High red	IF=10-15mA	638-660	20	1.8	1.9	15	20
Yellow green	IF=10-15mA	570-580	30	1.8	2.0	43	50
Yellow	IF=10-15mA	580-600	35	1.8	2.0	70	80
Blue	IF=10-15mA	465-475	40	2.7	2.9	150	200
Pure green	IF=10-15mA	515-525	40	2.7	2.9	180	250
White	IF=10-15mA	-	-	2.7	2.9	180	200

Two years quality warranty

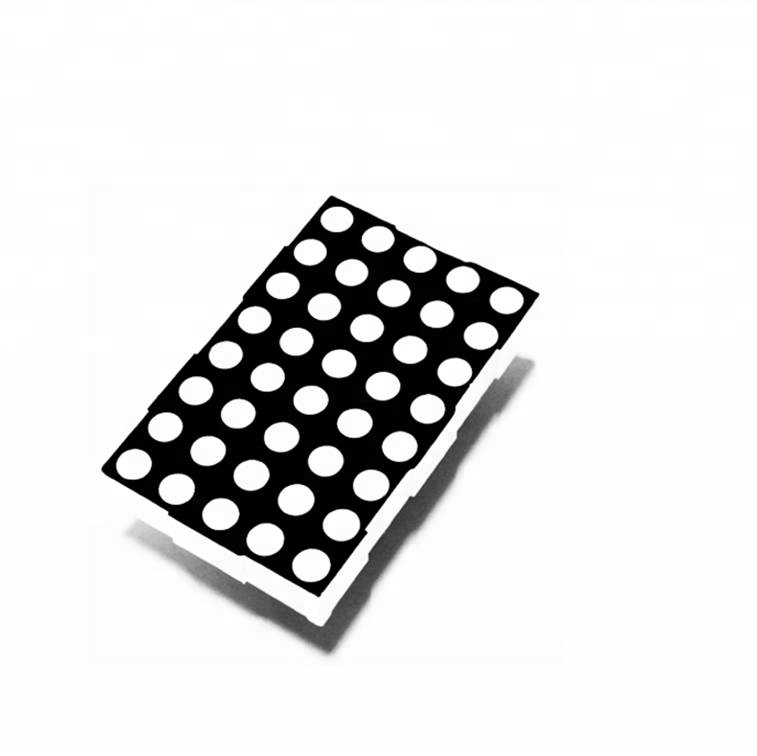

5mm dot matrix 5*7

5*7 dot matrix display blue

Our Services

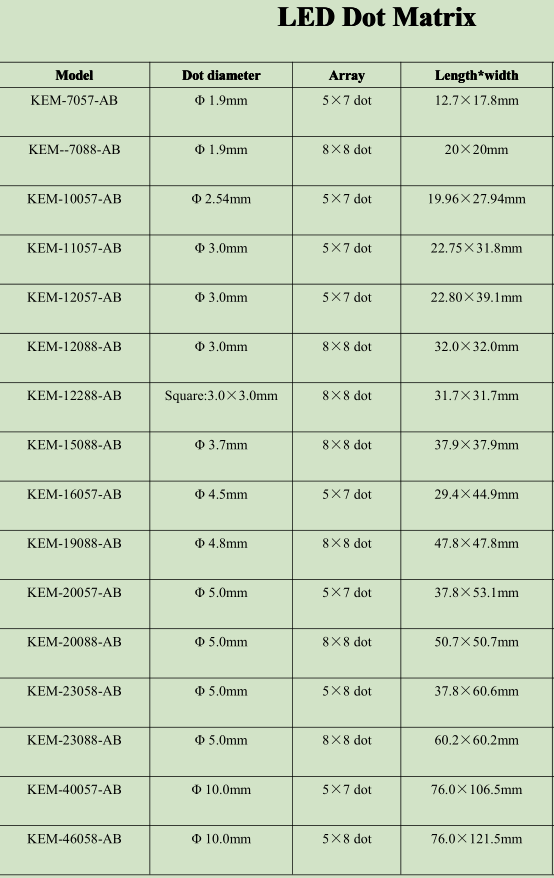

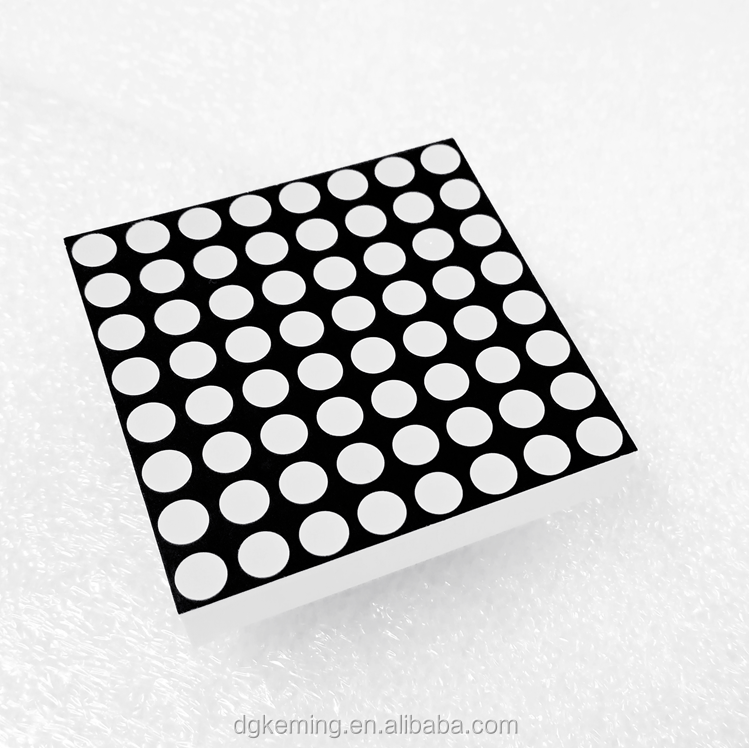

Led dot matrix: 57, 58, 88, 117, 16*16

led dot matrix display

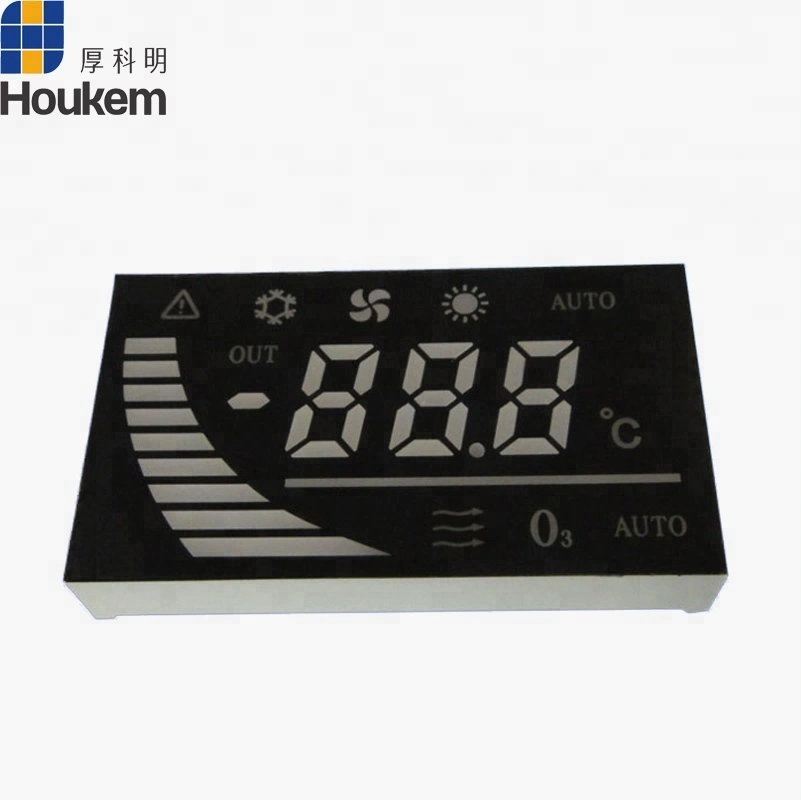

7 segment LED display

1 digit	0.2'', 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.5'', 0.52'', 0.56'', 0.6'', 0.8'', 1'', 1.2'', 1.5'', 1.8'', 2.3'', 3'', 4'', 5'', 6'', 7'', 8'', 10'', 12'', 16'', 20''
2 digit	0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.43'', 0.5'', 0.52'', 0.56'', 0.8'', 1'', 1.2'', 1.5''
3 digit	0.25'', 0.28'', 0.3'', 0.4'', 0.52'', 0.56'', 0.8''
4 digit	0.25'', 28'', 0.3'', 0.36'', 0.4'', 0.5'', 0.56'', 0.8'', 1.2''
5 digit	0.28'', 0.36'', 0.56''
6 digit	0.3'', 0.36''

14 /16 segment

1 digit	0.39'', 0.5'', 0.8'', 1'', 1.2'', 2.3''
2 digit	0.54''
3 digit	0.54''
4 digit	0.39''

Various colors: super red, ultra red, high red, yellow green, pure green, super green,

pure green, blue, yellow, white, amber, orange, Bi-color, RGB.

Custom 7 segment display are available

High power led: smd led, red/ green/ blue led, UV/ IR LED

Packaging & Shipping

packing & shipping

Certifications

Houke-certifictes

Contact us

Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays,

SMD LEDs, dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power led,

high power 255nm to 1550nm LED arrays,COB LEDs, SMD LEDs, street light LED, LED optical lens, LED spot light, high bay light,

street light,and all LED lighting application solution, etc.

factory

7 segment dot matrix LED

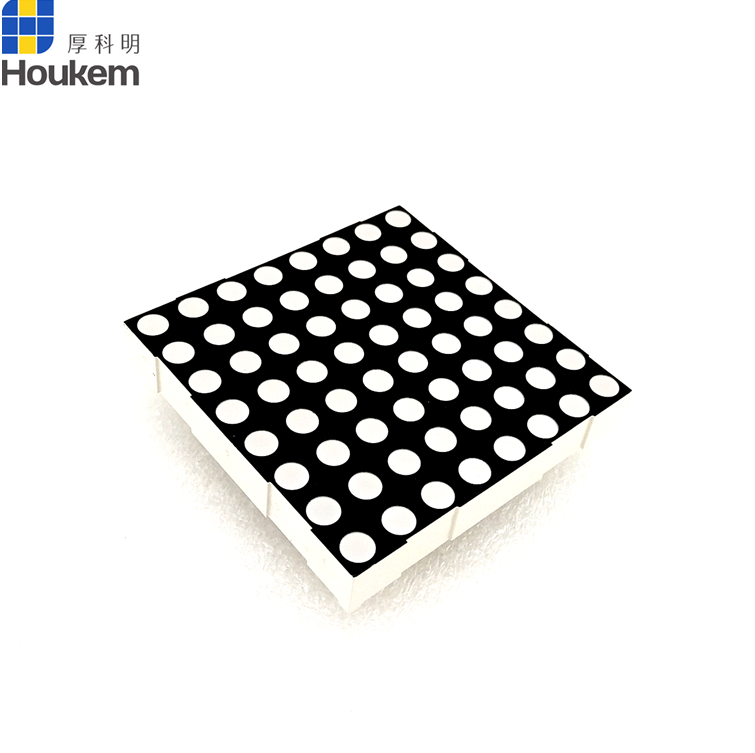

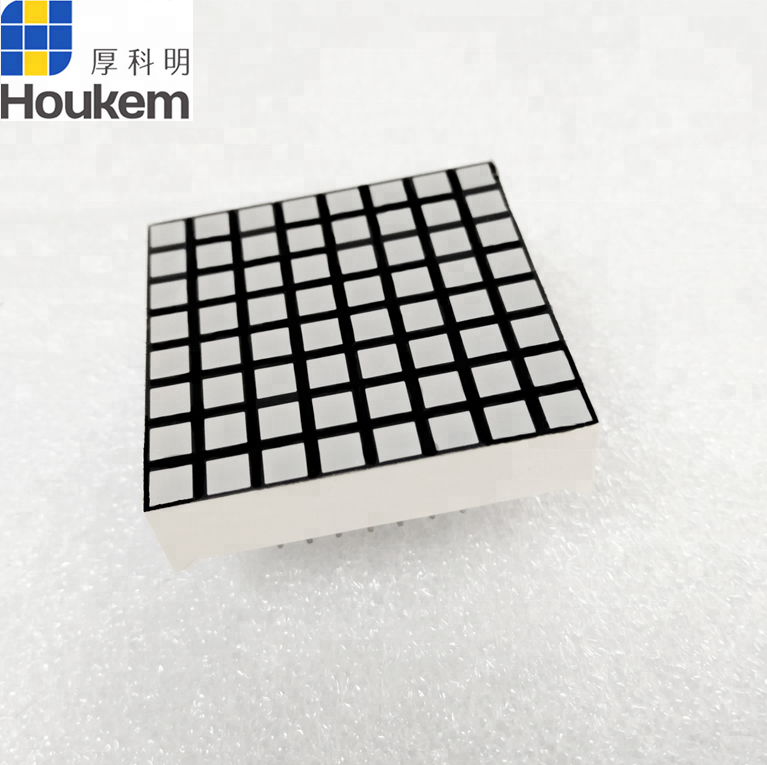

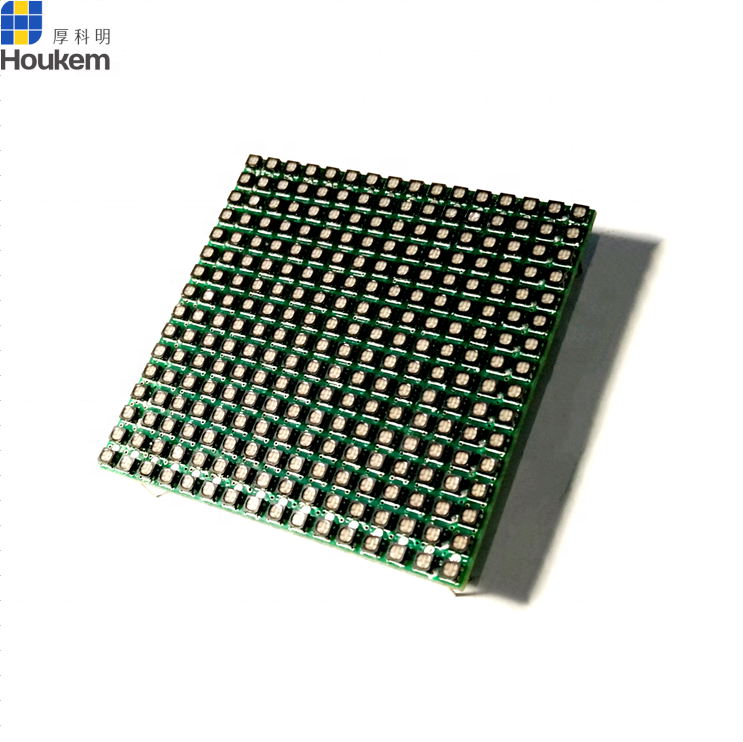

Related Products
