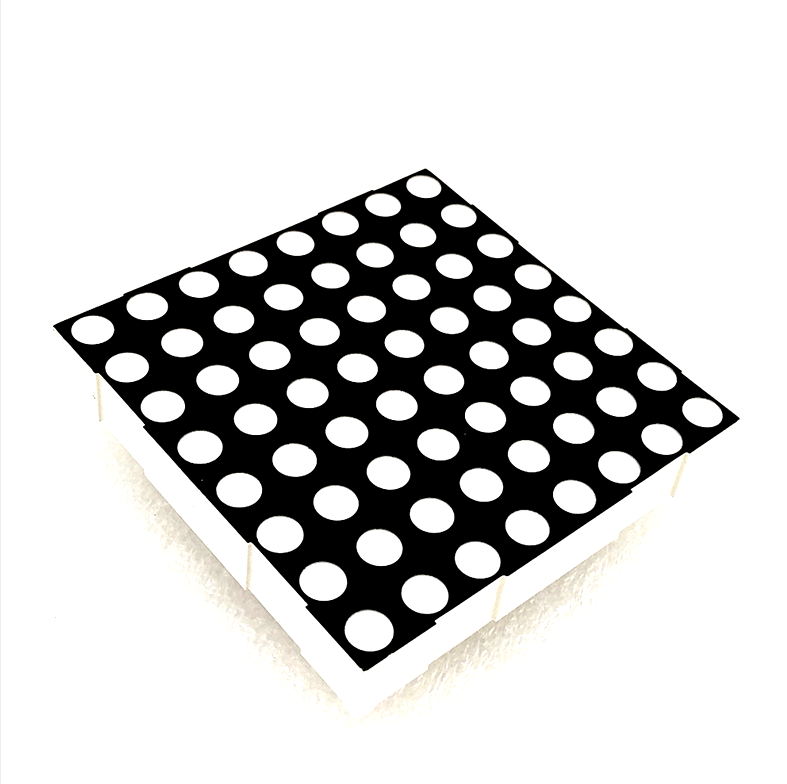

White 5mm 8×8 LED Matrix Display
White LED Matrix Display for Industrial and Commercial Applications
TheWhite LED Matrix Display is a high-performance 8×8 LED matrix module designed for industrial equipment, elevator displays, digital counters, information systems, and customized electronic applications. Featuring a 5mm LED dot size and a 60.2 × 60.2mm compact structure, this white LED dot matrix display provides excellent visibility, stable operation, and long service life for professional B2B applications.
Manufactured by Houkem, this 8×8 white LED matrix supports OEM and ODM customization with reliable quality control. The module adopts a common anode design and offers high brightness, low power consumption, and consistent light output, making it suitable for manufacturers requiring dependable LED display components for integration into their own products.
Product Features
TheWhite LED Matrix Display is developed for applications requiring clear graphic, text, and status indication.
Key features include:
- 8×8 LED dot matrix structure
- 5mm LED dot diameter
- White emitting color for clear display performance
- Display size: 60.2 × 60.2mm
- Common anode polarity design
- High brightness and uniform illumination
- Low power consumption
- Wide operating temperature range: -20℃ to +50℃
- Long lifetime up to 100,000 hours
- OEM and customized solutions available
- CE, RoHS, ISO9001, and REACH certified
With its large dot size and high visibility, this LED matrix display module is ideal for applications where users need to view characters, symbols, numbers, and graphics from a distance.

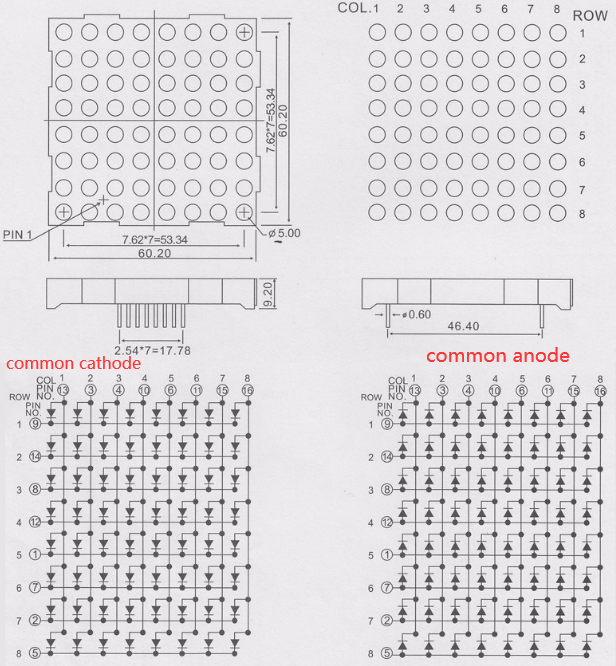

Technical Specifications
| Item | Specification |
|---|---|
| Product Name | White 5mm 8×8 Dot Matrix |
| Model Number | HOUKEM-23088-BW |
| Display Type | White LED Matrix Display |
| Array | 8×8 Dot Matrix |
| Dot Diameter | 5mm |
| Dimension | 60.2 × 60.2 × 9.2mm |
| Pixel Pitch | 2.54mm |
| Emitting Color | White |
| Surface Color | Black / Grey |
| Segment Color | White / Clear |
| PCB Polarity | Common Anode |
| Operating Temperature | -20℃ ~ +50℃ |
| Lifetime | 100,000 Hours |
| Warranty | 2 Years |
| Certification | CE, RoHS, ISO9001, REACH |
| OEM | Supported |
| Custom Made | Supported |
If different specifications are required, Houkem can provide customized LED matrix display modules according to your application requirements.
Optical Characteristics and Color Options
The white LED matrix display provides stable optical performance for professional electronic applications. Houkem also supplies multiple LED colors and customized display solutions.
LED Chip Characteristics (IF = 15mA)
| Emitting Color | Wavelength (nm) | Forward Voltage (V) | Luminous Intensity (mcd) |
|---|---|---|---|
| Amber | 600-605 | 1.8-2.0 | 90-100 |
| Super Green | 565-575 | 1.8-2.0 | 48-55 |
| Super Red | 620-625 | 1.8-2.0 | 110-130 |
| Ultra Red 1 | 620-625 | 1.8-2.0 | 200-210 |
| Ultra Red 2 | 620-625 | 1.8-2.0 | 300-350 |
| High Red | 638-660 | 1.8-1.9 | 15-20 |
| Yellow Green | 570-580 | 1.8-2.0 | 43-50 |
| Yellow | 580-600 | 1.8-2.0 | 70-80 |
| Blue | 465-475 | 2.95-3.0 | 150-200 |
| Ultra Blue | 467-469 | 2.9-3.0 | 360-385 |
| Pure Green | 515-525 | 2.95-3.0 | 600-640 |
| White | — | 2.8-3.0 | 180-200 |
Typical Applications
TheWhite LED Matrix Display is widely used in professional electronic equipment requiring graphic and message display functions.
Common applications include:
- Elevator floor indicators
- Shopping mall information displays
- Subway information systems
- Digital counters
- Industrial control equipment
- Electronic message boards
- Advertising display systems
- Graphic text display devices
- Embedded control panels
- Customized OEM electronic products
The 8×8 LED matrix structure allows manufacturers to create numbers, letters, symbols, and simple graphics for various display applications.

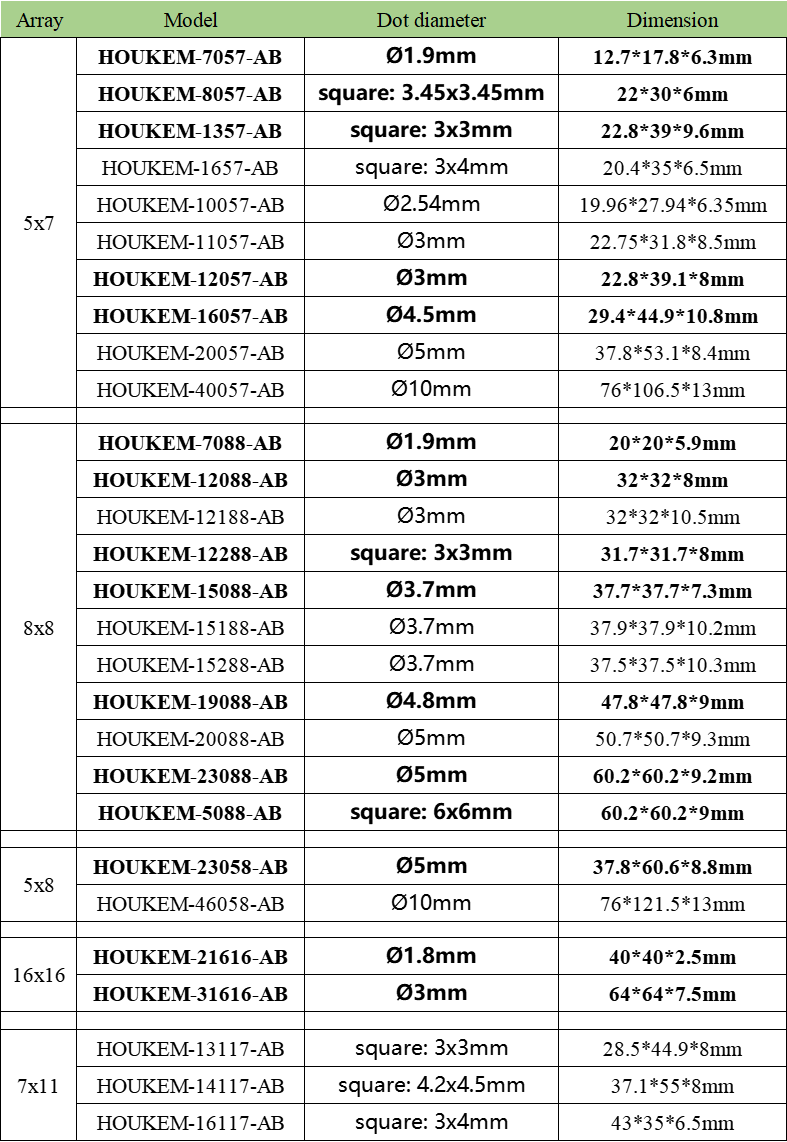

Custom LED Display Solutions from Houkem
Houkem specializes in LED display manufacturing with more than 20 years of industry experience. Our product range includes:
- LED Dot Matrix Displays
- 5×7
- 5×8
- 8×8
- 11×7
- 16×16
- 7 Segment LED Displays
- 14/16 Segment Displays
- SMD LED Displays
- Customized LED Display Modules
With professional R&D capabilities and OEM manufacturing experience, Houkem supports customers with customized sizes, colors, polarity options, packaging solutions, and technical support.
Frequently Asked Questions
Can this white LED matrix display be customized?
Yes, Houkem supports OEM and ODM customization for size, LED color, brightness, polarity, and packaging requirements.
Is this 8×8 LED matrix module suitable for elevator displays?
Yes, the module is widely used for elevator indicators, floor numbers, and graphic information displays due to its high visibility and stable performance.
What is the advantage of a 5mm LED matrix display?
The 5mm dot size provides better visibility compared with smaller LED matrices, making it suitable for medium-distance viewing applications.
Does Houkem provide datasheets and technical support?
Yes, datasheets, circuit information, and engineering support are available for customer product development and integration.
What quality standards does the LED matrix display meet?
The product complies with CE, RoHS, ISO9001, and REACH standards and is tested to ensure reliable long-term performance.
