Model NO.
Houkem-8031-A/BSG
Price:
USD 0.40-0.80 / piece
Delivery:
FOB
Minimum order quantity:
1 piece
Supply Ability:
50000 piece / Day
Country of Origin:
shenzhen guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Usage:Indoor
  • Tube Chip Color:Green
  • Display Function:Graphics
  • Pixels:25mm
  • Brand Name:KEM
  • Model Number:Houkem-8031-A/BSG
  • Screen Dimension:59.3*27.5mm


Product Describtion
1


59.3*27.5mm big 3 digit  0.8'' seven segment led display green



Houkem-8031-BSG---------common anode(CA)

Houkem-8031-ASG---------common cathode(CC)







Item No.Houkem-8031-A/BSG
Dimension59.3*27.5*8.4mm
Surface color  Black  /Grey
epoxy color white
Emitting color super green

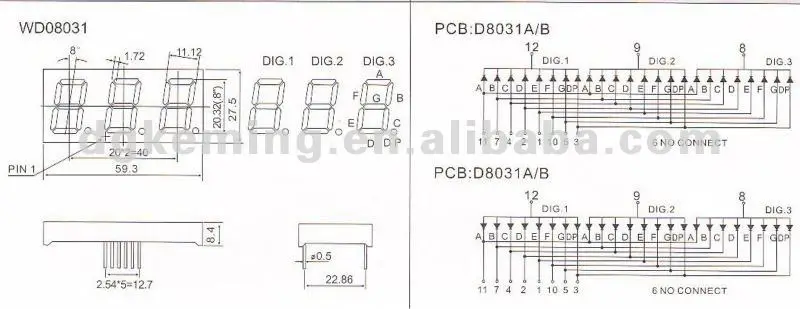

Package dimension & Internal circuit diagram

 KEM-8031AB





Note: If this PCB layout don't meet your requirements, please contact me for other choices.



                 TWO  years quality warranty





1,Low power consumption

2, High brightness

3, High intensity and reliability

4, Easy assembly

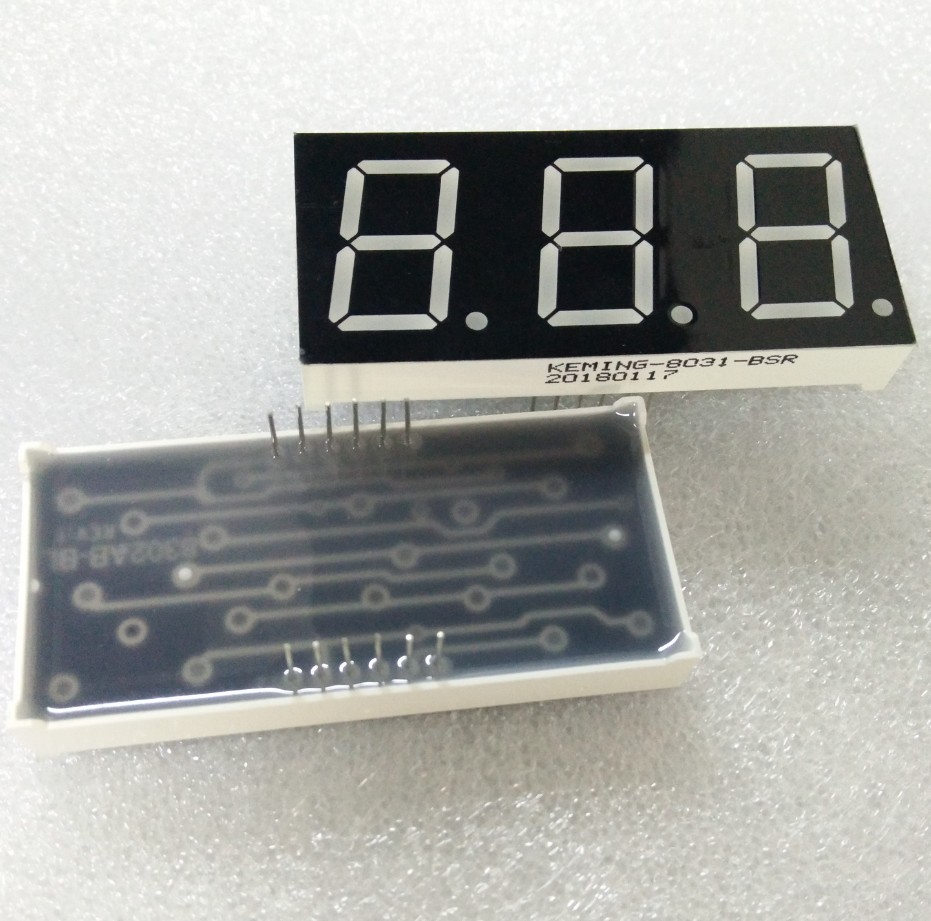

0.8'' 7 segment led display 3digit













Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)





Emitting Color



Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=18mA

600-605

30

1.9

2.0

90

100

Super green

IF=18mA

565-575

30

1.9

2.0

48

55

Super red

IF=18mA

620-625

20

1.8

2.0

110

130

Ultra red

IF=18mA

620-625

20

2

2.1

300

350

High red

IF=18mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=18mA

570-580

30

1.9

2.0

43

50

Yellow

IF=18mA

580-600

35

1.9

2.0

70

80

Blue

IF=20mA

465-475

40

2.8

3.0

150

200

Pure green

IF=20mA

515-525

40

2.8

3.0

180

250

White

IF=20mA

-

-

2.8

3.0

180

200





Different color epoxy are available

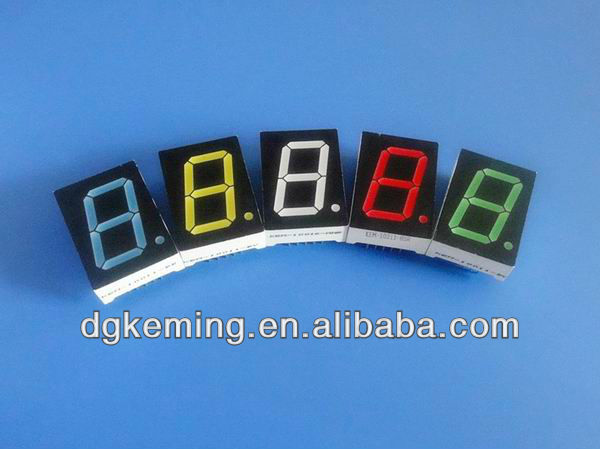

 1inch 10016 (27)

Our Services


Our service:

 Sample are available

In order to let you have an enjoyable experience on our best quality product and satisfied service,

we can offer---- SAMPLES for your test within 3-5 days.

Custom service:

1. We can supply you all kinds of 7 segment LED display

---Digit size: from 0.25"to 20"

---Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment and 14 segment both available

3.Various colors: super red, ultra red, high red, yellow green, pure green, super green,

pure green, blue, yellow, white, amber, Bi-color, RGB.







Working Process

kem working process

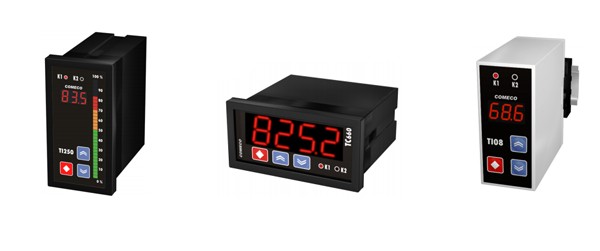

Application

 7-segment-application

application-6311

Packaging & Shipping

packing & shipping



Contact us





Established in 2003,our factory is specialized in LED products, including 7 segment

LED/SMD displays,Alphanumeric displays,SMD LEDs,dot-matrix Led displays,bar graph

arrays and LED directon indicator displays.etc.




 7 segment dot matrix LED



Related Products



0.36inch

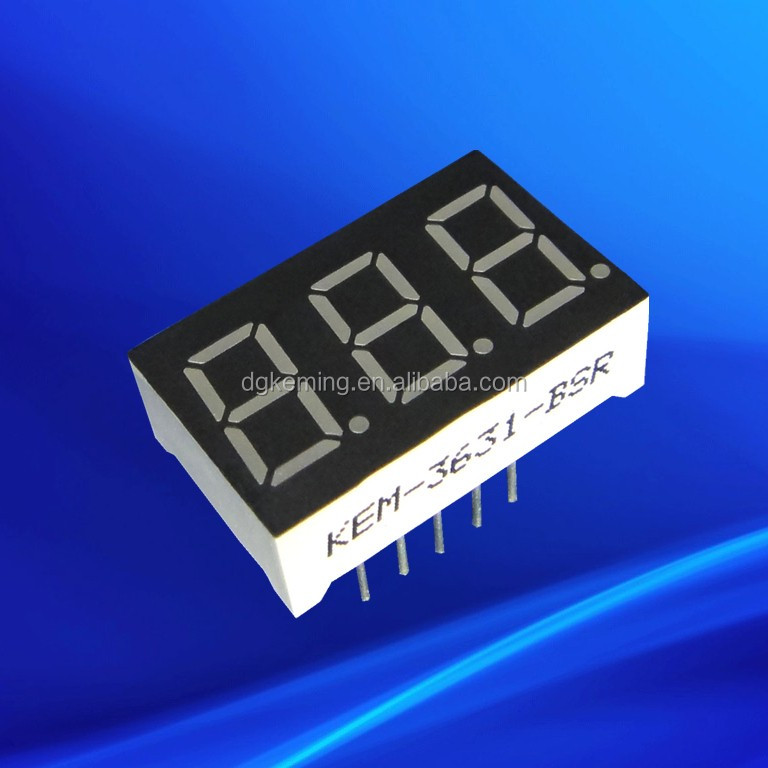

 3631-1





0.56 inch

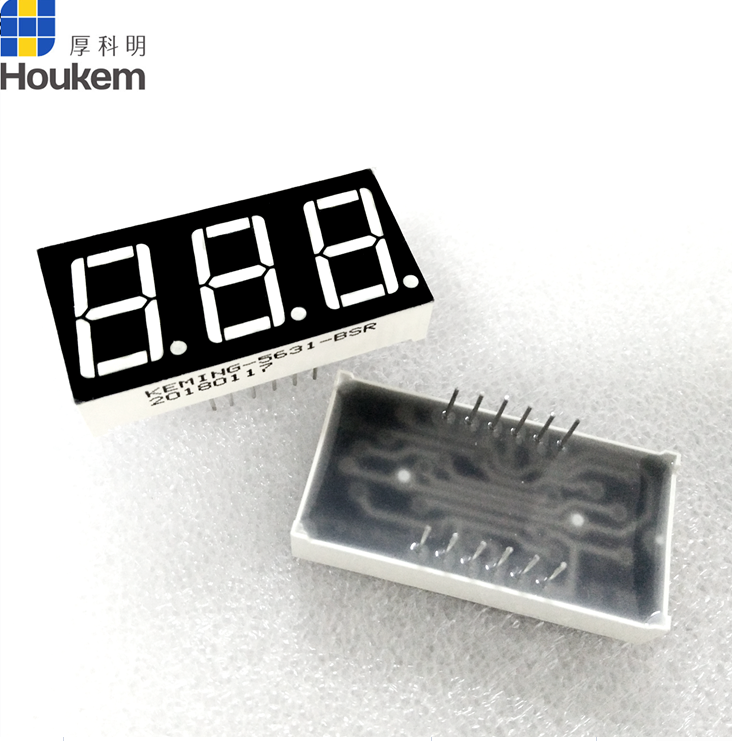

5631



0.39inch

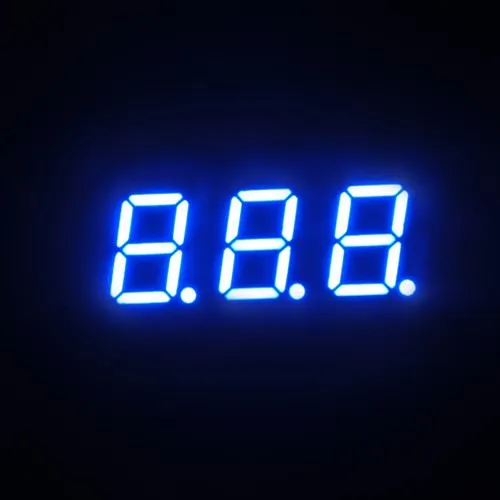

3931-blue
