Bicolor LED matrix 8*8 dot matrix display 8x8 red and green
- Application:Indoor, led matrix
- Color:Bicolor
- Panel Size:32x32mm
- Pixel Pitch:2.54
- Supplier Type:Original manufacturer, ODM, OEM
- Media Available:datasheet, Photo
- Place of Origin:Guangdong, China
- Model Number:KEM-12088-A/BSRG
- Brand Name:HOUKEM
- use:advertising publish, display of dishes, exhibition hall, elevator
- Pixels:3mm
- Specification:Digital Poster
- Dot Arrangement:8x8
- Dot Diameter:3mm
- Emitting color:Bicolor: red+green
- Surface color:Black or gray
- LED chip:Taiwan Epistar
- Certificate:CE ROHS FCC
- Apply:Advertising display, led display
- Country of origin:Guangdong China (Mainland)
- Screen Dimension:32x32mm
Bi-color Dot Matrix led Display 8x8 led dot matrix
Spec.:

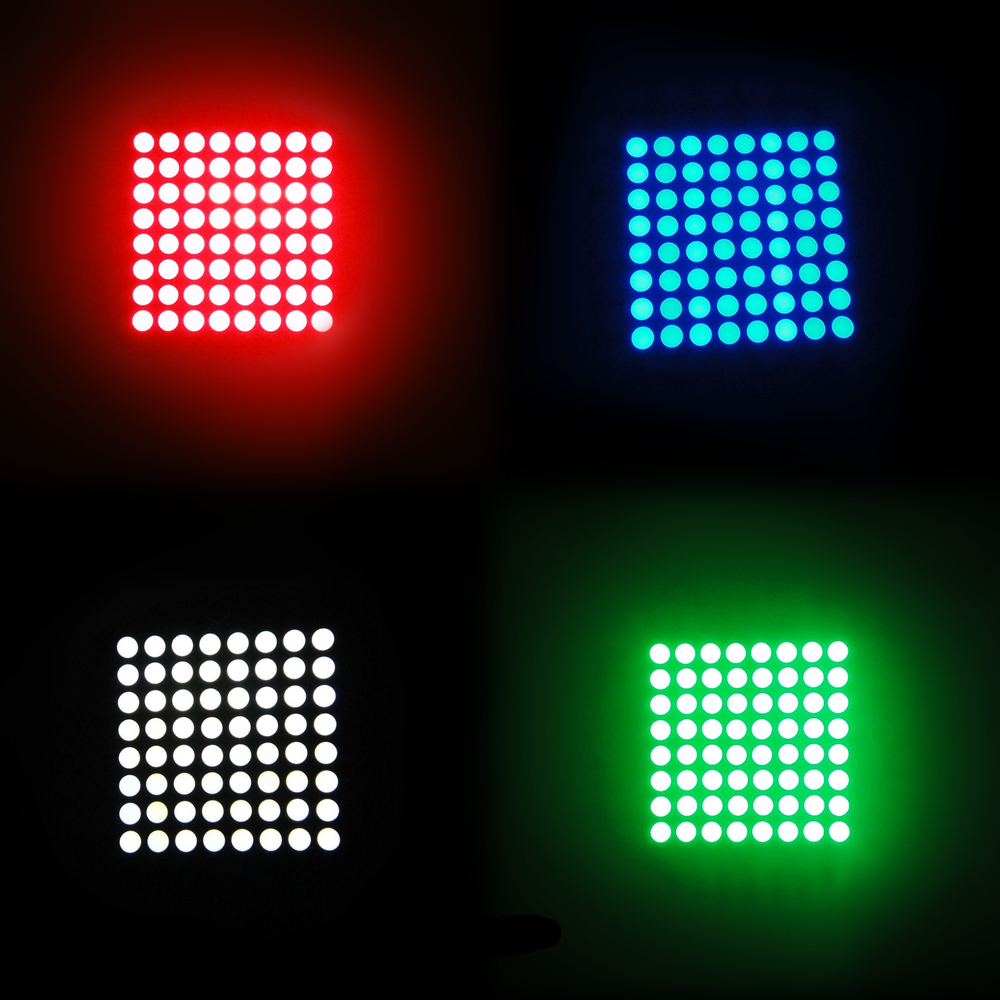

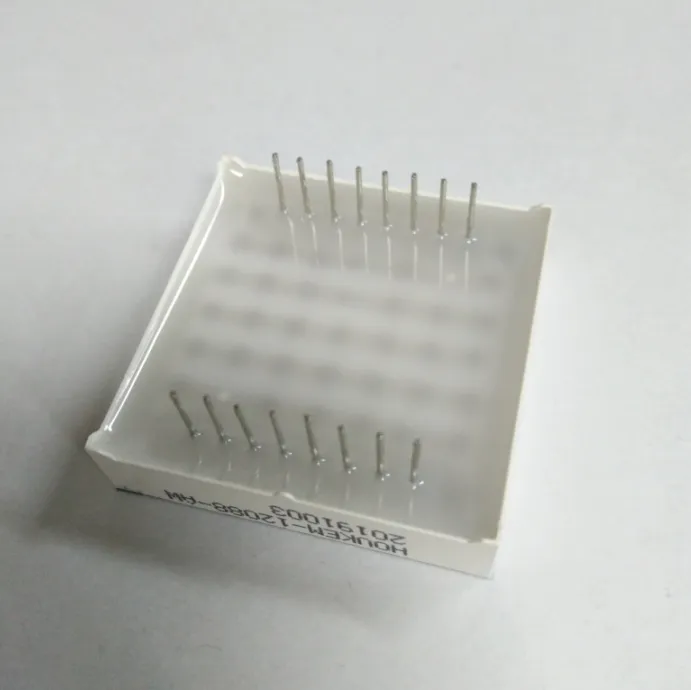

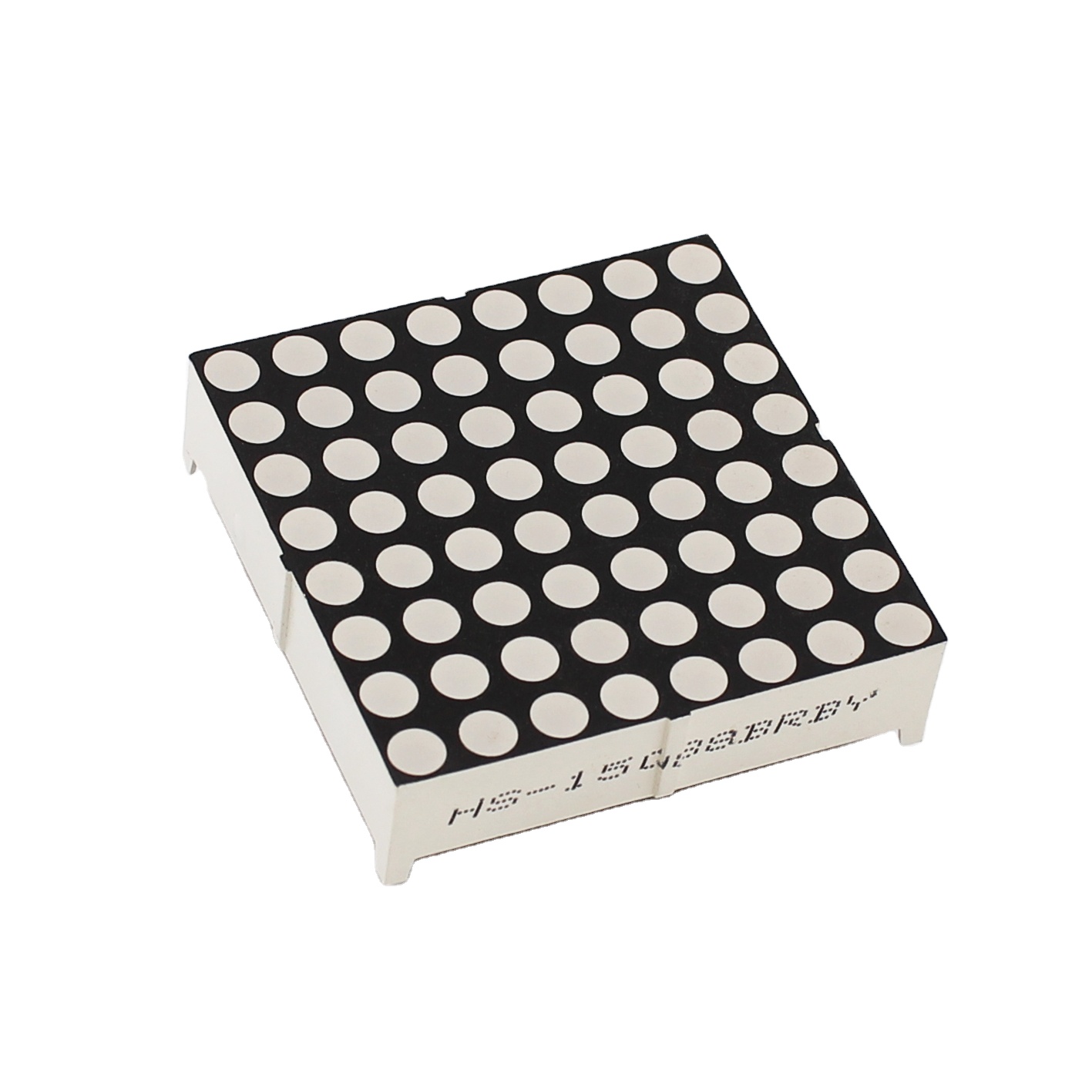

Product Pictures:

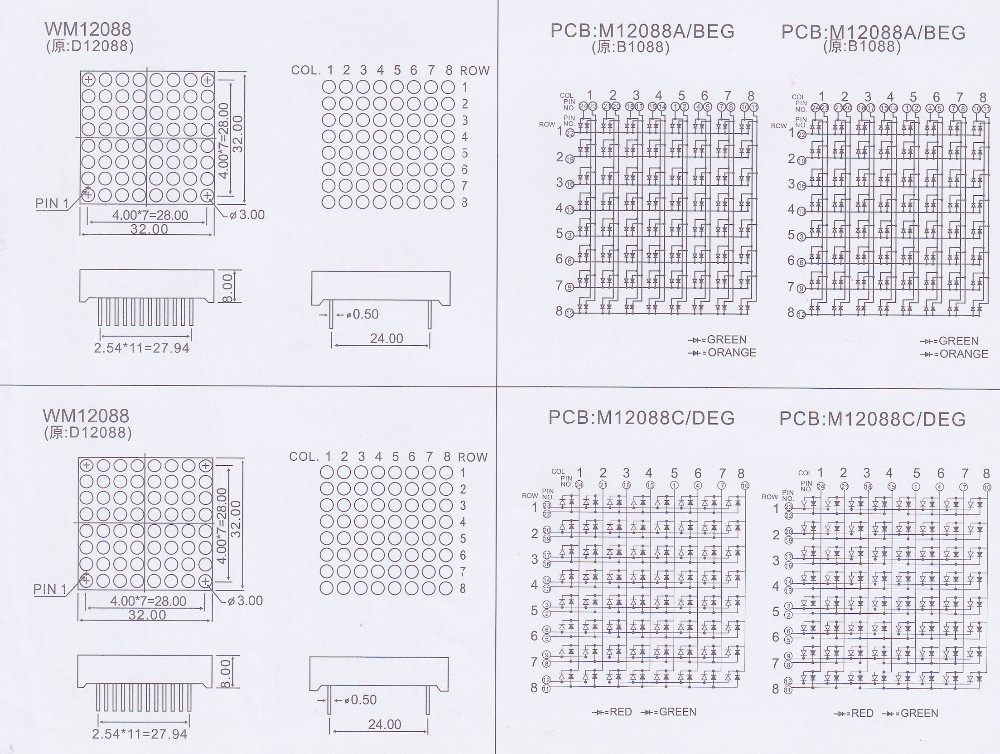

Dimension and Internal Circuit Diagram
Note: If above dimension & PCB layout not meet your requirements, please come to me for other choices.
Other size for you choice:
| model | dot diameter | array | length*width |
| KEM-7057-AB | 1.9mm | 5*7 dot | 12.7*17.8mm |
| KEM-7088-AB | 1.9mm | 8*8 dot | 20*20mm |
| KEM-10057-AB | 2.54mm | 5*7 dot | 19.96*27.94mm |
| KEM-11057-AB | 3.0mm | 5*7 dot | 22.75*31.8mm |
| KEM-12057-AB | 3.0mm | 5*7 dot | 22.80*39.1mm |
| KEM-12088-AB | 3.0mm | 8*8 dot | 32.0*32.0mm |
| KEM-12288-AB | square 3.0*3.0mm | 8*8 dot | 31.7*31.7mm |
| KEM-15088-AB | 3.7mm | 8*8 dot | 37.9*37.9mm |
| KEM16057-AB | 4.5mm | 5*7 dot | 29.4*44.9mm |
| KEM-19088-AB | 4.8mm | 8*8 dot | 47.8*44.9mm |
| KEM-20057-AB | 5.0mm | 5*7 dot | 37.8*53.1mm |
| KEM-20088-AB | 5.0mm | 8*8 dot | 50.7*50.7mm |
| KEM-23058-AB | 5.0mm | 5*8 dot | 37.8*60.6mm |
| KEM-2488-AB | square6.0*6.0mm | 8*8 dot | 60.2*60.2mm |
| KEM-40057-AB | 10.0mm | 5*7 dot | 76.0*106.5mm |
| KEM-46058-AB | 5.0mm | 5*8 dot | 76.0*121.5mm |
Overview
1. We can supply you all kinds of Dot Matrix Display:
---Dot Dia. from 1.9mm to 10mm
---Array type: 5x7 dots, 5x8 dots, 8x8 dots
2. Available Emitting color: Red, green, blue, yellow, amber, white, RGB,etc
3. Available surface color: black and grey
4. Dot exposy color: milky white, water clear or same with emitting color
Delivery time
Quantity lead time
1-10Kpcs 3-7 days
10.1K-50Kpcs 7-15 days
All delivery way is available.
With over ten years experience in this field, we do believe we can become your reliable supplier!

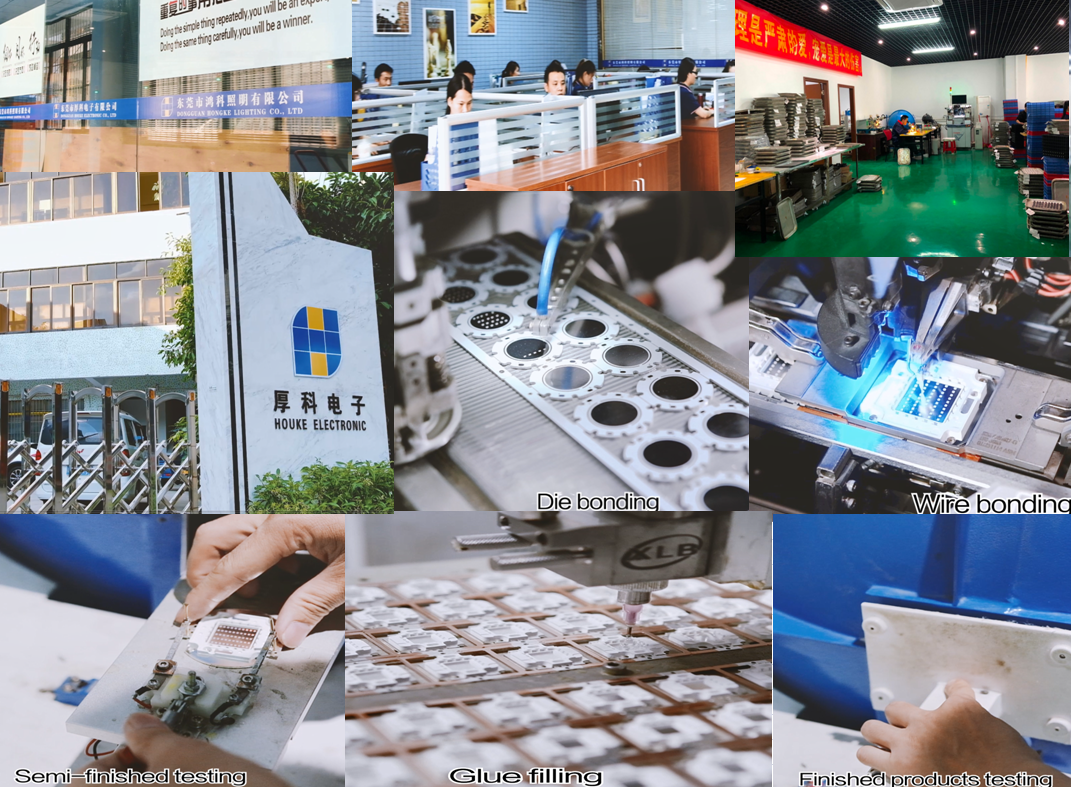

Main Processes of Our Segment Display & Matrix Display(Factory pictures)
