Bicolor 16x16 +LED Matrix Display
- Place of Origin:Guangdong, China
- Model Number:KEM-31616-BSR
- Brand Name:KEM
- Usage:Outdoor
- Tube Chip Color:Red
- Display Function:Graphics
- Pixels:18mm
- Light Source:LED Epistar
- Dot Arrangement:16x16 dot
- Dot Diameter:3mm
- Surface color:Black or gray
- Dot Color:Water clear or milky white
- Apply:Advertising display, led display
- Country of origin:Guangdong China (Mainland)
- Screen Dimension:64*64mm
Bicolor 16x16 +LED Matrix Display/ +LED Dot Matrix 16x16 bi-color

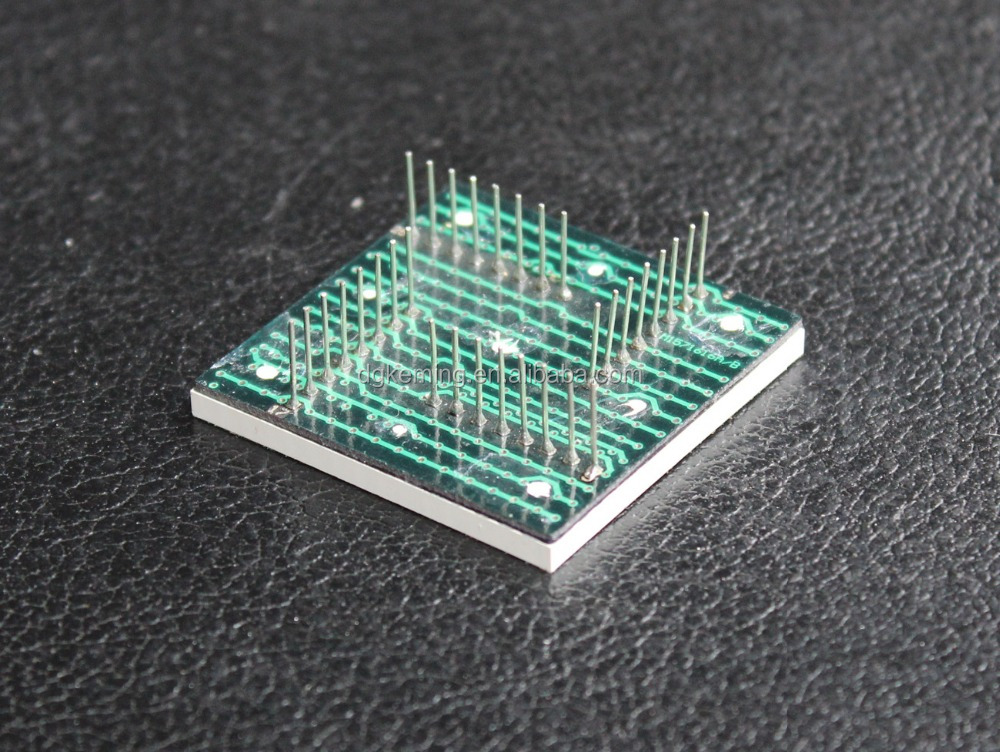

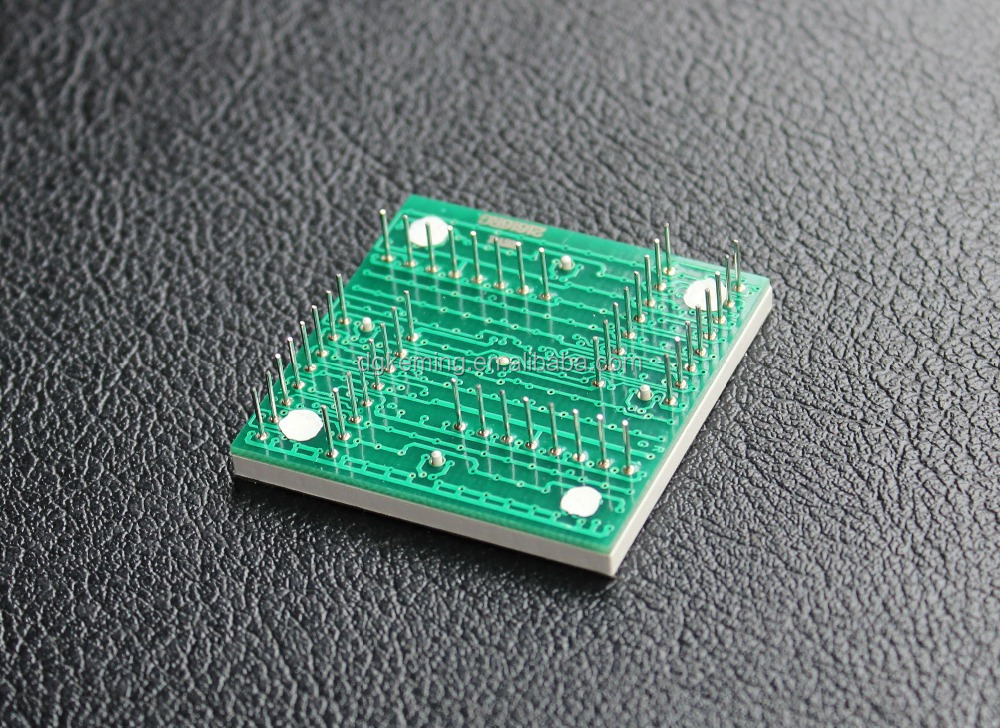

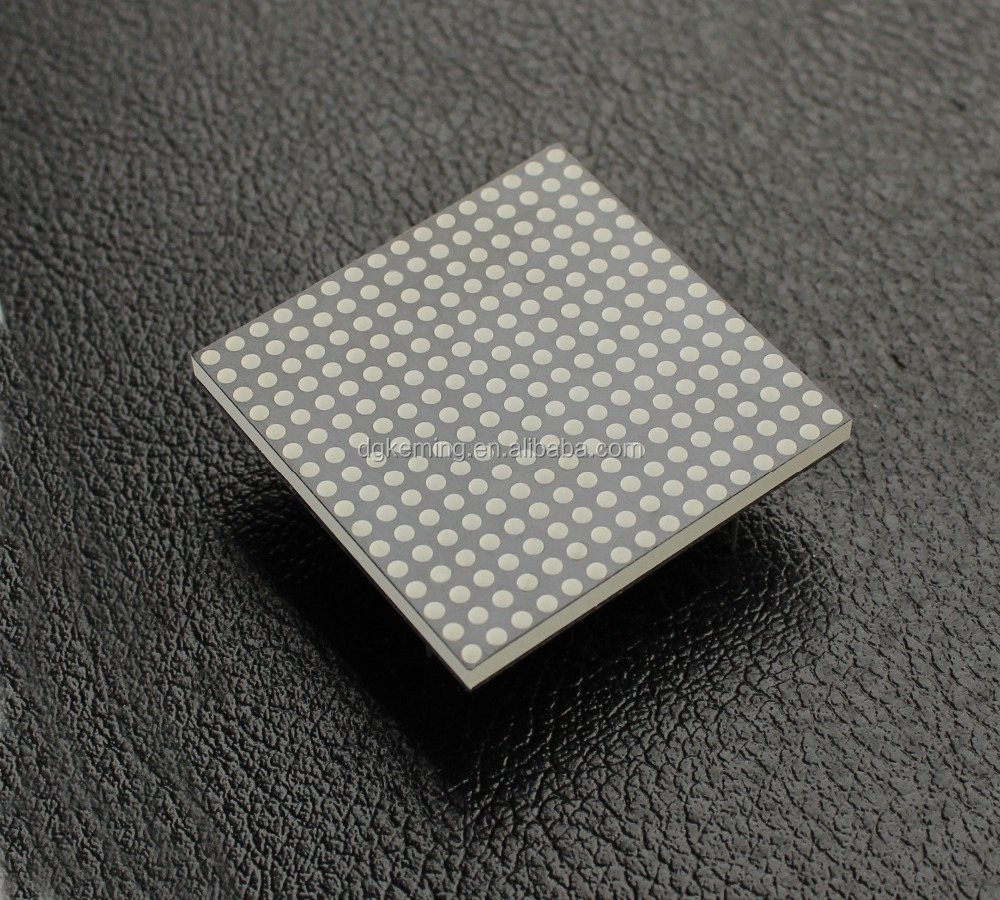

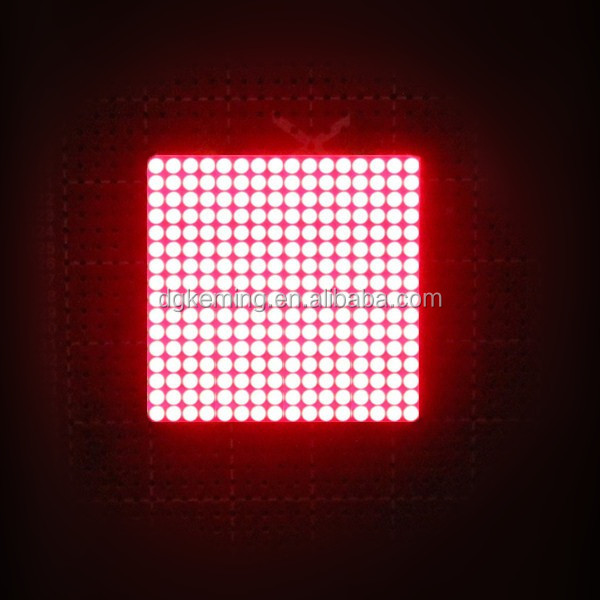

Pictures of product:

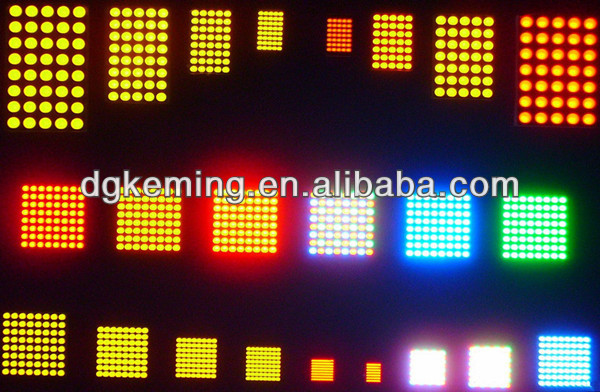

Eachsingle coloranddual color also are available:
Spec of LED dot matrix 8x8 led matrix display:

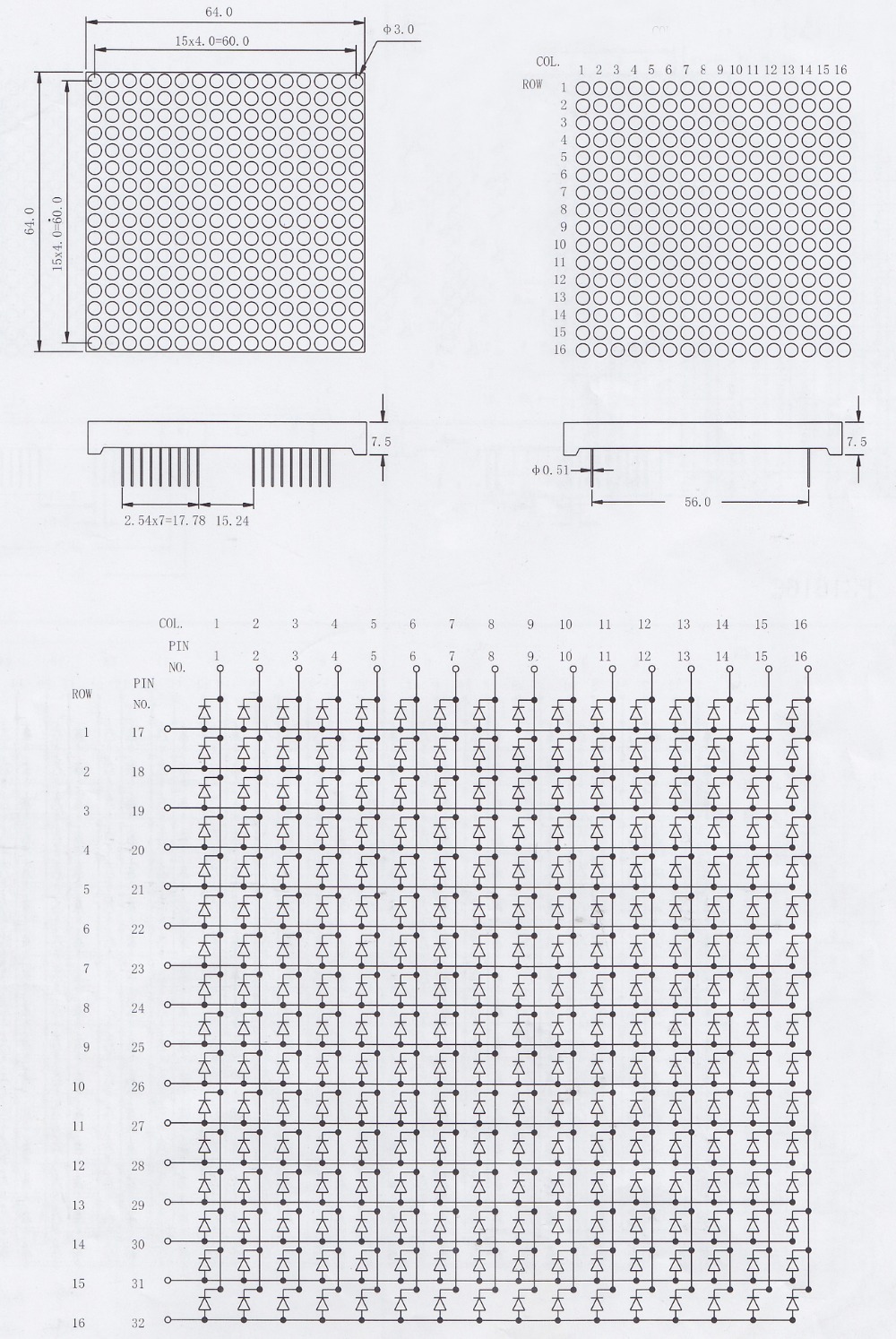

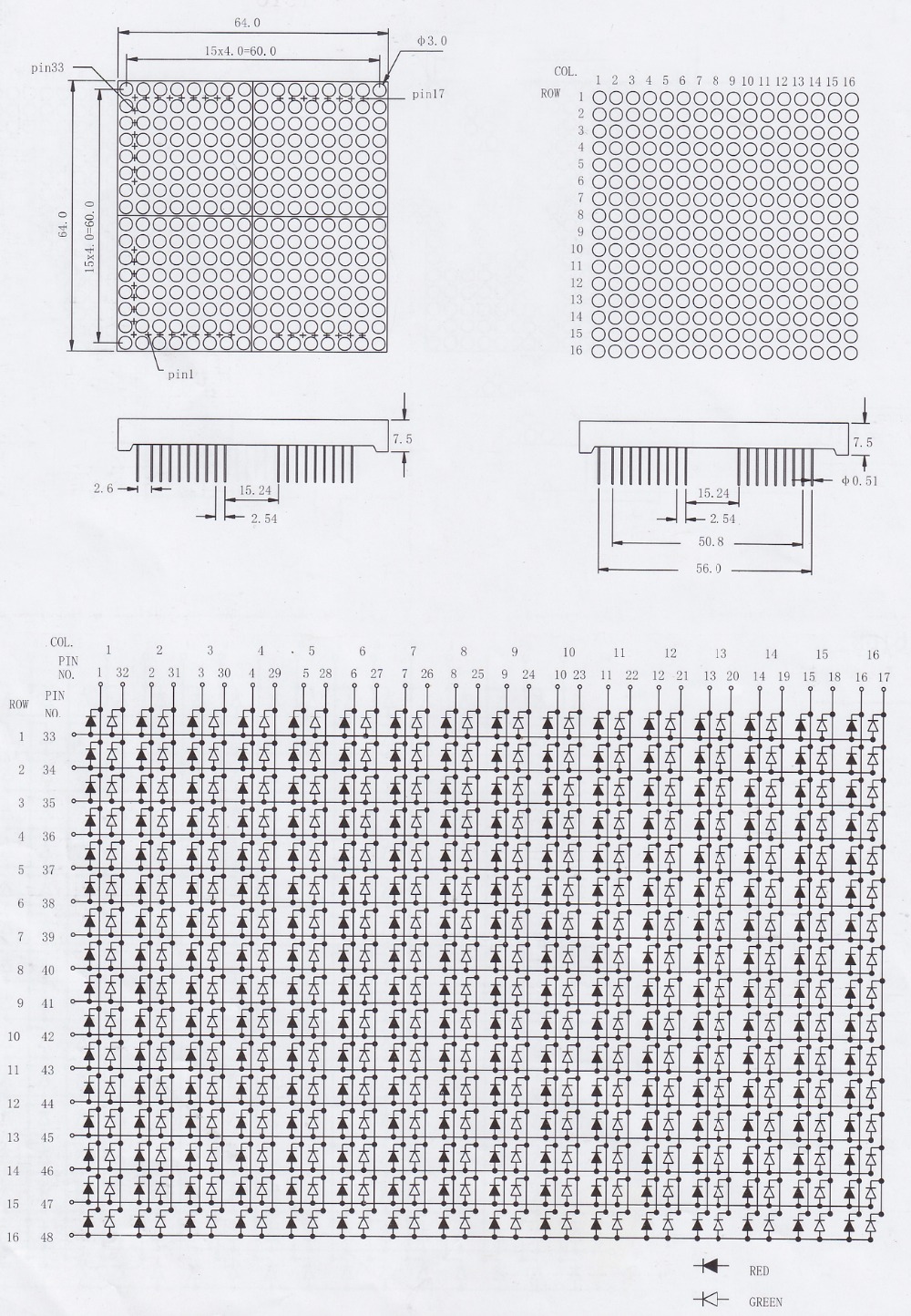

Dimension and Internal Circuit Diagram:
Note: If above dimension & PCB layout not meet your requirements, please come to me for other choices.
Overview:
1. We can supply you all kinds of Dot Matrix Display:
---Dot Dia. from 1.9mm to 10mm
---Array type: 5x7 dots, 5x8 dots, 8x8 dots, 16x16 dots
2. Available Emitting color: Red, green, blue, yellow, amber, white, RGB,etc
3. Available surface color: black and grey
4. Dot exposy color: milky white, water clear or same as emitting color

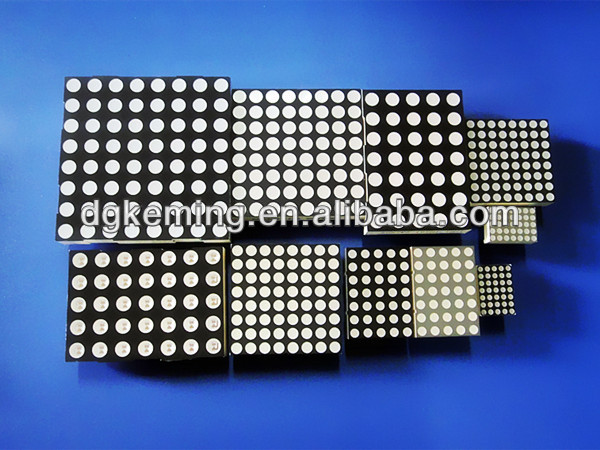

Other size for you choice:
| model | dot diameter | array | length*width |
| KEM-7057-AB | 1.9mm | 5*7 dot | 12.7*17.8mm |
| KEM-7088-AB | 1.9mm | 8*8 dot | 20*20mm |
| KEM-10057-AB | 2.54mm | 5*7 dot | 19.96*27.94mm |
| KEM-11057-AB | 3.0mm | 5*7 dot | 22.75*31.8mm |
| KEM-12057-AB | 3.0mm | 5*7 dot | 22.80*39.1mm |
| KEM-12088-AB | 3.0mm | 8*8 dot | 32.0*32.0mm |
| KEM-12288-AB | square 3.0*3.0mm | 8*8 dot | 31.7*31.7mm |
| KEM-15088-AB | 3.7mm | 8*8 dot | 37.9*37.9mm |
| KEM16057-AB | 4.5mm | 5*7 dot | 29.4*44.9mm |
| KEM-19088-AB | 4.8mm | 8*8 dot | 47.8*44.9mm |
| KEM-20057-AB | 5.0mm | 5*7 dot | 37.8*53.1mm |
| KEM-20088-AB | 5.0mm | 8*8 dot | 50.7*50.7mm |
| KEM-23058-AB | 5.0mm | 5*8 dot | 37.8*60.6mm |
| KEM-2488-AB | square6.0*6.0mm | 8*8 dot | 60.2*60.2mm |
| KEM-40057-AB | 10.0mm | 5*7 dot | 76.0*106.5mm |
| KEM-46058-AB | 5.0mm | 5*8 dot | 76.0*121.5mm |

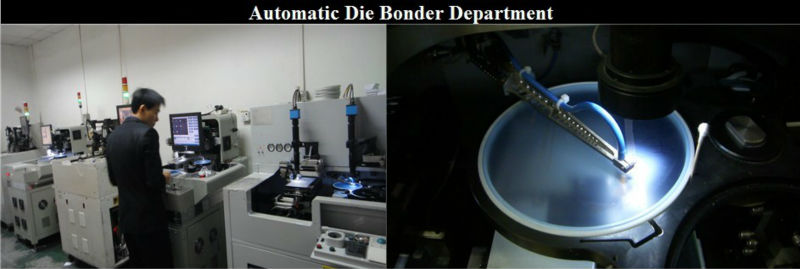

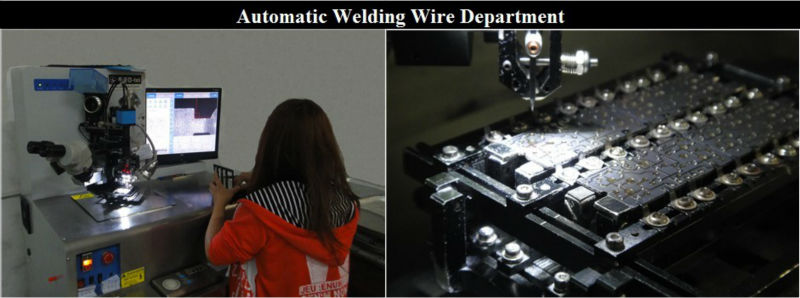

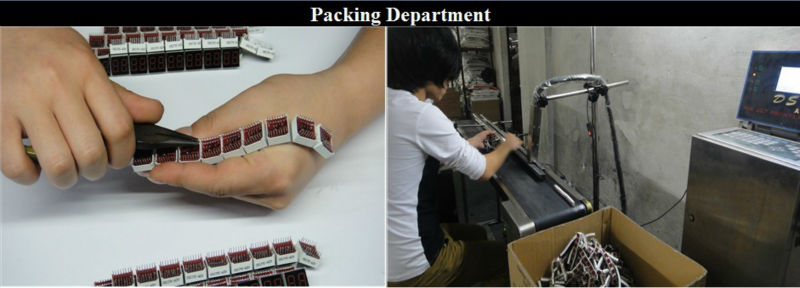

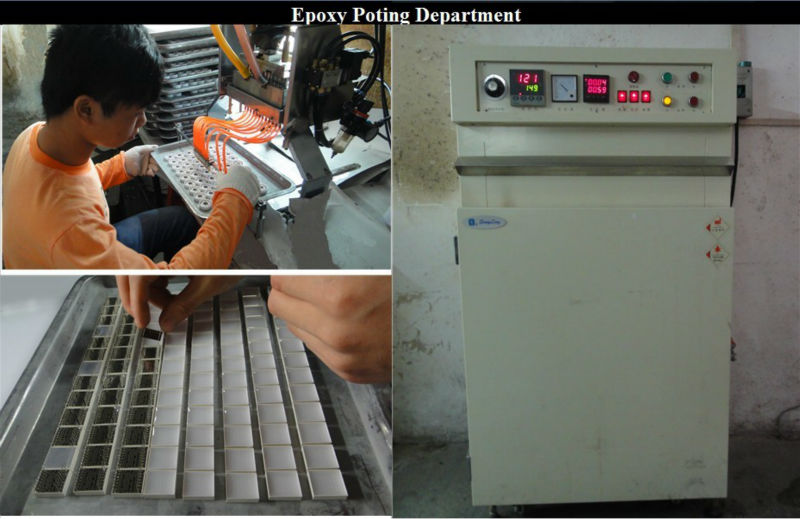

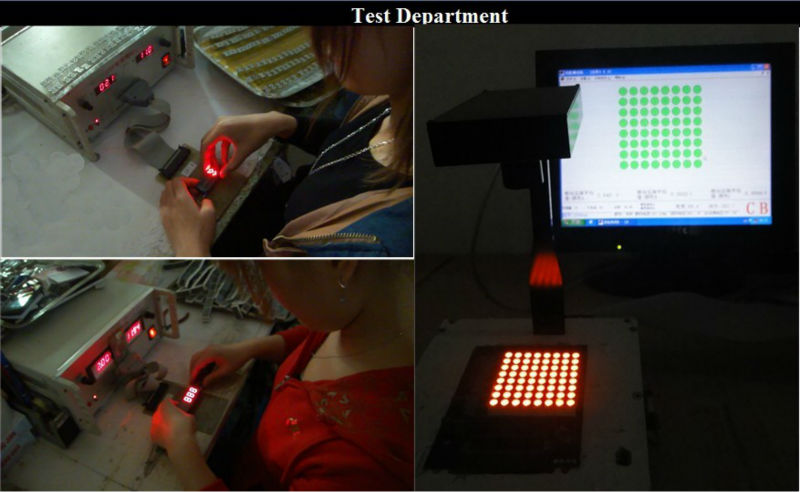

Main Processes of Our Segment Display & Matrix Display(Factory pictures):
With over 11 years experience in LED dispaly field, we do believe we can become your reliable supplier!
Welcome to inquiry!
