Model No: HOUKEM-2829-BSR

Bend pin 7 segment fnd 2 digits red 0.28 inch 7 segment display 7 segment digital display - Houkem

Houke is 7 segment display, 7 segment digital display, 7 segment indicator professional manufacturer.

Delivery :

EXW

minimum order :

5 pieces

Supply Ability :

5000pieces / Month

Stock Time :

7-14Day

Country of Origin :

Dongguan/ Guangdong

Quantity :

US $0.20 - US $3.00 / pieces

add to cart

Contact Now

Place of Origin:CN;GUA
Application:digital counter, time clock, home appliance
Color:RED
Panel Size:15*10*6mm
Model Number:HOUKEM-2829-BSR
Brand Name:HOUKEM

Product Describtion

Bend pin 7 segment fnd 2 digits red 0.28 inch 7 segment display 7 segment digital display 7 segment indicator

Features:

1, Low consumption

2, High brightness

Product details:

Item No.	HOUKEM-2829-BSR
Dimension	15106mm
digit height	0.28'' (7mm)
Surface color	Black / Grey
Segment color	White /Clear
Emitting color	super red

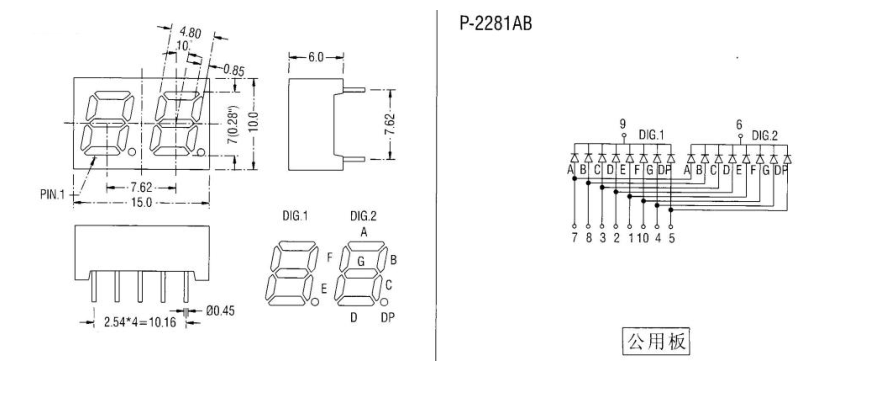

Package dimension & Internal circuit diagram

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=10-15Ma)

Emitting Color	Test Condition	Wavelength(nm)		Forward Voltage(V)		Luminous Intensity (mcd)
Emitting Color	Test Condition	(λp)	λ	Typ	Max	Typ	Max
Amber	IF=10-15mA	600-605	30	1.8	2.0	90	100
Super green	IF=10-15mA	565-575	30	1.8	2.0	48	55
Super red	IF=10-15mA	620-625	20	1.8	2.0	110	130
Ultra red 1	IF-10-15mA	620-625	20	1.8	2.0	200	210
Ultra red 2	IF=10-15mA	620-625	20	1.8	2.0	300	350
High red	IF=10-15mA	638-660	20	1.8	1.9	15	20
Yellow green	IF=10-15mA	570-580	30	1.8	2.0	43	50
Yellow	IF=10-15mA	580-600	35	1.8	2.0	70	80
Blue	IF=10-15mA	465-475	40	2.7	2.9	150	200
Pure green	IF=10-15mA	515-525	40	2.7	2.9	180	250
White	IF=10-15mA	-	-	2.7	2.9	180	200

Two years quality warranty

Bend PIN/ Right angle PIN is available

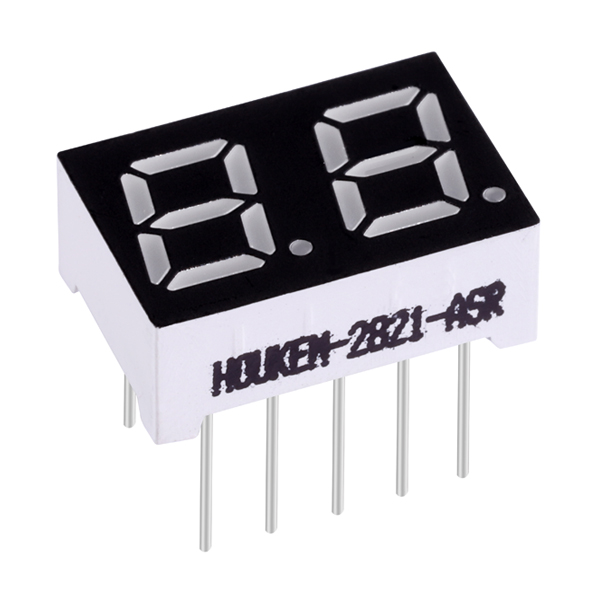

2 digit 7 segment led display 0.28''

0.28 inch 2 digit 7 segment led display

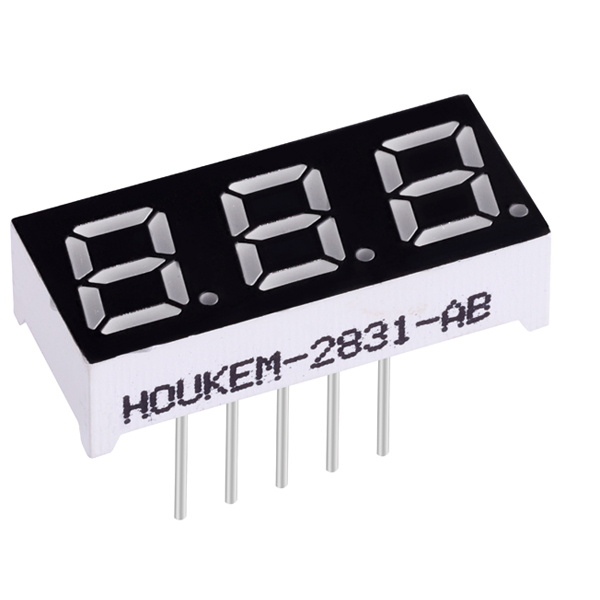

2831

Application

running machine

air conditioner

Our Services

Led dot matrix: 57, 58, 88, 117, 16*16

led dot matrix display

7 segment LED display

1 digit	0.2'', 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.5'', 0.52'', 0.56'', 0.6'', 0.8'', 1'', 1.2'', 1.5'', 1.8'', 2.3'', 3'', 4'', 5'', 6'', 7'', 8'', 10'', 12'', 16'', 20''
2 digit	0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.43'', 0.5'', 0.52'', 0.56'', 0.8'', 1'', 1.2'', 1.5''
3 digit	0.25'', 0.28'', 0.3'', 0.4'', 0.52'', 0.56'', 0.8''
4 digit	0.25'', 28'', 0.3'', 0.36'', 0.4'', 0.5'', 0.56'', 0.8'', 1.2''
5 digit	0.28'', 0.36'', 0.56''
6 digit	0.3'', 0.36''

14 /16 segment

1 digit	0.39'', 0.5'', 0.8'', 1'', 1.2'', 2.3''
2 digit	0.54''
3 digit	0.54''
4 digit	0.39'', 0.54''

Various colors: super red, ultra red, high red, yellow green, pure green, super green,

pure green, blue, yellow, white, amber, orange, Bi-color, RGB.
Custom 7 segment display are available

custom 7 segment led display

Packaging & Shipping

packing & shipping

Certifications

Houke-certifictes

Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays,

SMD LEDs, dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power led,

high power 255nm to 1550nm LED arrays,COB LEDs, SMD LEDs, street light LED, LED optical lens, LED spot light, high bay light,

street light,and all LED lighting application solution, etc.

7 segment dot matrix LED

FAQ

1. How to proceed an order ?
A: Firstly let us know your requirements or application. Secondly We will quote the price according to your requirements or our suggestions.

Thirdly customer confirms the samples and make payment for formal order.
Fourthly We will start to arrange the production.

2. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
