8x8 dot matrix led displayorange
8x8 dot matrix led displayorange
8x8 dot matrix led displayorange
8x8 dot matrix led displayorange
8x8 dot matrix led displayorange
8x8 dot matrix led displayorange
Model No: HOUKEM-19088-AA

Amber orange 8x8 dot matrix for bus sign

dot matrix led display houkem is 7 segment led display professional manufacturer
minimum order :
10 pieces
Supply Ability :
50000pieces / Day
Country of Origin :
shenzhen guangzhou
Quantity :
USD0.75 - USD1.00 / pieces
add to cart
Contact Now
  • Place of Origin:CN;GUA
  • Application:Graphics, air conditioner, running machine
  • Color:orange
  • Panel Size:47.8*47.8mm
  • Model Number:HOUKEM-19088-AA
  • Brand Name:HOUKEM
Product Describtion

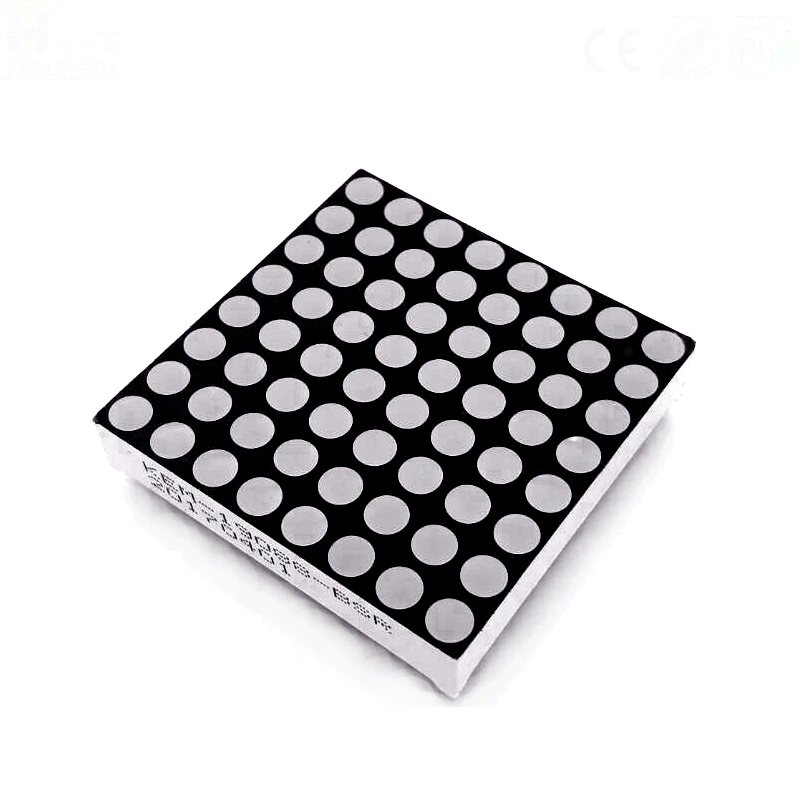

round 8x8 dot matrix amber

1,Low consumption 2, High brightness

Item No.HOUKEM-19088-AA
Dimension47.8*47.8*9mm
Surface color Black /Grey
Plastic filmmilky white/ clear
Emitting color Amber/ orange

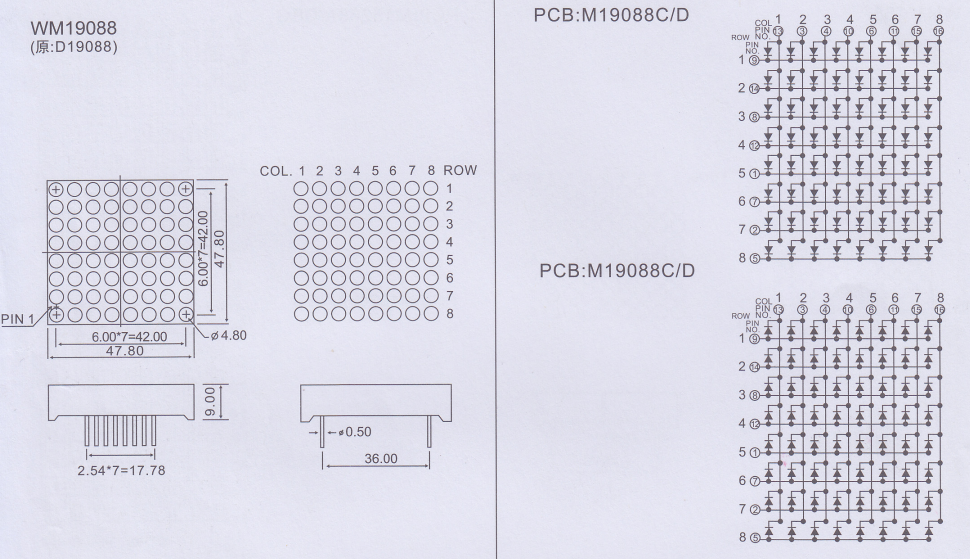

Package dimension & Internal circuit diagram

19088

Two years quality warranty

19088

Note: If this PCB layout don't meet your requirements, please contact me for other choices.

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=10-15Ma)

Emitting Color

Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=10-15mA

600-605

30

1.9

2.0

90

100

Super green

IF=10-15mA

565-575

30

1.9

2.0

48

55

Super red

IF=10-15mA

620-625

20

1.8

2.0

110

130

Ultra red 1

IF=10-15mA

620-625

20

1.8

2.0

200

210

Ultra red 2

IF=10-15mA

620-625

20

1.8

2.0

300

350

High red

IF=10-15mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=10-15mA

570-580

30

1.9

2.0

43

50

Yellow

IF=10-15mA

580-600

35

1.9

2.0

70

80

Blue

IF=10-15mA

465-475

40

2.7

2.9

150

200

Pure green

IF=10-15mA

515-525

40

2.7

2.9

200

250

White

IF=10-15mA

-

-

2.7

2.9

200

220

Application

application

application

Our Services

7 segment LED display

1 digit0.2'', 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.5'', 0.52'', 0.56'', 0.6'', 0.8'', 1'', 1.2'', 1.5'', 1.8'', 2.3'', 3'', 4'', 5'', 6'', 7'', 8'', 10'', 12'', 16'', 20''
2 digit0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.43'', 0.5'', 0.52'', 0.56'', 0.8'', 1'', 1.2'', 1.5''
3 digit0.25'', 0.28'', 0.3'', 0.4'', 0.52'', 0.56'', 0.8''
4 digit0.25'', 28'', 0.3'', 0.36'', 0.4'', 0.5'', 0.56'', 0.8'', 1.2''
5 digit0.28'', 0.36'', 0.56''
6 digit0.3'', 0.36''

14 /16 segment

1 digit0.39'', 0.5'', 0.8'', 1'', 1.2'', 2.3''
2 digit0.54''
3 digit0.54''
4 digit0.39'', 0.54''

Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16

led dot matrix display

Custom 7 segment display are available

customized 7 segment led display

Packaging & Shipping
packing & shipping
Contact us
Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays,
SMD LEDs, dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power led,
high power 255nm to 1550nm LED arrays,COB LEDs, SMD LEDs, street light LED, LED optical lens, LED grow light, led flood light,
street light,and all LED lighting application solution, etc.
factory
FAQ

1. How to proceed an order ?
A: Firstly let us know your requirements or application. Secondly We will quote the price according to your requirements or our suggestions.

Thirdly customer confirms the samples and make payment for formal order.
Fourthly We will start to arrange the production.

2. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
