Amber orange 4 digit 0.25'' inch 7 segment display 12 Pin 188.8  Common Anode
Amber orange 4 digit 0.25'' inch 7 segment display 12 Pin 188.8  Common Anode
Amber orange 4 digit 0.25'' inch 7 segment display 12 Pin 188.8  Common Anode
Amber orange 4 digit 0.25'' inch 7 segment display 12 Pin 188.8  Common Anode
Amber orange 4 digit 0.25'' inch 7 segment display 12 Pin 188.8  Common Anode
Amber orange 4 digit 0.25'' inch 7 segment display 12 Pin 188.8  Common Anode
Amber orange 4 digit 0.25'' inch 7 segment display 12 Pin 188.8  Common Anode
Amber orange 4 digit 0.25'' inch 7 segment display 12 Pin 188.8  Common Anode
Amber orange 4 digit 0.25'' inch 7 segment display 12 Pin 188.8  Common Anode

Amber orange 4 digit 0.25'' inch 7 segment display 12 Pin 188.8 Common Anode

Model NO.
HOUKEM-2543-BO
Price:
USD 0.43-0.50 / piece
Delivery:
FOB
Minimum order quantity:
1 piece
Supply Ability:
50000 piece / Day
Country of Origin:
shenzhen guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Usage:Indoor
  • Display Function:Graphics
  • Pixels:25mm
  • Tube Chip Color:orange
  • Brand Name:KEM
  • Model Number:HOUKEM-2543-BO
  • Screen Dimension:24*10mm


Product Describtion
 business card (2)Wechat

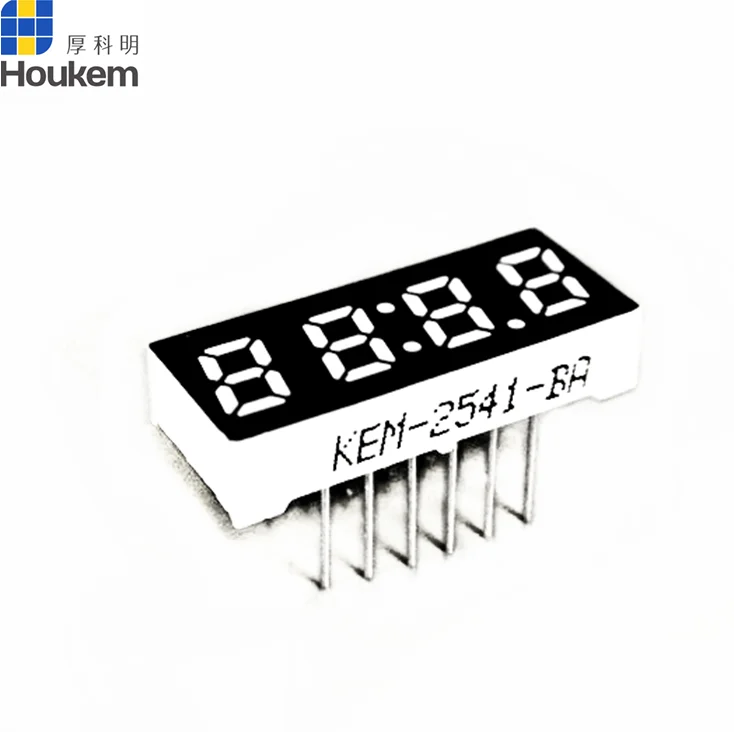

 Amber orange 4 digit 0.25'' inch 7 segment display 12 Pin 188.8 Short Lenth Common Anode



1,Low consumption

2, High brightness



Item No.Houkem-2543-BO
PG24*10*5mm
Surface color  Black  /Grey
epoxy color white
Emitting color  orange

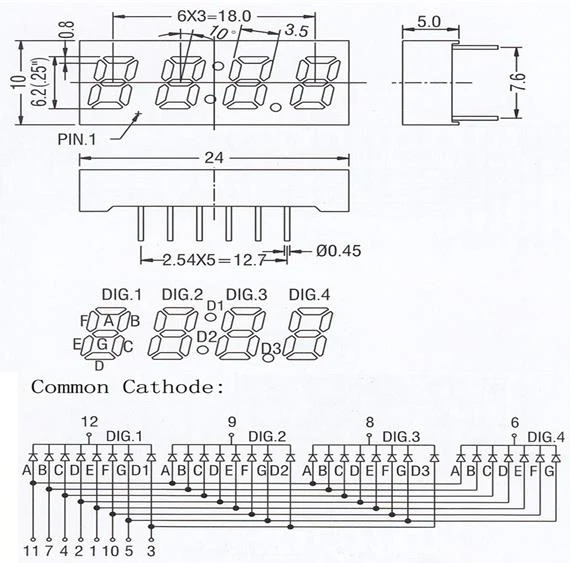

Package dimension & Internal circuit diagram





 KEM-2541-AB(1)



Two years quality warranty

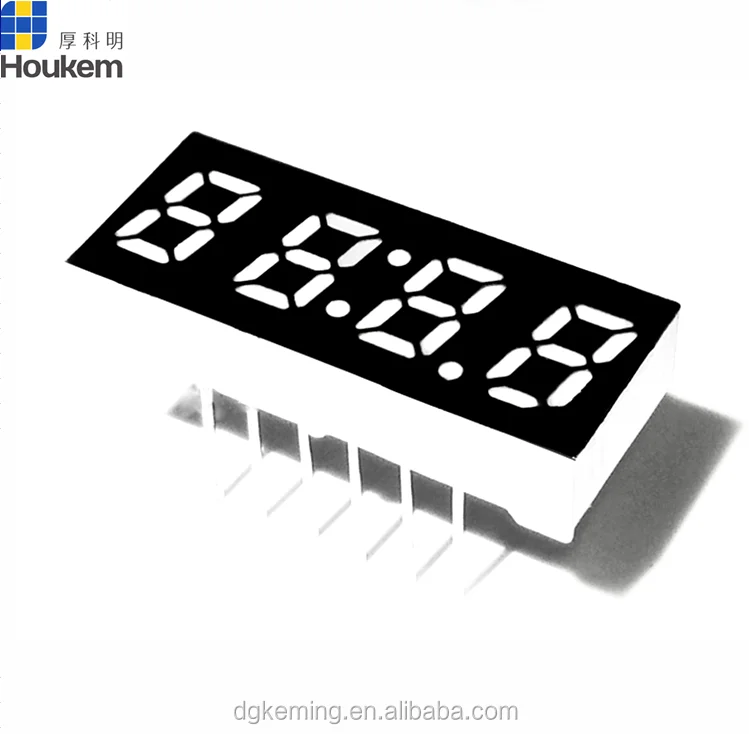

 0.25'' 4 digit 7 segment led display

Note: If this PCB layout don't meet your requirements, please contact me for other choices.



 0.25'' 7 segment green display



 2543 (3).png





 2541

















Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)





Emitting Color



Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=18mA

600-605

30

1.9

2.0

90

100

Super green

IF=18mA

565-575

30

1.9

2.0

48

55

Super red

IF=18mA

620-625

20

1.8

2.0

110

130

Ultra red

IF=18mA

620-625

20

2

2.1

300

350

High red

IF=18mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=18mA

570-580

30

1.9

2.0

43

50

Yellow

IF=18mA

580-600

35

1.9

2.0

70

80

Blue

IF=20mA

465-475

40

2.8

3.0

150

200

Pure green

IF=20mA

515-525

40

2.8

3.0

180

250

White

IF=20mA

-

-

2.8

3.0

180

200





Our Services

Quantity Lead time

1-10K pcs 3-7 days

10.1K-50K pcs 7-15 days

Any delivery way is available.

Our service:

 Sample are available

In order to let you have an enjoyable experience on our best quality product and satisfied service, we can offer----  SAMPLES for your test within 3-5 days.

Custom service:

1. We can supply you all kinds of 7 segment LED display

---Digit size: from 0.25"to 20"

---Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment and 14 segment both available

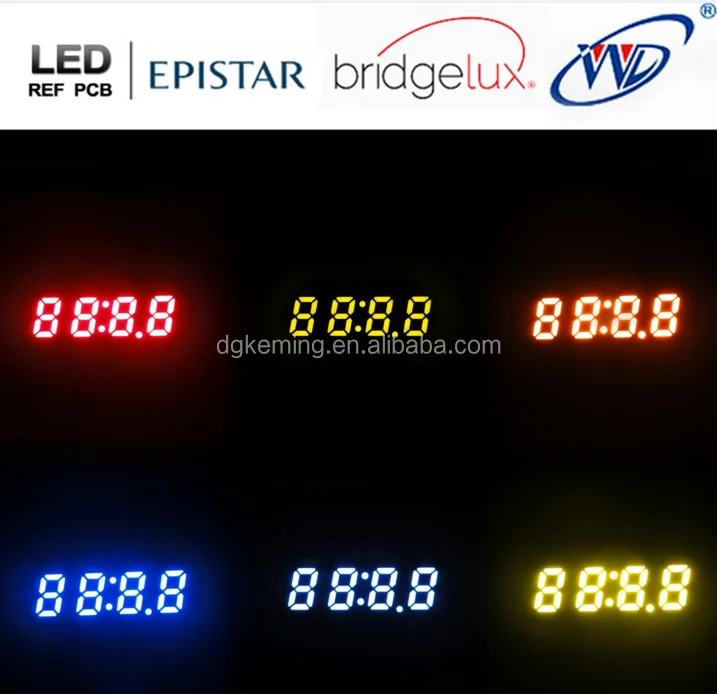

3. Various colors: super red, ultra red, high red, yellow green, pure green, super green, pure green, blue, yellow, white, amber, Bi-color, RGB.













Factory pictures

 Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays, SMD LEDs, dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power led, high power 260nm to 1050nm LED arrays,COB LEDs, SMD LEDs, street light LED, LED optical lens, LED spot light, high bay light, street light,and all LED lighting application solution, etc.





Packaging & Shipping

packing & shipping

Related Products



0.3inch

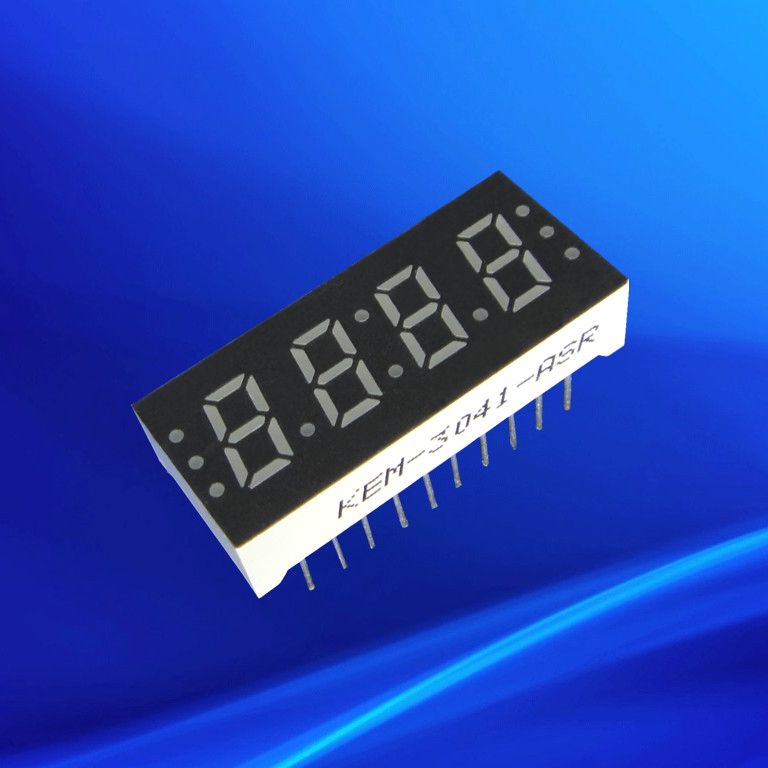

KEM-3041-1



0.36inch

3641-1



0.8inch

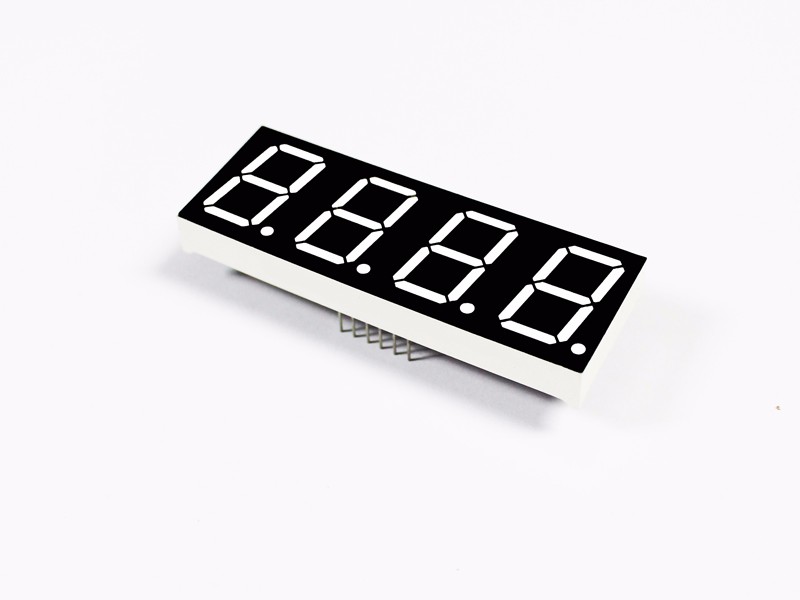

1.2 inch 4 digit 7 segment led display
