Model NO.
KEM-8057-A/B
Price:
USD 0.70-1.00 / pieces
Delivery:
FOB
Minimum order quantity:
100 pieces
Supply Ability:
30000 pieces / Day
Country of Origin:
shenzhen or guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Tube Chip Color:Green
  • Display Function:Video
  • Pixels:20mm
  • Usage:outdoor or indoor
  • Brand Name:KEM
  • Model Number:KEM-8057-A/B
  • Screen Dimension:25*37.1*8mm


amber dot matrix 5*7 led matrix 7x5 dot array
We can provide different sizes & color as per your request.


 Part Details



Emitting coloramber / orange
Polaritycommon anode or cathode
dimension25*37.1mm
dot array5*7
Epoxy colorwhite

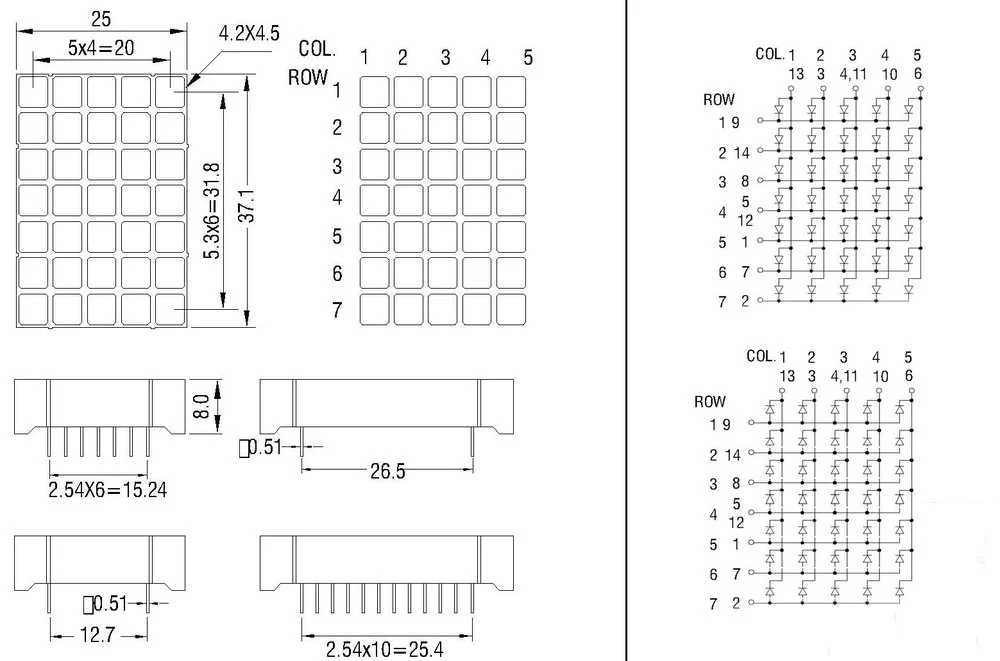

Part Drawing and Internal Circuit :





If the internal circuit can not meet your need, pls inform me for other choices.

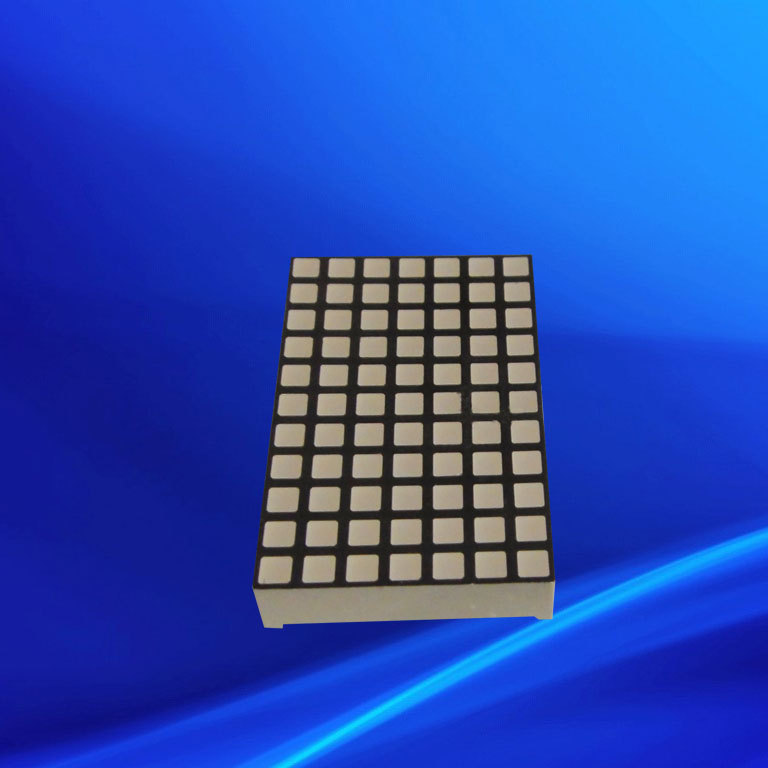

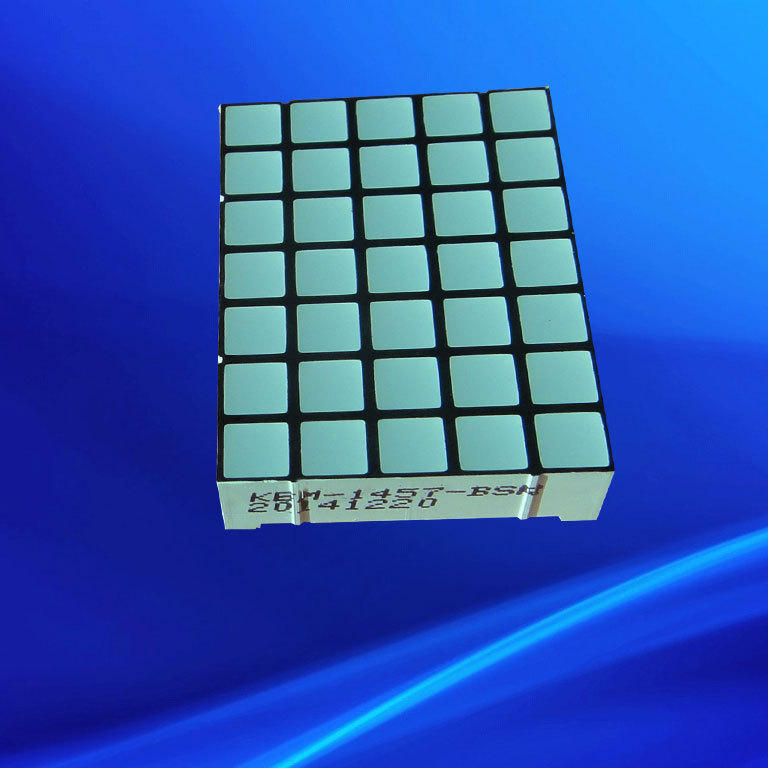

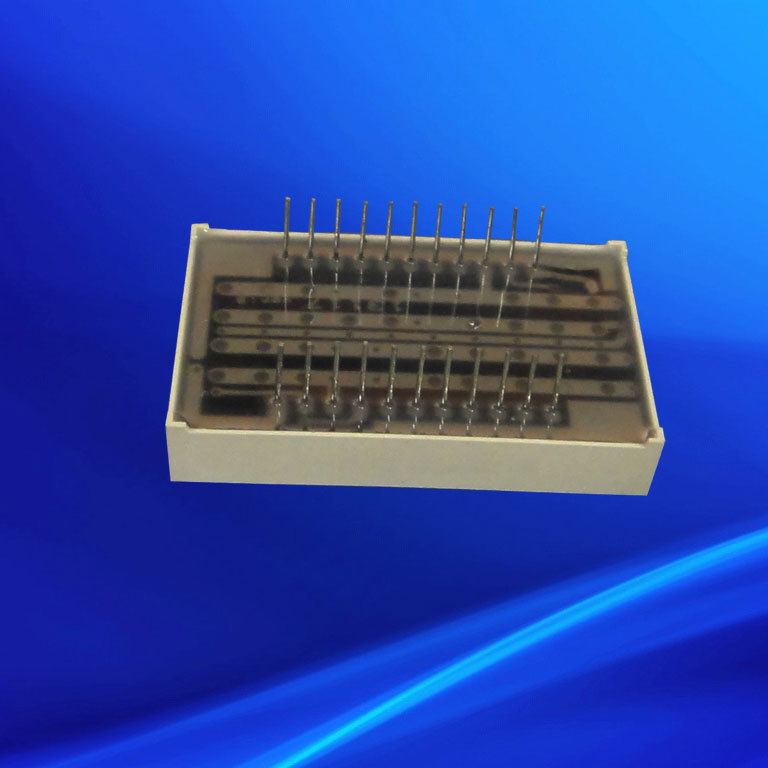

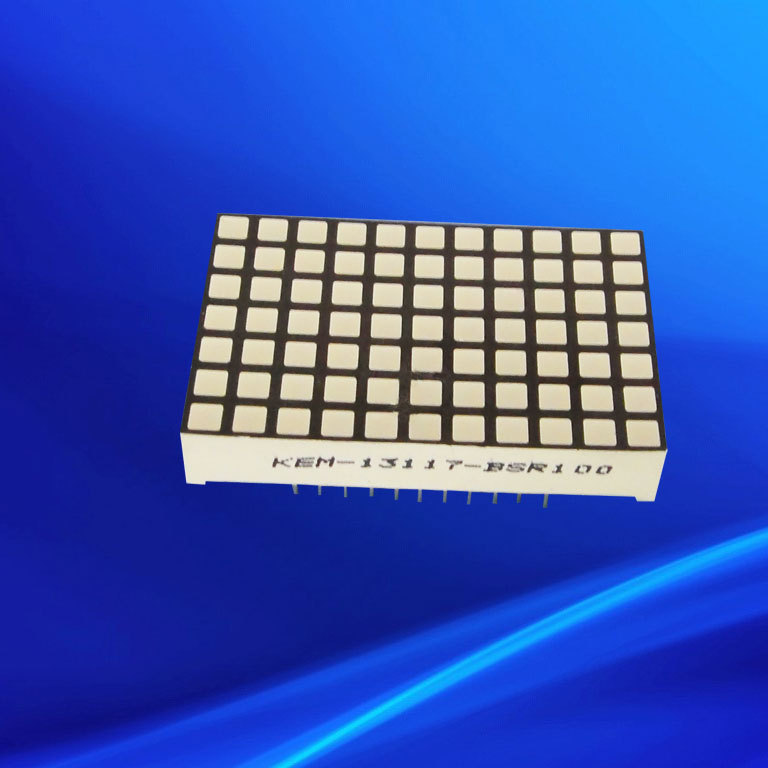

More Picture in Detail :








Certificate:

Rohs

 Packing details:

QQ20140710144148

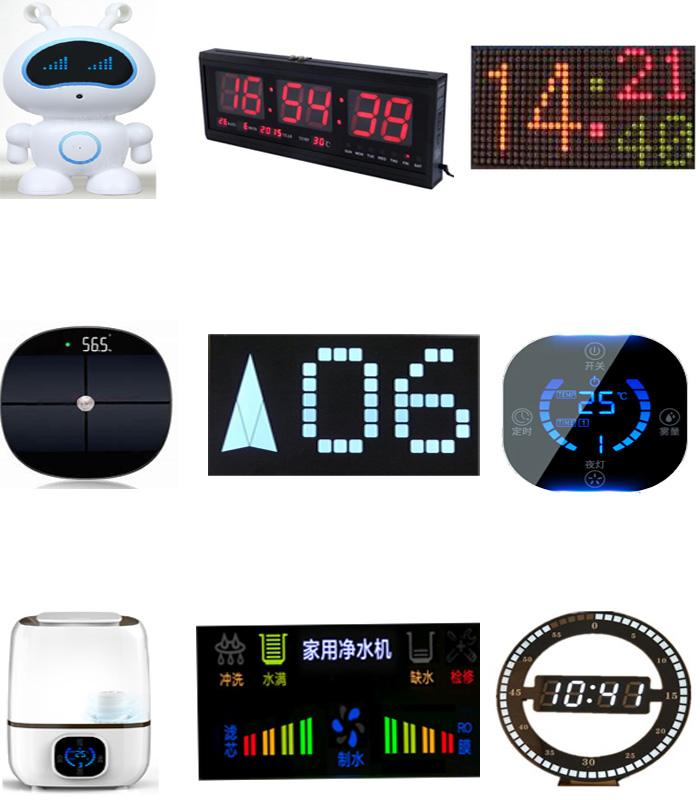

Application

clock,weighter,elevator,message screen.




FAQ

Q1. Can I have a sample order for your products?

A: For standard type,Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-7 days, mass production time needs 1-3 weeks .

Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 1pc for sample checking is available for most types.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order ?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-3 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.

For defective batch products, we will  resend them to you or we can discuss the solution

including re-call according to real situation.

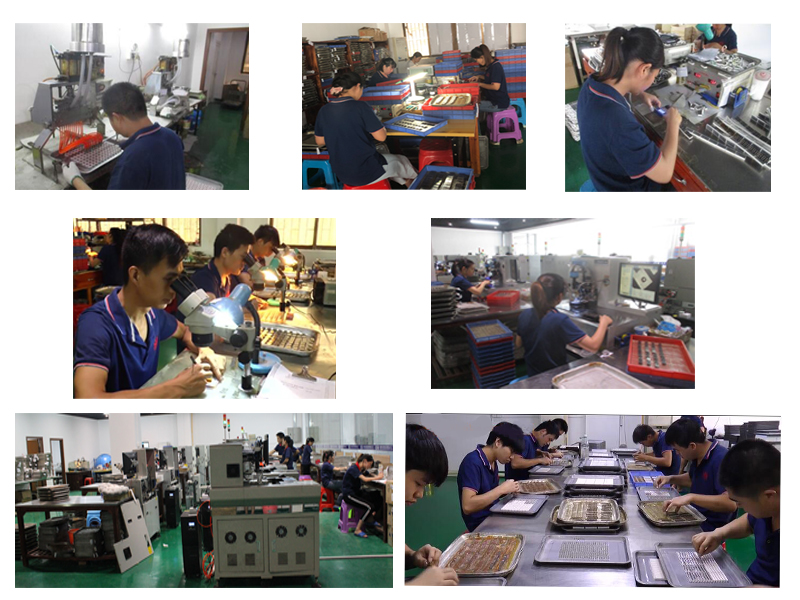

Our factory

Established in 2003,our factory is specialized in LED products, including 7 segment

LED/SMD displays,Alphanumeric displays,SMD LEDs,dot-matrix ,bar graph

arrays ,arrow led display and high power led.etc.
