Model NO.
HOUKEM-11057-BA
Price:
USD 0.50-0.60
Delivery:
FOB
Minimum order quantity:
2000
Quantity:
  • Place of Origin:CN;GUA
  • Usage:Indoor
  • Display Function:Graphics
  • Pixels:25mm
  • Tube Chip Color:amber
  • Brand Name:KEM
  • Model Number:HOUKEM-11057-BA
  • Screen Dimension:22.8*39.1mm


Product Describtion

business card (2)





Amber 3mm led dot matrix display 5x7 dot matrix 22.75*31.8mm CA









Product details:

Item No.HOUKEM-11057-BA
Dimension22.75*31.8*8.5mm
dot3mm
Surface color  Black  / Grey
Segment colorWhite  /Clear
Emitting color amber



Package dimension & Internal circuit diagram



dot 11057 -





Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)





Emitting Color



Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=18mA

600-605

30

1.9

2.0

90

100

Super green

IF=18mA

565-575

30

1.9

2.0

48

55

Super red

IF=18mA

620-625

20

1.8

2.0

110

130

Ultra red

IF=18mA

620-625

20

2

2.1

300

350

High red

IF=18mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=18mA

570-580

30

1.9

2.0

43

50

Yellow

IF=18mA

580-600

35

1.9

2.0

70

80

Blue

IF=20mA

465-475

40

2.8

3.0

150

200

Pure green

IF=20mA

515-525

40

2.8

3.0

180

250

White

IF=20mA

-

-

2.8

3.0

180

200









Two years quality warranty



Features:

1, Low consumption

2, High brightness











3mm led dot matrix display

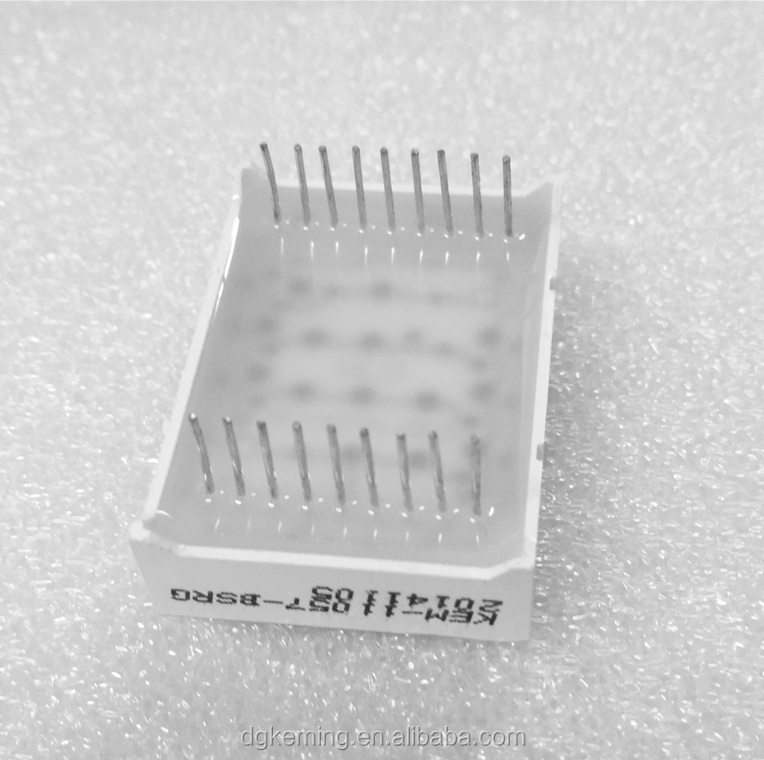

kem-11057-bsr red dot matrix display



11057 (3)





Our Services




Custom service:

1. We can supply you all kinds of 7 segment LED display

---Digit size: from 0.25"to 20"

---Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment and 14 segment both available

3. Various colors: super red, ultra red, high red, yellow green, pure green, super green,

pure green, blue, yellow, white, amber, Bi-color, RGB.

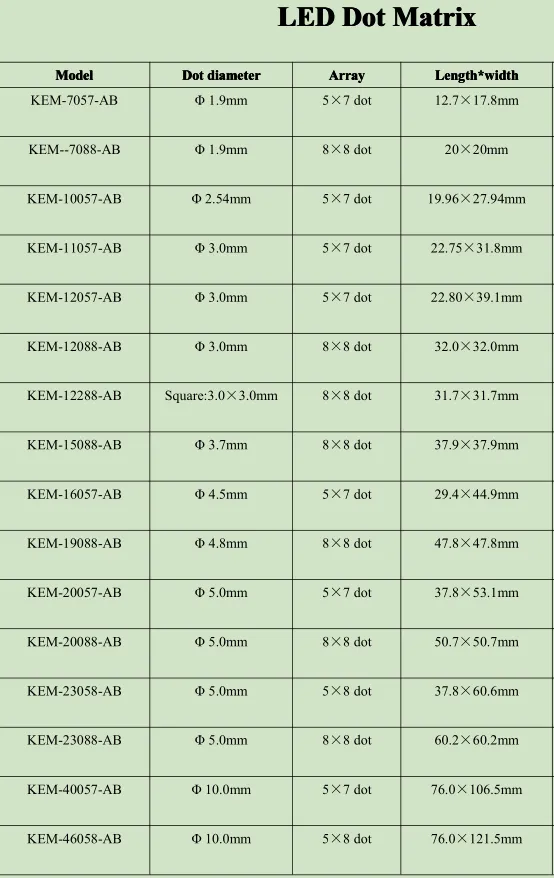

4. Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16







 led dot matrix display



Packaging & Shipping

packing & shipping

Factory pictures
Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays,
SMD LEDs, dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power led,
high power 260nm to 1050nm LED arrays,COB LEDs, SMD LEDs, street light LED, LED optical lens, LED spot light, high bay light,
street light,and all LED lighting application solution, etc.



 factory

Related Products

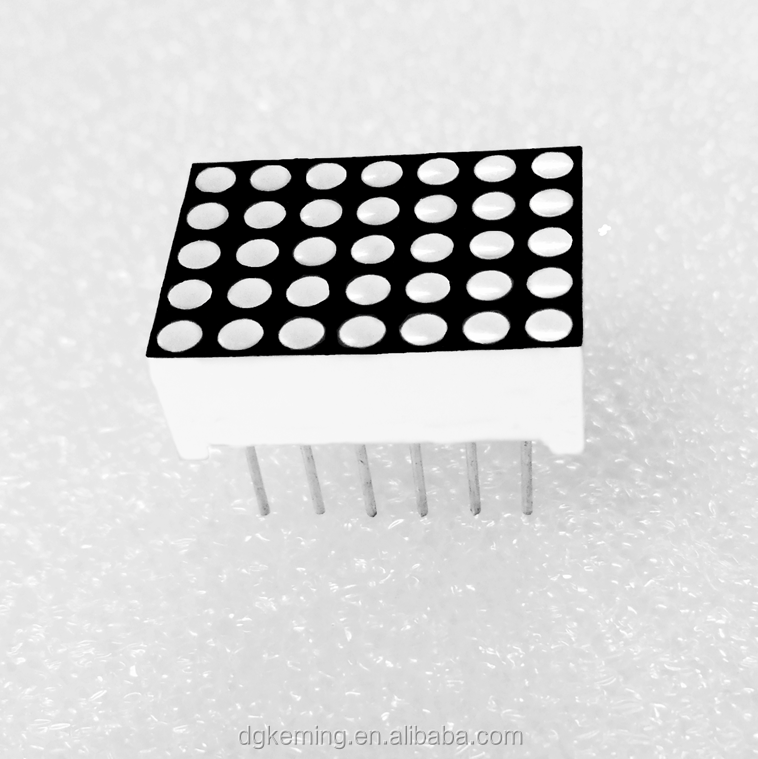

 KEMING-7057(12.7×17.8mm)

 7057

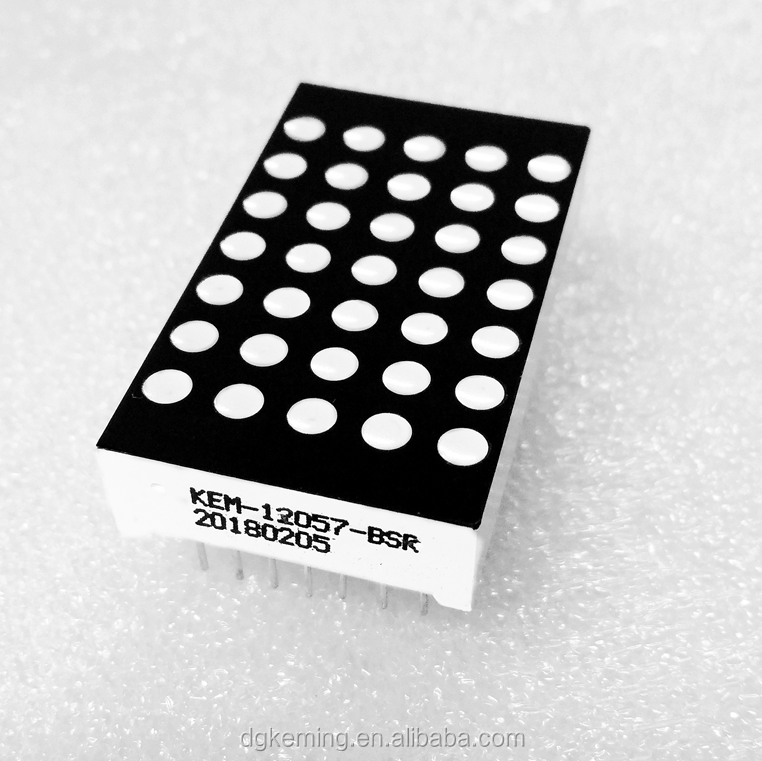

KEMING-12057( 22.75×39.8mm)

12057 (2)

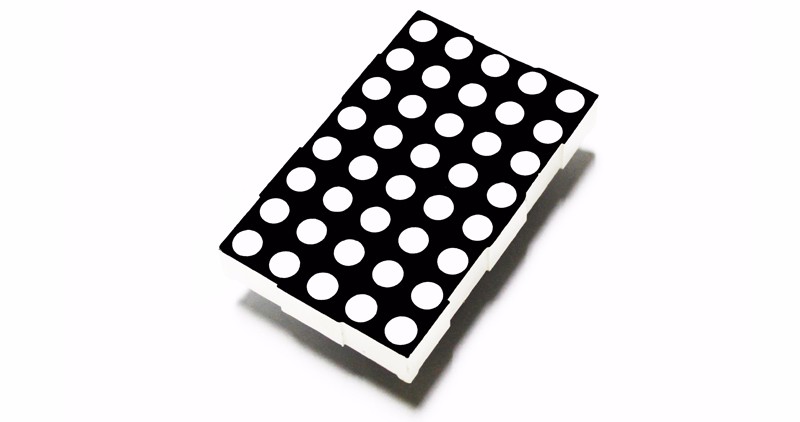

KEMING-20057( 37.8×53.1mm )

20057

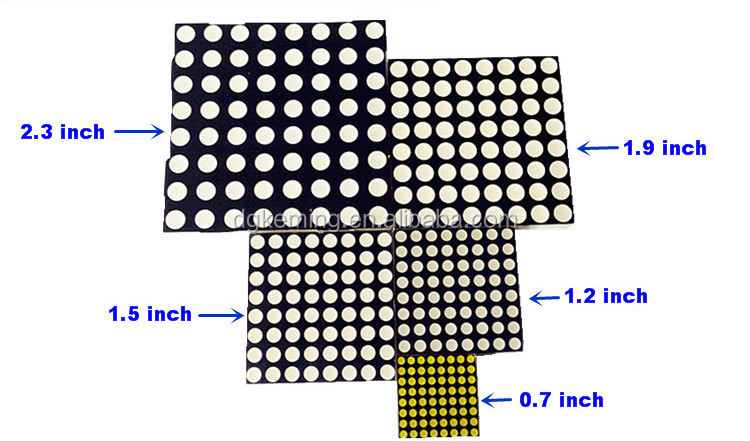

8x8 dot matrix led related product
