2.3 Inch 16 Segment Alphanumeric LED Display
2.3 Inch 16 Segment LED Display

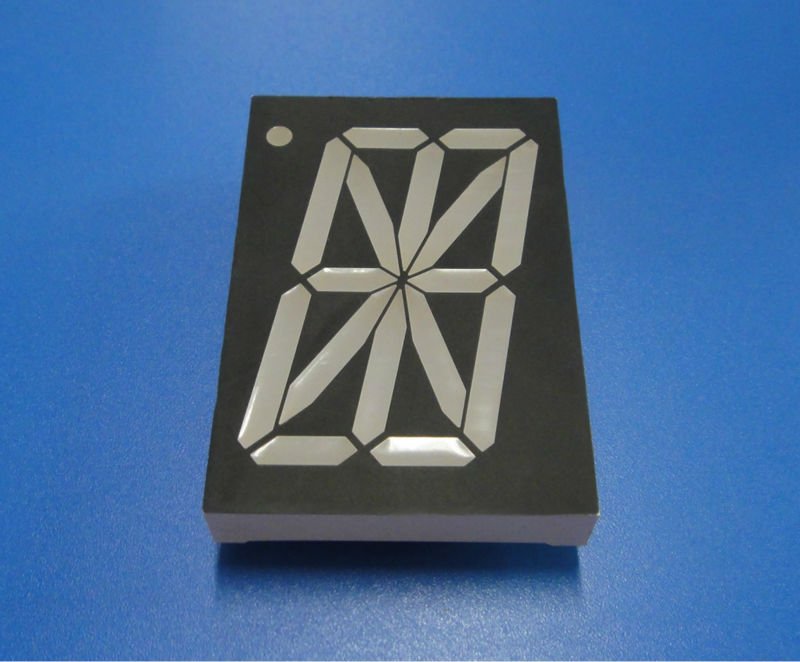

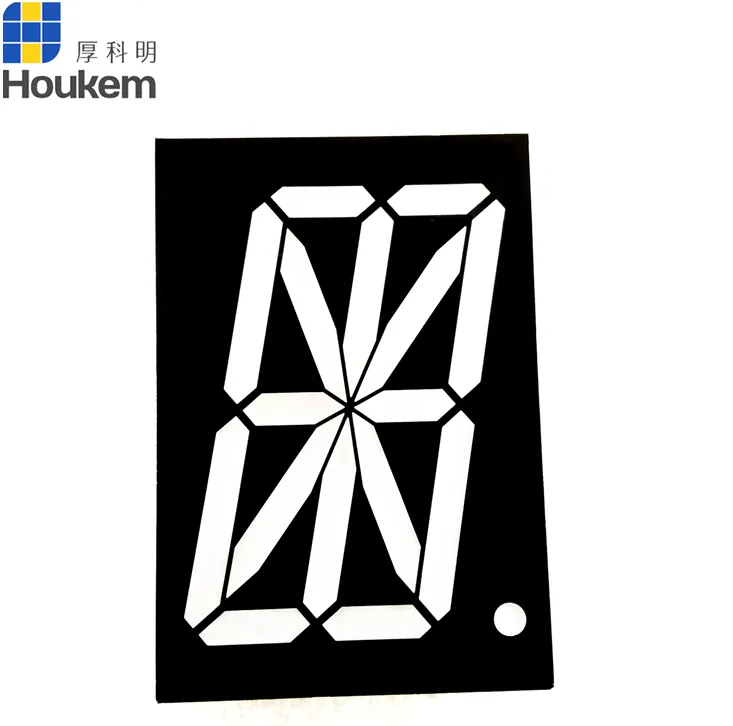

HOUKEM 2.3 inch 16 segment LED display is a large-format alphanumeric LED display designed for elevator indicators, industrial equipment, instrument panels, and customized OEM applications. Model Houkem-23012-BB features blue emission, common-anode polarity, a white surface, and white diffused epoxy.
With its 16-segment structure, the display can be used for alphanumeric indication where equipment needs to show letters, numbers, and other character information. The 2.3-inch format provides a large, visible display area for equipment interfaces and elevator display systems.
Key Specifications of the 2.3 Inch 16 Segment LED Display
| Parameter | Specification |
|---|---|
| Product Type | 2.3 Inch 16 Segment LED Display |
| Model Number | Houkem-23012-BB |
| Display Type | Alphanumeric LED Display |
| Emitting Color | Blue |
| Polarity | Common Anode |
| Surface Color | White |
| Epoxy Color | White Diffused |
| Screen Dimension | 47.8 × 69.8 mm |
| Pixel Specification | 18 mm |
| Display Function | Graphics |
| Application | Elevator, Industrial Equipment, Instrument Panels |
| MOQ | 10 pieces |
| Delivery Terms | FOB |
| Supply Ability | 5,000 pieces/day |
| Country of Origin | China |
The Houkem-23012-BB is designed as an alphanumeric display module for equipment manufacturers and OEM customers. The common-anode configuration should be matched with the customer's circuit and driving design before mass production.
16 Segment Alphanumeric LED Display for Elevators
A 16 segment LED display provides more character-forming capability than a conventional 7 segment display, making it suitable for applications that need to display both numbers and alphabetic characters. This makes the 2.3 inch format particularly relevant to elevator indicators and equipment interfaces.
For elevator applications, the display can be used for floor indication, status information, directional or operational messages, depending on the customer's control system and display design. The large display format can also help improve readability when the module is installed in equipment panels.
For other industrial applications, the same display concept can be used for instrument panels, control equipment, electronic indicators, and customized display assemblies.
Applications of the 2.3 Inch Alphanumeric LED Display
The main application areas include:
Elevator floor and status indicators
Industrial equipment displays
Instrument panels
Electronic control systems
Numeric and alphanumeric indicators
Customized OEM display modules
The product is intended for professional equipment manufacturers, system integrators, electronic component distributors, and OEM/ODM customers requiring a large-format 16 segment alphanumeric LED display.

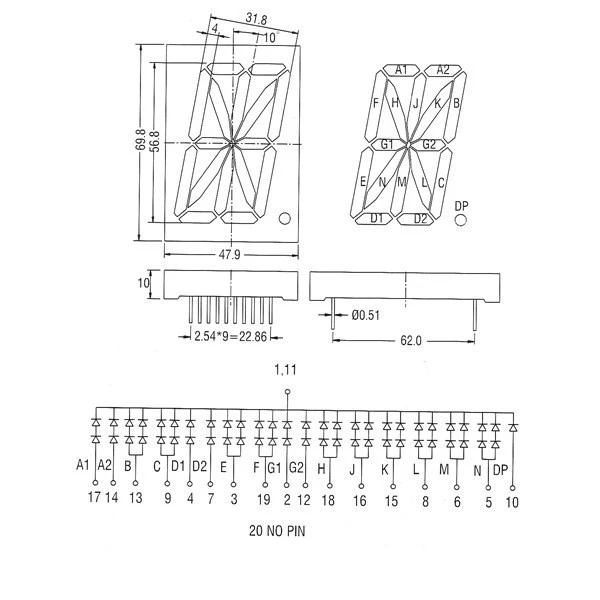

Dimension and Display Configuration
The Houkem-23012-BB has a listed screen dimension of 47.8 × 69.8 mm. The product specification identifies the emitting color as blue, with common-anode polarity, a white surface, and white diffused epoxy.
The original product documentation also references related configurations under the 23012 series, including different emitting colors and polarity options. For production orders, customers should confirm the exact part number, color, polarity, dimensions, and electrical specifications required for their equipment before quotation and mass production.
Packaging
HOUKEM provides product packaging for international B2B orders and can discuss packaging requirements according to order quantity and customer requirements. Customized packaging options can be confirmed with the sales team before production.
Certifications and Quality Support
HOUKEM provides LED display manufacturing and OEM support for international customers. Product documentation and applicable certification requirements can be discussed according to the target market and project requirements.
For elevator and industrial equipment projects, customers are encouraged to confirm the required technical documents, quality standards, electrical specifications, and inspection requirements before placing a production order.
Factory Information and OEM Support

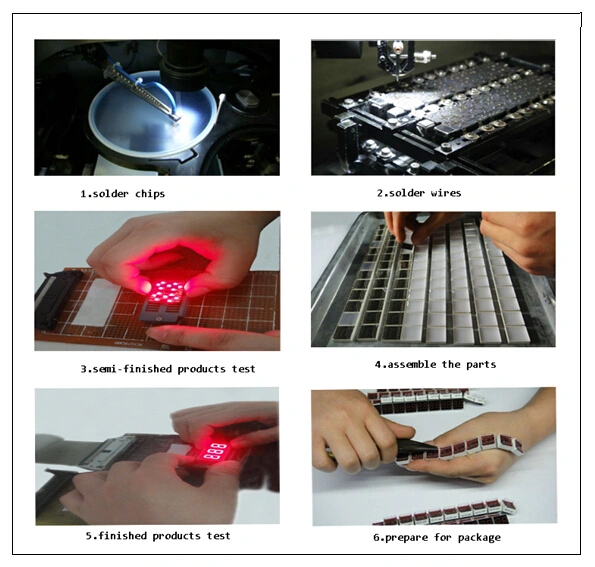

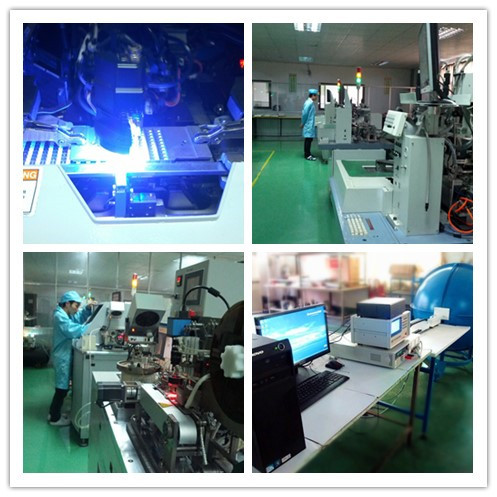

Dongguan Houke Electronic Co., Limited is a professional LED manufacturer based in Dongguan, Guangdong, China. The company supplies 7 segment LED displays, alphanumeric displays, dot matrix displays, customized LED displays, UV LEDs, and IR LEDs.
HOUKEM supports OEM and customized LED display projects and provides pre-sales and after-sales assistance for international B2B customers. Customers can contact the factory to discuss display dimensions, emitting color, polarity, packaging, quantity, and application requirements.
FAQ
Is this 2.3 inch LED display suitable for elevator applications?
Yes. The Houkem-23012-BB is designed for applications including elevator indicators and other equipment requiring large-format alphanumeric display information.
Why choose a 16 segment LED display instead of a 7 segment display?
A 16 segment structure provides greater flexibility for displaying alphabetic characters and alphanumeric information than a standard 7 segment configuration.
Can the display color or polarity be customized?
HOUKEM offers customized LED display solutions, and customers can discuss alternative colors, polarity configurations, and other specifications according to project requirements.
What information is needed for an OEM quotation?
Provide the required digit height, display dimensions, emitting color, polarity, quantity, application, and any existing drawing or reference part number for evaluation.
What is the minimum order quantity for this display?
The current product listing specifies a minimum order quantity of 10 pieces, making sample evaluation possible before a larger OEM production order.
Request a 2.3 Inch 16 Segment LED Display Quote
If you are sourcing a 2.3 inch 16 segment LED display for an elevator, industrial equipment, instrument panel, or OEM project, contact HOUKEM with your required quantity, color, polarity, dimensions, and application.
Our team can review your specifications, confirm the suitable display configuration, and provide a quotation and technical information for your project.
Our valid EU‑related certifications include CE, RoHS 2.0, REACH (SVHC), EMC. We are able to provide complete MSDS (Material Safety Data Sheet) documents for customers upon request.
All our LED products follow EU EMC directive, RoHS hazardous‑substance restrictions and REACH chemical regulations. Full certification files can be supplied before shipment.
