900nm LED High Power IR COB Chip
900nm LED High Power IR COB Chip Overview
HOUKEM900nm LED is a high-power infrared COB LED solution designed for professional applications requiring stable near-infrared output, high optical power, and long-term reliability. This high power IR COB LED supports a wavelength range from 900nm to 910nm, making it suitable for machine vision, optical sensing, security monitoring, medical equipment, and customized OEM projects.
With70W power output, 70pcs LED chips, and a red copper base PCB design, HOUKEM provides efficient thermal management and stable infrared performance for industrial applications. As a professional infrared LED manufacturer, HOUKEM offers customized wavelength options from 700nm to 1550nm to meet different customer requirements.
Key Features of 900nm Infrared LED
- High power 900nm LED COB chipdesign
- 70W infrared output for professional applications
- Available wavelength range: 900nm-910nm
- 70pcs high-quality LED chips with 42mil chip size
- Red copper plate for improved heat dissipation
- Optical power output: 3500-4900mW
- Wide wavelength customization from 700nm to 1550nm
- Long operating life up to 50,000 hours
- Supports OEM and ODM customization
- CE, RoHS, and ISO9001 certified
Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | 900nm LED High Power IR COB Chip |
| Model Number | HOUKEM-HP70W-910 |
| Power | 70W |
| Input Voltage | DC 14-16V |
| Forward Voltage | 14-16V |
| Forward Current | 2450mA |
| Wavelength | 900nm-910nm |
| Other Available Wavelengths | 700nm-1550nm |
| Optical Power | 3500-4900mW |
| LED Chip Quantity | 70pcs |
| Chip Size | 42*42mil |
| Chip Brand | Epileds |
| PCB Material | 2.0mm Red Copper Plate |
| Viewing Angle | 140° |
| Luminous Intensity | 4000mW |
| Lifespan | 50,000 Hours |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +80°C |
| Certification | CE, RoHS, ISO9001 |
| Warranty | 2 Years |
Electrical and Optical Characteristics
The HOUKEM 900nm infrared LED uses advanced COB packaging technology to achieve high optical output and reliable performance.
| Item | High Power 70W IR LED 900nm |
|---|---|
| Power | 70W |
| Color | Infrared Red |
| Chip Size | 42*42mil |
| Wavelength | 900nm-910nm |
| Forward Current | 2450mA |
| Forward Voltage | 14-16V |
| Optical Power | 3500-4900mW |
| Certification | CE, RoHS, ISO9001 |
The product supports multiple wavelength options, including:
700-705nm, 705-710nm, 720-725nm, 730-735nm, 740-745nm, 750-755nm, 760-765nm, 765-770nm, 780-785nm, 785-790nm, 800-805nm, 805-810nm, 830-840nm, 850-855nm, 880-890nm, 900-910nm, 910-920nm, 930-940nm, 940-945nm, 970-980nm, 980-990nm, 995-1000nm, 1010-1020nm, 1030-1035nm, 1040-1050nm, 1340-1350nm, 1450nm, and 1540-1550nm.

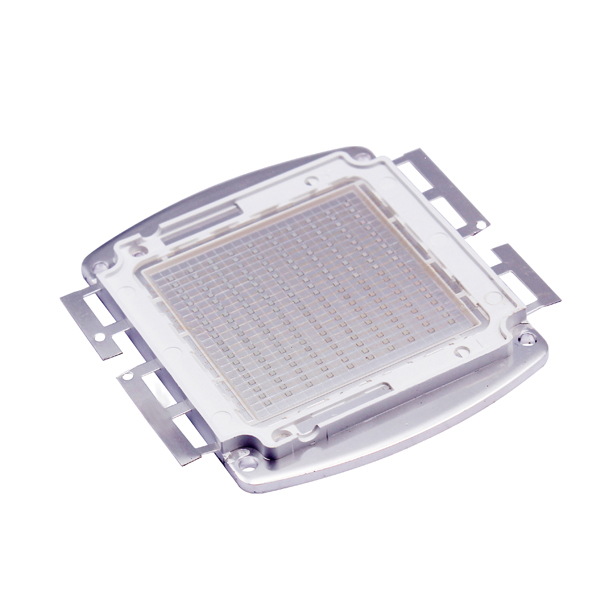

Available Power Options and Configurations
HOUKEM provides different high power IR LED solutions for various application requirements.

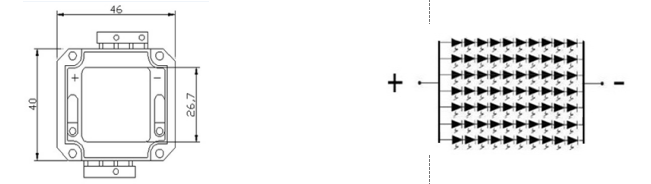

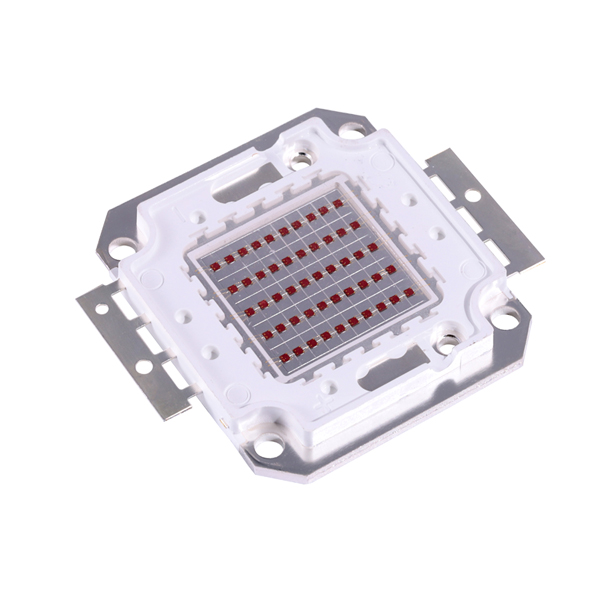

70W IR COB LED Configuration
- 10 series × 7 parallel
- 70pcs LED chips
- 42mil chip size
- Red copper PCB base
Other Available Configurations

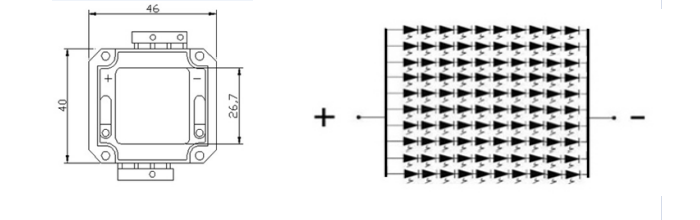

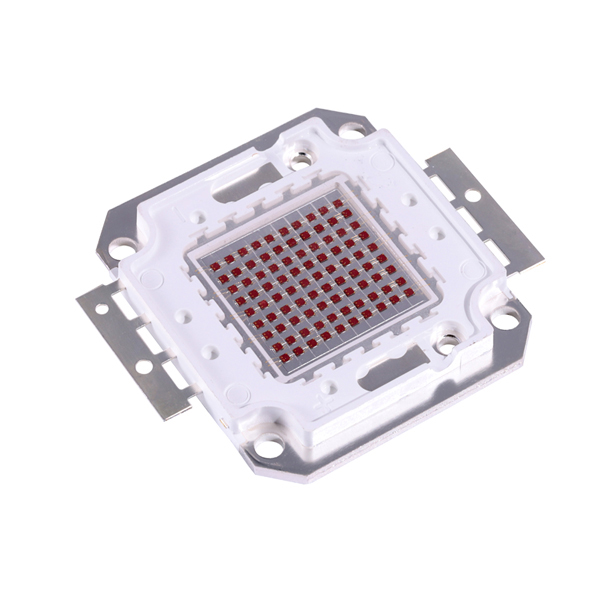

- 100W:
- 10 series × 10 parallel
- 100pcs LED chips
- 50W:
- 10 series × 5 parallel
- 10W:
- 3 series × 3 parallel
- 9pcs LED chips
- 3W:
- 1 series × 2 parallel

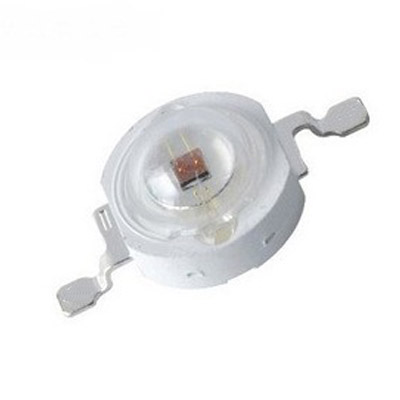

- 1W:
- 300-350mA
- 1 series × 1 parallel
- 500W:
- 500pcs LED chips
Applications of 900nm LED
The HOUKEM 900nm LED provides invisible infrared illumination with high stability and efficiency for professional systems.
Machine Vision and Industrial Inspection
- Industrial cameras
- Vision inspection systems
- Automated detection equipment
Optical Sensors and Measurement
- Distance measurement systems
- Optical sensing devices
- Detection equipment
Security and Night Vision
- Security cameras
- Infrared illuminators
- Monitoring systems
Medical and Scientific Applications
- Medical devices
- Biomedical equipment
- Research instruments
Why Choose HOUKEM Infrared LED Solutions?
HOUKEM has more than 19 years of experience in LED product development, manufacturing, and global supply. We specialize in high power IR LED, COB LED, UV LED, and customized LED solutions.
Our advantages include:
- Professional infrared LED manufacturing capability
- Factory-direct pricing
- Customized wavelength and power solutions
- Advanced automatic production equipment
- Professional spectrum testing equipment
- Stable mass production capacity
- Global export experience
HOUKEM supports OEM customers with customized 900nm infrared LED chips for industrial, medical, security, and sensing applications.
FAQ
What applications use 900nm LED products?
900nm LED products are commonly used in machine vision, optical sensors, security monitoring, and medical equipment requiring near-infrared illumination.
Can HOUKEM customize the wavelength of IR COB LED products?
Yes, HOUKEM can customize infrared LED wavelengths from 700nm to 1550nm according to customer application requirements.
What is the advantage of the red copper PCB base?
The red copper PCB improves heat dissipation performance and helps maintain stable operation for high-power infrared LED applications.
Is this 900nm infrared LED suitable for OEM projects?
Yes, HOUKEM provides OEM and ODM support, including customized power, wavelength, packaging, and product solutions.
Can customers request samples before bulk orders?
Yes, sample orders are available for testing and verification before mass production.
