910nm 909nm 905nm 900nm ir led 100w high power ir led 900 nm cob ir led
- Input Voltage(V):DC 14-16V
- Warranty(Year):2-Year
- Type:High Power LED
- Support Dimmer:NO
- Lighting solutions service:Lighting and circuitry design
- Luminous Efficacy(lm/w):50
- Lifespan (hours):50000
- Working Time (hours):50000
- Product Weight（kg）:0.03
- Chip Material:INGAN
- Emitting Color:Red
- Luminous Intensity:5000mw
- Power:100w
- Viewing Angle(°):140
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:100W High Power ir LED 900nm
- Emitting Colour:red
- Forward Voltage:14-16v
- Wave length:900nm-910nm
- other Wavelength:255nm-1550nm
- Certification:CE, ROHS, ISO9001
- Chip brand:Epileds
- Chip Quatity:100PCS
- Frame Material:Red Copper Base
- Optional Color:IR/ UV/ RED/BLUE/GREEN/YELLOW/WHITE
High power 100w 910nm 900nm 905nm ir led
Electrical and optical characteristics (Ta = 25℃)
| Item | High Power 100w ir LED 900NM |
| Power | 100w |
| Color | red |
| chip size | 42*42mil |
| Wavelength | 700-705nm, 705-710nm, 720-725nm,730-735nm, 740-745nm,750-755nm, 760-765nm, 765-770nm, 780-785nm, 785-790nm, 800-805nm,805-810nm, 830-840nm,850-855nm, 880-890nm, 900-910nm, 910-920nm, 930-940nm, 940-945nm, 970-980nm, 980-990nm, 995-1000nm, 1010-1020nm, 1040-1050nm, 1030-1035nm, 1340-1350nm, 1450nm, 1540-1550nm |
| Forward Current | 3000-3500mA |
| Forward Voltage | 14-16v |
| Optical power | 5000-7000mw |
| Certification | CE, RoHS, ISO9001 |
| PCB Material | 2.0mm Red copper plate |

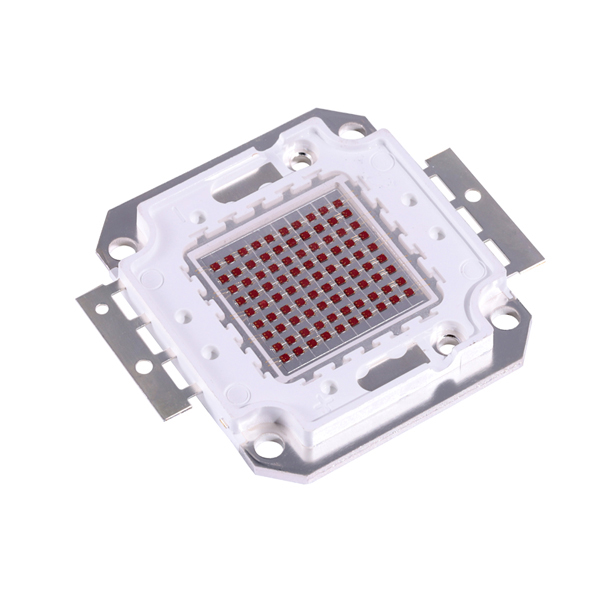

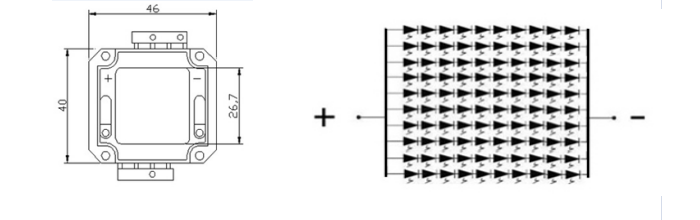

10 series 10 parallel, 100pcs led chip, chip size: 42mil
10w, 3 series 3 parallel, 9pcs led chip, chip size: 42mil

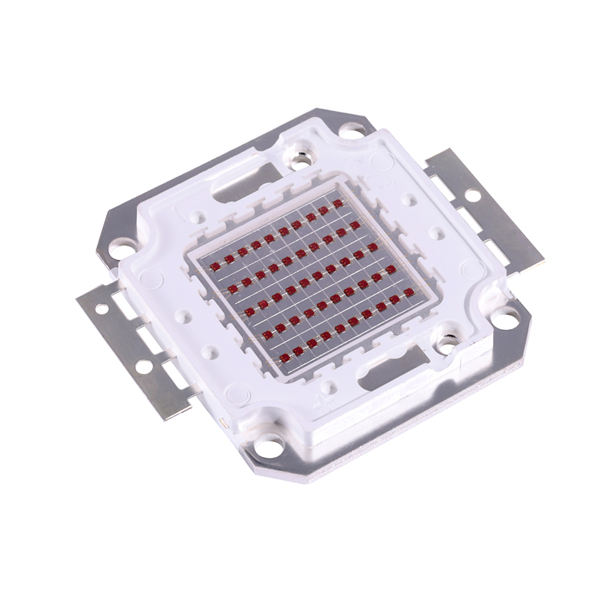

50w ,10 series 5 parallel

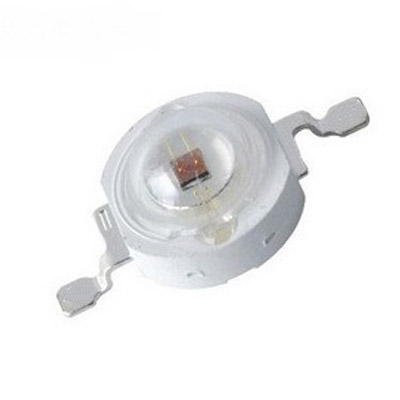

1w ir led, 300-350mA,1.5-1.6V, 1series 1 parallel
3w ir led, 600-700mA,1.5-1.6V, 1 series 2 parallel

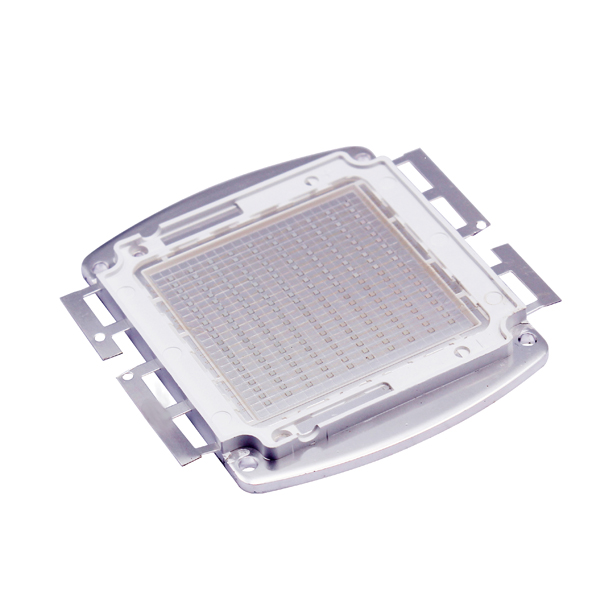

500w, 500PCS led chip
Established in 2003, Houkem has 19 years professional manufacturer experience, development, production, sale and service of LED products,
including 7 segment LED/SMD displays, Alphanumeric displays, SMD LEDs, dot-matrix Led displays, bar graph arrays and LED direction indicator
displays, High power led, high power 255nm to 1600nm LED arrays,COB LED, SMD LED, street light LED, ,and all LED lighting application solution, etc..
In recent years, our company has introduced a series of advanced equipment including Automatic Production Machines and Spectrum Test Machine.
The products are also exported to clients in countries like USA, Germany, Japan, Korea etc.
Yes, we can. we welcome sample order to test and check quality.
Q2: Could I put my logo on it?
Of course. The logo can be made according to your requirements once you reached our MOQ.
Q3: What's your packaging?
We have a color box and carton. Welcome to customize if you need.
Q4: What's your lead time?
3-7 days for the sample orders in the stock. 25-30 days for mass production.
Q5: What's your quotation terms?
EXW is available.
Q6: What's your warranty?
With over 16 years of experience in manufacturing the LED equipment, we're fully confident about our quality.
All of the products will be tested before shipment. and have 2 years warranty.
Q7: Why choose us?
1) We provide factory direct price.
2) We have our own R&D team, the products can be customized according to your requirements.
3) We provide superior and timely pre-sales advice and after-sales service.
4) W provide service door to door (China to your warehouse), much easy transaction.
