8*8 dot matrix display white
8*8 dot matrix display white
8*8 dot matrix display white
8*8 dot matrix display white
8*8 dot matrix display white
8*8 dot matrix display white
Model No: HOUKEM-7088-BW

1.9mm dot matrix white houkem

led dot matrix display houkem is led dot matrix display professional manufacturer
minimum order :
1 piece
Quantity :
$0.76 - $1.00 / piece
add to cart
Contact Now
  • Application:Indoor, Semi-outdoor, Indoor, elevator,Graphics
  • Color:white
  • Panel Size:20*20mm
  • Pixel Pitch:2.54
  • Supplier Type:Original manufacturer, ODM, OEM
  • Media Available:datasheet, Photo
  • Place of Origin:Guangdong, China
  • Model Number:HOUKEM-7088-BW
  • Brand Name:HOUKEM
  • use:advertising publish, shopping mall, elevator, Restaurant & Hotel Supplies
  • Pixels:2.54
  • Specification:--
  • Product name:8*8 led dot matrix
  • DOT:20*20*5.9mm
  • Warranty:2Years
  • Luminous Intensity:180-200mcd
  • Forward Voltage:2.8-2.9v
  • PCB Polarity:common anode
  • operating temperature:-35 ~ +60 ℃
  • OEM:YES
  • Custom made:YES
  • Certificate:CE ROHS ISO9001 REACH
Product Describtion

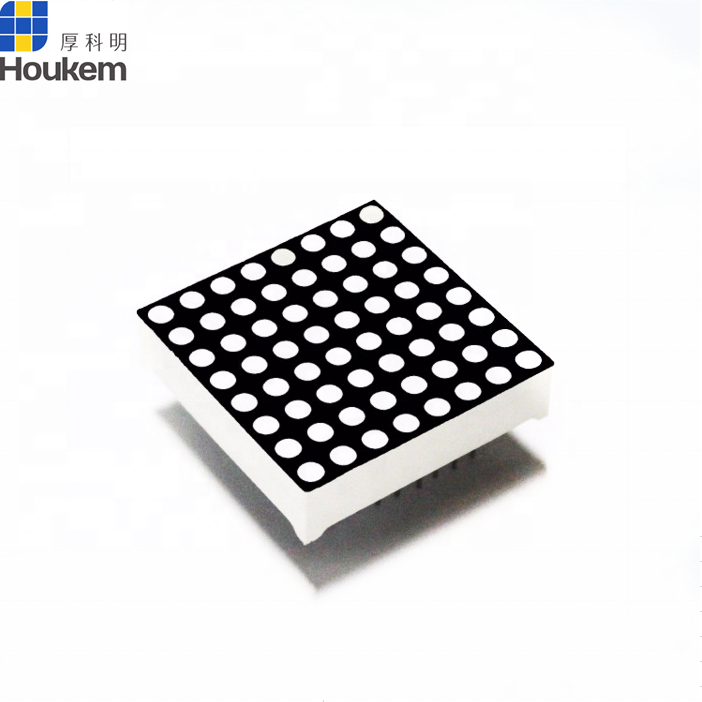

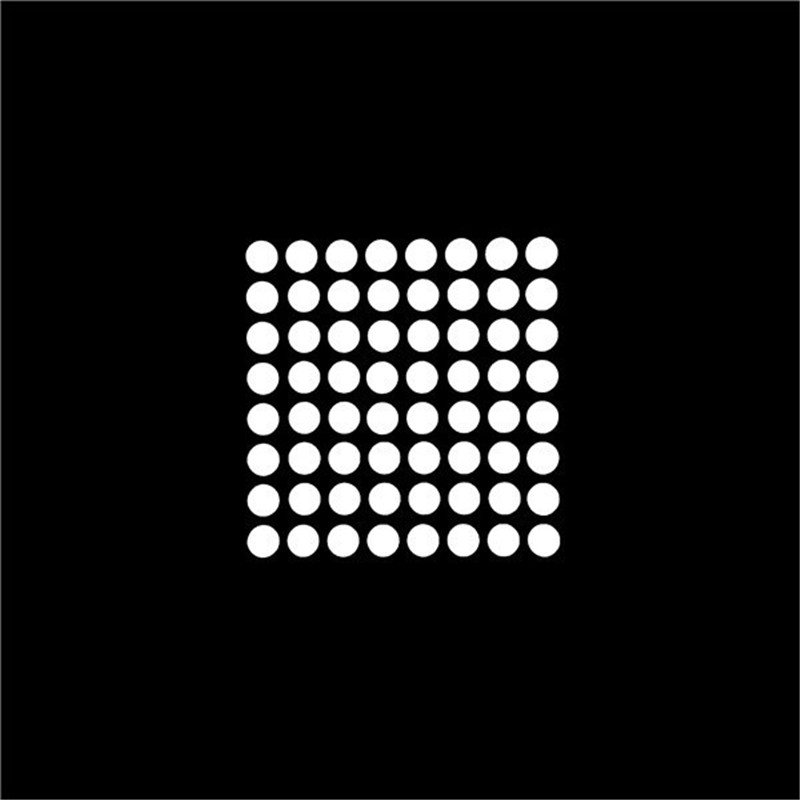

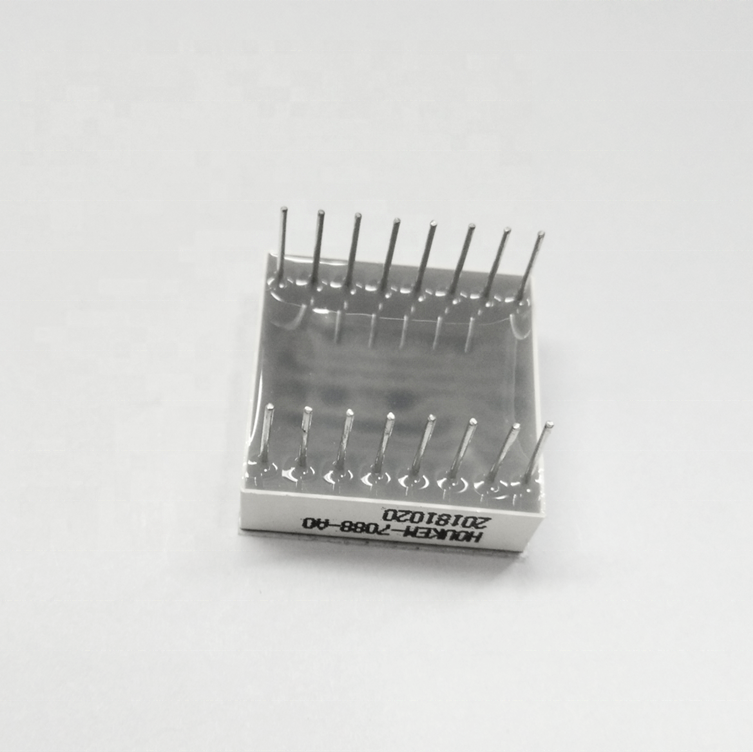

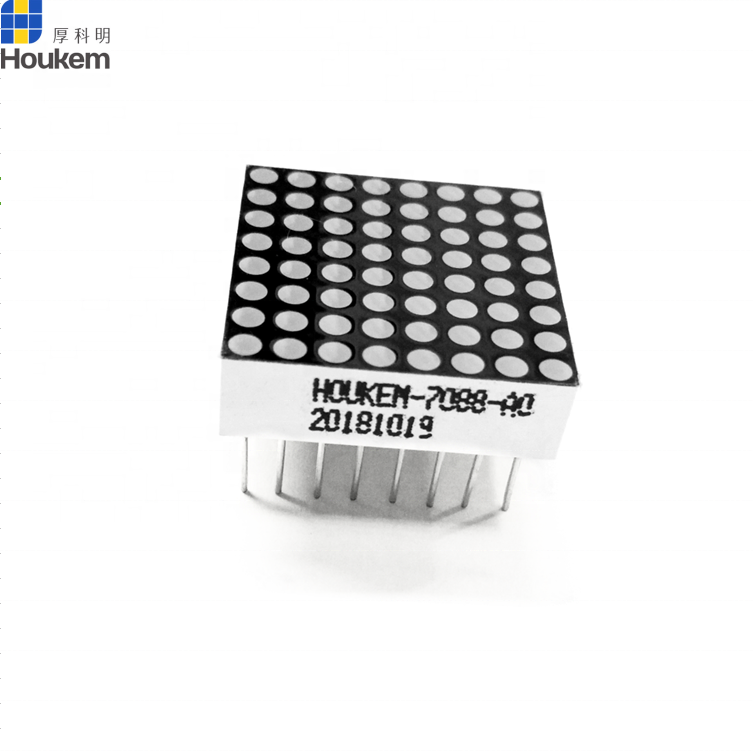

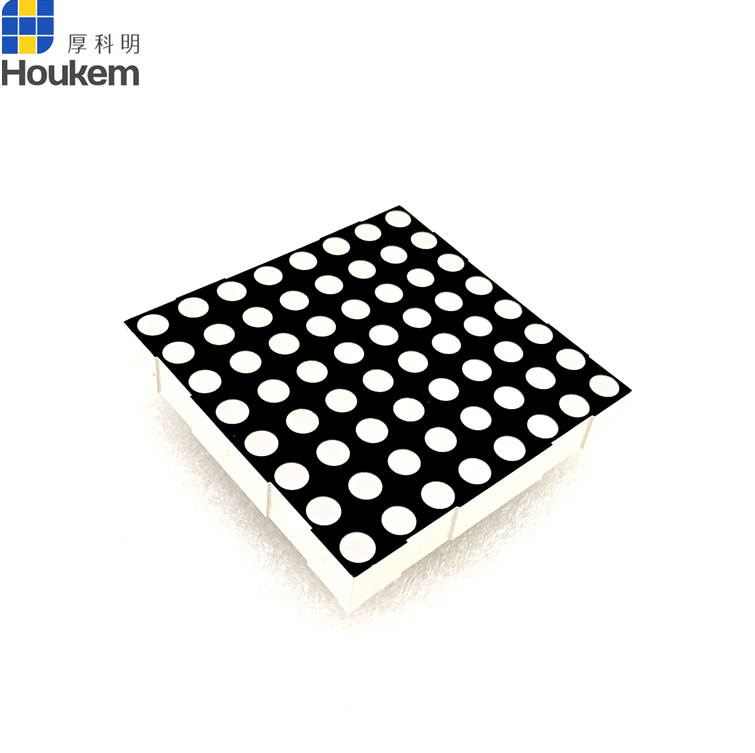

1.9mm 8x8 dot matrix display 20*20mm white color

Features:

1, Low consumption

2, High brightness

3,High intensity and reliability

4,Easy assembly

Product details:

Item No.HOUKEM-7088-BW
Dimension20*20*5.9mm
dot1.9mm
Surface color Black / Grey/ white
Segment colorWhite /Clear
chipsmd type
Emitting color white

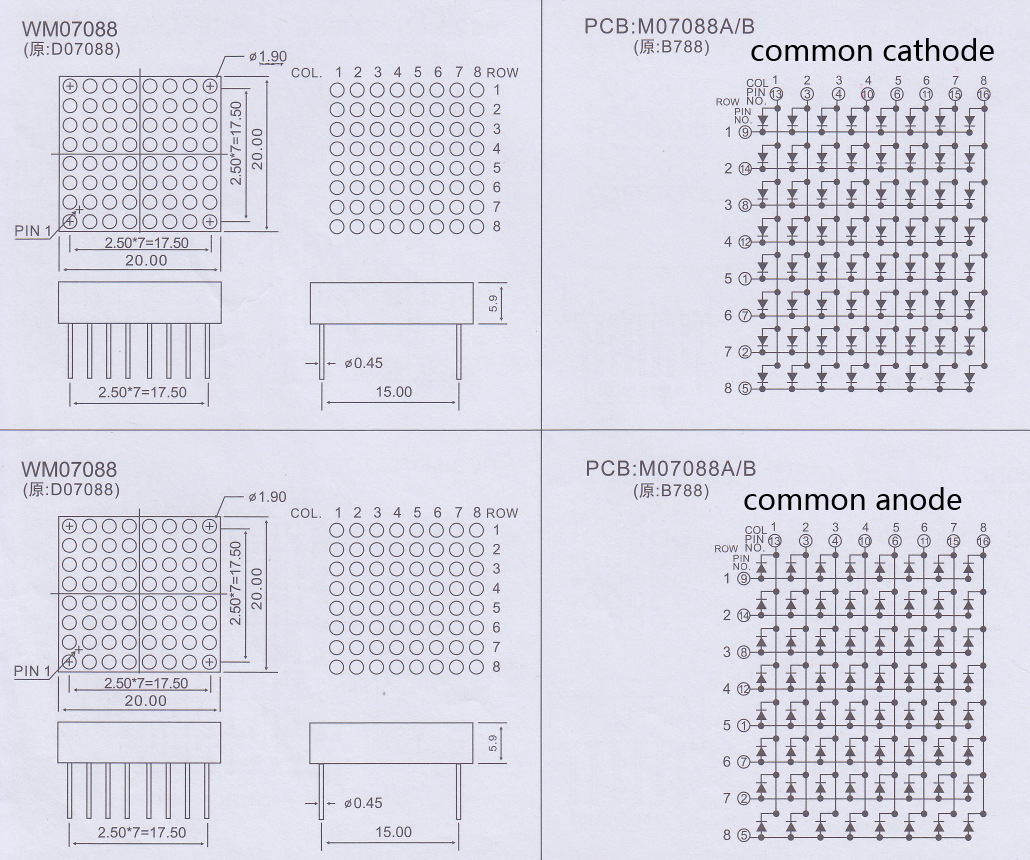

Package dimension & Internal circuit diagram

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=15Ma)

Emitting Color

Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=15mA

600-605

30

1.9

2.0

90

100

Super green

IF=15mA

565-575

30

1.9

2.0

48

55

Super red

IF=15mA

620-625

20

1.8

2.0

110

130

Ultra red 1

IF=15mA

620-625

20

1.8

2.0

200

210

Ultra red 2

IF=15mA

620-625

20

1.8

2.0

300

350

High red

IF=15mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=15mA

570-580

30

1.9

2.0

43

50

Yellow

IF=15mA

580-600

35

1.9

2.0

70

80

Blue

IF=15mA

465-475

40

2.95

3.0

150

200

Ultra blue

IF=15mA

465-469

40

2.9

3.0

350

380

Pure green

IF=15mA

515-525

40

2.95

3.0

600

640

White

IF=15mA

-

-

2.8

2.9

180

200

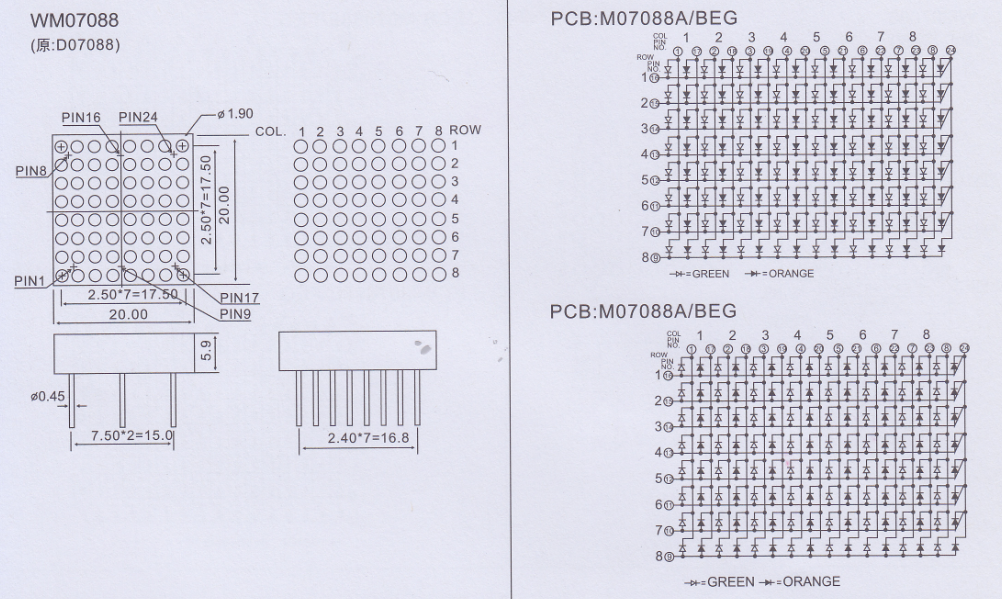

Dual color

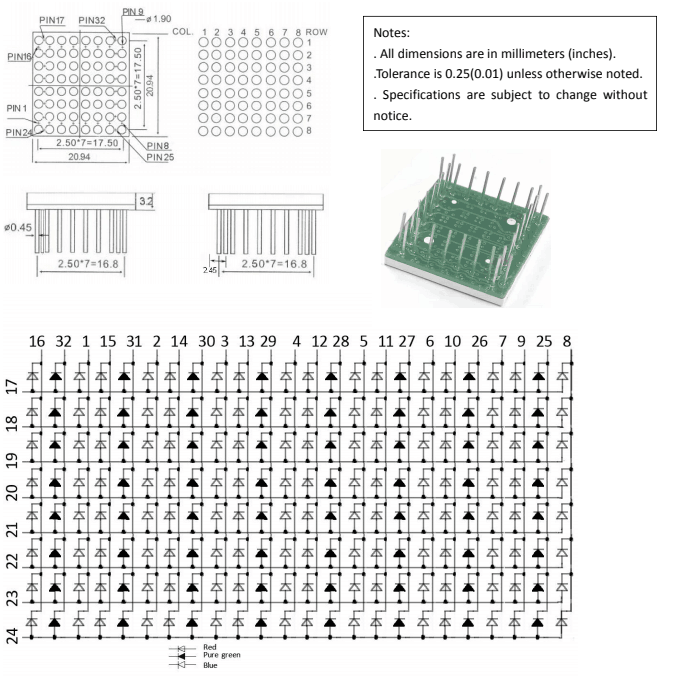

RGB color

Our Services

Customized product are available

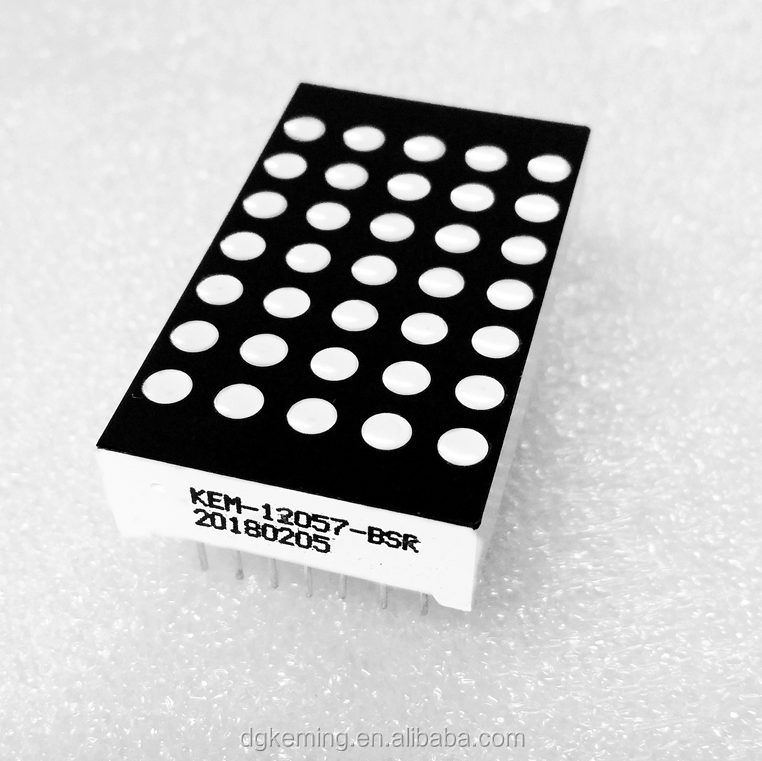

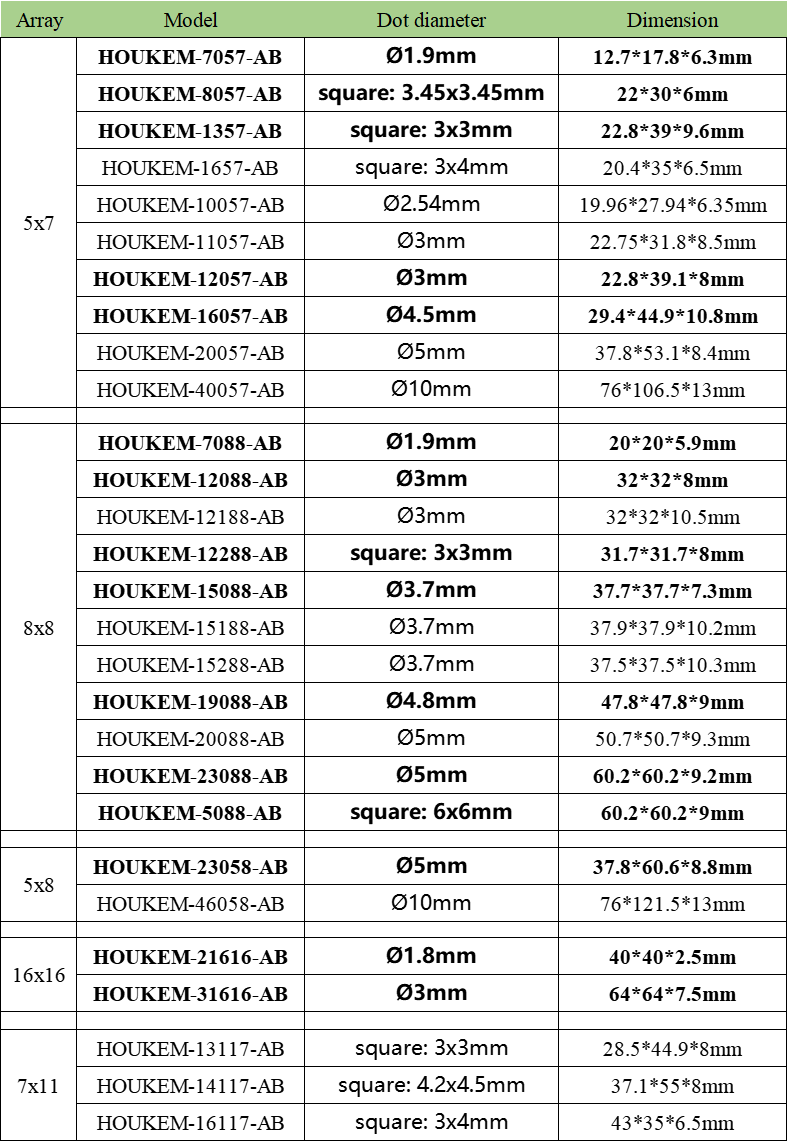

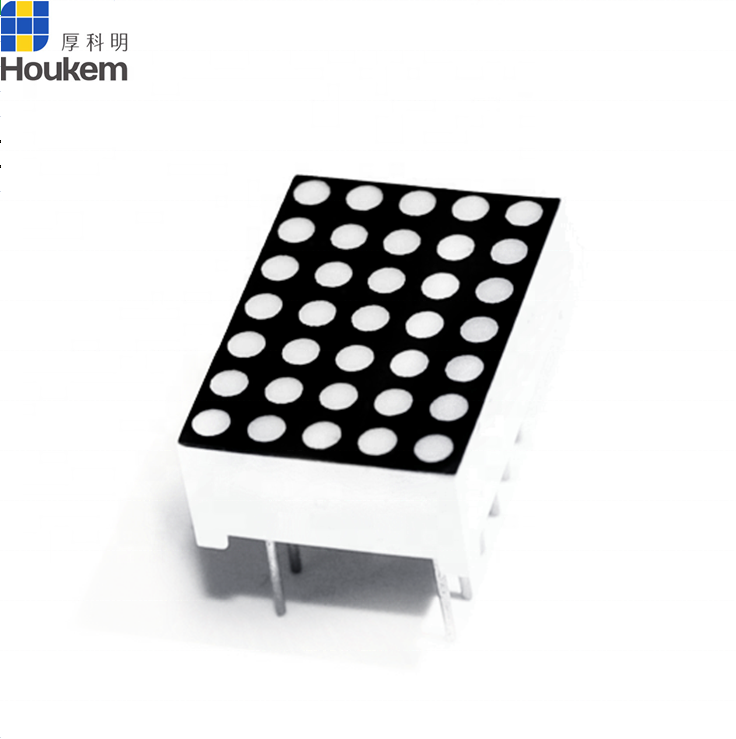

4.Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16

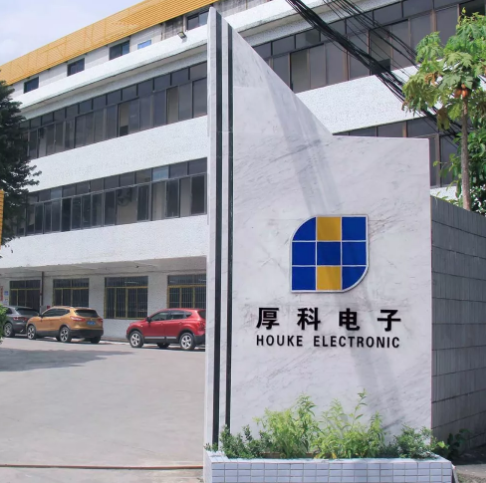

Factory pictures
Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays,
SMD LEDs, dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power led, high power 255nm
to 1550nm LED arrays,COB LEDs, SMD LEDs, street light LED, LED optical lens, Land all LED lighting application solution, etc.
