8*8 dot matrix display amber
8*8 dot matrix display amber
8*8 dot matrix display amber
Model No: HOUKEM-15088-BA

8x8 led matrix display amber orange common anode 3.7mm dot matrix module KEM-15088-BA

dot matrix led display houkem is led dot matrix display professional manufacturer
minimum order :
1 piece
Quantity :
$0.56 - $1.00 / piece
add to cart
Contact Now
  • Application:Indoor, elevator,Graphics
  • Color:AMBER
  • Panel Size:37.7*37.7mm
  • Place of Origin:Guangdong, China
  • Model Number:HOUKEM-15088-BA
  • Brand Name:HOUKEM
  • Type:LED
  • Product name:8*8 led dot matrix
  • DOT:37.7*37.7*7.3mm
  • Warranty:2Years
  • Luminous Intensity:90-100mcd
  • Forward Voltage:1.8-2.0v
  • PCB Polarity:common anode
  • operating temperature:-35 ~ +60 ℃
  • OEM:YES
  • Custom made:YES
Product Describtion

3.7mm 8x8 dot matrix display 38*38mm amber orange

Features:

1, Low consumption

2, High brightness

3,High intensity and reliability

4,Easy assembly

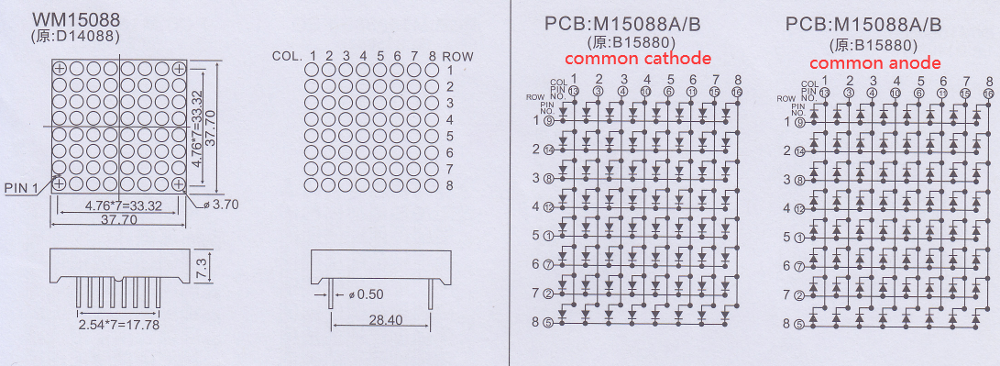

Package dimension & Internal circuit diagram

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=10-15Ma)

Emitting Color

Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=10-15mA

600-605

30

1.9

2.0

90

100

Super green

IF=10-15mA

565-575

30

1.9

2.0

48

55

Super red

IF=10-15mA

620-625

20

1.8

2.0

110

130

Ultra red 1

IF=10-15mA

620-625

20

1.8

2.0

200

210

Ultra red 2

IF=10-15mA

620-625

20

1.8

2.0

300

350

High red

IF=10-15mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=10-15mA

570-580

30

1.9

2.0

43

50

Yellow

IF=10-15mA

580-600

35

1.9

2.0

70

80

Blue

IF=10-15mA

465-475

40

2.7

2.9

150

200

Pure green

IF=10-15mA

515-525

40

2.7

2.9

180

250

White

IF=10-15mA

-

-

2.7

2.9

180

200

Product details:

Item No.HOUKEM-15088-BA
Dimension37.7*37.7*7.3mm
dot3.7mm
Surface color Black / Grey
Segment colorWhite /Clear
Emitting color Amber

Dual color

Our Services

Customized product are available


Custom service:

1. We can supply you all kinds of 7 segment LED display

---Digit size: from 0.25"to 20"

---Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment and 14 segment both available

3. Various colors: super red, ultra red, high red, yellow green, pure green, super green,

pure green, blue, yellow, white, amber, Bi-color, RGB.

4.Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16


Packaging & Shipping

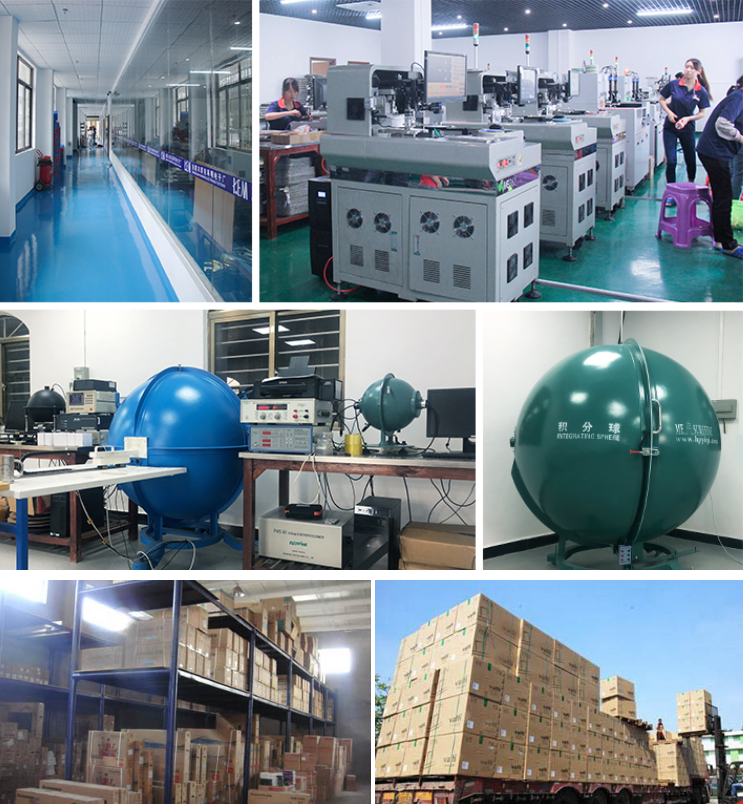

Factory pictures
Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays,
SMD LEDs, dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power led,
high power 255nm to 1550nm LED arrays,COB LEDs, SMD LEDs, street light LED, LED optical lens, LED spot light, high bay light,
street light,and all LED lighting application solution, etc.
