1.9mm 8x8 LED Matrix Display Module

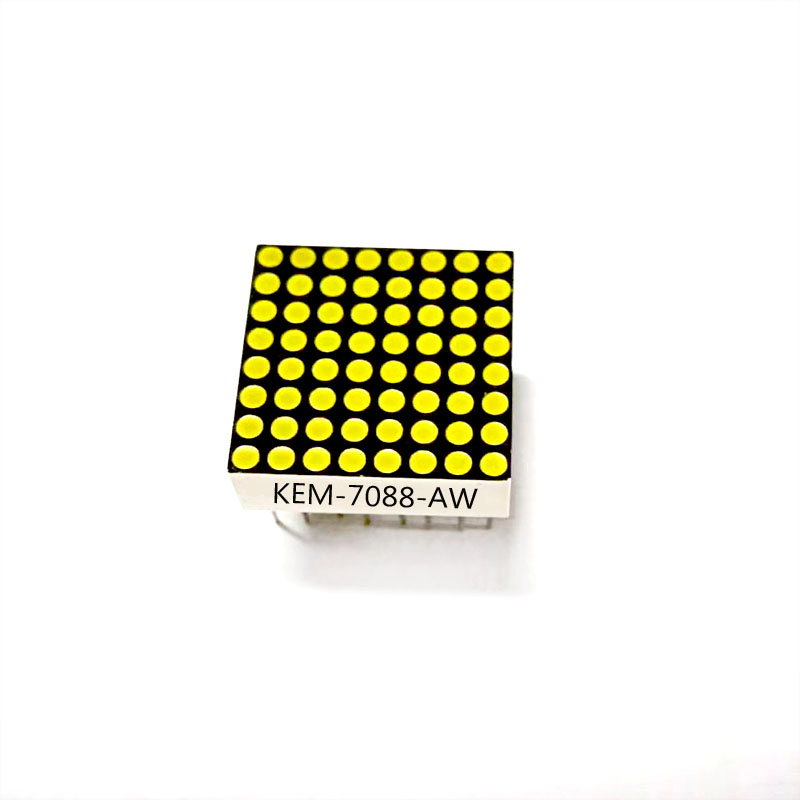

1.9mm LED Matrix Display Overview
The1.9mm LED Matrix Display is a compact 8×8 LED Matrix Display designed for applications requiring high display density in limited installation space. Featuring a 20×20mm module size, this display delivers clear and uniform illumination while maintaining low power consumption and long-term operational stability.
Manufactured by Houkem, this Mini LED Matrix Display is widely used in industrial control equipment, elevator display systems, digital clocks, embedded electronics, and intelligent control panels. With over 18 years of LED manufacturing experience, Houkem provides reliable OEM and ODM solutions for global equipment manufacturers, system integrators, and electronic product developers.
Product Features
Compact 20×20mm Design for Space-Limited Applications
The1.9mm LED Matrix Display features an 8×8 dot matrix structure with a compact 20×20mm footprint, making it ideal for electronic products where PCB space is limited without sacrificing display clarity.
Stable Performance and Long Service Life
Key features include:
- 8×8 dot matrix with 1.9mm pixel size
- Compact 20×20mm module
- Uniform LED brightness
- Low current consumption
- Long operating life up to 50,000 hours
- Common anode and common cathode available
- CE & RoHS compliant
- 2-year warranty
Designed for continuous operation, this LED Matrix Display Module provides dependable performance in industrial and commercial electronic systems.
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | 1.9mm LED Matrix Display |
| Part Number | Houkem-7088-A/BSR |
| Model Number | Houkem-7088-A/BSR |
| Dot Array | 8 × 8 |
| Panel Size | 20 × 20mm |
| Pixel Size | 1.9mm |
| Pixel Pitch | 2.54mm |
| Surface Color | Black / Grey |
| Epoxy Color | Milky White / Clear |
| Emitting Color | Red |
| Available Colors | Red, Green, Yellow, Orange, Blue |
| Luminous Intensity | 80–100mcd/chip |
| Forward Voltage | 1.8–2.0V |
| Forward Current | 18mA |
| Polarity | Common Anode / Common Cathode |
| Life Span | 50,000 Hours |
| Certification | CE, RoHS |
| Warranty | 2 Years |

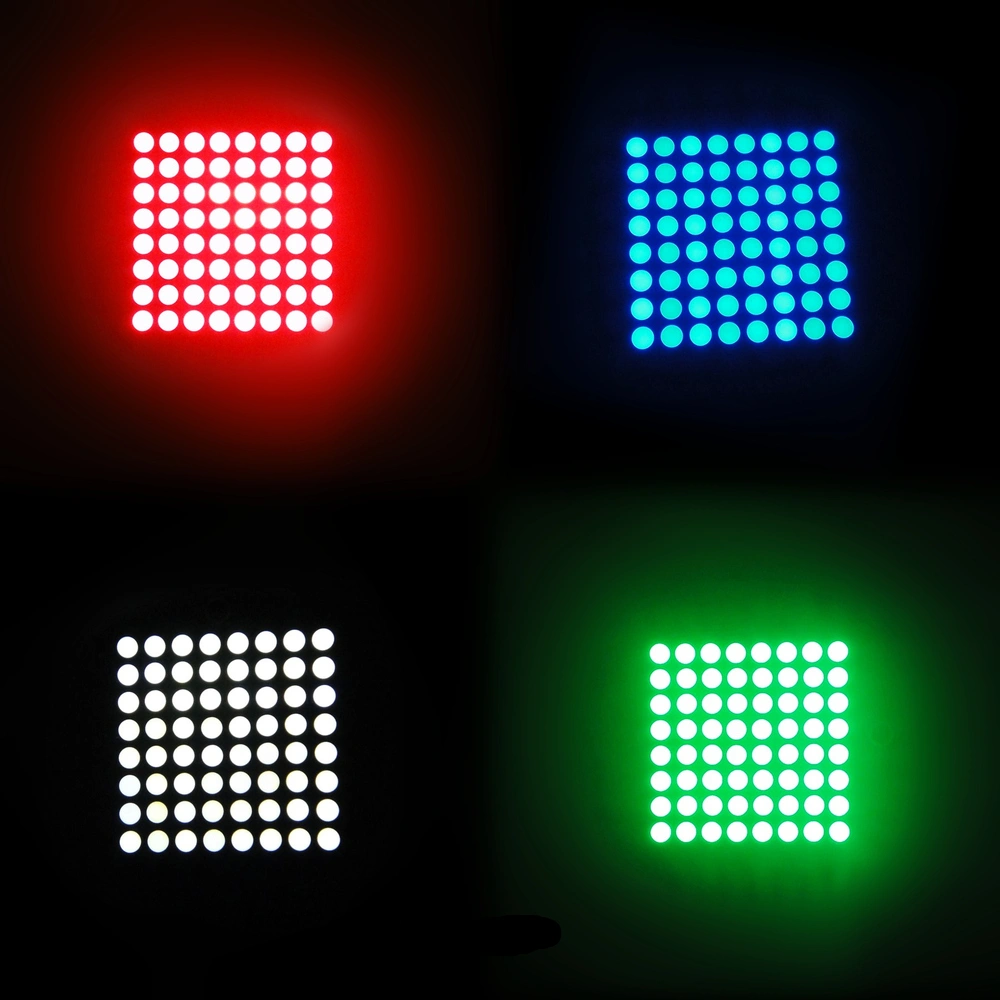

Available LED Colors
To support different product designs, Houkem offers multiple LED color options for the 1.9mm LED Matrix Display.
| Color | Wavelength (nm) | Forward Voltage (V) | Forward Current (mA) | Luminous Intensity (mcd) |
|---|---|---|---|---|
| Super Red | 630–635 | 1.8–2.0 | 18 | 100–150 |
| High Red | 638–660 | 1.8–1.9 | 18 | 15–20 |
| Ultra Red | 620–625 | 2.0–2.1 | 18 | 200–300 |
| Super Green | 565–575 | 1.9–2.0 | 18 | 48–55 |
| Pure Green | 615–625 | 2.8–3.0 | 20 | 260–300 |
| White | — | 2.6–2.8 | 20 | 200–250 |
| Blue | 465–475 | 2.8–3.0 | 20 | 150–200 |
| Yellow | 580–600 | 1.9–2.0 | 18 | 70–80 |
| Amber | 600–605 | 1.9–2.0 | 18 | 100–110 |
If your project requires customized colors, brightness, or electrical characteristics, our engineering team can provide tailored solutions.
Typical Applications
Designed for Industrial and Embedded Systems
The compact size of this Mini LED Matrix Display makes it suitable for equipment requiring reliable visual indicators and message displays.
Typical applications include:
- Industrial equipment displays
- Elevator floor and status indicators
- Digital clock displays
- Home appliance control panels
- Advertising and message displays
- Embedded electronic devices
- Instrument panels
- Intelligent controllers
- Electronic measuring equipment
Its compact structure allows engineers to display numbers, symbols, icons, and simple characters while minimizing PCB space.
OEM & Custom Manufacturing
Factory Direct LED Matrix Display Supplier
Houkem specializes in manufacturing customized LED Matrix Display Modules for OEM customers worldwide.
Customization services include:
- LED color selection
- Common anode or common cathode configuration
- Pin layout customization
- Brightness adjustment
- Customized packaging
- Private label support
- OEM & ODM manufacturing
With over 18 years of manufacturing experience and an ISO 9001 certified quality management system, every module undergoes strict electrical and visual inspections before shipment to ensure stable quality and long-term reliability.
Why Choose Houkem?
- Original LED display manufacturer with over 18 years of experience
- ISO 9001 certified production management
- CE and RoHS compliant products
- Stable production capacity for bulk orders
- Fast sample delivery in 3–7 days
- Mass production lead time of 20–30 days
- Professional OEM & ODM engineering support
- Factory-direct pricing and global export experience
Frequently Asked Questions
Can this 1.9mm LED Matrix Display be customized for OEM projects?
Yes. We provide OEM and ODM services including LED color, pin configuration, brightness, packaging, and other custom specifications.
Is this Mini LED Matrix Display suitable for elevator display systems?
Yes. The compact 20×20mm size makes it an excellent choice for elevator indicators, floor displays, and embedded control panels where installation space is limited.
What color options are available?
Standard options include red, green, yellow, orange, and blue. Additional specifications can be discussed according to your project requirements.
Do you provide samples before mass production?
Yes. Sample orders are welcome for testing, prototype development, and quality verification before bulk purchasing.
What is your production lead time?
Standard samples are typically shipped within 3–7 days, while mass production generally requires 20–30 days depending on order quantity and customization requirements.
Request a Quote
Looking for a reliable 1.9mm LED Matrix Display manufacturer for your next project?
Contact Houkem today to request samples, technical specifications, OEM customization, or a competitive quotation. Our engineering and sales teams are ready to help you select the right LED Matrix Display Module for your industrial, elevator, or embedded electronic application.
