High-Quality 11x7 Dot Matrix LED Module for Industrial Display Applications

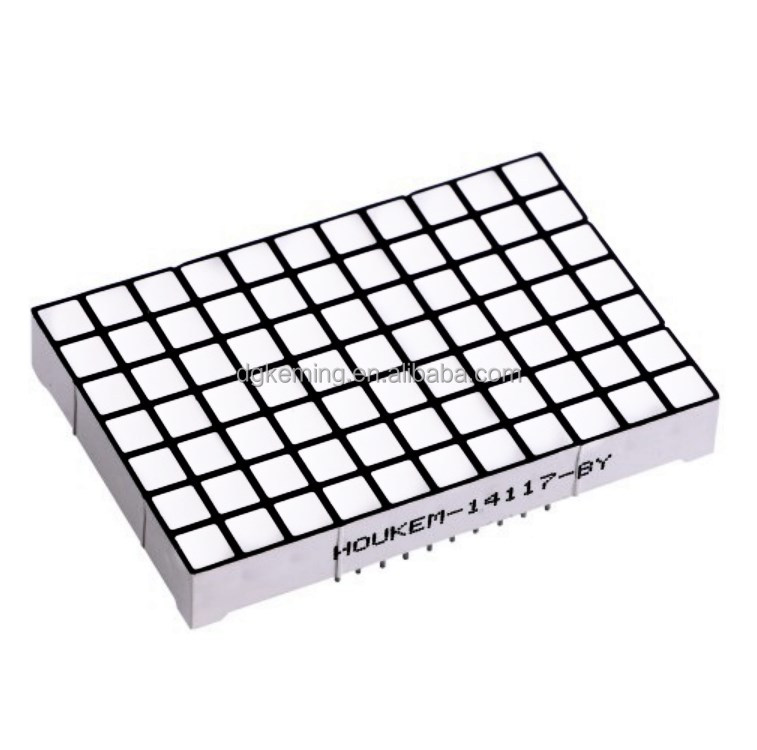

HOUKEM11x7 Dot Matrix LED Module (Model: KEM-14117-A/BSR) is a high-performance LED display component designed for elevator indicators, industrial equipment displays, numeric information systems, and customized LED display solutions. With a compact 55×37.1×8mm structure and 4.2×4.5mm square LED dots, this 11x7 LED Dot Matrix Display provides clear visual performance, stable brightness, and reliable long-term operation for professional applications.
As an experienced LED display manufacturer, HOUKEM provides OEM and ODM services to meet different customer requirements, including customized dimensions, emitting colors, polarity options, and packaging solutions.
Product Features of 11x7 Dot Matrix LED Module
The HOUKEM 11x7 Dot Matrix LED Module is manufactured with high-quality LED chips and precise production processes to ensure consistent performance in various display applications.
Key features include:
- 11×7 LED dot matrix structure for graphic, numeric, and character display
- 4.2×4.5mm square LED dots for balanced display visibility and compact design
- Super red emitting color with stable luminous performance
- Common cathode and anode polarity options available
- High reliability with long service life
- Low power consumption and efficient operation
- OEM and customized LED module solutions supported
- CE, RoHS, REACH, and ISO9001 compliant manufacturing
The module uses Taiwan Epistar LED sources, providing stable light output and consistent quality for demanding industrial applications.
Product Specifications
| Item | Specification |
|---|---|
| Product Model | HOUKEM-14117-A/BSR |
| Product Type | 11x7 Dot Matrix LED Module |
| Dot Matrix Array | 11×7 |
| Dot Size | 4.2×4.5mm |

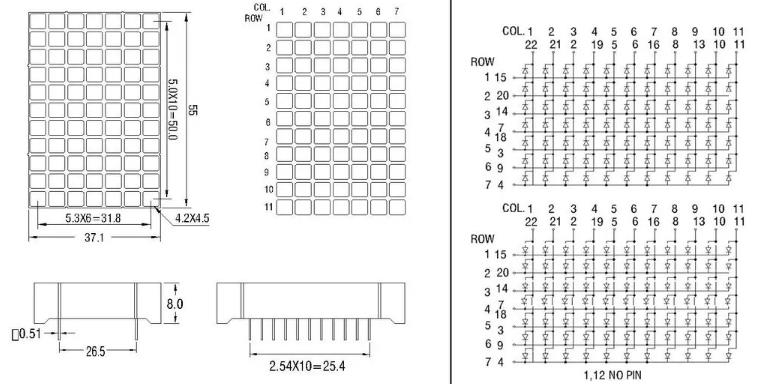

| Module Dimension | 55×37.1×8mm |
| Emitting Color | Super Red |
| Luminous Intensity | 80-100mcd/chip |
| LED Source | Taiwan Epistar LED |
| Surface Color | Black/Grey |
| Epoxy Color | Milky White/Clear |
| Polarity | Common Cathode/Anode |
| Warranty | 2 Years |
| Certificate | CE / RoHS / REACH / ISO9001 |
Applications of 11x7 LED Dot Matrix Display
The11x7 LED Dot Matrix Display is widely used in professional display equipment where clear information presentation and reliable operation are required.
Typical applications include:
Elevator Indicator Displays
The compact size and bright super red LEDs make this module suitable for elevator floor indicators, direction displays, and customized elevator control systems.
Industrial Equipment Displays
The module can be integrated into industrial machines, control panels, and monitoring equipment to display numbers, symbols, and operational information.
Digital Information Displays
The11x7 Dot Matrix LED Module can be used for advertising displays, exhibition equipment, restaurant displays, and other digital information systems.
Customized LED Display Solutions
HOUKEM supports OEM and ODM projects for customers requiring special sizes, colors, circuit designs, or display configurations.
Why Choose HOUKEM LED Matrix Modules?
HOUKEM has more than 19 years of experience in LED product manufacturing, development, and sales. Our product range includes customized LED displays, 7 segment LED displays, dot matrix LED displays, UV LEDs, and IR LED products.
With professional production equipment, strict quality control systems, and experienced engineering support, HOUKEM provides reliable LED display solutions for customers worldwide.
Our advantages include:
- Factory-direct pricing
- Professional LED display R&D team
- OEM/ODM customization capability
- Strict quality inspection before shipment
- Fast sample production and flexible order support
- Global shipping service from China to customer warehouses
Whether you need a standard 11x7 LED Dot Matrix Display or a customized LED indicator module, HOUKEM can provide a suitable solution according to your project requirements.
FAQ About 11x7 Dot Matrix LED Module
Q1: What is the main application of the 11x7 Dot Matrix LED Module?
The module is mainly used for elevator indicators, industrial equipment displays, numeric displays, and customized LED information systems.
Its 11×7 dot structure allows engineers to create clear characters, numbers, and simple graphic information.
Q2: Can HOUKEM customize the LED matrix module?
Yes, HOUKEM supports OEM and ODM customization including size, emitting color, polarity, logo marking, and packaging.
Customers can provide their design requirements for engineering evaluation and customized production.
Q3: What colors are available for this LED Dot Matrix Module?
The standard model features super red LEDs, while other colors can be customized according to project requirements.

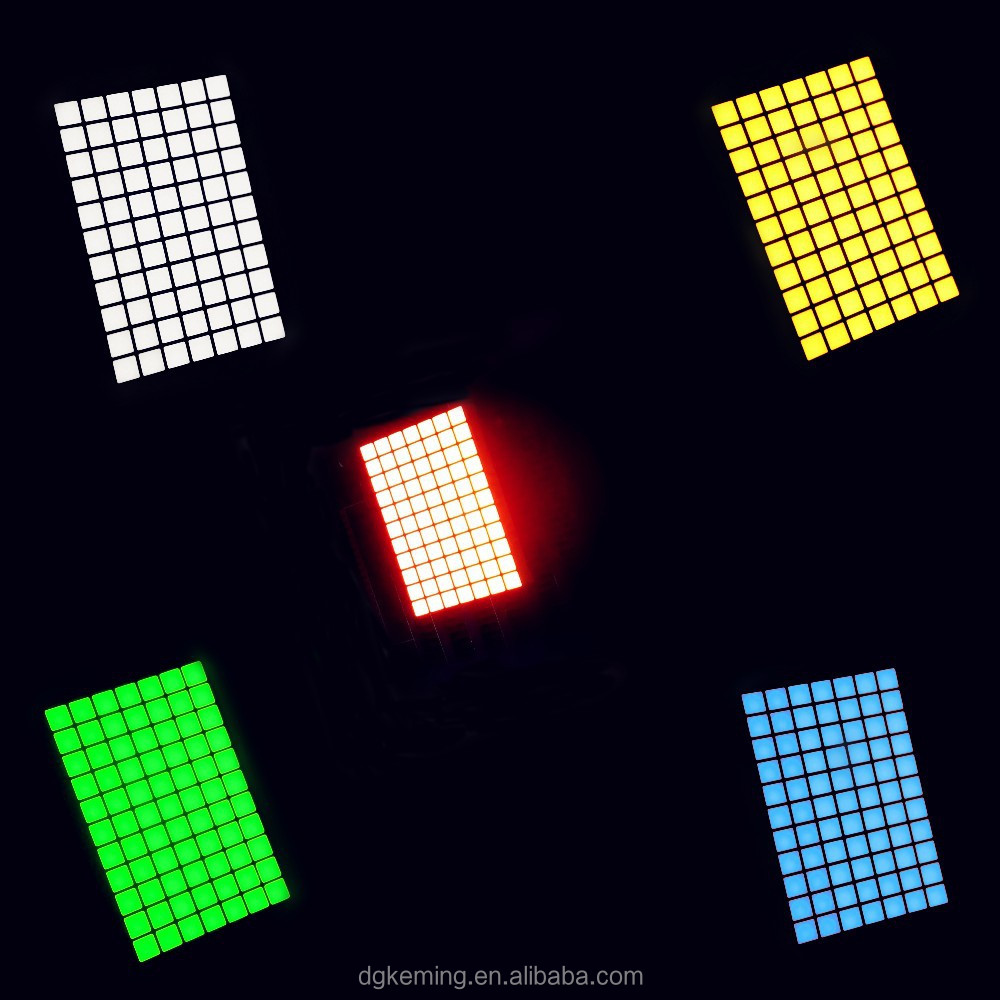

Available options include red, green, blue, white, yellow, amber, and bi-color solutions.
Q4: Does the 11x7 LED Dot Matrix Display support sample orders?
Yes, sample orders are available for quality testing and product verification.
Customers can test the LED performance, brightness, dimensions, and compatibility before mass production.
Q5: What is the production lead time for bulk orders?
Sample orders usually require 3-7 working days, while mass production normally takes around 15-30 days depending on order quantity and customization requirements.
Request Your 11x7 LED Matrix Solution Today
Looking for a reliable 11x7 Dot Matrix LED Module supplier?
Contact HOUKEM today for product datasheets, samples, OEM customization, and professional LED display solutions for your project. We are ready to support global customers with high-quality LED matrix products and factory-direct service.
Our valid EU‑related certifications include CE, RoHS 2.0, REACH (SVHC), EMC. We are able to provide complete MSDS (Material Safety Data Sheet) documents for customers upon request.
All our LED products follow EU EMC directive, RoHS hazardous‑substance restrictions and REACH chemical regulations. Full certification files can be supplied before shipment.
